Tornillo hexagonal DIN 960 8.8 BL

ISO 8765

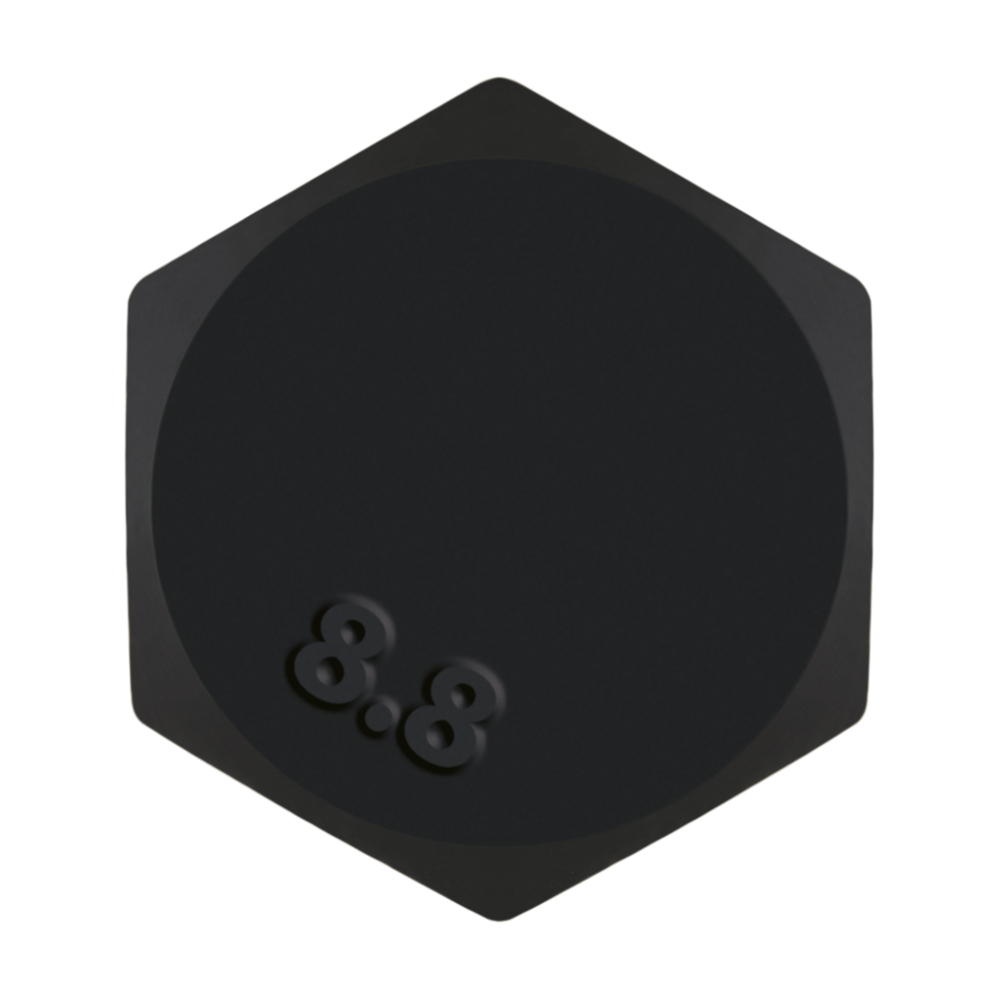

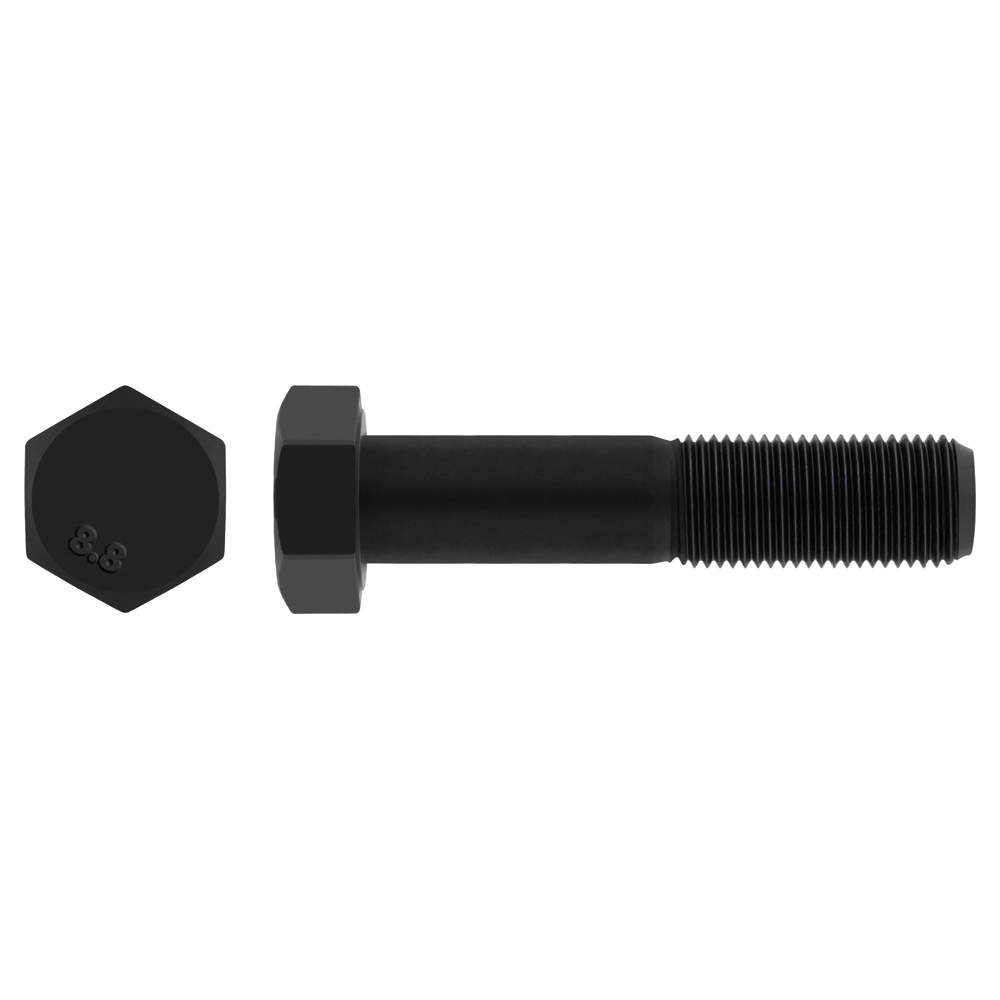

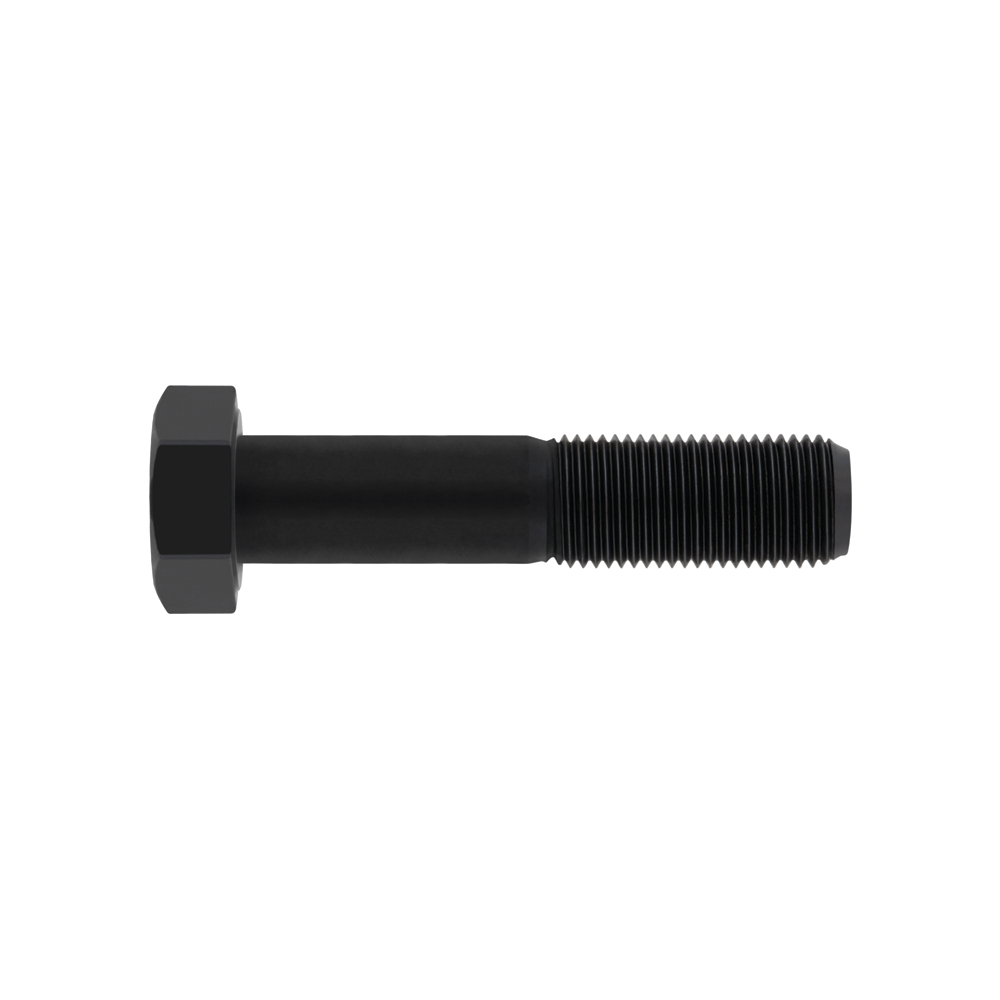

Tornillo hexagonal con media rosca fina en acabado negro y calidad 8.8

Ref.: 600520

Es un tornillo hexagonal similar a ISO 8765, fabricado en calidad 8.8 y recubrimiento negro. Su diseño es de media rosca fina y se utiliza para uniones que necesitan soportar cargas significativas.

Medida	Código	Uds. Estuche	KG ESTUCHE	Uds. Master	KG MÁSTER	Uds. Palé	KG PALÉ	EAN Estuche	Peso (Ud/Kg)	Información Técnica
Medida	Código	Uds. Estuche	KG ESTUCHE	Uds. Master	KG MÁSTER	Uds. Palé	KG PALÉ	EAN Estuche	Peso (Ud/Kg)	Información Técnica
M8 x 1,00 x 30	60052008X1,00X030	200	8.72	1.600	69.76	57.600	2511.36	8432569194982	0.0436

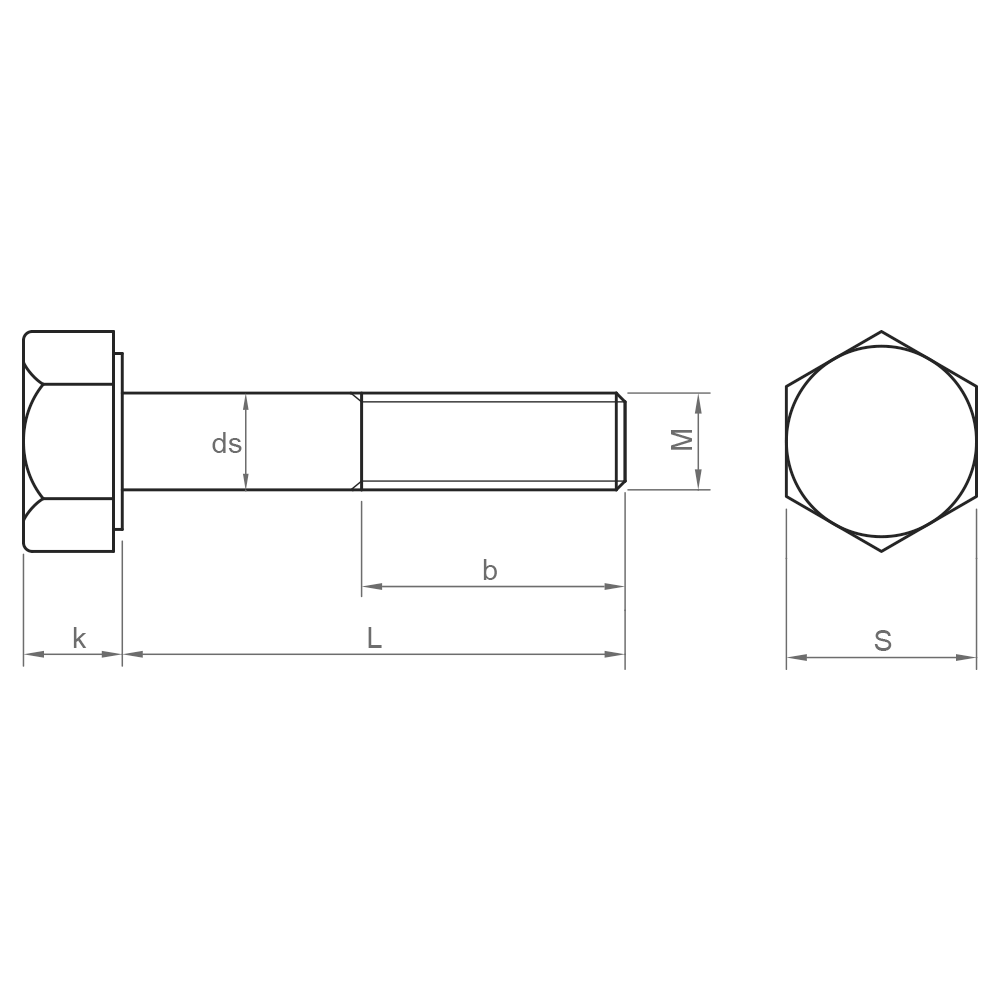

	M8 L30 k5,3 b122 ds8 S13
M8 x 1,00 x 35	60052008X1,00X035	200	3.82	800	15.28	28.800	550.08	8432569194999	0.0191
	M8 L35 k5,3 b122 ds8 S13
M8 x 1,00 x 40	60052008X1,00X040	200	4.22	800	16.88	28.800	607.68	8432569195002	0.0211
	M8 L40 k5,3 b122 ds8 S13
M8 x 1,00 x 45	60052008X1,00X045	200	4.6	800	18.4	28.800	662.4	8432569195019	0.023
	M8 L45 k5,3 b122 ds8 S13
M8 x 1,00 x 50	60052008X1,00X050	200	5	800	20	28.800	720	8432569195026	0.025
	M8 L50 k5,3 b122 ds8 S13
M8 x 1,00 x 55	60052008X1,00X055	100	2.7	800	21.6	28.800	777.6	8432569195033	0.027
	M8 L55 k5,3 b122 ds8 S13
M8 x 1,00 x 60	60052008X1,00X060	100	2.89	800	23.12	28.800	832.32	8432569195040	0.0289
	M8 L60 k5,3 b122 ds8 S13
M8 x 1,00 x 70	60052008X1,00X070	100	3.29	400	13.16	14.400	473.76	8432569195064	0.0329
	M8 L70 k5,3 b122 ds8 S13
M8 x 1,00 x 80	60052008X1,00X080	100	3.68	400	14.72	14.400	529.92	8432569195088	0.0368
	M8 L80 k5,3 b122 ds8 S13
M8 x 1,00 x 90	60052008X1,00X090	100	4.07	400	16.28	14.400	586.08	8432569195101	0.0407
	M8 L90 k5,3 b122 ds8 S13
M8 x 1,00 x 100	60052008X1,00X100	100	4.47	400	17.88	14.400	643.68	8432569195118	0.0447
	M8 L100 k5,3 b122 ds8 S13
M8 x 1,00 x 120	60052008X1,00X120	50	2.625	400	21	14.400	756	8432569195132	0.0525
	M8 L120 k5,3 b122 ds8 S13
M8 x 1,00 x 130	60052008X1,00X130	50	2.82	400	22.56	14.400	812.16	8432569195149	0.0564
	M8 L130 k5,3 b228 ds8 S13
M8 x 1,00 x 140	60052008X1,00X140	50	3.015	400	24.12	14.400	868.32	8432569195156	0.0603
	M8 L140 k5,3 b228 ds8 S13
M10 x 1,00 x 35	60052010X1,00X035	100	4	600	24	21.600	864	8432569195231	0.04
	M10 L35 k6,4 b126 ds10 S17/16
M10 x 1,00 x 40	60052010X1,00X040	100	3.63	600	21.78	21.600	784.08	8432569195248	0.0363
	M10 L40 k6,4 b126 ds10 S17/16
M10 x 1,00 x 45	60052010X1,00X045	100	3.94	400	15.76	14.400	567.36	8432569195255	0.0394
	M10 L45 k6,4 b126 ds10 S17/16
M10 x 1,00 x 50	60052010X1,00X050	100	4.25	400	17	14.400	612	8432569195262	0.0425
	M10 L50 k6,4 b126 ds10 S17/16
M10 x 1,00 x 55	60052010X1,00X055	100	4.55	400	18.2	14.400	655.2	8432569195279	0.0455
	M10 L55 k6,4 b126 ds10 S17/16
M10 x 1,00 x 60	60052010X1,00X060	100	4.86	400	19.44	14.400	699.84	8432569195286	0.0486
	M10 L60 k6,4 b126 ds10 S17/16
M10 x 1,00 x 65	60052010X1,00X065	50	2.585	400	20.68	14.400	744.48	8432569195293	0.0517
	M10 L65 k6,4 b126 ds10 S17/16
M10 x 1,00 x 70	60052010X1,00X070	50	2.735	400	21.88	14.400	787.68	8432569195309	0.0547
	M10 L70 k6,4 b126 ds10 S17/16
M10 x 1,00 x 80	60052010X1,00X080	50	3.045	400	24.36	14.400	876.96	8432569195323	0.0609
	M10 L80 k6,4 b126 ds10 S17/16
M10 x 1,00 x 90	60052010X1,00X090	50	3.4	200	13.6	7.200	489.6	8432569195347	0.068
	M10 L90 k6,4 b126 ds10 S17/16
M10 x 1,00 x 100	60052010X1,00X100	50	3.71	200	14.84	7.200	534.24	8432569195354	0.0742
	M10 L100 k6,4 b126 ds10 S17/16
M10 x 1,00 x 110	60052010X1,00X110	50	4.015	200	16.06	7.200	578.16	8432569195361	0.0803
	M10 L110 k6,4 b126 ds10 S17/16
M10 x 1,00 x 120	60052010X1,00X120	50	4.32	200	17.28	7.200	622.08	8432569195378	0.0864
	M10 L120 k6,4 b126 ds10 S17/16
M10 x 1,00 x 130	60052010X1,00X130	50	4.625	200	18.5	7.200	666	8432569195385	0.0925
	M10 L130 k6,4 b232 ds10 S17/16
M10 x 1,25 x 35	60052010X1,25X035	100	3.32	600	19.92	21.600	717.12	8432569195422	0.0332
	M10 L35 k6,4 b126 ds10 S17/16
M10 x 1,25 x 40	60052010X1,25X040	100	3.63	600	21.78	21.600	784.08	8432569195439	0.0363
	M10 L40 k6,4 b126 ds10 S17/16
M10 x 1,25 x 45	60052010X1,25X045	100	3.94	400	15.76	14.400	567.36	8432569195446	0.0394
	M10 L45 k6,4 b126 ds10 S17/16
M10 x 1,25 x 50	60052010X1,25X050	100	4.25	400	17	14.400	612	8432569195453	0.0425
	M10 L50 k6,4 b126 ds10 S17/16
M10 x 1,25 x 55	60052010X1,25X055	100	4.55	400	18.2	14.400	655.2	8432569195460	0.0455
	M10 L55 k6,4 b126 ds10 S17/16
M10 x 1,25 x 60	60052010X1,25X060	100	4.86	400	19.44	14.400	699.84	8432569195477	0.0486
	M10 L60 k6,4 b126 ds10 S17/16
M10 x 1,25 x 65	60052010X1,25X065	50	2.585	400	20.68	14.400	744.48	8432569195484	0.0517
	M10 L65 k6,4 b126 ds10 S17/16
M10 x 1,25 x 70	60052010X1,25X070	50	2.735	400	21.88	14.400	787.68	8432569195491	0.0547
	M10 L70 k6,4 b126 ds10 S17/16
M10 x 1,25 x 80	60052010X1,25X080	50	3.045	400	24.36	14.400	876.96	8432569195514	0.0609
	M10 L80 k6,4 b126 ds10 S17/16
M10 x 1,25 x 90	60052010X1,25X090	50	3.4	200	13.6	7.200	489.6	8432569195538	0.068
	M10 L90 k6,4 b126 ds10 S17/16
M10 x 1,25 x 100	60052010X1,25X100	50	3.71	200	14.84	7.200	534.24	8432569195545	0.0742
	M10 L100 k6,4 b126 ds10 S17/16
M10 x 1,25 x 110	60052010X1,25X110	50	4.015	200	16.06	7.200	578.16	8432569195552	0.0803
	M10 L110 k6,4 b126 ds10 S17/16
M10 x 1,25 x 120	60052010X1,25X120	50	4.32	200	17.28	7.200	622.08	8432569195569	0.0864
	M10 L120 k6,4 b126 ds10 S17/16
M10 x 1,25 x 130	60052010X1,25X130	50	4.625	200	18.5	7.200	666	8432569195576	0.0925
	M10 L130 k6,4 b232 ds10 S17/16
M10 x 1,25 x 140	60052010X1,25X140	50	4.93	200	19.72	7.200	709.92	8432569195583	0.0986
	M10 L140 k6,4 b232 ds10 S17/16
M12 x 1,25 x 40	60052012X1,25X040	100	5.08	400	20.32	14.400	731.52	8432569195668	0.0508
	M12 L40 k7,5 b130 ds12 S19/18
M12 x 1,25 x 45	60052012X1,25X045	100	5.52	400	22.08	14.400	794.88	8432569195675	0.0552
	M12 L45 k7,5 b130 ds12 S19/18
M12 x 1,25 x 50	60052012X1,25X050	50	2.98	400	23.84	14.400	858.24	8432569195682	0.0596
	M12 L50 k7,5 b130 ds12 S19/18
M12 x 1,25 x 55	60052012X1,25X055	50	3.2	400	25.6	14.400	921.6	8432569195699	0.064
	M12 L55 k7,5 b130 ds12 S19/18
M12 x 1,25 x 60	60052012X1,25X060	50	3.42	200	13.68	7.200	492.48	8432569195705	0.0684
	M12 L60 k7,5 b130 ds12 S19/18
M12 x 1,25 x 65	60052012X1,25X065	50	3.64	200	14.56	7.200	524.16	8432569195712	0.0728
	M12 L65 k7,5 b130 ds12 S19/18
M12 x 1,25 x 70	60052012X1,25X070	50	3.86	200	15.44	7.200	555.84	8432569195729	0.0772
	M12 L70 k7,5 b130 ds12 S19/18
M12 x 1,25 x 75	60052012X1,25X075	50	4.08	200	16.32	7.200	587.52	8432569195736	0.0816
	L75
M12 x 1,25 x 80	60052012X1,25X080	50	4.3	200	17.2	7.200	619.2	8432569195743	0.086
	M12 L80 k7,5 b130 ds12 S19/18
M12 x 1,25 x 90	60052012X1,25X090	50	4.74	200	18.96	7.200	682.56	8432569195767	0.0948
	M12 L90 k7,5 b130 ds12 S19/18
M12 x 1,25 x 100	60052012X1,25X100	50	5.2	200	20.8	7.200	748.8	8432569195774	0.104
	M12 L100 k7,5 b130 ds12 S19/18
M12 x 1,25 x 110	60052012X1,25X110	50	5.65	200	22.6	7.200	813.6	8432569195798	0.113
	M12 L110 k7,5 b130 ds12 S19/18
M12 x 1,25 x 120	60052012X1,25X120	50	6.1	200	24.4	7.200	878.4	8432569195804	0.122
	M12 L120 k7,5 b130 ds12 S19/18
M12 x 1,25 x 130	60052012X1,25X130	50	6.55	200	26.2	7.200	943.2	8432569195811	0.131
	M12 L130 k7,5 b236 ds12 S19/18
M12 x 1,25 x 140	60052012X1,25X140	25	3.5	200	28	7.200	1008	8432569195828	0.14
	M12 L140 k7,5 b236 ds12 S19/18
M12 x 1,25 x 150	60052012X1,25X150	25	3.725	100	14.9	3.600	536.4	8432569195835	0.149
	M12 L150 k7,5 b236 ds12 S19/18
M12 x 1,50 x 40	60052012X1,50X040	100	5.08	400	20.32	14.400	731.52	8432569195859	0.0508
	M12 L40 k7,5 b130 ds12 S19/18
M12 x 1,50 x 45	60052012X1,50X045	100	5.52	400	22.08	14.400	794.88	8432569195866	0.0552
	M12 L45 k7,5 b130 ds12 S19/18
M12 x 1,50 x 50	60052012X1,50X050	50	2.98	400	23.84	14.400	858.24	8432569195873	0.0596
	M12 L50 k7,5 b130 ds12 S19/18
M12 x 1,50 x 55	60052012X1,50X055	50	3.2	400	25.6	14.400	921.6	8432569195880	0.064
	M12 L55 k7,5 b130 ds12 S19/18
M12 x 1,50 x 60	60052012X1,50X060	50	3.42	200	13.68	7.200	492.48	8432569195897	0.0684
	M12 L60 k7,5 b130 ds12 S19/18
M12 x 1,50 x 65	60052012X1,50X065	50	3.64	200	14.56	7.200	524.16	8432569195903	0.0728
	M12 L65 k7,5 b130 ds12 S19/18
M12 x 1,50 x 70	60052012X1,50X070	50	3.86	200	15.44	7.200	555.84	8432569195910	0.0772
	M12 L70 k7,5 b130 ds12 S19/18
M12 x 1,50 x 80	60052012X1,50X080	50	4.3	200	17.2	7.200	619.2	8432569195934	0.086
	M12 L80 k7,5 b130 ds12 S19/18
M12 x 1,50 x 90	60052012X1,50X090	50	4.74	200	18.96	7.200	682.56	8432569195958	0.0948
	M12 L90 k7,5 b130 ds12 S19/18
M12 x 1,50 x 100	60052012X1,50X100	50	5.2	200	20.8	7.200	748.8	8432569195965	0.104
	M12 L100 k7,5 b130 ds12 S19/18
M12 x 1,50 x 110	60052012X1,50X110	50	5.65	200	22.6	7.200	813.6	8432569195972	0.113
	M12 L110 k7,5 b130 ds12 S19/18
M12 x 1,50 x 120	60052012X1,50X120	50	6.1	200	24.4	7.200	878.4	8432569195989	0.122
	M12 L120 k7,5 b130 ds12 S19/18
M12 x 1,50 x 130	60052012X1,50X130	50	6.55	200	26.2	7.200	943.2	8432569195996	0.131
	M12 L130 k7,5 b236 ds12 S19/18
M12 x 1,50 x 140	60052012X1,50X140	25	3.5	200	28	7.200	1008	8432569196009	0.14
	M12 L140 k7,5 b236 ds12 S19/18
M12 x 1,50 x 150	60052012X1,50X150	25	3.725	100	14.9	3.600	536.4	8432569196016	0.149
	M12 L150 k7,5 b236 ds12 S19/18
M12 x 1,50 x 160	60052012X1,50X160	25	3.725	100	14.9	3.600	536.4	8432570172191	0.149
	M12 L160 k7,5 b236 ds12 S19/18
M12 x 1,50 x 180	60052012X1,50X180	25	3.725	100	14.9	3.600	536.4	8432570172221	0.149
	M12 L180 k7,5 b236 ds12 S19/18
M14 x 1,50 x 45	60052014X1,50X045	50	4.1	200	16.4	7.200	590.4	8432569196047	0.082
	M14 L45 k8,8 b134 ds14 S22/21
M14 x 1,50 x 50	60052014X1,50X050	50	4.225	200	16.9	7.200	608.4	8432569196054	0.0845
	M14 L50 k8,8 b134 ds14 S22/21
M14 x 1,50 x 55	60052014X1,50X055	50	4.505	200	18.02	7.200	648.72	8432569196061	0.0901
	M14 L55 k8,8 b134 ds14 S22/21
M14 x 1,50 x 60	60052014X1,50X060	50	4.785	200	19.14	7.200	689.04	8432569196078	0.0957
	M14 L60 k8,8 b134 ds14 S22/21
M14 x 1,50 x 65	60052014X1,50X065	50	5.05	200	20.2	7.200	727.2	8432569196085	0.101
	M14 L65 k8,8 b134 ds14 S22/21
M14 x 1,50 x 70	60052014X1,50X070	50	5.35	200	21.4	7.200	770.4	8432569196092	0.107
	M14 L70 k8,8 b134 ds14 S22/21
M14 x 1,50 x 80	60052014X1,50X080	50	5.9	200	23.6	7.200	849.6	8432569196115	0.118
	M14 L80 k8,8 b134 ds14 S22/21
M14 x 1,50 x 90	60052014X1,50X090	25	3.225	100	12.9	3.600	464.4	8432569196139	0.129
	M14 L90 k8,8 b134 ds14 S22/21
M14 x 1,50 x 100	60052014X1,50X100	25	3.5	100	14	3.600	504	8432569196146	0.14
	M14 L100 k8,8 b134 ds14 S22/21
M14 x 1,50 x 110	60052014X1,50X110	25	3.8	100	15.2	3.600	547.2	8432569196153	0.152
	M14 L110 k8,8 b134 ds14 S22/21
M14 x 1,50 x 120	60052014X1,50X120	25	4.1	100	16.4	3.600	590.4	8432569196160	0.164
	M14 L120 k8,8 b134 ds14 S22/21
M14 x 1,50 x 130	60052014X1,50X130	25	4.4	100	17.6	3.600	633.6	8432569196177	0.176
	M14 L130 k8,8 b240 ds14 S22/21
M14 x 1,50 x 140	60052014X1,50X140	25	4.7	100	18.8	3.600	676.8	8432569196184	0.188
	M14 L140 k8,8 b240 ds14 S22/21
M14 x 1,50 x 150	60052014X1,50X150	25	5	100	20	3.600	720	8432569196191	0.2
	M14 L150 k8,8 b240 ds14 S22/21
M14 x 1,50 x 160	60052014X1,50X160	25	5.3	100	21.2	3.600	763.2	8432569196207	0.212
	M14 L160 k8,8 b240 ds14 S22/21
M14 x 1,50 x 180	60052014X1,50X180	25	5.9	100	23.6	3.600	849.6	8432569196221	0.236
	M14 L180 k8,8 b240 ds14 S22/21
M14 x 1,50 x 200	60052014X1,50X200	20	5.2	80	20.8	2.880	748.8	8432569196245	0.26
	M14 L200 k8,8 b240 ds14 S22/21
M16 x 1,50 x 50	60052016X1,50X050	25	2.775	200	22.2	7.200	799.2	8432569196276	0.111
	M16 L50 k10 b138 ds16 S24
M16 x 1,50 x 55	60052016X1,50X055	25	2.975	200	23.8	7.200	856.8	8432569196283	0.119
	M16 L55 k10 b138 ds16 S24
M16 x 1,50 x 60	60052016X1,50X060	20	2.54	160	20.32	5.760	731.52	8432569196290	0.127
	M16 L60 k10 b138 ds16 S24
M16 x 1,50 x 65	60052016X1,50X065	20	2.7	160	21.6	5.760	777.6	8432569196306	0.135
	M16 L65 k10 b138 ds16 S24
M16 x 1,50 x 70	60052016X1,50X070	20	2.86	160	22.88	5.760	823.68	8432569196313	0.143
	M16 L70 k10 b138 ds16 S24
M16 x 1,50 x 80	60052016X1,50X080	25	3.975	100	15.9	3.600	572.4	8432569196337	0.159
	M16 L80 k10 b138 ds16 S24
M16 x 1,50 x 90	60052016X1,50X090	25	4.375	100	17.5	3.600	630	8432569196351	0.175
	M16 L90 k10 b138 ds16 S24
M16 x 1,50 x 100	60052016X1,50X100	25	4.775	100	19.1	3.600	687.6	8432569196368	0.191
	M16 L100 k10 b138 ds16 S24
M16 x 1,50 x 110	60052016X1,50X110	25	5.425	100	21.7	3.600	781.2	8432569196375	0.217
	M16 L110 k10 b138 ds16 S24
M16 x 1,50 x 120	60052016X1,50X120	25	5.825	100	23.3	3.600	838.8	8432569196382	0.233
	M16 L120 k10 b138 ds16 S24
M16 x 1,50 x 130	60052016X1,50X130	25	6.225	100	24.9	3.600	896.4	8432569196399	0.249
	M16 L130 k10 b244 ds16 S24
M16 x 1,50 x 140	60052016X1,50X140	25	6.625	100	26.5	3.600	954	8432569196405	0.265
	M16 L140 k10 b244 ds16 S24
M16 x 1,50 x 150	60052016X1,50X150	20	5.62	80	22.48	2.880	809.28	8432569196412	0.281
	M16 L150 k10 b244 ds16 S24
M16 x 1,50 x 160	60052016X1,50X160	20	5.92	80	23.68	2.880	852.48	8432569196429	0.296
	M16 L160 k10 b244 ds16 S24
M16 x 1,50 x 180	60052016X1,50X180	20	6.56	80	26.24	2.880	944.64	8432569196443	0.328
	M16 L180 k10 b244 ds16 S24
M16 x 1,50 x 200	60052016X1,50X200	20	7.2	40	14.4	1.440	518.4	8432569196467	0.36
	M16 L200 k10 b244 ds16 S24
M18 x 1,50 x 60	60052018X1,50X060	25	4.225	100	16.9	3.600	608.4	8432569196559	0.169
	M18 L60 k11,5 b142 ds18 S27
M18 x 1,50 x 65	60052018X1,50X065	25	4.475	100	17.9	3.600	644.4	8432569196566	0.179
	M18 L65 k11,5 b142 ds18 S27
M18 x 1,50 x 70	60052018X1,50X070	25	4.725	100	18.9	3.600	680.4	8432569196573	0.189
	M18 L70 k11,5 b142 ds18 S27
M18 x 1,50 x 80	60052018X1,50X080	25	5.225	100	20.9	3.600	752.4	8432569196597	0.209
	M18 L80 k11,5 b142 ds18 S27
M18 x 1,50 x 90	60052018X1,50X090	25	5.725	100	22.9	3.600	824.4	8432569196610	0.229
	M18 L90 k11,5 b142 ds18 S27
M18 x 1,50 x 100	60052018X1,50X100	25	6.225	100	24.9	3.600	896.4	8432569196627	0.249
	M18 L100 k11,5 b142 ds18 S27
M18 x 1,50 x 110	60052018X1,50X110	20	5.38	80	21.52	2.880	774.72	8432569196641	0.269
	M18 L110 k11,5 b142 ds18 S27
M18 x 1,50 x 120	60052018X1,50X120	20	5.78	80	23.12	2.880	832.32	8432569196658	0.289
	M18 L120 k11,5 b142 ds18 S27
M18 x 1,50 x 130	60052018X1,50X130	20	6.16	80	24.64	2.880	887.04	8432569196665	0.308
	M18 L130 k11,5 b248 ds18 S27
M18 x 1,50 x 140	60052018X1,50X140	15	4.92	60	19.68	2.160	708.48	8432569196672	0.328
	M18 L140 k11,5 b248 ds18 S27
M18 x 1,50 x 150	60052018X1,50X150	15	5.22	60	20.88	2.160	751.68	8432569196689	0.348
	M18 L150 k11,5 b248 ds18 S27
M18 x 1,50 x 160	60052018X1,50X160	10	3.68	40	14.72	1.440	529.92	8432569196696	0.368
	M18 L160 k11,5 b248 ds18 S27
M18 x 1,50 x 180	60052018X1,50X180	10	4.08	40	16.32	1.440	587.52	8432569196719	0.408
	M18 L180 k11,5 b248 ds18 S27
M18 x 1,50 x 200	60052018X1,50X200	10	4.48	40	17.92	1.440	645.12	8432569196733	0.448
	M18 L200 k11,5 b248 ds18 S27
M20 x 1,50 x 60	60052020X1,50X060	25	5.4	100	21.6	3.600	777.6	8432569196771	0.216
	M20 L60 k12,5 b146 ds20 S30
M20 x 1,50 x 65	60052020X1,50X065	25	5.7	100	22.8	3.600	820.8	8432569196788	0.228
	M20 L65 k12,5 b146 ds20 S30
M20 x 1,50 x 70	60052020X1,50X070	25	6	100	24	3.600	864	8432569196795	0.24
	M20 L70 k12,5 b146 ds20 S30
M20 x 1,50 x 80	60052020X1,50X080	20	5.3	80	21.2	2.880	763.2	8432569196818	0.265
	M20 L80 k12,5 b146 ds20 S30
M20 x 1,50 x 90	60052020X1,50X090	10	2.9	80	23.2	2.880	835.2	8432569196832	0.29
	M20 L90 k12,5 b146 ds20 S30
M20 x 1,50 x 100	60052020X1,50X100	10	3.14	80	25.12	2.880	904.32	8432569196856	0.314
	M20 L100 k12,5 b146 ds20 S30
M20 x 1,50 x 110	60052020X1,50X110	10	3.39	60	20.34	2.160	732.24	8432569196863	0.339
	M20 L110 k12,5 b146 ds20 S30
M20 x 1,50 x 120	60052020X1,50X120	10	3.63	60	21.78	2.160	784.08	8432569196870	0.363
	M20 L120 k12,5 b146 ds20 S30
M20 x 1,50 x 130	60052020X1,50X130	10	3.87	60	23.22	2.160	835.92	8432569196887	0.387
	M20 L130 k12,5 b252 ds20 S30
M20 x 1,50 x 140	60052020X1,50X140	10	4.12	40	16.48	1.440	593.28	8432569196894	0.412
	M20 L140 k12,5 b252 ds20 S30
M20 x 1,50 x 150	60052020X1,50X150	10	4.37	40	17.48	1.440	629.28	8432569196900	0.437
	M20 L150 k12,5 b252 ds20 S30
M20 x 1,50 x 160	60052020X1,50X160	10	4.61	40	18.44	1.440	663.84	8432569196917	0.461
	M20 L160 k12,5 b252 ds20 S30
M20 x 1,50 x 180	60052020X1,50X180	10	5.1	40	20.4	1.440	734.4	8432569196931	0.51
	M20 L180 k12,5 b252 ds20 S30
M20 x 1,50 x 200	60052020X1,50X200	10	5.6	40	22.4	1.440	806.4	8432569196955	0.56
	M20 L200 k12,5 b252 ds20 S30
M22 x 1,50 x 70	60052022X1,50X070	10	2.93	80	23.44	2.880	843.84	8432569197006	0.293
	M22 L70 k14 b150 ds22 S32/34
M22 x 1,50 x 80	60052022X1,50X080	10	3.23	80	25.84	2.880	930.24	8432569197020	0.323
	M22 L80 k14 b150 ds22 S32/34
M22 x 1,50 x 90	60052022X1,50X090	10	3.53	40	14.12	1.440	508.32	8432569197044	0.353
	M22 L90 k14 b150 ds22 S32/34
M22 x 1,50 x 100	60052022X1,50X100	10	3.83	40	15.32	1.440	551.52	8432569197051	0.383
	M22 L100 k14 b150 ds22 S32/34
M22 x 1,50 x 110	60052022X1,50X110	10	4.13	40	16.52	1.440	594.72	8432569197068	0.413
	M22 L110 k14 b150 ds22 S32/34
M22 x 1,50 x 120	60052022X1,50X120	10	4.43	40	17.72	1.440	637.92	8432569197075	0.443
	M22 L120 k14 b150 ds22 S32/34
M22 x 1,50 x 130	60052022X1,50X130	10	4.73	40	18.92	1.440	681.12	8432569197082	0.473
	M22 L130 k14 b256 ds22 S32/34
M22 x 1,50 x 140	60052022X1,50X140	10	5.02	40	20.08	1.440	722.88	8432569197099	0.502
	M22 L140 k14 b256 ds22 S32/34
M22 x 1,50 x 150	60052022X1,50X150	10	5.32	40	21.28	1.440	766.08	8432569197105	0.532
	M22 L150 k14 b256 ds22 S32/34
M22 x 1,50 x 160	60052022X1,50X160	10	5.62	40	22.48	1.440	809.28	8432569197112	0.562
	M22 L160 k14 b256 ds22 S32/34
M22 x 1,50 x 180	60052022X1,50X180	10	6.21	40	24.84	1.440	894.24	8432569197136	0.621
	M22 L180 k14 b256 ds22 S32/34
M22 x 1,50 x 200	60052022X1,50X200	5	3.405	20	13.62	720	490.32	8432569197150	0.681
	M22 L200 k14 b256 ds22 S32/34
M24 x 2,00 x 80	60052024X2,00X080	10	4.1	40	16.4	1.440	590.4	8432569197396	0.41
	M24 L80 k15 b154 ds24 S36
M24 x 2,00 x 90	60052024X2,00X090	10	4.45	40	17.8	1.440	640.8	8432569197402	0.445
	M24 L90 k15 b154 ds24 S36
M24 x 2,00 x 100	60052024X2,00X100	10	4.81	40	19.24	1.440	692.64	8432569546828	0.481
	M24 L100 k15 b154 ds24 S36
M24 x 2,00 x 110	60052024X2,00X110	10	5.17	40	20.68	1.440	744.48	8432569546835	0.517
	M24 L110 k15 b154 ds24 S36
M24 x 2,00 x 120	60052024X2,00X120	10	5.52	40	22.08	1.440	794.88	8432569546842	0.552
	M24 L120 k15 b154 ds24 S36
M24 x 2,00 x 130	60052024X2,00X130	10	5.88	40	23.52	1.440	846.72	8432569546859	0.588
	M24 L130 k15 b260 ds24 S36
M24 x 2,00 x 140	60052024X2,00X140	10	5.88	40	23.52	1.440	846.72	8432569546866	0.588
	M24 L140 k15 b260 ds24 S36
M24 x 2,00 x 150	60052024X2,00X150	5	3.295	20	13.18	720	474.48	8432569546873	0.659
	M24 L150 k15 b260 ds24 S36
M24 x 2,00 x 160	60052024X2,00X160	5	3.47	20	13.88	720	499.68	8432569546880	0.694
	M24 L160 k15 b260 ds24 S36
M24 x 2,00 x 180	60052024X2,00X180	5	3.825	20	15.3	720	550.8	8432569546897	0.765
	M24 L180 k15 b260 ds24 S36
M24 x 2,00 x 200	60052024X2,00X200	5	4.18	20	16.72	720	601.92	8432569546903	0.836
	M24 L200 k15 b260 ds24 S36
M8 x 1 x 30	20RXX052008X1,00X030	200	8.72	1.600	69.76	57.600	2511.36	8445222229631	0.0436

M8 x 1 x 35	20RXX052008X1,00X035	200	3.82	800	15.28	28.800	550.08	8445222229648	0.0191

M8 x 1 x 40	20RXX052008X1,00X040	200	4.22	800	16.88	28.800	607.68	8445222229655	0.0211

M8 x 1 x 45	20RXX052008X1,00X045	200	4.6	800	18.4	28.800	662.4	8445222229662	0.023

M8 x 1 x 50	20RXX052008X1,00X050	200	5	800	20	28.800	720	8445222229679	0.025

M8 x 1 x 55	20RXX052008X1,00X055	100	2.7	800	21.6	28.800	777.6	8445222229686	0.027

M8 x 1 x 60	20RXX052008X1,00X060	100	2.89	800	23.12	28.800	832.32	8445222229693	0.0289

M8 x 1 x 70	20RXX052008X1,00X070	100	3.29	400	13.16	14.400	473.76	8445222229716	0.0329

M8 x 1 x 80	20RXX052008X1,00X080	100	3.68	400	14.72	14.400	529.92	8445222229730	0.0368

M8 x 1 x 90	20RXX052008X1,00X090	100	4.07	400	16.28	14.400	586.08	8445222229754	0.0407

M8 x 1 x 100	20RXX052008X1,00X100	100	4.47	400	17.88	14.400	643.68	8445222229761	0.0447

M8 x 1 x 110	20RXX052008X1,00X110	100	4.86	400	19.44	14.400	699.84	8445222229778	0.0486

M8 x 1 x 120	20RXX052008X1,00X120	50	2.625	200	10.5	7.200	378	8445222229792	0.0525

M8 x 1 x 130	20RXX052008X1,00X130	50	2.82	200	11.28	7.200	406.08	8445222229808	0.0564

M8 x 1 x 140	20RXX052008X1,00X140	50	3.015	200	12.06	7.200	434.16	8445222229815	0.0603

M10 x 1 x 35	20RXX052010X1,00X035	100	4	800	32	28.800	1152	8445222229891	0.04

M10 x 1 x 40	20RXX052010X1,00X040	100	3.63	800	29.04	28.800	1045.44	8445222229907	0.0363

M10 x 1 x 45	20RXX052010X1,00X045	100	3.94	400	15.76	14.400	567.36	8445222229914	0.0394

M10 x 1 x 50	20RXX052010X1,00X050	100	4.25	400	17	14.400	612	8445222229921	0.0425

M10 x 1 x 55	20RXX052010X1,00X055	100	4.55	400	18.2	14.400	655.2	8445222229938	0.0455

M10 x 1 x 60	20RXX052010X1,00X060	100	4.86	400	19.44	14.400	699.84	8445222229945	0.0486

M10 x 1 x 65	20RXX052010X1,00X065	50	2.585	400	20.68	14.400	744.48	8445222229952	0.0517

M10 x 1 x 70	20RXX052010X1,00X070	50	2.735	400	21.88	14.400	787.68	8445222229969	0.0547

M10 x 1 x 80	20RXX052010X1,00X080	50	3.045	400	24.36	14.400	876.96	8445222229983	0.0609

M10 x 1 x 90	20RXX052010X1,00X090	50	3.4	400	27.2	14.400	979.2	8445222230002	0.068

M10 x 1 x 100	20RXX052010X1,00X100	50	3.71	200	14.84	7.200	534.24	8445222230019	0.0742

M10 x 1 x 110	20RXX052010X1,00X110	50	4.015	200	16.06	7.200	578.16	8445222230026	0.0803

M10 x 1 x 120	20RXX052010X1,00X120	50	4.32	200	17.28	7.200	622.08	8445222230033	0.0864

M10 x 1 x 130	20RXX052010X1,00X130	50	4.625	200	18.5	7.200	666	8445222230040	0.0925

M10 x 1 x 140	20RXX052010X1,00X140	50	4.93	200	19.72	7.200	709.92	8445222230057	0.0986

M10 x 1 x 150	20RXX052010X1,00X150	50	5.25	200	21	7.200	756	8445222230064	0.105

M10 x 1,25 x 30	20RXX052010X1,25X030	100	3.01	800	24.08	28.800	866.88	8445222230071	0.0301

M10 x 1,25 x 35	20RXX052010X1,25X035	100	3.32	800	26.56	28.800	956.16	8445222230088	0.0332

M10 x 1,25 x 40	20RXX052010X1,25X040	100	3.63	800	29.04	28.800	1045.44	8445222230095	0.0363

M10 x 1,25 x 45	20RXX052010X1,25X045	100	3.94	400	15.76	14.400	567.36	8445222230101	0.0394

M10 x 1,25 x 50	20RXX052010X1,25X050	100	4.25	400	17	14.400	612	8445222230118	0.0425

M10 x 1,25 x 55	20RXX052010X1,25X055	100	4.55	400	18.2	14.400	655.2	8445222230125	0.0455

M10 x 1,25 x 60	20RXX052010X1,25X060	100	4.86	400	19.44	14.400	699.84	8445222230132	0.0486

M10 x 1,25 x 65	20RXX052010X1,25X065	50	2.585	400	20.68	14.400	744.48	8445222230149	0.0517

M10 x 1,25 x 70	20RXX052010X1,25X070	50	2.735	400	21.88	14.400	787.68	8445222230156	0.0547

M10 x 1,25 x 80	20RXX052010X1,25X080	50	3.045	400	24.36	14.400	876.96	8445222230170	0.0609

M10 x 1,25 x 90	20RXX052010X1,25X090	50	3.4	400	27.2	14.400	979.2	8445222230194	0.068

M10 x 1,25 x 100	20RXX052010X1,25X100	50	3.71	200	14.84	7.200	534.24	8445222230200	0.0742

M10 x 1,25 x 110	20RXX052010X1,25X110	50	4.015	200	16.06	7.200	578.16	8445222230217	0.0803

M10 x 1,25 x 120	20RXX052010X1,25X120	50	4.32	200	17.28	7.200	622.08	8445222230224	0.0864

M10 x 1,25 x 130	20RXX052010X1,25X130	50	4.625	200	18.5	7.200	666	8445222230231	0.0925

M10 x 1,25 x 140	20RXX052010X1,25X140	50	4.93	200	19.72	7.200	709.92	8445222230248	0.0986

M10 x 1,25 x 150	20RXX052010X1,25X150	50	5.25	200	21	7.200	756	8445222230255	0.105

M12 x 1,25 x 40	20RXX052012X1,25X040	100	5.08	400	20.32	14.400	731.52	8445222230330	0.0508

M12 x 1,25 x 45	20RXX052012X1,25X045	100	5.52	400	22.08	14.400	794.88	8445222230347	0.0552

M12 x 1,25 x 50	20RXX052012X1,25X050	50	2.98	400	23.84	14.400	858.24	8445222230354	0.0596

M12 x 1,25 x 55	20RXX052012X1,25X055	50	3.2	200	12.8	7.200	460.8	8445222230361	0.064

M12 x 1,25 x 60	20RXX052012X1,25X060	50	3.42	200	13.68	7.200	492.48	8445222230378	0.0684

M12 x 1,25 x 65	20RXX052012X1,25X065	50	3.64	200	14.56	7.200	524.16	8445222230385	0.0728

M12 x 1,25 x 70	20RXX052012X1,25X070	50	3.86	200	15.44	7.200	555.84	8445222230392	0.0772

M12 x 1,25 x 80	20RXX052012X1,25X080	50	4.3	200	17.2	7.200	619.2	8445222230415	0.086

M12 x 1,25 x 90	20RXX052012X1,25X090	50	4.74	200	18.96	7.200	682.56	8445222230439	0.0948

M12 x 1,25 x 100	20RXX052012X1,25X100	50	5.2	200	20.8	7.200	748.8	8445222230446	0.104

M12 x 1,25 x 110	20RXX052012X1,25X110	50	5.65	200	22.6	7.200	813.6	8445222230460	0.113

M12 x 1,25 x 120	20RXX052012X1,25X120	50	6.1	200	24.4	7.200	878.4	8445222230477	0.122

M12 x 1,25 x 130	20RXX052012X1,25X130	50	6.55	200	26.2	7.200	943.2	8445222230484	0.131

M12 x 1,25 x 140	20RXX052012X1,25X140	25	3.5	200	28	7.200	1008	8445222230491	0.14

M12 x 1,25 x 150	20RXX052012X1,25X150	25	3.725	100	14.9	3.600	536.4	8445222230507	0.149

M12 x 1,5 x 40	20RXX052012X1,50X040	100	5.08	400	20.32	14.400	731.52	8445222230538	0.0508

M12 x 1,5 x 45	20RXX052012X1,50X045	100	5.52	400	22.08	14.400	794.88	8445222230545	0.0552

M12 x 1,5 x 50	20RXX052012X1,50X050	50	2.98	400	23.84	14.400	858.24	8445222230552	0.0596

M12 x 1,5 x 55	20RXX052012X1,50X055	50	3.2	200	12.8	7.200	460.8	8445222230569	0.064

M12 x 1,5 x 60	20RXX052012X1,50X060	50	3.42	200	13.68	7.200	492.48	8445222230576	0.0684

M12 x 1,5 x 65	20RXX052012X1,50X065	50	3.64	200	14.56	7.200	524.16	8445222230583	0.0728

M12 x 1,5 x 70	20RXX052012X1,50X070	50	3.86	200	15.44	7.200	555.84	8445222230590	0.0772

M12 x 1,5 x 80	20RXX052012X1,50X080	50	4.3	200	17.2	7.200	619.2	8445222230613	0.086

M12 x 1,5 x 90	20RXX052012X1,50X090	50	4.74	200	18.96	7.200	682.56	8445222230637	0.0948

M12 x 1,5 x 100	20RXX052012X1,50X100	50	5.2	200	20.8	7.200	748.8	8445222230644	0.104

M12 x 1,5 x 110	20RXX052012X1,50X110	50	5.65	200	22.6	7.200	813.6	8445222230651	0.113

M12 x 1,5 x 120	20RXX052012X1,50X120	50	6.1	200	24.4	7.200	878.4	8445222230668	0.122

M12 x 1,5 x 130	20RXX052012X1,50X130	50	6.55	200	26.2	7.200	943.2	8445222230675	0.131

M12 x 1,5 x 140	20RXX052012X1,50X140	25	3.5	200	28	7.200	1008	8445222230682	0.14

M12 x 1,5 x 150	20RXX052012X1,50X150	25	3.725	100	14.9	3.600	536.4	8445222230699	0.149

M12 x 1,5 x 160	20RXX052012X1,50X160	25	3.725	100	14.9	3.600	536.4	8445222230705	0.149

M12 x 1,5 x 180	20RXX052012X1,50X180	25	3.725	100	14.9	3.600	536.4	8445222230712	0.149

M14 x 1,5 x 45	20RXX052014X1,50X045	50	4.1	200	16.4	7.200	590.4	8445222230743	0.082

M14 x 1,5 x 50	20RXX052014X1,50X050	50	4.225	200	16.9	7.200	608.4	8445222230750	0.0845

M14 x 1,5 x 55	20RXX052014X1,50X055	50	4.505	200	18.02	7.200	648.72	8445222230767	0.0901

M14 x 1,5 x 60	20RXX052014X1,50X060	50	4.785	200	19.14	7.200	689.04	8445222230774	0.0957

M14 x 1,5 x 65	20RXX052014X1,50X065	50	5.05	200	20.2	7.200	727.2	8445222230781	0.101

M14 x 1,5 x 70	20RXX052014X1,50X070	50	5.35	200	21.4	7.200	770.4	8445222230798	0.107

M14 x 1,5 x 80	20RXX052014X1,50X080	50	5.9	200	23.6	7.200	849.6	8445222230811	0.118

M14 x 1,5 x 90	20RXX052014X1,50X090	25	3.225	100	12.9	3.600	464.4	8445222230835	0.129

M14 x 1,5 x 100	20RXX052014X1,50X100	25	3.5	100	14	3.600	504	8445222230842	0.14

M14 x 1,5 x 110	20RXX052014X1,50X110	25	3.8	100	15.2	3.600	547.2	8445222230859	0.152

M14 x 1,5 x 120	20RXX052014X1,50X120	25	4.1	100	16.4	3.600	590.4	8445222230866	0.164

M14 x 1,5 x 130	20RXX052014X1,50X130	25	4.4	100	17.6	3.600	633.6	8445222230873	0.176

M14 x 1,5 x 140	20RXX052014X1,50X140	25	4.7	100	18.8	3.600	676.8	8445222230880	0.188

M14 x 1,5 x 150	20RXX052014X1,50X150	25	5	100	20	3.600	720	8445222230897	0.2

M14 x 1,5 x 160	20RXX052014X1,50X160	25	5.3	100	21.2	3.600	763.2	8445222230903	0.212

M16 x 1,5 x 50	20RXX052016X1,50X050	25	2.775	200	22.2	7.200	799.2	8445222230972	0.111

M16 x 1,5 x 55	20RXX052016X1,50X055	25	2.975	200	23.8	7.200	856.8	8445222230989	0.119

M16 x 1,5 x 60	20RXX052016X1,50X060	20	2.54	160	20.32	5.760	731.52	8445222230996	0.127

M16 x 1,5 x 65	20RXX052016X1,50X065	20	2.7	160	21.6	5.760	777.6	8445222231009	0.135

M16 x 1,5 x 70	20RXX052016X1,50X070	20	2.86	160	22.88	5.760	823.68	8445222231016	0.143

M16 x 1,5 x 80	20RXX052016X1,50X080	25	3.975	100	15.9	3.600	572.4	8445222231030	0.159

M16 x 1,5 x 90	20RXX052016X1,50X090	25	4.375	100	17.5	3.600	630	8445222231054	0.175

M16 x 1,5 x 100	20RXX052016X1,50X100	25	4.775	100	19.1	3.600	687.6	8445222231061	0.191

M16 x 1,5 x 110	20RXX052016X1,50X110	25	5.425	100	21.7	3.600	781.2	8445222231078	0.217

M16 x 1,5 x 120	20RXX052016X1,50X120	25	5.825	100	23.3	3.600	838.8	8445222231085	0.233

M16 x 1,5 x 130	20RXX052016X1,50X130	25	6.225	100	24.9	3.600	896.4	8445222231092	0.249

M16 x 1,5 x 140	20RXX052016X1,50X140	25	6.625	100	26.5	3.600	954	8445222231108	0.265

M16 x 1,5 x 150	20RXX052016X1,50X150	20	5.62	80	22.48	2.880	809.28	8445222231115	0.281

M16 x 1,5 x 160	20RXX052016X1,50X160	20	5.92	80	23.68	2.880	852.48	8445222231122	0.296

M16 x 1,5 x 180	20RXX052016X1,50X180	20	6.56	80	26.24	2.880	944.64	8445222231146	0.328

M16 x 1,5 x 200	20RXX052016X1,50X200	20	7.2	40	14.4	1.440	518.4	8445222231160	0.36

M18 x 1,5 x 50	20RXX052018X1,50X050	25	3.725	100	14.9	3.600	536.4	8445222231245	0.149

M18 x 1,5 x 55	20RXX052018X1,50X055	25	3.975	100	15.9	3.600	572.4	8445222231252	0.159

M18 x 1,5 x 60	20RXX052018X1,50X060	25	4.225	100	16.9	3.600	608.4	8445222231269	0.169

M18 x 1,5 x 65	20RXX052018X1,50X065	25	4.475	100	17.9	3.600	644.4	8445222231276	0.179

M18 x 1,5 x 70	20RXX052018X1,50X070	25	4.725	100	18.9	3.600	680.4	8445222231283	0.189

M18 x 1,5 x 80	20RXX052018X1,50X080	25	5.225	100	20.9	3.600	752.4	8445222231306	0.209

M18 x 1,5 x 90	20RXX052018X1,50X090	25	5.725	100	22.9	3.600	824.4	8445222231320	0.229

M18 x 1,5 x 100	20RXX052018X1,50X100	25	6.225	100	24.9	3.600	896.4	8445222231337	0.249

M18 x 1,5 x 110	20RXX052018X1,50X110	20	5.38	80	21.52	2.880	774.72	8445222231351	0.269

M18 x 1,5 x 120	20RXX052018X1,50X120	20	5.78	80	23.12	2.880	832.32	8445222231368	0.289

M18 x 1,5 x 130	20RXX052018X1,50X130	20	6.16	80	24.64	2.880	887.04	8445222231375	0.308

M18 x 1,5 x 140	20RXX052018X1,50X140	15	4.92	60	19.68	2.160	708.48	8445222231382	0.328

M18 x 1,5 x 150	20RXX052018X1,50X150	15	5.22	60	20.88	2.160	751.68	8445222231399	0.348

M18 x 1,5 x 160	20RXX052018X1,50X160	10	3.68	40	14.72	1.440	529.92	8445222231405	0.368

M18 x 1,5 x 180	20RXX052018X1,50X180	10	4.08	40	16.32	1.440	587.52	8445222231429	0.408

M18 x 1,5 x 200	20RXX052018X1,50X200	10	4.48	40	17.92	1.440	645.12	8445222231443	0.448

M20 x 1,5 x 60	20RXX052020X1,50X060	25	5.4	100	21.6	3.600	777.6	8445222231504	0.216

M20 x 1,5 x 65	20RXX052020X1,50X065	25	5.7	100	22.8	3.600	820.8	8445222231511	0.228

M20 x 1,5 x 70	20RXX052020X1,50X070	25	6	100	24	3.600	864	8445222231528	0.24

M20 x 1,5 x 80	20RXX052020X1,50X080	20	5.3	80	21.2	2.880	763.2	8445222231542	0.265

M20 x 1,5 x 90	20RXX052020X1,50X090	10	2.9	80	23.2	2.880	835.2	8445222231566	0.29

M20 x 1,5 x 100	20RXX052020X1,50X100	10	3.14	80	25.12	2.880	904.32	8445222231580	0.314

M20 x 1,5 x 110	20RXX052020X1,50X110	10	3.39	80	27.12	2.880	976.32	8445222231597	0.339

M20 x 1,5 x 120	20RXX052020X1,50X120	10	3.63	40	14.52	1.440	522.72	8445222231603	0.363

M20 x 1,5 x 130	20RXX052020X1,50X130	10	3.87	40	15.48	1.440	557.28	8445222231610	0.387

M20 x 1,5 x 140	20RXX052020X1,50X140	10	4.12	40	16.48	1.440	593.28	8445222231627	0.412

M20 x 1,5 x 150	20RXX052020X1,50X150	10	4.37	40	17.48	1.440	629.28	8445222231634	0.437

M20 x 1,5 x 160	20RXX052020X1,50X160	10	4.61	40	18.44	1.440	663.84	8445222231641	0.461

M20 x 1,5 x 180	20RXX052020X1,50X180	10	5.1	40	20.4	1.440	734.4	8445222231672	0.51

M20 x 1,5 x 200	20RXX052020X1,50X200	10	5.6	40	22.4	1.440	806.4	8445222231696	0.56

M22 x 1,5 x 70	20RXX052022X1,50X070	10	2.93	80	23.44	2.880	843.84	8445222231795	0.293

M22 x 1,5 x 80	20RXX052022X1,50X080	10	3.23	40	12.92	1.440	465.12	8445222231818	0.323

M22 x 1,5 x 90	20RXX052022X1,50X090	10	3.53	40	14.12	1.440	508.32	8445222231832	0.353

M22 x 1,5 x 100	20RXX052022X1,50X100	10	3.83	40	15.32	1.440	551.52	8445222231849	0.383

M22 x 1,5 x 110	20RXX052022X1,50X110	10	4.13	40	16.52	1.440	594.72	8445222231856	0.413

M22 x 1,5 x 120	20RXX052022X1,50X120	10	4.43	40	17.72	1.440	637.92	8445222231863	0.443

M22 x 1,5 x 130	20RXX052022X1,50X130	10	4.73	40	18.92	1.440	681.12	8445222231870	0.473

M22 x 1,5 x 140	20RXX052022X1,50X140	10	5.02	40	20.08	1.440	722.88	8445222231887	0.502

M22 x 1,5 x 150	20RXX052022X1,50X150	10	5.32	40	21.28	1.440	766.08	8445222231894	0.532

M22 x 1,5 x 160	20RXX052022X1,50X160	10	5.62	40	22.48	1.440	809.28	8445222231900	0.562

M22 x 1,5 x 180	20RXX052022X1,50X180	10	6.21	40	24.84	1.440	894.24	8445222231924	0.621

M22 x 1,5 x 200	20RXX052022X1,50X200	5	3.405	20	13.62	720	490.32	8445222231948	0.681

M24 x 2 x 70	20RXX052024X2,00X070	10	3.54	40	14.16	1.440	509.76	8445222232198	0.354

M24 x 2 x 80	20RXX052024X2,00X080	10	4.1	40	16.4	1.440	590.4	8445222232204	0.41

M24 x 2 x 90	20RXX052024X2,00X090	10	4.45	40	17.8	1.440	640.8	8445222232211	0.445

M24 x 2 x 100	20RXX052024X2,00X100	10	4.81	40	19.24	1.440	692.64	8445222232228	0.481

M24 x 2 x 110	20RXX052024X2,00X110	10	5.17	40	20.68	1.440	744.48	8445222232235	0.517

M24 x 2 x 120	20RXX052024X2,00X120	10	5.52	40	22.08	1.440	794.88	8445222232242	0.552

M24 x 2 x 130	20RXX052024X2,00X130	10	5.88	40	23.52	1.440	846.72	8445222232259	0.588

M24 x 2 x 140	20RXX052024X2,00X140	10	5.88	40	23.52	1.440	846.72	8445222232266	0.588

M24 x 2 x 150	20RXX052024X2,00X150	10	6.59	40	26.36	1.440	948.96	8445222232273	0.659

M24 x 2 x 160	20RXX052024X2,00X160	10	6.94	40	27.76	1.440	999.36	8445222232280	0.694

M24 x 2 x 180	20RXX052024X2,00X180	5	3.825	20	15.3	720	550.8	8445222232303	0.765

M24 x 2 x 200	20RXX052024X2,00X200	5	4.18	20	16.72	720	601.92	8445222232327	0.836

PRODUCTOS RELACIONADOS

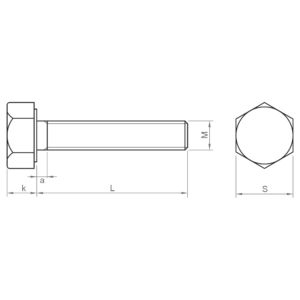

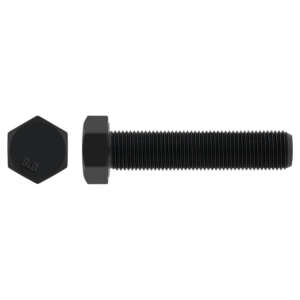

Tornillo hexagonal DIN 961 8.8 BL

ISO 8676

Tornillo hexagonal con rosca completa en acabado negro y calidad 8.8

¿Necesitas más información?

Nombre y apellidos

Correo electrónico

Teléfono

Empresa

País

Provincia

Consulta

Datos

Acepto el uso de mis datos personales por el personal técnico de CHAVES BILBAO, S.L. (CIF B-48044473) para que me contacte exclusivamente para mi información y asesoramiento de sus productos.

Privacidad

He leído y acepto el Aviso Legal y la Política de Privacidad. Este sitio está protegido por reCAPTCHA y la política de privacidad y términos de servicio de Google aplicados.

CHAVES BILBAO, S.L. informa que los datos de carácter personal facilitados de forma voluntaria, cuya finalidad, cesiones previstas y demás circunstancias, se informa en el momento de la recogida de los datos de carácter personal, si bien, según el caso concreto, su finalidad, puede ser alguna de las siguientes, la atención a su solicitud, queja o duda planteada, mantenimiento de la relación establecida, la gestión integral y comercial de clientes, contabilidad y facturación o envío de comunicaciones, incluso por medios electrónicos, de noticias y actividades relacionadas con CHAVES BILBAO, S.L. Los datos incorporados a nuestros ficheros son absolutamente confidenciales y serán tratados con la máxima confidencialidad y cumpliendo todos los requisitos que obliga el Reglamento General de Protección de Datos (RGPD) de 27 de abril de 2016. Los datos quedarán registrados en nuestros ficheros por el tiempo necesario que dure la motivación para la que fueron recabados. El plazo durante el cual se conservarán los datos personales será aquel que marque la legislación vigente y siempre durante el tiempo que medie en la prestación del servicio para el que fueron comunicados. Se recomienda no enviar datos personales de nivel alto, según la legislación de protección de datos, como pueden ser los relativos a salud, pues los mismos no viajan cifrados o encriptados. De modo que si VD, los envía será de su exclusiva responsabilidad. El usuario podrá ejercer en cualquier momento sus derechos para acceder, rectificar, oponerse, cancelarlos, limitar su tratamiento o solicitar su portabilidad con arreglo a lo previsto en el Reglamento General de Protección de Datos (RGPD) de 27 de abril de 2016 enviando una carta junto con la fotocopia de su DNI, a CHAVES BILBAO, S.L. C/Bizkargi, 6 Polígono Industrial Sarrikola 48195 Larrabetzu - Bizkaia - España o a través de la dirección de correo electrónico info@chavesbao.com.

Tornillo hexagonal DIN 960 8.8 BL

Tornillo hexagonal con media rosca fina en acabado negro y calidad 8.8

Tornillo hexagonal DIN 961 8.8 BL

¿Necesitas más información?

área clientes

idioma
