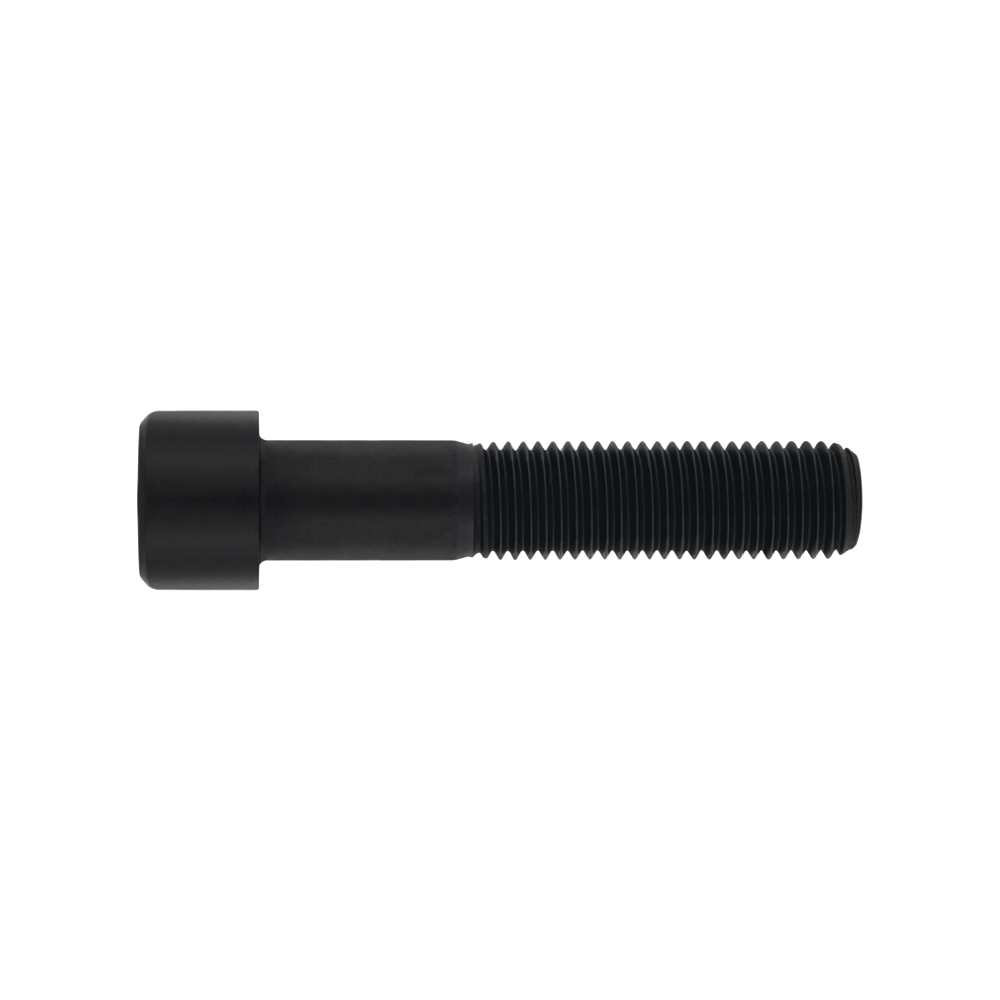

DIN 912 8.8 BL

ISO 4762

Tornillo allen. Pavonado. Calidad 8.8

Ref.: 602710

Es un tornillo allen con equivalencia 4762, fabricado en calidad 8.8 y con recubrimiento negro. Su diseño es de rosca parcial y cabeza cilíndrica con hexágono interior allen. Se utiliza para aplicaciones que requieren una fijación precisa y resistente.

Medida	Código	Uds. Estuche	Uds. Master	EAN Estuche	Peso (Ud/Kg)
3 x 6	60271003X006	500	15.000	8432569221084	0.0007
				M3 L6 k3 dk5,5 b18 S2,5
3 x 8	60271003X008	500	15.000	8432569221091	0.0008
				M3 L8 k3 dk5,5 b18 S2,5
3 x 10	60271003X010	500	15.000	8432569221114	0.0009
				M3 L10 k3 dk5,5 b18 S2,5
3 x 12	60271003X012	500	15.000	8432569221121	0.0009
				M3 L12 k3 dk5,5 b18 S2,5
3 x 14	60271003X014	500	15.000	8432569221138	0.001
				M3 L14 k3 dk5,5 b18 S2,5
3 x 16	60271003X016	500	15.000	8432569221145	0.0011
				M3 L16 k3 dk5,5 b18 S2,5
3 x 18	60271003X018	500	15.000	8432569221152	0.0012
				M3 L18 k3 dk5,5 b18 S2,5
3 x 20	60271003X020	500	8.000	8432569221169	0.0013
				M3 L20 k3 dk5,5 b18 S2,5
3 x 25	60271003X025	500	8.000	8432569221183	0.0016
				M3 L25 k3 dk5,5 b18 S2,5
3 x 30	60271003X030	500	8.000	8432569221190	0.0018
				M3 L30 k3 dk5,5 b18 S2,5
3 x 35	60271003X035	500	8.000	8432569221206	0.0021
				M3 L35 k3 dk5,5 b18 S2,5
3 x 40	60271003X040	500	4.000	8432569221213	0.0023
				M3 L40 k3 dk5,5 b18 S2,5
4 x 6	60271004X006	500	15.000	8432569221251	0.0015
				M4 L6 k4 dk7 b20 S3
4 x 8	60271004X008	200	6.000	8432569221268	0.0016
				M4 L8 k4 dk7 b20 S3
4 x 10	60271004X010	200	6.000	8432569221275	0.0018
				M4 L10 k4 dk7 b20 S3
4 x 12	60271004X012	200	6.000	8432569221282	0.0019
				M4 L12 k4 dk7 b20 S3
4 x 14	60271004X014	200	3.200	8432569221299	0.0021
				M4 L14 k4 dk7 b20 S3
4 x 16	60271004X016	200	3.200	8432569221305	0.0022
				M4 L16 k4 dk7 b20 S3
4 x 18	60271004X018	200	3.200	8432569221312	0.0024
				M4 L18 k4 dk7 b20 S3
4 x 20	60271004X020	200	3.200	8432569221329	0.0026
				M4 L20 k4 dk7 b20 S3
4 x 22	60271004X022	200	3.200	8432569221336	0.0028
				M4 L22 k4 dk7 b20 S3
4 x 25	60271004X025	200	3.200	8432569002140	0.0031
				M4 L25 k4 dk7 b20 S3
4 x 30	60271004X030	200	3.200	8432569221350	0.0036
				M4 L30 k4 dk7 b20 S3
4 x 35	60271004X035	200	3.200	8432569221367	0.0041
				M4 L35 k4 dk7 b20 S3
4 x 40	60271004X040	200	3.200	8432569221374	0.0046
				M4 L40 k4 dk7 b20 S3
4 x 45	60271004X045	200	3.200	8432569221381	0.0051
				M4 L45 k4 dk7 b20 S3
4 x 50	60271004X050	200	3.200	8432569221398	0.0056
				M4 L50 k4 dk7 b20 S3
4 x 55	60271004X055	200	3.200	8432569221404	0.0061
				M4 L55 k4 dk7 b20 S3
4 x 60	60271004X060	200	3.200	8432569221411	0.0066
				M4 L60 k4 dk7 b20 S3
4 x 65	60271004X065	200	3.200	8432569221428	0.0071
				M4 L65 k4 dk7 b20 S3
4 x 70	60271004X070	200	1.600	8432569221435	0.0076
				M4 L70 k4 dk7 b20 S3
4 x 80	60271004X080	200	1.600	8432569221459	0.0086
				M4 L80 k4 dk7 b20 S3
4 x 90	60271004X090	200	1.600	8432569221466	0.0096
				M4 L90 k4 dk7 b20 S3
4 x 100	60271004X100	200	1.600	8432569221473	0.0106
				M4 L100 k4 dk7 b20 S3
5 x 6	60271005X006	200	6.000	8432569221480	0.0023
				M5 L6 k5 dk8,5 b22 S4
5 x 8	60271005X008	200	6.000	8432569221497	0.00245
				M5 L8 k5 dk8,5 b22 S4
5 x 10	60271005X010	200	6.000	8432569221503	0.0027
				M5 L10 k5 dk8,5 b22 S4
5 x 12	60271005X012	200	6.000	8432569221510	0.0029
				M5 L12 k5 dk8,5 b22 S4
5 x 14	60271005X014	200	6.000	8432569221527	0.0032
				M5 L14 k5 dk8,5 b22 S4
5 x 16	60271005X016	200	6.000	8432569000009	0.0034
				M5 L16 k5 dk8,5 b22 S4
5 x 18	60271005X018	200	3.200	8432569221558	0.0037
				M5 L18 k5 dk8,5 b22 S4
5 x 20	60271005X020	200	3.200	8432569000016	0.004
				M5 L20 k5 dk8,5 b22 S4
5 x 22	60271005X022	200	3.200	8432569221572	0.0043
				M5 L22 k5 dk8,5 b22 S4
5 x 25	60271005X025	200	3.200	8432569221589	0.0048
				M5 L25 k5 dk8,5 b22 S4
5 x 30	60271005X030	200	3.200	8432569002201	0.0055
				M5 L30 k5 dk8,5 b22 S4
5 x 35	60271005X035	200	3.200	8432569221602	0.0063
				M5 L35 k5 dk8,5 b22 S4
5 x 40	60271005X040	200	1.600	8432569002218	0.007
				M5 L40 k5 dk8,5 b22 S4
5 x 45	60271005X045	200	1.600	8432569221626	0.0078
				M5 L45 k5 dk8,5 b22 S4
5 x 50	60271005X050	200	1.600	8432569002225	0.0086
				M5 L50 k5 dk8,5 b22 S4
5 x 55	60271005X055	200	1.600	8432569221640	0.0094
				M5 L55 k5 dk8,5 b22 S4
5 x 60	60271005X060	200	1.600	8432569221657	0.0102
				M5 L60 k5 dk8,5 b22 S4
5 x 65	60271005X065	200	1.600	8432569221664	0.011
				M5 L65 k5 dk8,5 b22 S4
5 x 70	60271005X070	200	1.600	8432569221671	0.0118
				M5 L70 k5 dk8,5 b22 S4
5 x 75	60271005X075	200	1.600	8432569221688	0.0126
				M5 L75 k5 dk8,5 b22 S4
5 x 80	60271005X080	200	1.600	8432569221695	0.0134
				M5 L80 k5 dk8,5 b22 S4
5 x 90	60271005X090	200	1.600	8432569221718	0.01479
				M5 L90 k5 dk8,5 b22 S4
5 x 100	60271005X100	200	800	8432569221725	0.0202
				M5 L100 k5 dk8,5 b22 S4
5 x 110	60271005X110	200	800	8432569221732	0.0212
				M5 L110 k5 dk8,5 b22 S4
5 x 120	60271005X120	100	800	8432569221749	0.027
				M5 L120 k5 dk8,5 b22 S4
5 x 130	60271005X130	100	800	8432569221756	0.02095
				M5 L130 k5 dk8,5 b22 S4
5 x 140	60271005X140	100	800	8432569221763	0.0338
				M5 L140 k5 dk8,5 b22 S4
5 x 150	60271005X150	100	400	8432569221770	0.0372
				M5 L150 k5 dk8,5 b22 S4
5 x 160	60271005X160	100	400	8432569221787	0.0406
				M5 L160 k5 dk8,5 b22 S4
5 x 180	60271005X180	0	0	8432569221794	0.0474
				M5 L180 k5 dk8,5 b22 S4
6 x 8	60271006X008	200	3.200	8432569221817	0.0042
				M6 L8 k6 dk10 b24 S5
6 x 10	60271006X010	200	3.200	8432569001754	0.0047
				M6 L10 k6 dk10 b24 S5
6 x 12	60271006X012	200	3.200	8432569221831	0.0051
				M6 L12 k6 dk10 b24 S5
6 x 14	60271006X014	200	3.200	8432569000023	0.0054
				M6 L14 k6 dk10 b24 S5
6 x 16	60271006X016	200	3.200	8432569000122	0.0057
				M6 L16 k6 dk10 b24 S5
6 x 18	60271006X018	200	3.200	8432569221862	0.0061
				M6 L18 k6 dk10 b24 S5
6 x 20	60271006X020	200	3.200	8432569000139	0.0065
				M6 L20 k6 dk10 b24 S5
6 x 22	60271006X022	200	3.200	8432569221886	0.0069
				M6 L22 k6 dk10 b24 S5
6 x 25	60271006X025	200	1.600	8432569002232	0.0076
				M6 L25 k6 dk10 b24 S5
6 x 30	60271006X030	200	1.600	8432569002003	0.0087
				M6 L30 k6 dk10 b24 S5
6 x 35	60271006X035	200	1.600	8432569221916	0.0099
				M6 L35 k6 dk10 b24 S5
6 x 40	60271006X040	200	1.600	8432569003543	0.011
				M6 L40 k6 dk10 b24 S5
6 x 45	60271006X045	200	1.600	8432569221930	0.0121
				M6 L45 k6 dk10 b24 S5
6 x 50	60271006X050	200	1.600	8432569003550	0.0132
				M6 L50 k6 dk10 b24 S5
6 x 55	60271006X055	200	1.600	8432569221954	0.0143
				M6 L55 k6 dk10 b24 S5
6 x 60	60271006X060	200	1.600	8432569221961	0.0154
				M6 L60 k6 dk10 b24 S5
6 x 65	60271006X065	200	800	8432569221978	0.0165
				M6 L65 k6 dk10 b24 S5
6 x 70	60271006X070	200	800	8432569221985	0.0176
				M6 L70 k6 dk10 b24 S5
6 x 75	60271006X075	200	800	8432569221992	0.0187
				M6 L75 k6 dk10 b24 S5
6 x 80	60271006X080	100	800	8432569222005	0.0198
				M6 L80 k6 dk10 b24 S5
6 x 90	60271006X090	100	800	8432569222012	0.022
				M6 L90 k6 dk10 b24 S5
6 x 100	60271006X100	100	800	8432569222029	0.0242
				M6 L100 k6 dk10 b24 S5
6 x 110	60271006X110	100	800	8432569222036	0.0264
				M6 L110 k6 dk10 b24 S5
6 x 120	60271006X120	100	800	8432569222043	0.0286
				M6 L120 k6 dk10 b24 S5
6 x 130	60271006X130	100	800	8432569222067	0.0319
				M6 L130 k6 dk10 b24 S5
6 x 140	60271006X140	100	800	8432569222074	0.033
				M6 L140 k6 dk10 b24 S5
6 x 150	60271006X150	100	400	8432569222081	0.0341
				M6 L150 k6 dk10 b24 S5
6 x 160	60271006X160	100	400	8432569222098	0.0396
				M6 L160 k6 dk10 b24 S5
6 x 180	60271006X180	0	0	8432569222128	0.0506
				M6 L180 k6 dk10 b24 S5
6 x 200	60271006X200	100	400	8432569222142	0.0616
				M6 L200 k6 dk10 b24 S5
8 x 10	60271008X010	200	1.600	8432569222197	0.0113
				M8 L10 k8 dk13 b28 S6
8 x 12	60271008X012	200	1.600	8432569222203	0.0119
				M8 L12 k8 dk13 b28 S6
8 x 14	60271008X014	200	1.600	8432569222210	0.0115
				M8 L14 k8 dk13 b28 S6
8 x 16	60271008X016	200	1.600	8432569000955	0.0121
				M8 L16 k8 dk13 b28 S6
8 x 18	60271008X018	200	1.600	8432569222241	0.0127
				M8 L18 k8 dk13 b28 S6
8 x 20	60271008X020	200	1.600	8432569002010	0.0134
				M8 L20 k8 dk13 b28 S6
8 x 22	60271008X022	200	1.600	8432569222265	0.014
				M8 L22 k8 dk13 b28 S6
8 x 25	60271008X025	200	1.600	8432569000962	0.015
				M8 L25 k8 dk13 b28 S6
8 x 30	60271008X030	200	800	8432569003567	0.0169
				M8 L30 k8 dk13 b28 S6
8 x 35	60271008X035	200	800	8432569222296	0.0189
				M8 L35 k8 dk13 b28 S6
8 x 40	60271008X040	200	800	8432569003574	0.0209
				M8 L40 k8 dk13 b28 S6
8 x 45	60271008X045	100	800	8432569222319	0.0229
				M8 L45 k8 dk13 b28 S6
8 x 50	60271008X050	100	800	8432569000979	0.0249
				M8 L50 k8 dk13 b28 S6
8 x 55	60271008X055	100	800	8432569222333	0.0269
				M8 L55 k8 dk13 b28 S6
8 x 60	60271008X060	100	800	8432569002249	0.0289
				M8 L60 k8 dk13 b28 S6
8 x 65	60271008X065	100	800	8432569222357	0.031
				M8 L65 k8 dk13 b28 S6
8 x 70	60271008X070	100	400	8432569222364	0.033
				M8 L70 k8 dk13 b28 S6
8 x 75	60271008X075	100	400	8432569222371	0.035
				M8 L75 k8 dk13 b28 S6
8 x 80	60271008X080	100	400	8432569222388	0.037
				M8 L80 k8 dk13 b28 S6
8 x 90	60271008X090	100	400	8432569222401	0.041
				M8 L90 k8 dk13 b28 S6
8 x 100	60271008X100	100	400	8432569222418	0.045
				M8 L100 k8 dk13 b28 S6
8 x 110	60271008X110	100	400	8432569222425	0.049
				M8 L110 k8 dk13 b28 S6
8 x 120	60271008X120	50	400	8432569001761	0.053
				M8 L120 k8 dk13 b28 S6
8 x 130	60271008X130	50	400	8432569222449	0.057
				M8 L130 k8 dk13 b28 S6
8 x 140	60271008X140	50	400	8432569222456	0.061
				M8 L140 k8 dk13 b28 S6
8 x 150	60271008X150	50	200	8432569222463	0.065
				M8 L150 k8 dk13 b28 S6
8 x 160	60271008X160	50	200	8432569222470	0.069
				M8 L160 k8 dk13 b28 S6
8 x 170	60271008X170	50	200	8432569222487	0.093
				M8 L170 k8 dk13 b28 S6
8 x 180	60271008X180	50	200	8432569222494	0.117
				M8 L180 k8 dk13 b28 S6
8 x 200	60271008X200	50	200	8432569222500	0.165
				M8 L200 k8 dk13 b28 S6
8 x 220	60271008X220	0	0	8432569222517	0.099
				M8 L220 k8 dk13 b28 S6
8 x 240	60271008X240	0	0	8432569537963	0.101
				M8 L240 k8 dk13 b28 S6
8 x 260	60271008X260	0	0	8432569465976	0.109
				M8 L260 k8 dk13 b28 S6
8 x 280	60271008X280	0	0	8432569537970	0.117
				M8 L280 k8 dk13 b28 S6
8 x 300	60271008X300	0	50	8432569537987	0.125
				M8 L300 k8 dk13 b28 S6
10 x 16	60271010X016	200	800	8432569222548	0.0209
				M10 L16 k10 dk16 b32 S8
10 x 18	60271010X018	200	800	8432569222555	0.0219
				M10 L18 k10 dk16 b32 S8
10 x 20	60271010X020	200	800	8432569222562	0.0229
				M10 L20 k10 dk16 b32 S8
10 x 22	60271010X022	200	800	8432569222579	0.0239
				M10 L22 k10 dk16 b32 S8
10 x 25	60271010X025	200	800	8432569222586	0.0259
				M10 L25 k10 dk16 b32 S8
10 x 30	60271010X030	100	800	8432569000986	0.0279
				M10 L30 k10 dk16 b32 S8
10 x 35	60271010X035	100	800	8432569222609	0.031
				M10 L35 k10 dk16 b32 S8
10 x 40	60271010X040	100	400	8432569002256	0.0341
				M10 L40 k10 dk16 b32 S8
10 x 45	60271010X045	100	400	8432569222623	0.0372
				M10 L45 k10 dk16 b32 S8
10 x 50	60271010X050	100	400	8432569001013	0.0403
				M10 L50 k10 dk16 b32 S8
10 x 55	60271010X055	100	400	8432569001020	0.0434
				M10 L55 k10 dk16 b32 S8
10 x 60	60271010X060	100	400	8432569002263	0.0465
				M10 L60 k10 dk16 b32 S8
10 x 65	60271010X065	50	400	8432569222661	0.0496
				M10 L65 k10 dk16 b32 S8
10 x 70	60271010X070	50	400	8432569002270	0.0527
				M10 L70 k10 dk16 b32 S8
10 x 75	60271010X075	50	200	8432569222685	0.0558
				M10 L75 k10 dk16 b32 S8
10 x 80	60271010X080	50	200	8432569002287	0.0589
				M10 L80 k10 dk16 b32 S8
10 x 90	60271010X090	50	200	8432569222715	0.0651
				M10 L90 k10 dk16 b32 S8
10 x 100	60271010X100	50	200	8432569222722	0.0713
				M10 L100 k10 dk16 b32 S8
10 x 110	60271010X110	50	200	8432569222739	0.0774
				M10 L110 k10 dk16 b32 S8
10 x 120	60271010X120	50	200	8432569003581	0.0836
				M10 L120 k10 dk16 b32 S8
10 x 130	60271010X130	50	200	8432569222753	0.0898
				M10 L130 k10 dk16 b32 S8
10 x 140	60271010X140	50	200	8432569222760	0.096
				M10 L140 k10 dk16 b32 S8
10 x 150	60271010X150	50	200	8432569222777	0.1022
				M10 L150 k10 dk16 b32 S8
10 x 160	60271010X160	50	200	8432569222784	0.1084
				M10 L160 k10 dk16 b32 S8
10 x 170	60271010X170	50	200	8432569222791	0.1146
				M10 L170 k10 dk16 b32 S8
10 x 180	60271010X180	50	200	8432569222807	0.1208
				M10 L180 k10 dk16 b32 S8
10 x 190	60271010X190	25	100	8432569222814	0.127
				M10 L190 k10 dk16 b32 S8
10 x 200	60271010X200	25	100	8432569222821	0.1283
				M10 L200 k10 dk16 b32 S8
10 x 220	60271010X220	25	100	8432569222845	0.1468
				M10 L220 k10 dk16 b32 S8
10 x 240	60271010X240	0	25	8432569222852	0.16
				M10 L240 k10 dk16 b32 S8
10 x 260	60271010X260	0	25	8432569538021	0.172
				M10 L260 k10 dk16 b32 S8
10 x 280	60271010X280	0	0
				M10 L280 k10 dk16 b32 S8
10 x 300	60271010X300	0	25	8432569537994	0.172
				M10 L300 k10 dk16 b32 S8
12 x 16	60271012X016	100	800	8432569222876	0.0285
				M12 L16 k12 dk18 b36 S10
12 x 20	60271012X020	100	400	8432569222883	0.0321
				M12 L20 k12 dk18 b36 S10
12 x 25	60271012X025	100	400	8432569222906	0.0357
				M12 L25 k12 dk18 b36 S10
12 x 30	60271012X030	100	400	8432569000993	0.0393
				M12 L30 k12 dk18 b36 S10
12 x 35	60271012X035	100	400	8432569222920	0.0429
				M12 L35 k12 dk18 b36 S10
12 x 40	60271012X040	50	400	8432569002294	0.0473
				M12 L40 k12 dk18 b36 S10
12 x 45	60271012X045	50	400	8432569222944	0.0517
				M12 L45 k12 dk18 b36 S10
12 x 50	60271012X050	50	400	8432569001006	0.0561
				M12 L50 k12 dk18 b36 S10
12 x 55	60271012X055	50	400	8432569222968	0.0605
				M12 L55 k12 dk18 b36 S10
12 x 60	60271012X060	50	200	8432569002300	0.0649
				M12 L60 k12 dk18 b36 S10
12 x 65	60271012X065	50	200	8432569222982	0.0693
				M12 L65 k12 dk18 b36 S10
12 x 70	60271012X070	50	200	8432569222999	0.0737
				M12 L70 k12 dk18 b36 S10
12 x 75	60271012X075	50	200	8432569223002	0.0781
				M12 L75 k12 dk18 b36 S10
12 x 80	60271012X080	50	200	8432569223019	0.0825
				M12 L80 k12 dk18 b36 S10
12 x 90	60271012X090	50	200	8432569223033	0.0913
				M12 L90 k12 dk18 b36 S10
12 x 100	60271012X100	50	200	8432569223040	0.1
				M12 L100 k12 dk18 b36 S10
12 x 110	60271012X110	50	200	8432569223057	0.109
				M12 L110 k12 dk18 b36 S10
12 x 120	60271012X120	50	200	8432569223064	0.118
				M12 L120 k12 dk18 b36 S10
12 x 130	60271012X130	25	100	8432569223071	0.127
				M12 L130 k12 dk18 b36 S10
12 x 140	60271012X140	25	100	8432569223088	0.136
				M12 L140 k12 dk18 b36 S10
12 x 150	60271012X150	25	100	8432569223095	0.145
				M12 L150 k12 dk18 b36 S10
12 x 160	60271012X160	25	100	8432569223101	0.154
				M12 L160 k12 dk18 b36 S10
12 x 170	60271012X170	25	100	8432569223118	0.163
				M12 L170 k12 dk18 b36 S10
12 x 180	60271012X180	25	100	8432569223125	0.172
				M12 L180 k12 dk18 b36 S10
12 x 190	60271012X190	25	100	8432569538007	0.179
				M12 L190 k12 dk18 b36 S10
12 x 200	60271012X200	25	100	8432569223132	0.19
				M12 L200 k12 dk18 b36 S10
12 x 220	60271012X220	25	100	8432569223149	0.208
				M12 L220 k12 dk18 b36 S10
12 x 240	60271012X240	0	25	8432569223156	0.226
				M12 L240 k12 dk18 b36 S10
12 x 260	60271012X260	0	20	8432569223170	0.244
				M12 L260 k12 dk18 b36 S10
12 x 280	60271012X280	0	15	8432569223187	0.262
				M12 L280 k12 dk18 b36 S10
12 x 300	60271012X300	0	15	8432569223194	0.28
				M12 L300 k12 dk18 b36 S10
14 x 25	60271014X025	25	400	8432569223217	0.048
				M14 L25 k14 dk21 b40 S12
14 x 30	60271014X030	25	400	8432569223224	0.053
				M14 L30 k14 dk21 b40 S12
14 x 35	60271014X035	25	400	8432569223231	0.058
				M14 L35 k14 dk21 b40 S12
14 x 40	60271014X040	25	200	8432569223248	0.063
				M14 L40 k14 dk21 b40 S12
14 x 45	60271014X045	25	200	8432569223255	0.069
				M14 L45 k14 dk21 b40 S12
14 x 50	60271014X050	25	200	8432569223262	0.075
				M14 L50 k14 dk21 b40 S12
14 x 55	60271014X055	25	200	8432569223279	0.081
				M14 L55 k14 dk21 b40 S12
14 x 60	60271014X060	25	200	8432569223286	0.087
				M14 L60 k14 dk21 b40 S12
14 x 65	60271014X065	25	200	8432569223293	0.093
				M14 L65 k14 dk21 b40 S12
14 x 70	60271014X070	25	200	8432569223309	0.099
				M14 L70 k14 dk21 b40 S12
14 x 75	60271014X075	25	200	8432569223316	0.105
				M14 L75 k14 dk21 b40 S12
14 x 80	60271014X080	25	200	8432569223323	0.111
				M14 L80 k14 dk21 b40 S12
14 x 90	60271014X090	25	200	8432569223330	0.123
				M14 L90 k14 dk21 b40 S12
14 x 100	60271014X100	25	100	8432569223347	0.135
				M14 L100 k14 dk21 b40 S12
14 x 110	60271014X110	25	100	8432569223354	0.147
				M14 L110 k14 dk21 b40 S12
14 x 120	60271014X120	25	100	8432569223361	0.159
				M14 L120 k14 dk21 b40 S12
14 x 130	60271014X130	25	100	8432569223378	0.171
				M14 L130 k14 dk21 b40 S12
14 x 140	60271014X140	25	100	8432569223385	0.183
				M14 L140 k14 dk21 b40 S12
14 x 150	60271014X150	25	100	8432569223392	0.195
				M14 L150 k14 dk21 b40 S12
14 x 160	60271014X160	25	100	8432569223408	0.207
				M14 L160 k14 dk21 b40 S12
14 x 170	60271014X170	25	100	8432569223415	0.219
				M14 L170 k14 dk21 b40 S12
14 x 180	60271014X180	25	100	8432569223422	0.221
				M14 L180 k14 dk21 b40 S12
14 x 190	60271014X190	25	100	8432569538014	0.24
				M14 L190 k14 dk21 b40 S12
14 x 200	60271014X200	25	50	8432569223439	0.25
				M14 L200 k14 dk21 b40 S12
14 x 220	60271014X220	25	50	8432569223446	0.279
				M14 L220 k14 dk21 b40 S12
14 x 240	60271014X240	0	25	8432569223453	0.308
				M14 L240 k14 dk21 b40 S12
14 x 260	60271014X260	0	25	8432569223460	0.337
				M14 L260 k14 dk21 b40 S12
14 x 280	60271014X280	0	25	8432569223477	0.366
				M14 L280 k14 dk21 b40 S12
14 x 300	60271014X300	0	25	8432569223484	0.395
				M14 L300 k14 dk21 b40 S12
16 x 25	60271016X025	25	200	8432569223491	0.0712
				M16 L25 k16 dk24 b44 S14
16 x 30	60271016X030	25	200	8432569223507	0.0778
				M16 L30 k16 dk24 b44 S14
16 x 35	60271016X035	25	200	8432569223514	0.0844
				M16 L35 k16 dk24 b44 S14
16 x 40	60271016X040	25	200	8432569223521	0.091
				M16 L40 k16 dk24 b44 S14
16 x 45	60271016X045	25	200	8432569223538	0.0976
				M16 L45 k16 dk24 b44 S14
16 x 50	60271016X050	25	200	8432569223545	0.106
				M16 L50 k16 dk24 b44 S14
16 x 55	60271016X055	25	200	8432569223552	0.114
				M16 L55 k16 dk24 b44 S14
16 x 60	60271016X060	25	200	8432569223569	0.122
				M16 L60 k16 dk24 b44 S14
16 x 65	60271016X065	25	100	8432569223576	0.13
				M16 L65 k16 dk24 b44 S14
16 x 70	60271016X070	25	100	8432569223583	0.138
				M16 L70 k16 dk24 b44 S14
16 x 75	60271016X075	25	100	8432569223590	0.146
				M16 L75 k16 dk24 b44 S14
16 x 80	60271016X080	25	100	8432569223606	0.154
				M16 L80 k16 dk24 b44 S14
16 x 90	60271016X090	25	100	8432569223613	0.17
				M16 L90 k16 dk24 b44 S14
16 x 100	60271016X100	25	100	8432569223620	0.186
				M16 L100 k16 dk24 b44 S14
16 x 110	60271016X110	25	100	8432569223637	0.202
				M16 L110 k16 dk24 b44 S14
16 x 120	60271016X120	25	100	8432569223644	0.218
				M16 L120 k16 dk24 b44 S14
16 x 130	60271016X130	25	100	8432569223651	0.234
				M16 L130 k16 dk24 b44 S14
16 x 140	60271016X140	20	80	8432569223675	0.25
				M16 L140 k16 dk24 b44 S14
16 x 150	60271016X150	20	80	8432569223682	0.266
				M16 L150 k16 dk24 b44 S14
16 x 160	60271016X160	20	80	8432569223699	0.282
				M16 L160 k16 dk24 b44 S14
16 x 170	60271016X170	20	80	8432569223705	0.298
				M16 L170 k16 dk24 b44 S14
16 x 180	60271016X180	10	40	8432569223712	0.314
				M16 L180 k16 dk24 b44 S14
16 x 190	60271016X190	10	40	8432569223729	0.33
				M16 L190 k16 dk24 b44 S14
16 x 200	60271016X200	10	40	8432569223736	0.346
				M16 L200 k16 dk24 b44 S14
16 x 220	60271016X220	10	40	8432569223743	0.378
				M16 L220 k16 dk24 b44 S14
16 x 240	60271016X240	0	10	8432569223750	0.41
				M16 L240 k16 dk24 b44 S14
16 x 250	60271016X250	0	10	8432569223767	0.442
				M16 L250 k16 dk24 b44 S14
16 x 260	60271016X260	0	10	8432569223774	0.474
				M16 L260 k16 dk24 b44 S14
16 x 280	60271016X280	0	10	8432569223781	0.538
				M16 L280 k16 dk24 b44 S14
16 x 300	60271016X300	0	10	8432569223798	0.602
				M16 L300 k16 dk24 b44 S14
18 x 30	60271018X030	25	200	8432569223835	0.109
				M18 L30 k18 dk27 b48 S14
18 x 35	60271018X035	25	200	8432569223842	0.119
				M18 L35 k18 dk27 b48 S14
18 x 40	60271018X040	25	100	8432569223859	0.129
				M18 L40 k18 dk27 b48 S14
18 x 45	60271018X045	25	100	8432569223866	0.137
				M18 L45 k18 dk27 b48 S14
18 x 50	60271018X050	25	100	8432569223873	0.147
				M18 L50 k18 dk27 b48 S14
18 x 55	60271018X055	25	100	8432569223880	0.157
				M18 L55 k18 dk27 b48 S14
18 x 60	60271018X060	25	100	8432569223897	0.167
				M18 L60 k18 dk27 b48 S14
18 x 65	60271018X065	25	100	8432569223903	0.177
				M18 L65 k18 dk27 b48 S14
18 x 70	60271018X070	25	100	8432569223910	0.187
				M18 L70 k18 dk27 b48 S14
18 x 75	60271018X075	25	100	8432569223927	0.197
				M18 L75 k18 dk27 b48 S14
18 x 80	60271018X080	25	100	8432569223934	0.207
				M18 L80 k18 dk27 b48 S14
18 x 90	60271018X090	25	100	8432569223941	0.227
				M18 L90 k18 dk27 b48 S14
18 x 100	60271018X100	25	100	8432569223958	0.247
				M18 L100 k18 dk27 b48 S14
18 x 110	60271018X110	20	80	8432569223965	0.267
				M18 L110 k18 dk27 b48 S14
18 x 120	60271018X120	20	80	8432569223972	0.287
				M18 L120 k18 dk27 b48 S14
18 x 130	60271018X130	20	80	8432569223989	0.307
				M18 L130 k18 dk27 b48 S14
18 x 140	60271018X140	10	40	8432569223996	0.327
				M18 L140 k18 dk27 b48 S14
18 x 150	60271018X150	10	40	8432569224009	0.347
				M18 L150 k18 dk27 b48 S14
18 x 160	60271018X160	10	40	8432569224016	0.367
				M18 L160 k18 dk27 b48 S14
18 x 170	60271018X170	10	40	8432569224023	0.387
				M18 L170 k18 dk27 b48 S14
18 x 180	60271018X180	10	40	8432569224030	0.407
				M18 L180 k18 dk27 b48 S14
18 x 190	60271018X190	10	40	8432569704907	0.423
				M18 L190 k18 dk27 b48 S14
18 x 200	60271018X200	10	40	8432569224047	0.447
				M18 L200 k18 dk27 b48 S14
18 x 220	60271018X220	10	40	8432569224054	0.48
				M18 L220 k18 dk27 b48 S14
18 x 240	60271018X240	0	10	8432569224061	0.52
				M18 L240 k18 dk27 b48 S14
18 x 260	60271018X260	0	10	8432569224078	0.56
				M18 L260 k18 dk27 b48 S14
18 x 280	60271018X280	0	10	8432569224085	0.6
				M18 L280 k18 dk27 b48 S14
18 x 300	60271018X300	0	10	8432569224092	0.64
				M18 L300 k18 dk27 b48 S14
20 x 30	60271020X030	25	100	8432569224108	0.128
				M20 L30 k20 dk30 b52 S17
20 x 35	60271020X035	25	100	8432569224115	0.139
				M20 L35 k20 dk30 b52 S17
20 x 40	60271020X040	25	100	8432569224122	0.15
				M20 L40 k20 dk30 b52 S17
20 x 45	60271020X045	25	100	8432569224139	0.161
				M20 L45 k20 dk30 b52 S17
20 x 50	60271020X050	25	100	8432569224146	0.172
				M20 L50 k20 dk30 b52 S17
20 x 55	60271020X055	25	100	8432569224153	0.183
				M20 L55 k20 dk30 b52 S17
20 x 60	60271020X060	25	100	8432569224160	0.195
				M20 L60 k20 dk30 b52 S17
20 x 65	60271020X065	25	100	8432569224177	0.207
				M20 L65 k20 dk30 b52 S17
20 x 70	60271020X070	25	100	8432569224184	0.22
				M20 L70 k20 dk30 b52 S17
20 x 75	60271020X075	25	100	8432569224191	0.232
				M20 L75 k20 dk30 b52 S17
20 x 80	60271020X080	25	100	8432569224207	0.244
				M20 L80 k20 dk30 b52 S17
20 x 90	60271020X090	10	80	8432569224221	0.269
				M20 L90 k20 dk30 b52 S17
20 x 100	60271020X100	10	40	8432569224245	0.294
				M20 L100 k20 dk30 b52 S17
20 x 110	60271020X110	10	40	8432569224252	0.319
				M20 L110 k20 dk30 b52 S17
20 x 120	60271020X120	10	40	8432569224269	0.344
				M20 L120 k20 dk30 b52 S17
20 x 130	60271020X130	10	40	8432569224276	0.369
				M20 L130 k20 dk30 b52 S17
20 x 140	60271020X140	10	40	8432569224283	0.394
				M20 L140 k20 dk30 b52 S17
20 x 150	60271020X150	10	40	8432569224290	0.419
				M20 L150 k20 dk30 b52 S17
20 x 160	60271020X160	10	40	8432569224306	0.441
				M20 L160 k20 dk30 b52 S17
20 x 170	60271020X170	10	40	8432569224313	0.469
				M20 L170 k20 dk30 b52 S17
20 x 180	60271020X180	10	40	8432569224320	0.494
				M20 L180 k20 dk30 b52 S17
20 x 190	60271020X190	10	40	8432569224337	0.519
				M20 L190 k20 dk30 b52 S17
20 x 200	60271020X200	10	40	8432569224344	0.544
				M20 L200 k20 dk30 b52 S17
20 x 220	60271020X220	10	40	8432569224368	0.594
				M20 L220 k20 dk30 b52 S17
20 x 240	60271020X240	0	10	8432569224382	0.644
				M20 L240 k20 dk30 b52 S17
20 x 250	60271020X250	0	10	8432569224399	0.6861
				M20 L250 k20 dk30 b52 S17
20 x 260	60271020X260	0	10	8432569224405	0.69
				M20 L260 k20 dk30 b52 S17
20 x 280	60271020X280	0	10	8432569224412	0.736
				M20 L280 k20 dk30 b52 S17
20 x 300	60271020X300	0	10	8432569224429	0.782
				M20 L300 k20 dk30 b52 S17
20 x 320	60271020X320	0	10	8432569224436	0.828
				M20 L320 k20 dk30 b52 S17
20 x 340	60271020X340	0	10	8432569224450	0.874
				M20 L340 k20 dk30 b52 S17
20 x 360	60271020X360	0	10	8432569684063	0.941
				M20 L360 k20 dk30 b52 S17
20 x 380	60271020X380	0	10	8432569684070	0.991
				M20 L380 k20 dk30 b52 S17
20 x 400	60271020X400	0	10	8432569517781	1.041
				M20 L400 k20 dk30 b52 S17
22 x 40	60271022X040	25	100	8432569224498	0.224
				M22 L40 k22 dk33 b56 S17
22 x 45	60271022X045	25	100	8432569224504	0.237
				M22 L45 k22 dk33 b56 S17
22 x 50	60271022X050	20	80	8432569224511	0.25
				M22 L50 k22 dk33 b56 S17
22 x 55	60271022X055	20	80	8432569224528	0.263
				M22 L55 k22 dk33 b56 S17
22 x 60	60271022X060	20	80	8432569224535	0.276
				M22 L60 k22 dk33 b56 S17
22 x 65	60271022X065	10	80	8432569224542	0.291
				M22 L65 k22 dk33 b56 S17
22 x 70	60271022X070	10	80	8432569224559	0.306
				M22 L70 k22 dk33 b56 S17
22 x 75	60271022X075	10	80	8432569224566	0.306
				M22 L75 k22 dk33 b56 S17
22 x 80	60271022X080	10	40	8432569224573	0.336
				M22 L80 k22 dk33 b56 S17
22 x 90	60271022X090	10	40	8432569224580	0.366
				M22 L90 k22 dk33 b56 S17
22 x 100	60271022X100	10	40	8432569224597	0.396
				M22 L100 k22 dk33 b56 S17
22 x 110	60271022X110	10	40	8432569224603	0.426
				M22 L110 k22 dk33 b56 S17
22 x 120	60271022X120	10	40	8432569224610	0.456
				M22 L120 k22 dk33 b56 S17
22 x 130	60271022X130	10	40	8432569224627	0.486
				M22 L130 k22 dk33 b56 S17
22 x 140	60271022X140	10	40	8432569224634	0.516
				M22 L140 k22 dk33 b56 S17
22 x 150	60271022X150	10	40	8432569224641	0.546
				M22 L150 k22 dk33 b56 S17
22 x 160	60271022X160	10	40	8432569224658	0.576
				M22 L160 k22 dk33 b56 S17
22 x 170	60271022X170	10	40	8432569224665	0.606
				M22 L170 k22 dk33 b56 S17
22 x 180	60271022X180	0	10	8432569224672	0.636
				M22 L180 k22 dk33 b56 S17
22 x 190	60271022X190	0	10	8432569224689	0.666
				M22 L190 k22 dk33 b56 S17
22 x 200	60271022X200	0	10	8432569224696	0.696
				M22 L200 k22 dk33 b56 S17
22 x 220	60271022X220	0	5	8432569224702	0.756
				M22 L220 k22 dk33 b56 S17
22 x 240	60271022X240	0	5	8432569224719	0.816
				M22 L240 k22 dk33 b56 S17
22 x 260	60271022X260	0	5	8432569224726	0.876
				M22 L260 k22 dk33 b56 S17
22 x 280	60271022X280	0	5	8432569224733	0.936
				M22 L280 k22 dk33 b56 S17
22 x 300	60271022X300	0	0	8432569224740	0.996
				M22 L300 k22 dk33 b56 S17
22 x 320	60271022X320	0	0	8432569745092	1.056
				M22 L320 k22 dk33 b56 S17
22 x 340	60271022X340	0	0	8432569745108	1.116
				M22 L340 k22 dk33 b56 S17
22 x 360	60271022X360	0	0	8432569745115	1.176
				M22 L360 k22 dk33 b56 S17
22 x 380	60271022X380	0	0	8432569745122	1.236
				M22 L380 k22 dk33 b56 S17
22 x 400	60271022X400	0	0	8432569745139	1.296
				M22 L400 k22 dk33 b56 S17
24 x 40	60271024X040	20	80	8432569224764	0.27
				M24 L40 k24 dk36 b60 S19
24 x 45	60271024X045	20	80	8432569224771	0.285
				M24 L45 k24 dk36 b60 S19
24 x 50	60271024X050	20	80	8432569224788	0.3
				M24 L50 k24 dk36 b60 S19
24 x 55	60271024X055	15	60	8432569224795	0.316
				M24 L55 k24 dk36 b60 S19
24 x 60	60271024X060	15	60	8432569224801	0.33
				M24 L60 k24 dk36 b60 S19
24 x 65	60271024X065	10	40	8432569224818	0.345
				M24 L65 k24 dk36 b60 S19
24 x 70	60271024X070	10	40	8432569224825	0.363
				M24 L70 k24 dk36 b60 S19
24 x 75	60271024X075	10	40	8432569224832	0.381
				M24 L75 k24 dk36 b60 S19
24 x 80	60271024X080	10	40	8432569224849	0.399
				M24 L80 k24 dk36 b60 S19
24 x 90	60271024X090	10	40	8432569224863	0.435
				M24 L90 k24 dk36 b60 S19
24 x 100	60271024X100	10	40	8432569224887	0.471
				M24 L100 k24 dk36 b60 S19
24 x 110	60271024X110	10	40	8432569224894	0.507
				M24 L110 k24 dk36 b60 S19
24 x 120	60271024X120	10	40	8432569224900	0.543
				M24 L120 k24 dk36 b60 S19
24 x 130	60271024X130	10	40	8432569224917	0.579
				M24 L130 k24 dk36 b60 S19
24 x 140	60271024X140	10	40	8432569224924	0.615
				M24 L140 k24 dk36 b60 S19
24 x 150	60271024X150	5	20	8432569224931	0.651
				M24 L150 k24 dk36 b60 S19
24 x 160	60271024X160	5	20	8432569224948	0.687
				M24 L160 k24 dk36 b60 S19
24 x 170	60271024X170	5	20	8432569224955	0.723
				M24 L170 k24 dk36 b60 S19
24 x 180	60271024X180	5	20	8432569224962	0.759
				M24 L180 k24 dk36 b60 S19
24 x 190	60271024X190	5	20	8432569224979	0.785
				M24 L190 k24 dk36 b60 S19
24 x 200	60271024X200	0	5	8432569224986	0.82
				M24 L200 k24 dk36 b60 S19
24 x 220	60271024X220	0	5	8432569225006	0.903
				M24 L220 k24 dk36 b60 S19
24 x 240	60271024X240	0	5	8432569225020	0.975
				M24 L240 k24 dk36 b60 S19
24 x 260	60271024X260	0	5	8432569225037	1.03
				M24 L260 k24 dk36 b60 S19
24 x 280	60271024X280	0	5	8432569225044	1.1
				M24 L280 k24 dk36 b60 S19
24 x 300	60271024X300	0	5	8432569225068	1.17
				M24 L300 k24 dk36 b60 S19
24 x 320	60271024X320	0	0	8432569225075	0
				M24 L320 k24 dk36 b60 S19
24 x 340	60271024X340	0	5	8432569225082	0.96
				M24 L340 k24 dk36 b60 S19
24 x 360	60271024X360	0	5	8432569225105	1.407
				M24 L360 k24 dk36 b60 S19
24 x 380	60271024X380	0	5	8432569684087	1.479
				M24 L380 k24 dk36 b60 S19
24 x 400	60271024X400	0	0	8432569225112	1.52
				M24 L400 k24 dk36 b60 S19
27 x 60	60271027X060	10	40	8432569225150	0.396
				M27 L60 k27 dk40 b66 S19
27 x 70	60271027X070	5	20	8432569225174	0.44
				M27 L70 k27 dk40 b66 S19
27 x 80	60271027X080	5	40	8432569225181	0.484
				M27 L80 k27 dk40 b66 S19
27 x 90	60271027X090	5	20	8432569225198	0.529
				M27 L90 k27 dk40 b66 S19
27 x 100	60271027X100	5	20	8432569225204	0.574
				M27 L100 k27 dk40 b66 S19
27 x 110	60271027X110	5	20	8432569225211	0.619
				M27 L110 k27 dk40 b66 S19
27 x 120	60271027X120	5	20	8432569225228	0.664
				M27 L120 k27 dk40 b66 S19
27 x 130	60271027X130	5	20	8432569225235	0.709
				M27 L130 k27 dk40 b66 S19
27 x 140	60271027X140	5	20	8432569225242	0.754
				M27 L140 k27 dk40 b66 S19
27 x 150	60271027X150	5	20	8432569225259	0.799
				M27 L150 k27 dk40 b66 S19
27 x 160	60271027X160	5	20	8432569225266	0.844
				M27 L160 k27 dk40 b66 S19
27 x 170	60271027X170	5	20	8432569225273	0.889
				M27 L170 k27 dk40 b66 S19
27 x 180	60271027X180	5	20	8432569225280	0.934
				M27 L180 k27 dk40 b66 S19
27 x 200	60271027X200	0	5	8432569225297	1.02
				M27 L200 k27 dk40 b66 S19
27 x 220	60271027X220	0	5	8432569225303	1.11
				M27 L220 k27 dk40 b66 S19
27 x 240	60271027X240	0	5	8432569225310	1.23
				M27 L240 k27 dk40 b66 S19
27 x 260	60271027X260	0	5	8432569225327	1.34
				M27 L260 k27 dk40 b66 S19
27 x 280	60271027X280	0	5	8432569225334	1.5
				M27 L280 k27 dk40 b66 S19
27 x 300	60271027X300	0	5	8432569225358	1.53
				M27 L300 k27 dk40 b66 S19
30 x 60	60271030X060	5	20	8432569225372	0.581
				M30 L60 k30 dk45 b72 S22
30 x 65	60271030X065	5	20	8432569225389	0.608
				M30 L65 k30 dk45 b72 S22
30 x 70	60271030X070	5	20	8432569225396	0.635
				M30 L70 k30 dk45 b72 S22
30 x 75	60271030X075	5	20	8432569726657	0.65
				M30 L75 k30 dk45 b72 S22
30 x 80	60271030X080	5	20	8432569225402	0.69
				M30 L80 k30 dk45 b72 S22
30 x 90	60271030X090	5	20	8432569225419	0.745
				M30 L90 k30 dk45 b72 S22
30 x 100	60271030X100	5	20	8432569225426	0.8
				M30 L100 k30 dk45 b72 S22
30 x 110	60271030X110	5	20	8432569225433	0.855
				M30 L110 k30 dk45 b72 S22
30 x 120	60271030X120	5	20	8432569225440	0.91
				M30 L120 k30 dk45 b72 S22
30 x 130	60271030X130	5	20	8432569225457	0.965
				M30 L130 k30 dk45 b72 S22
30 x 140	60271030X140	5	20	8432569225464	1.02
				M30 L140 k30 dk45 b72 S22
30 x 150	60271030X150	5	20	8432569225471	1.08
				M30 L150 k30 dk45 b72 S22
30 x 160	60271030X160	5	20	8432569225488	1.13
				M30 L160 k30 dk45 b72 S22
30 x 170	60271030X170	5	20	8432569225495	1.19
				M30 L170 k30 dk45 b72 S22
30 x 180	60271030X180	5	10	8432569225501	1.24
				M30 L180 k30 dk45 b72 S22
30 x 190	60271030X190	0	5	8432569519747	1.295
				M30 L190 k30 dk45 b72 S22
30 x 200	60271030X200	0	5	8432569225518	1.35
				M30 L200 k30 dk45 b72 S22
30 x 220	60271030X220	0	5	8432569225525	1.46
				M30 L220 k30 dk45 b72 S22
30 x 240	60271030X240	0	5	8432569225532	1.57
				M30 L240 k30 dk45 b72 S22
30 x 260	60271030X260	0	5	8432569225549	1.68
				M30 L260 k30 dk45 b72 S22
30 x 280	60271030X280	0	5	8432569225563	1.79
				M30 L280 k30 dk45 b72 S22
30 x 300	60271030X300	0	5	8432569225587	1.9
				M30 L300 k30 dk45 b72 S22
30 x 320	60271030X320	0	5	8432569684094	2.01
				M30 L320 k30 dk45 b72 S22
30 x 340	60271030X340	0	5	8432569684100	2.12
				M30 L340 k30 dk45 b72 S22
30 x 360	60271030X360	0	0
				M30 L360 k30 dk45 b72 S22
30 x 380	60271030X380	0	0
				M30 L380 k30 dk45 b72 S22
30 x 400	60271030X400	0	0
				M30 L400 k30 dk45 b72 S22
36 x 70	60271036X070	5	20	8432569225808	0.99
				M36 L70 k36 dk54 b84 S27
36 x 80	60271036X080	5	20	8432569225815	1.07
				M36 L80 k36 dk54 b84 S27
36 x 90	60271036X090	5	20	8432569225822	1.15
				M36 L90 k36 dk54 b84 S27
36 x 100	60271036X100	5	20	8432569225839	1.23
				M36 L100 k36 dk54 b84 S27
36 x 110	60271036X110	5	10	8432569225846	1.31
				M36 L110 k36 dk54 b84 S27
36 x 120	60271036X120	5	10	8432569225853	1.39
				M36 L120 k36 dk54 b84 S27
36 x 130	60271036X130	5	10	8432569225860	1.47
				M36 L130 k36 dk54 b84 S27
36 x 140	60271036X140	5	10	8432569225877	1.55
				M36 L140 k36 dk54 b84 S27
36 x 150	60271036X150	5	10	8432569225884	1.63
				M36 L150 k36 dk54 b84 S27
36 x 160	60271036X160	5	10	8432569225891	1.71
				M36 L160 k36 dk54 b84 S27
36 x 170	60271036X170	5	10	8432569225907	1.79
				M36 L170 k36 dk54 b84 S27
36 x 180	60271036X180	0	5	8432569225914	1.87
				M36 L180 k36 dk54 b84 S27
36 x 190	60271036X190	0	5	8432569225921	1.95
				M36 L190 k36 dk54 b84 S27
36 x 200	60271036X200	0	5	8432569225938	2.03
				M36 L200 k36 dk54 b84 S27
36 x 220	60271036X220	0	5	8432569225945	2.19
				M36 L220 k36 dk54 b84 S27
36 x 240	60271036X240	0	5	8432569225952	2.25
				M36 L240 k36 dk54 b84 S27
36 x 260	60271036X260	0	5	8432569225969	2.41
				M36 L260 k36 dk54 b84 S27
36 x 280	60271036X280	0	5	8432569225976	2.57
				M36 L280 k36 dk54 b84 S27
36 x 300	60271036X300	0	5	8432569225990	2.73
				M36 L300 k36 dk54 b84 S27
36 x 320	60271036X320	0	5	8432569684124	2.89
				M36 L320 k36 dk54 b84 S27
36 x 340	60271036X340	0	5	8432569684131	3.05
				M36 L340 k36 dk54 b84 S27
36 x 360	60271036X360	0	5	8432569684285	3.21
				M36 L360 k36 dk54 b84 S27
36 x 380	60271036X380	0	5	8432569684148	3.37
				M36 L380 k36 dk54 b84 S27
36 x 400	60271036X400	0	5	8432569684155	3.53
				M36 L400 k36 dk54 b84 S27
42 x 80	60271042X080	0	0	8432569519754	1
				M42 L80 k42 dk63 b96 S32
42 x 90	60271042X090	5	10	8432569226027	1.68
				M42 L90 k42 dk63 b96 S32
42 x 100	60271042X100	5	10	8432569226034	1.79
				M42 L100 k42 dk63 b96 S32
42 x 110	60271042X110	5	10	8432569226041	1.89
				M42 L110 k42 dk63 b96 S32
42 x 120	60271042X120	5	10	8432569226058	2
				M42 L120 k42 dk63 b96 S32
42 x 130	60271042X130	5	10	8432569226065	2.1
				M42 L130 k42 dk63 b96 S32
42 x 140	60271042X140	5	10	8432569226072	2.21
				M42 L140 k42 dk63 b96 S32
42 x 150	60271042X150	5	10	8432569226089	2.32
				M42 L150 k42 dk63 b96 S32
42 x 160	60271042X160	5	10	8432569226096	2.42
				M42 L160 k42 dk63 b96 S32
42 x 180	60271042X180	0	5	8432569226119	2.64
				M42 L180 k42 dk63 b96 S32
42 x 200	60271042X200	0	5	8432569226126	2.86
				M42 L200 k42 dk63 b96 S32
42 x 220	60271042X220	0	5	8432569226133	3.08
				M42 L220 k42 dk63 b96 S32
42 x 240	60271042X240	0	5	8432569226140	3.3
				M42 L240 k42 dk63 b96 S32
42 x 260	60271042X260	0	5	8432569226157	3.52
				M42 L260 k42 dk63 b96 S32
42 x 280	60271042X280	0	5	8432569226164	3.62
				M42 L280 k42 dk63 b96 S32
42 x 300	60271042X300	0	5	8432569226188	3.96
				M42 L300 k42 dk63 b96 S32
42 x 340	60271042X340	0	5	8432569684162	4.4
				M42 L340 k42 dk63 b96 S32
42 x 400	60271042X400	0	4	8432569684179	5.06
				M42 L400 k42 dk63 b96 S32

PRODUCTOS RELACIONADOS

DIN 912 10.9 BL

ISO 4762

Tornillo allen. Pavonado. Calidad 10.9

DIN 912 8.8 ZP

ISO 4762

Tornillo allen. Zincado. Calidad 8.8

¿Necesitas más información?

Nombre

Apellidos

Correo electrónico

Teléfono

Empresa

Consulta

Datos

Acepto el uso de mis datos personales por el personal técnico de CHAVES BILBAO, S.L. (CIF B-48044473) para que me contacte exclusivamente para mi información y asesoramiento de sus productos.

Privacidad

He leído y acepto el Aviso Legal y la Política de Privacidad. Este sitio está protegido por reCAPTCHA y la política de privacidad y términos de servicio de Google aplicados.

CHAVES BILBAO, S.L. informa que los datos de carácter personal facilitados de forma voluntaria, cuya finalidad, cesiones previstas y demás circunstancias, se informa en el momento de la recogida de los datos de carácter personal, si bien, según el caso concreto, su finalidad, puede ser alguna de las siguientes, la atención a su solicitud, queja o duda planteada, mantenimiento de la relación establecida, la gestión integral y comercial de clientes, contabilidad y facturación o envío de comunicaciones, incluso por medios electrónicos, de noticias y actividades relacionadas con CHAVES BILBAO, S.L. Los datos incorporados a nuestros ficheros son absolutamente confidenciales y serán tratados con la máxima confidencialidad y cumpliendo todos los requisitos que obliga el Reglamento General de Protección de Datos (RGPD) de 27 de abril de 2016. Los datos quedarán registrados en nuestros ficheros por el tiempo necesario que dure la motivación para la que fueron recabados. El plazo durante el cual se conservarán los datos personales será aquel que marque la legislación vigente y siempre durante el tiempo que medie en la prestación del servicio para el que fueron comunicados. Se recomienda no enviar datos personales de nivel alto, según la legislación de protección de datos, como pueden ser los relativos a salud, pues los mismos no viajan cifrados o encriptados. De modo que si VD, los envía será de su exclusiva responsabilidad. El usuario podrá ejercer en cualquier momento sus derechos para acceder, rectificar, oponerse, cancelarlos, limitar su tratamiento o solicitar su portabilidad con arreglo a lo previsto en el Reglamento General de Protección de Datos (RGPD) de 27 de abril de 2016 enviando una carta junto con la fotocopia de su DNI, a CHAVES BILBAO, S.L. C/Bizkargi, 6 Polígono Industrial Sarrikola 48195 Larrabetzu - Bizkaia - España o a través de la dirección de correo electrónico info@chavesbao.com.

DIN 912 8.8 BL

Tornillo allen. Pavonado. Calidad 8.8

DIN 912 10.9 BL

DIN 912 8.8 ZP

¿Necesitas más información?

área clientes

idioma
