DIN 934.8 FP BL

ISO 4032

Hexagonal nut with fine pitch thread in black finish and quality 8

Ref.: 6600160

It is a hexagonal nut with ISO 4032 equivalence, fine pitch, manufactured in quality 8 and with black coating. Its design has a smooth finish and is threaded on the inside. It is used to secure the fastening of screws in various applications.

Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)
Size	Code	Pcs. Box	PCS. Master	EAN Box	Weight (Pc/Kg)	Technical Info.
M8 x 1,00	660016008X1,00	500	2.65	4.000	21.2	144.000	763.2	8432569999990	0.0053

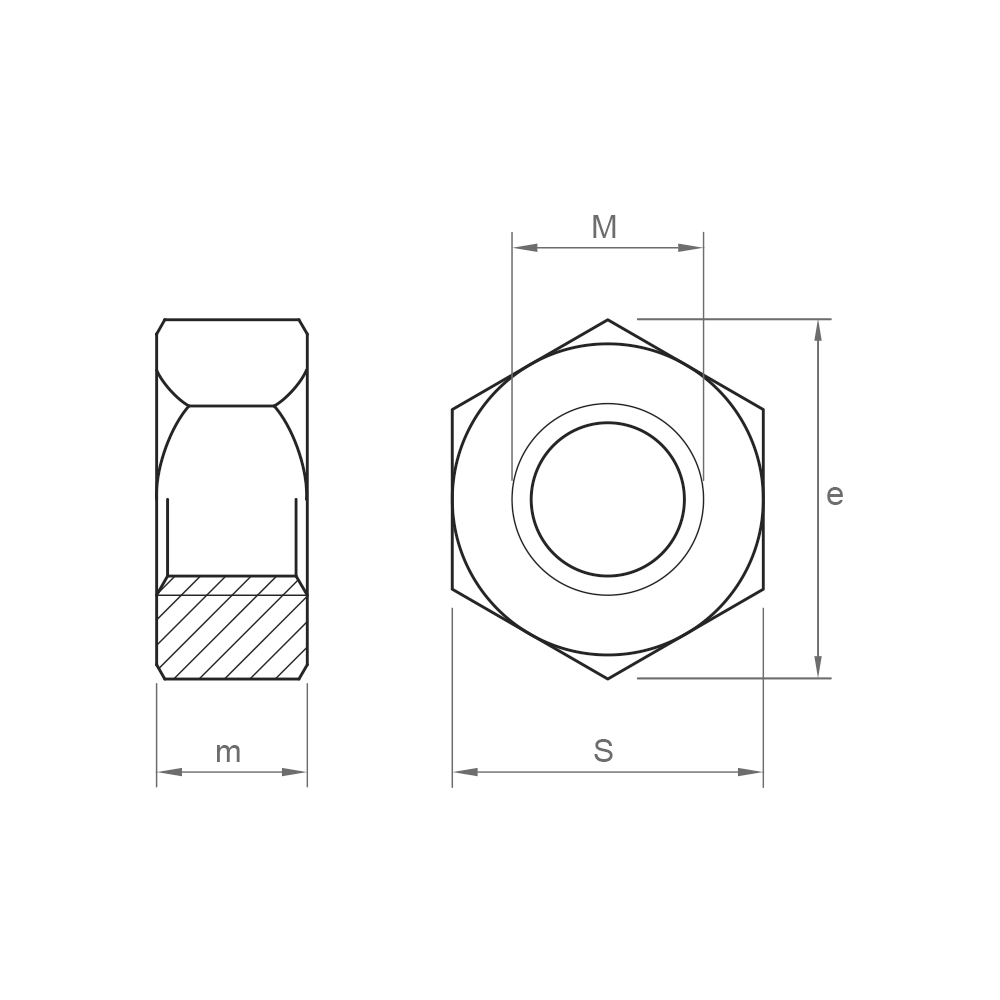

	M8 e14,38 m6,8/6,5 S13
M10 x 1,00	660016010X1,00	200	2.3	1.600	18.4	57.600	662.4	8432570000531	0.0115
	M10 e18,9/17,77 m8/8,4 S17/16
M12 x 1,25	660016012X1,25	200	3.4	1.200	20.4	43.200	734.4	8432570005222	0.017
	M12 e21,1/20,03 m10/10,8 S19/18
M12 x 1,50	660016012X1,50	200	3.44	1.200	20.64	43.200	743.04	8432570000555	0.0172
	M12 e21,1/20,03 m10/10,8 S19/18
M14 x 1,50	660016014X1,50	200	4.9	800	19.6	28.800	705.6	8432570000548	0.0245
	M14 e24,49/23,36 m11/12,8 S22/21
M16 x 1,50	660016016X1,50	100	3.26	600	19.56	21.600	704.16	8432570004904	0.0326
	M16 e26,75 m13/14,8 S24
M18 x 1,50	660016018X1,50	100	4.72	400	18.88	14.400	679.68	8432569998689	0.0472
	M18 e29,56 m15/15,8 S27
M20 x 1,50	660016020X1,50	50	3.115	300	18.69	10.800	672.84	8432569998696	0.0623
	M20 e32,95 m16/18 S30
M22 x 1,50	660016022X1,50	50	3.785	200	15.14	7.200	545.04	8432569998719	0.0757
	M22 e35,03/37,29 m18/19,4 S32/34
M22 x 2,00	660016022X2,00	50	3.86	200	15.44	7.200	555.84	8432569998726	0.0772
	M22 e35,03/37,29 m18/19,4 S32/34
M24 x 1,50	660016024X1,50	50	5.25	200	21	7.200	756	8432569998733	0.105
	M24 e39,55 m19/21,5 S36
M24 x 2,00	660016024X2,00	50	5.3	200	21.2	7.200	763.2	8432569998740	0.106
	M24 e39,55 m19/21,5 S36
M27 x 2,00	660016027X2,00	25	4.025	100	16.1	3.600	579.6	8432569981636	0.161
	M27 e45,2 m22/23,8 S41
M30 x 2,00	660016030X2,00	25	5.525	75	16.575	2.700	596.7	8432569981650	0.221
	M30 e50,85 m24/25,6 S46
M33 x 2,00	660016033X2,00	10	2.88	60	17.28	2.160	622.08	8432569981681	0.288
	M33 e55,37 m26/28,7 S50
M36 x 3,00	660016036X3,00	10	3.87	40	15.48	1.440	557.28	8432569981711	0.387
	M36 e60,79 m29/31 S55
M39 x 3,00	660016039X3,00	-	0	40	19.68	1.440	708.48	8432569998757	0.492
	M39 e66,44 m31/33,4 S60
M42 x 3,00	660016042X3,00	-	0	35	22.82	1.260	821.52	8445222036888	0.652
	M42 e71,3 m34 S65
M52 x 3,00	660016052X3,00	-	0	18	21.24	648	764.64	8445222065154	1.18
	M52 e88,25 m42 S80
M56 x 4,00	660016056X4,00	-	0	15	21.15	540	761.4	8445222065123	1.41
	M56 e93,56 m45 S85
M7 x 1,25	20RX0016007X1,25	-	-

M8 x 1	20RX0016008X1,00	200	3.200	8445222278363	0.0053

M10 x 1	20RX0016010X1,00	100	1.600	8445222278370	0.0115

M12 x 1,25	20RX0016012X1,25	100	1.600	8445222278387	0.017

M12 x 1,5	20RX0016012X1,50	100	1.600	8445222278394	0.0172

M14 x 1,5	20RX0016014X1,50	50	800	8445222278400	0.0245

M16 x 1,5	20RX0016016X1,50	50	800	8445222278417	0.0326

M18 x 1,5	20RX0016018X1,50	50	500	8445222278424	0.0472

M20 x 1,5	20RX0016020X1,50	25	400	8445222278431	0.0623

M22 x 1,5	20RX0016022X1,50	25	250	8445222278455	0.0757

M22 x 2	20RX0016022X2,00	25	250	8445222278462	0.0772

M24 x 1,5	20RX0016024X1,50	20	160	8445222278479	0.105

M24 x 2	20RX0016024X2,00	20	160	8445222278486	0.106

M27 x 2	20RX0016027X2,00	20	160	8445222278509	0.161

M30 x 1,5	20RX0016030X1,50	-	-

M30 x 2	20RX0016030X2,00	20	80	8445222278523	0.221

M33 x 2	20RX0016033X2,00	10	40	8445222278547	0.288

M36 x 3	20RX0016036X3,00	10	40	8445222278578	0.387

M39 x 3	20RX0016039X3,00	5	40	8445222278585	0.492

M42 x 3	20RX0016042X3,00	5	20	8445222278608	0.652

M45 x 3	20RX0016045X3,00	-	-

M48 x 3	20RX0016048X3,00	-	-

M52 x 3	20RX0016052X3,00	5	20	8445222278639	1.18

M56 x 4	20RX0016056X4,00	4	16	8445222278646	1.41

M60 x 4	20RX0016060X4,00	-	-

M64 x 4	20RX0016064X4,00	-	-

DIN 934.10 FP BL

ISO 4032

Hexagonal nut with fine pitch thread in black finish and quality 10
