Other nuts

DIN 1587 ZP

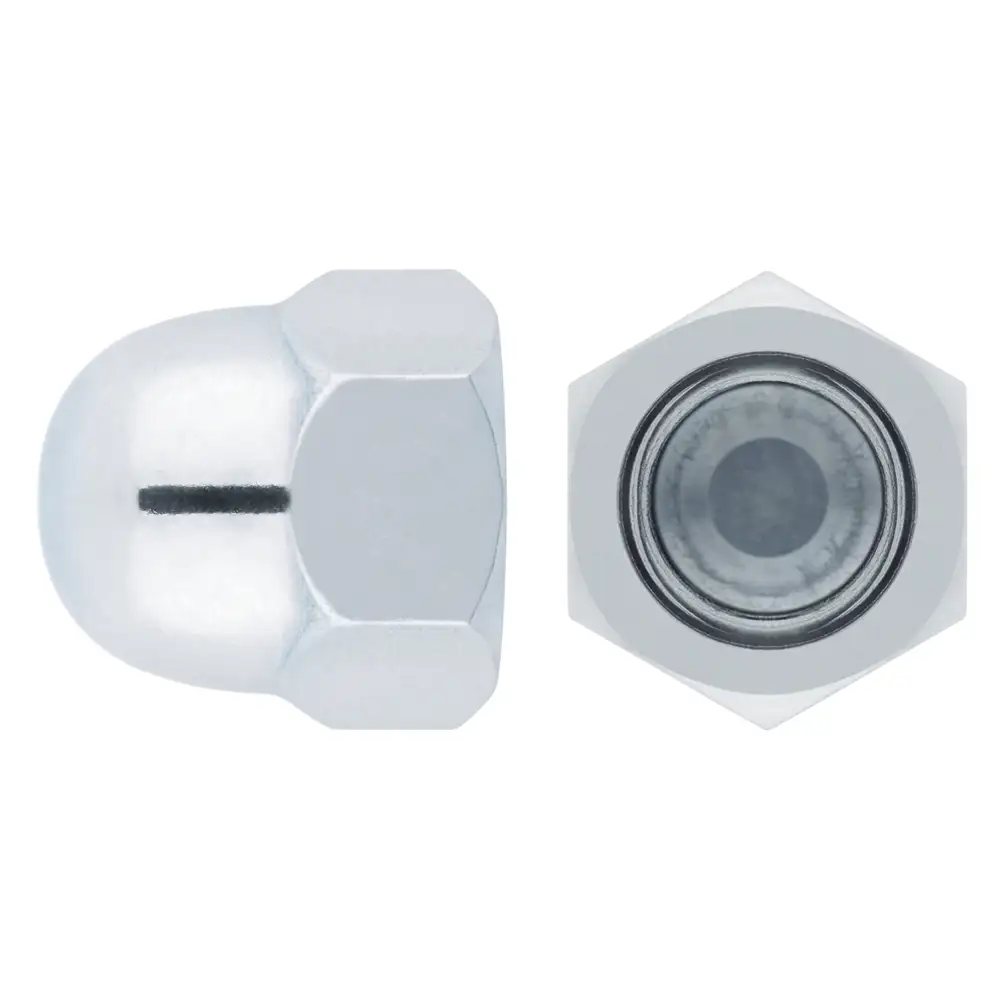

Hxagonal domed cap nut in zinc plated finish

Ref.: 6601801
It is a blind nut made of quality 6 and zinc plated. It has a hexagonal base and a dome-shaped top. It is used to cover the thread termination for aesthetic reasons.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
M4 660180104 1.000 1.42 12.000 17.04 432.000 613.44 8432569297317 0.00142
  • M4
  • dk6,5
  • m3,2
  • h8
  • r3,25
  • t5,26
  • S7
  • w2
M5 660180105 500 1.185 8.000 18.96 288.000 682.56 8432569297324 0.00237
  • M5
  • dk7,5
  • m4
  • h10
  • r3,75
  • t7,21
  • S8
  • w2
M6 660180106 500 2.3 4.000 18.4 144.000 662.4 8432569297331 0.0046
  • M6
  • dk9,5
  • m5
  • h12
  • r4,75
  • t7,71
  • S10
  • w2
M8 660180108 500 5.5 2.000 22 72.000 792 8432569297348 0.011
  • M8
  • dk12,5
  • m6,5
  • h15
  • r6,25
  • t10,65
  • S13
  • w2
M10 660180110 200 4.02 800 16.08 28.800 578.88 8432569297355 0.0201
  • M10
  • dk15
  • m8
  • h18
  • r7,5
  • t12,65
  • S16
  • w2
M12 660180112 200 4.9 800 19.6 28.800 705.6 8432569297362 0.0245
  • M12
  • dk17
  • m10
  • h22
  • r8,5
  • t15,65
  • S18
  • w3
M14 660180114 100 4 400 16 14.400 576 8432569297379 0.04
  • M14
  • dk20
  • m11
  • h25
  • r10
  • t17,65
  • S21
  • w4
M16 660180116 100 5.43 400 21.72 14.400 781.92 8432569297386 0.0543
  • M16
  • dk23
  • m13
  • h28
  • r11,5
  • t20,58
  • S24
  • w4
M20 660180120 50 5.2 200 20.8 7.200 748.8 8432569297409 0.104
  • M20
  • dk28
  • m16
  • h34
  • r14
  • t25,58
  • S30
  • w5
M4 20RX0180104 500 0.71 10.000 14.2 360.000 511.2 8445222282162 0.00142
M5 20RX0180105 500 1.185 10.000 23.7 360.000 853.2 8445222282179 0.00237
M6 20RX0180106 200 0.92 4.000 18.4 144.000 662.4 8445222282186 0.0046
M8 20RX0180108 200 2.2 3.200 35.2 115.200 1267.2 8445222282193 0.011
M10 20RX0180110 100 2.01 1.600 32.16 57.600 1157.76 8445222282209 0.0201
M12 20RX0180112 100 2.45 1.600 39.2 57.600 1411.2 8445222282216 0.0245
M14 20RX0180114 50 2 800 32 28.800 1152 8445222282223 0.04
M16 20RX0180116 50 2.715 800 43.44 28.800 1563.84 8445222282230 0.0543
M20 20RX0180120 25 2.6 400 41.6 14.400 1497.6 8445222282254 0.104
