Other nuts

DIN 936

ISO 4035

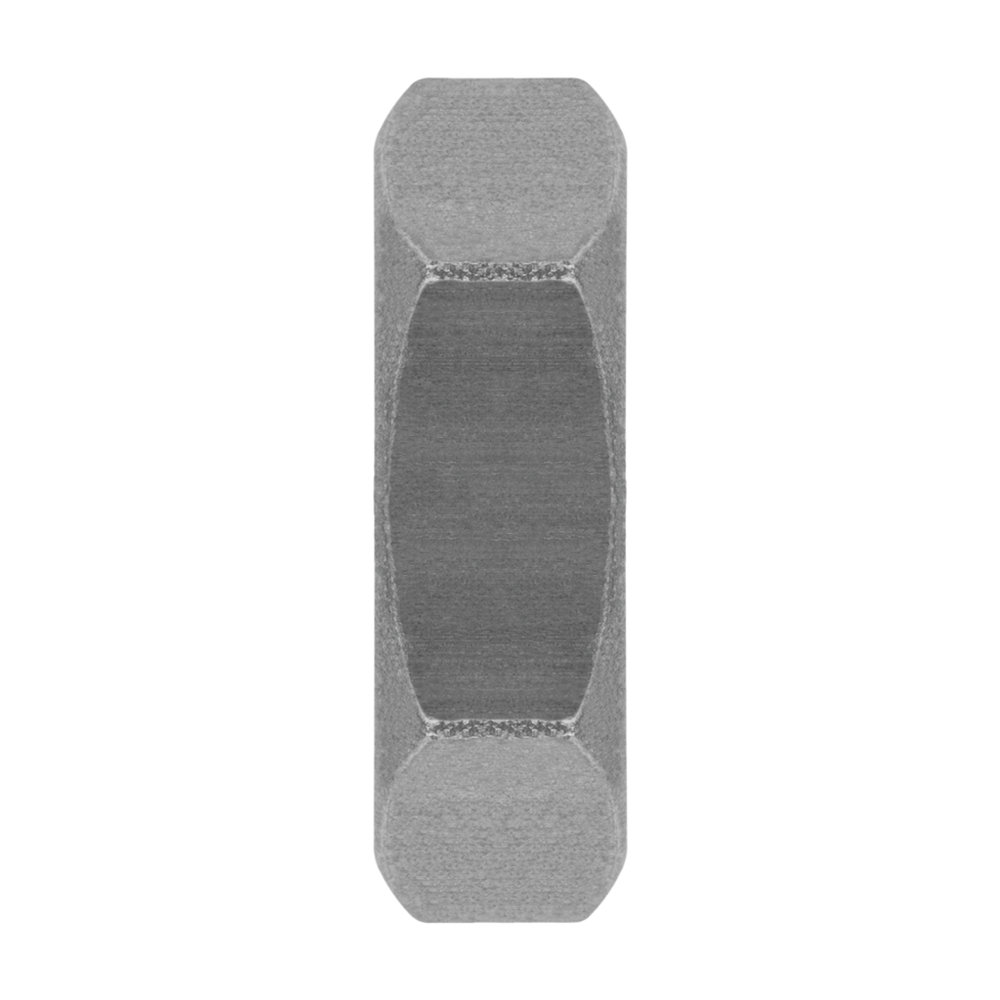

Plain hexagon locknut

Ref.: 6605000
It is a hexagonal lock nut without a recess, similar to ISO 4035. The quality is 04 for sizes 5 to 18, and from size 20 onwards, the quality is 17H. It is used in conjunction with another nut as a locking method to prevent loosening.

Check availability with our sales team.

SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxPCS. MasterEAN BoxWeight (Pc/Kg)Technical Info.
M5 660500005 500 1.25 8.000 20 288.000 720 8432569299649 0.0025
  • M5
  • e8,79
  • m2,7
  • S8
M6 660500006 500 1 8.000 16 288.000 576 8432569299656 0.002
  • M6
  • e11,05
  • m3,2
  • S10
M8 660500008 500 2 4.000 16 144.000 576 8432569299670 0.004
  • M8
  • e14,38
  • m5
  • S13
M10 660500010 200 1.72 1.600 13.76 57.600 495.36 8432569299687 0.0086
  • M10
  • e18,9
  • m6
  • S17
M12 660500012 200 2.42 1.600 19.36 57.600 696.96 8432569299694 0.0121
  • M12
  • e21,1
  • m7
  • S19
M14 660500014 150 2.73 600 10.92 21.600 393.12 8432569299700 0.0182
  • M14
  • e24,49
  • m8
  • S22
M16 660500016 150 3.015 600 12.06 21.600 434.16 8432569299717 0.0201
  • M16
  • e26,75
  • m8
  • S24
M18 660500018 50 1.48 400 11.84 14.400 426.24 8432569299724 0.0296
  • M18
  • e29,56
  • m9
  • S27
M20 660500020 50 1.815 200 7.26 7.200 261.36 8432569299731 0.0363
  • M20
  • e32,95
  • m9
  • S30
M22 660500022 50 2.19 200 8.76 7.200 315.36 8432569299748 0.0438
  • M22
  • e35,03
  • m10
  • S32
M24 660500024 50 2.9 300 17.4 10.800 626.4 8432569299755 0.058
  • M24
  • e39,55
  • m10
  • S36
M27 660500027 25 2.25 100 9 3.600 324 8432569299762 0.09
  • M27
  • e45,2
  • m12
  • S41
M30 660500030 10 1.11 80 8.88 2.880 319.68 8432569299779 0.111
  • M30
  • e50,85
  • m12
  • S46
M5 20RX0500005 500 15.000 8445222377608 0.0025
M6 20RX0500006 200 4.000 8445222377615 0.002
M8 20RX0500008 200 4.000 8445222377639 0.004
M10 20RX0500010 100 2.000 8445222377646 0.0086
M12 20RX0500012 100 2.000 8445222377653 0.0121
M14 20RX0500014 50 800 8445222377660 0.0182
M16 20RX0500016 50 800 8445222377677 0.0201
M18 20RX0500018 50 800 8445222377684 0.0296
M20 20RX0500020 25 500 8445222377691 0.0363
M22 20RX0500022 25 400 8445222377707 0.0438
M24 20RX0500024 20 320 8445222377714 0.058
M27 20RX0500027 20 200 8445222377721 0.09
M30 20RX0500030 20 200 8445222377738 0.111
20RX0500033 - -
20RX0500036 - - 8445222377752 0.19
20RX0500039 - -
20RX0500042 - -
20RX0500045 - -
