Other nuts

DIN 936 ZP

ISO 4035

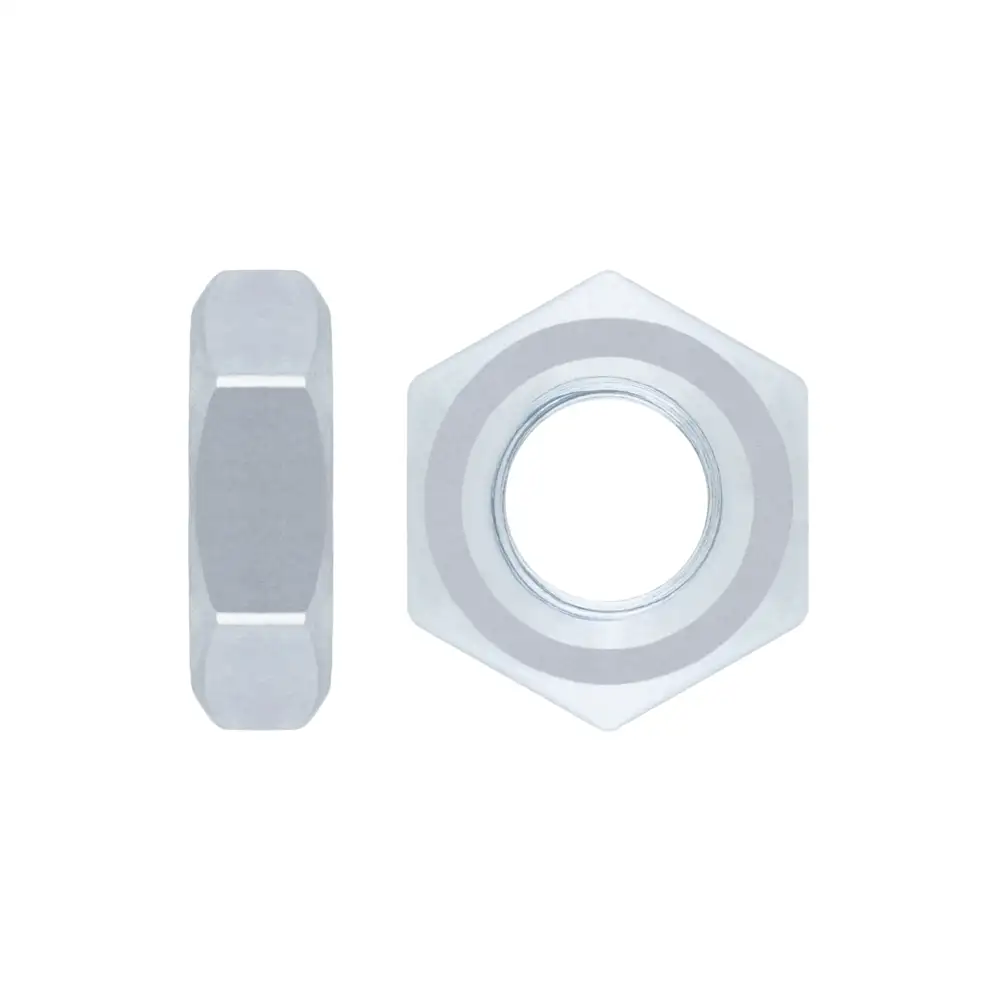

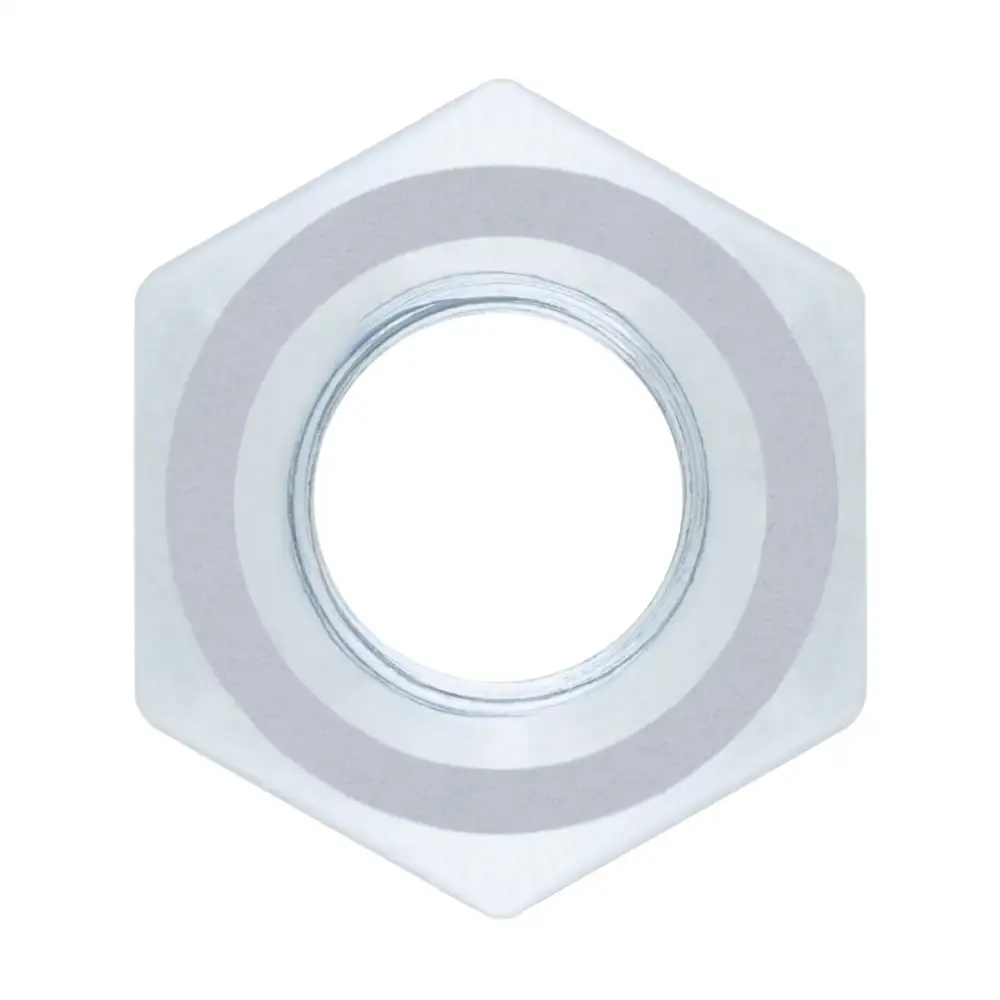

Plain hexagon locknut in zinc plated finish

Ref.: 6605001
It is a hexagonal lock nut with a zinc coating similar to ISO 4035. The quality is 04 for sizes 5 to 18, and from size 20 onwards, the quality is 17H. It is used in conjunction with another nut as a locking method to prevent loosening.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
M5 660500105 500 0.95 8.000 15.2 288.000 547.2 8432569546279 0.0019
  • M5
  • e8,79
  • m2,7
  • S8
M6 660500106 500 1 8.000 16 288.000 576 8432569299878 0.002
  • M6
  • e11,05
  • m3,2
  • S10
M8 660500108 500 2 4.000 16 144.000 576 8432569299885 0.004
  • M8
  • e14,38
  • m5
  • S13
M10 660500110 200 1.72 1.600 13.76 57.600 495.36 8432569299892 0.0086
  • M10
  • e18,9
  • m6
  • S17
M12 660500112 200 2.42 1.600 19.36 57.600 696.96 8432569299908 0.0121
  • M12
  • e21,1
  • m7
  • S19
M14 660500114 150 2.73 600 10.92 21.600 393.12 8432569299915 0.0182
  • M14
  • e24,49
  • m8
  • S22
M16 660500116 150 3.015 600 12.06 21.600 434.16 8432569299922 0.0201
  • M16
  • e26,75
  • m8
  • S24
M18 660500118 50 1.48 400 11.84 14.400 426.24 8432569299939 0.0296
  • M18
  • e29,56
  • m9
  • S27
M20 660500120 50 1.815 200 7.26 7.200 261.36 8432569299946 0.0363
  • M20
  • e32,95
  • m9
  • S30
M22 660500122 50 1.785 200 7.14 7.200 257.04 8432569299953 0.0357
  • M22
  • e35,03
  • m10
  • S32
M24 660500124 50 2.9 300 17.4 10.800 626.4 8432569299960 0.058
  • M24
  • e39,55
  • m10
  • S36
M27 660500127 25 2.25 100 9 3.600 324 8432569299977 0.09
  • M27
  • e45,2
  • m12
  • S41
M30 660500130 10 1.11 80 8.88 2.880 319.68 8432569299984 0.111
  • M30
  • e50,85
  • m12
  • S46
M5 20RX0500105 500 0.95 15.000 28.5 540.000 1026 8445222280373 0.0019
M6 20RX0500106 200 0.4 4.000 8 144.000 288 8445222280380 0.002
M8 20RX0500108 200 0.8 4.000 16 144.000 576 8445222280397 0.004
M10 20RX0500110 100 0.86 2.000 17.2 72.000 619.2 8445222280403 0.0086
M12 20RX0500112 100 1.21 2.000 24.2 72.000 871.2 8445222280410 0.0121
M14 20RX0500114 50 0.91 800 14.56 28.800 524.16 8445222280427 0.0182
M16 20RX0500116 50 1.005 800 16.08 28.800 578.88 8445222280434 0.0201
M18 20RX0500118 50 1.48 800 23.68 28.800 852.48 8445222280441 0.0296
M20 20RX0500120 25 0.9075 500 18.15 18.000 653.4 8445222280458 0.0363
M22 20RX0500122 25 0.8925 400 14.28 14.400 514.08 8445222280465 0.0357
M24 20RX0500124 20 1.16 320 18.56 11.520 668.16 8445222280472 0.058
M27 20RX0500127 20 1.8 200 18 7.200 648 8445222280489 0.09
M30 20RX0500130 20 2.22 200 22.2 7.200 799.2 8445222280496 0.111
