DIN 965 ZP

ISO 7046

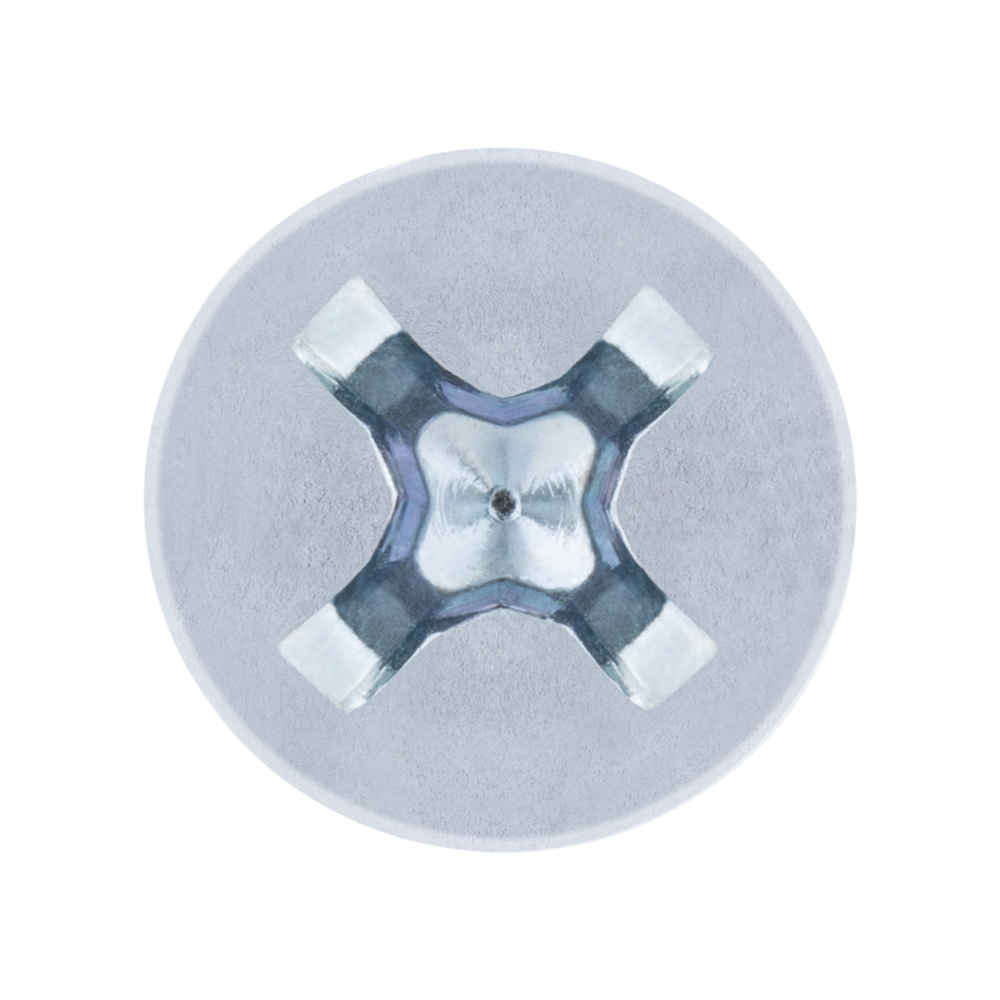

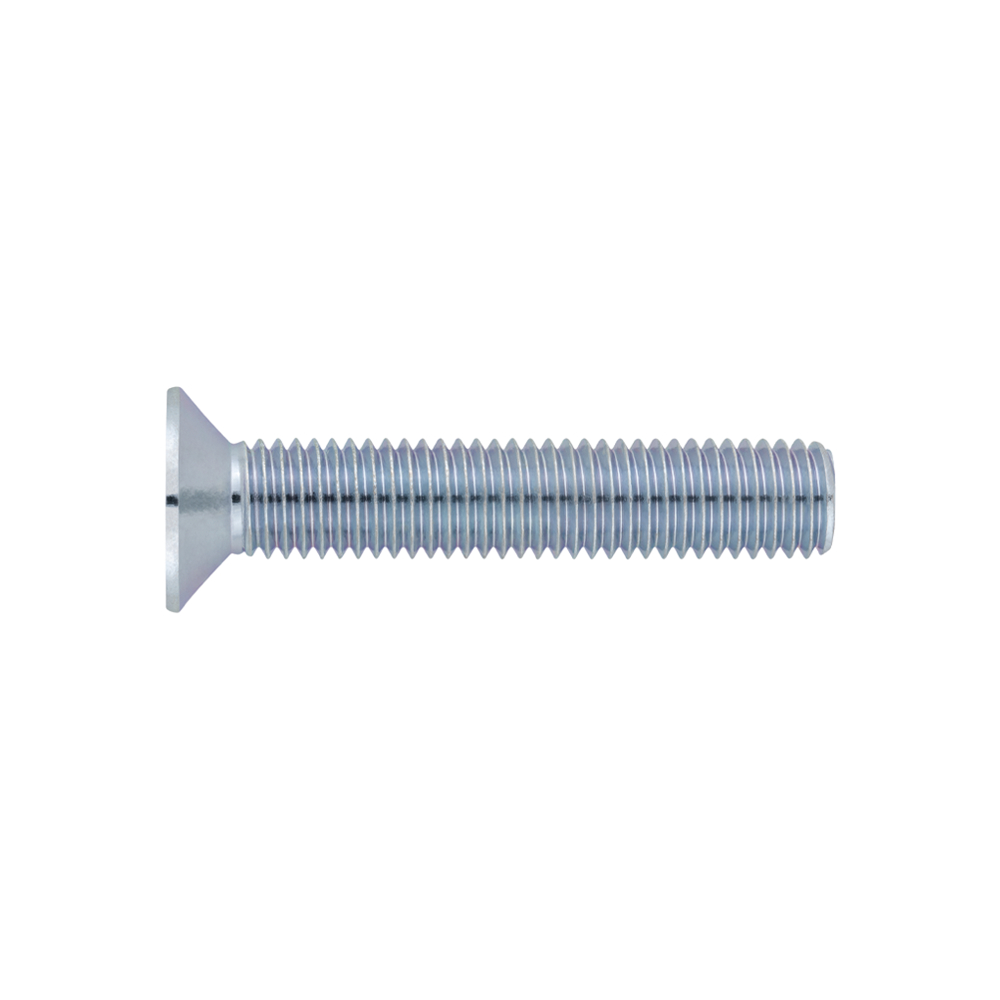

Countersunk screw with PH cross recessed in zinc plated finish

Ref.: 603220

It is a PH countersunk screw, ISO 7046 equivalence and zinc plated. It has a full thread design. It is used in various applications such as industrial projects or carpentry.

Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
M3 x 5	60322003X005	2.000		60.000		2.160.000		8432569244250	0.0003
	M3 L5 k1,65 dk5,6/5,5 m2,9
M3 x 6	60322003X006	2.000	0.6	32.000	9.6	1.152.000	345.6	8432569244267	0.0003
	M3 L6 k1,65 dk5,6/5,5 m2,9
M3 x 8	60322003X008	2.000	0.8	32.000	12.8	1.152.000	460.8	8432569244274	0.0004
	M3 L8 k1,65 dk5,6/5,5 m2,9
M3 x 10	60322003X010	2.000	1	32.000	16	1.152.000	576	8432569244281	0.0005
	M3 L10 k1,65 dk5,6/5,5 m2,9
M3 x 12	60322003X012	2.000	1.2	16.000	9.6	576.000	345.6	8432569244298	0.0006
	M3 L12 k1,65 dk5,6/5,5 m2,9
M3 x 16	60322003X016	2.000	1.6	16.000	12.8	576.000	460.8	8432569950076	0.0008
	M3 L16 k1,65 dk5,6/5,5 m2,9
M3 x 20	60322003X020	2.000	2	16.000	16	576.000	576	8432569244311	0.001
	M3 L20 k1,65 dk5,6/5,5 m2,9
M3 x 25	60322003X025	2.000	2.4	16.000	19.2	576.000	691.2	8432569244328	0.0012
	M3 L25 k1,65 dk5,6/5,5 m2,9
M3 x 30	60322003X030	2.000	2.8	8.000	11.2	288.000	403.2	8432569244335	0.0014
	M3 L30 k1,65 dk5,6/5,5 m2,9
M3 x 35	60322003X035	2.000	3.2	8.000	12.8	288.000	460.8	8432569244342	0.0016
	M3 L35 k1,65 dk5,6/5,5 m2,9
M3 x 40	60322003X040	1.000	3	4.000	12	144.000	432	8432569515527	0.003
	M3 L40 k1,65 dk5,6/5,5 m2,9
M4 x 8	60322004X008	2.000	1.8	8.000	7.2	288.000	259.2	8432569244373	0.0009
	M4 L8 k2,2 dk7,5/8,4 m4,4
M4 x 10	60322004X010	2.000	2	8.000	8	288.000	288	8432569244380	0.001
	M4 L10 k2,2 dk7,5/8,4 m4,4
M4 x 12	60322004X012	2.000	2.4	8.000	9.6	288.000	345.6	8432569244397	0.0012
	M4 L12 k2,2 dk7,5/8,4 m4,4
M4 x 16	60322004X016	2.000	3	8.000	12	288.000	432	8432569897319	0.0015
	M4 L16 k2,2 dk7,5/8,4 m4,4
M4 x 20	60322004X020	2.000	3.6	8.000	14.4	288.000	518.4	8432569244410	0.0018
	M4 L20 k2,2 dk7,5/8,4 m4,4
M4 x 25	60322004X025	1.000	2.2	8.000	17.6	288.000	633.6	8432569244427	0.0022
	M4 L25 k2,2 dk7,5/8,4 m4,4
M4 x 30	60322004X030	1.000	2.6	4.000	10.4	144.000	374.4	8432569244434	0.0026
	M4 L30 k2,2 dk7,5/8,4 m4,4
M4 x 35	60322004X035	1.000	3	4.000	12	144.000	432	8432569244441	0.003
	M4 L35 k2,2 dk7,5/8,4 m4,4
M4 x 40	60322004X040	1.000	3.3	4.000	13.2	144.000	475.2	8432569244458	0.0033
	M4 L40 k2,2 dk7,5/8,4 m4,4
M4 x 50	60322004X050	1.000	3.9	4.000	15.6	144.000	561.6	8432569244472	0.0039
	M4 L50 k2,2 dk7,5/8,4 m4,4
M5 x 8	60322005X008	500	0.7	4.000	5.6	144.000	201.6	8432569244502	0.0014
	M5 L8 k2,5 dk9,2/9,3 m4,6
M5 x 10	60322005X010	500	0.85	4.000	6.8	144.000	244.8	8432569244519	0.0017
	M5 L10 k2,5 dk9,2/9,3 m4,6
M5 x 12	60322005X012	500	0.95	4.000	7.6	144.000	273.6	8432569244526	0.0019
	M5 L12 k2,5 dk9,2/9,3 m4,6
M5 x 16	60322005X016	500	0.85	4.000	6.8	144.000	244.8	8432569736960	0.0017
	M5 L16 k2,5 dk9,2/9,3 m4,6
M5 x 20	60322005X020	500	1.45	4.000	11.6	144.000	417.6	8432569244540	0.0029
	M5 L20 k2,5 dk9,2/9,3 m4,6
M5 x 25	60322005X025	500	1.75	4.000	14	144.000	504	8432569244557	0.0035
	M5 L25 k2,5 dk9,2/9,3 m4,6
M5 x 30	60322005X030	500	2.05	4.000	16.4	144.000	590.4	8432569244564	0.0041
	M5 L30 k2,5 dk9,2/9,3 m4,6
M5 x 35	60322005X035	500	2.45	2.000	9.8	72.000	352.8	8432569244571	0.0049
	M5 L35 k2,5 dk9,2/9,3 m4,6
M5 x 40	60322005X040	500	2.7	2.000	10.8	72.000	388.8	8432569244588	0.0054
	M5 L40 k2,5 dk9,2/9,3 m4,6
M5 x 45	60322005X045	500	3	2.000	12	72.000	432	8432569244595	0.006
	M5 L45 k2,5 dk9,2/9,3 m4,6
M5 x 50	60322005X050	500	3.3	2.000	13.2	72.000	475.2	8432569244601	0.0066
	M5 L50 k2,5 dk9,2/9,3 m4,6
M5 x 60	60322005X060	500	4	1.000	8	36.000	288	8432569244618	0.008
	M5 L60 k2,5 dk9,2/9,3 m4,6
M5 x 70	60322005X070	500	4.65	1.000	9.3	36.000	334.8	8432569244625	0.0093
	M5 L70 k2,5 dk9,2/9,3 m4,6
M5 x 80	60322005X080	500	5.15	1.000	10.3	36.000	370.8	8432569515534	0.0103
	M5 L80 k2,5 dk9,2/9,3 m4,6
M6 x 10	60322006X010	1.000	2.5	4.000	10	144.000	360	8432569244632	0.0025
	M6 L10 k3 dk11/11,3 m6,6
M6 x 12	60322006X012	1.000	2.9	4.000	11.6	144.000	417.6	8432569244649	0.0029
	M6 L12 k3 dk11/11,3 m6,6
M6 x 16	60322006X016	1.000	3.6	4.000	14.4	144.000	518.4	8432569464399	0.0036
	M6 L16 k3 dk11/11,3 m6,6
M6 x 20	60322006X020	500	2.15	2.000	8.6	72.000	309.6	8432569244663	0.0043
	M6 L20 k3 dk11/11,3 m6,6
M6 x 25	60322006X025	500	2.6	2.000	10.4	72.000	374.4	8432569244670	0.0052
	M6 L25 k3 dk11/11,3 m6,6
M6 x 30	60322006X030	500	3.05	2.000	12.2	72.000	439.2	8432569244687	0.0061
	M6 L30 k3 dk11/11,3 m6,6
M6 x 35	60322006X035	500	3.45	2.000	13.8	72.000	496.8	8432569244694	0.0069
	M6 L35 k3 dk11/11,3 m6,6
M6 x 40	60322006X040	500	3.9	2.000	15.6	72.000	561.6	8432569244700	0.0078
	M6 L40 k3 dk11/11,3 m6,6
M6 x 45	60322006X045	500	4.35	2.000	17.4	72.000	626.4	8432569244717	0.0087
	M6 L45 k3 dk11/11,3 m6,6
M6 x 50	60322006X050	200	1.92	1.600	15.36	57.600	552.96	8432569244724	0.0096
	M6 L50 k3 dk11/11,3 m6,6
M6 x 60	60322006X060	200	2.3	1.600	18.4	57.600	662.4	8432569244731	0.0115
	M6 L60 k3 dk11/11,3 m6,6
M6 x 70	60322006X070	200	2.64	800	10.56	28.800	380.16	8432569515558	0.0132
	M6 L70 k3 dk11/11,3 m6,6
M6 x 80	60322006X080	200	3	800	12	28.800	432	8432569515541	0.015
	M6 L80 k3 dk11/11,3 m6,6
M3 x 5	20RXX322003X005	-		-		-

M3 x 6	20RXX322003X006	1.000	0.3	30.000	9	1.080.000	324	8445222262959	0.0003

M3 x 8	20RXX322003X008	1.000	0.4	30.000	12	1.080.000	432	8445222262966	0.0004

M3 x 10	20RXX322003X010	1.000	0.5	30.000	15	1.080.000	540	8445222262973	0.0005

M3 x 12	20RXX322003X012	1.000	0.6	16.000	9.6	576.000	345.6	8445222262980	0.0006

M3 x 16	20RXX322003X016	1.000	0.8	16.000	12.8	576.000	460.8	8445222263000	0.0008

M3 x 20	20RXX322003X020	500	0.5	15.000	15	540.000	540	8445222263017	0.001

M3 x 25	20RXX322003X025	500	0.6	15.000	18	540.000	648	8445222263024	0.0012

M3 x 30	20RXX322003X030	500	0.7	8.000	11.2	288.000	403.2	8445222263031	0.0014

M3 x 35	20RXX322003X035	500	0.8	8.000	12.8	288.000	460.8	8445222263048	0.0016

M3 x 40	20RXX322003X040	500	1.5	8.000	24	288.000	864	8445222263055	0.003

M4 x 6	20RXX322004X006	-		-		-

M4 x 8	20RXX322004X008	500	0.45	15.000	13.5	540.000	486	8445222263086	0.0009

M4 x 10	20RXX322004X010	500	0.5	15.000	15	540.000	540	8445222263093	0.001

M4 x 12	20RXX322004X012	500	0.6	10.000	12	360.000	432	8445222263109	0.0012

M4 x 16	20RXX322004X016	500	0.75	8.000	12	288.000	432	8445222263123	0.0015

M4 x 20	20RXX322004X020	500	0.9	8.000	14.4	288.000	518.4	8445222263130	0.0018

M4 x 25	20RXX322004X025	500	1.1	8.000	17.6	288.000	633.6	8445222263147	0.0022

M4 x 30	20RXX322004X030	500	1.3	8.000	20.8	288.000	748.8	8445222263154	0.0026

M4 x 35	20RXX322004X035	500	1.5	8.000	24	288.000	864	8445222263161	0.003

M4 x 40	20RXX322004X040	250	0.825	4.000	13.2	144.000	475.2	8445222263178	0.0033

M4 x 45	20RXX322004X045	-		-		-

M4 x 50	20RXX322004X050	250	0.975	2.500	9.75	90.000	351	8445222263192	0.0039

M5 x 8	20RXX322005X008	250	0.35	7.500	10.5	270.000	378	8445222263222	0.0014

M5 x 10	20RXX322005X010	250	0.425	7.500	12.75	270.000	459	8445222263239	0.0017

M5 x 12	20RXX322005X012	250	0.475	5.000	9.5	180.000	342	8445222263246	0.0019

M5 x 16	20RXX322005X016	250	0.425	5.000	8.5	180.000	306	8445222263260	0.0017

M5 x 20	20RXX322005X020	250	0.725	4.000	11.6	144.000	417.6	8445222263277	0.0029

M5 x 25	20RXX322005X025	250	0.875	4.000	14	144.000	504	8445222263284	0.0035

M5 x 30	20RXX322005X030	250	1.025	4.000	16.4	144.000	590.4	8445222263291	0.0041

M5 x 35	20RXX322005X035	250	1.225	4.000	19.6	144.000	705.6	8445222263307	0.0049

M5 x 40	20RXX322005X040	250	1.35	4.000	21.6	144.000	777.6	8445222263314	0.0054

M5 x 45	20RXX322005X045	250	1.5	4.000	24	144.000	864	8445222263321	0.006

M5 x 50	20RXX322005X050	250	1.65	2.000	13.2	72.000	475.2	8445222263338	0.0066

M5 x 60	20RXX322005X060	250	2	2.000	16	72.000	576	8445222263345	0.008

M5 x 70	20RXX322005X070	250	2.325	2.000	18.6	72.000	669.6	8445222263352	0.0093

M5 x 80	20RXX322005X080	250	2.575	2.000	20.6	72.000	741.6	8445222263369	0.0103

M6 x 10	20RXX322006X010	250	0.625	5.000	12.5	180.000	450	8445222263376	0.0025

M6 x 12	20RXX322006X012	250	0.725	5.000	14.5	180.000	522	8445222263383	0.0029

M6 x 16	20RXX322006X016	250	0.9	5.000	18	180.000	648	8445222263406	0.0036

M6 x 20	20RXX322006X020	250	1.075	4.000	17.2	144.000	619.2	8445222263413	0.0043

M6 x 25	20RXX322006X025	250	1.3	2.500	13	90.000	468	8445222263420	0.0052

M6 x 30	20RXX322006X030	250	1.525	2.500	15.25	90.000	549	8445222263437	0.0061

M6 x 35	20RXX322006X035	250	1.725	2.000	13.8	72.000	496.8	8445222263444	0.0069

M6 x 40	20RXX322006X040	250	1.95	2.000	15.6	72.000	561.6	8445222263451	0.0078

M6 x 45	20RXX322006X045	250	2.175	2.000	17.4	72.000	626.4	8445222263468	0.0087

M6 x 50	20RXX322006X050	200	1.92	1.600	15.36	57.600	552.96	8445222263475	0.0096

M6 x 60	20RXX322006X060	200	2.3	800	9.2	28.800	331.2	8445222263482	0.0115

M6 x 70	20RXX322006X070	200	2.64	800	10.56	28.800	380.16	8445222263499	0.0132

M6 x 80	20RXX322006X080	200	3	800	12	28.800	432	8445222263505	0.015
