DIN 7504-N ZP

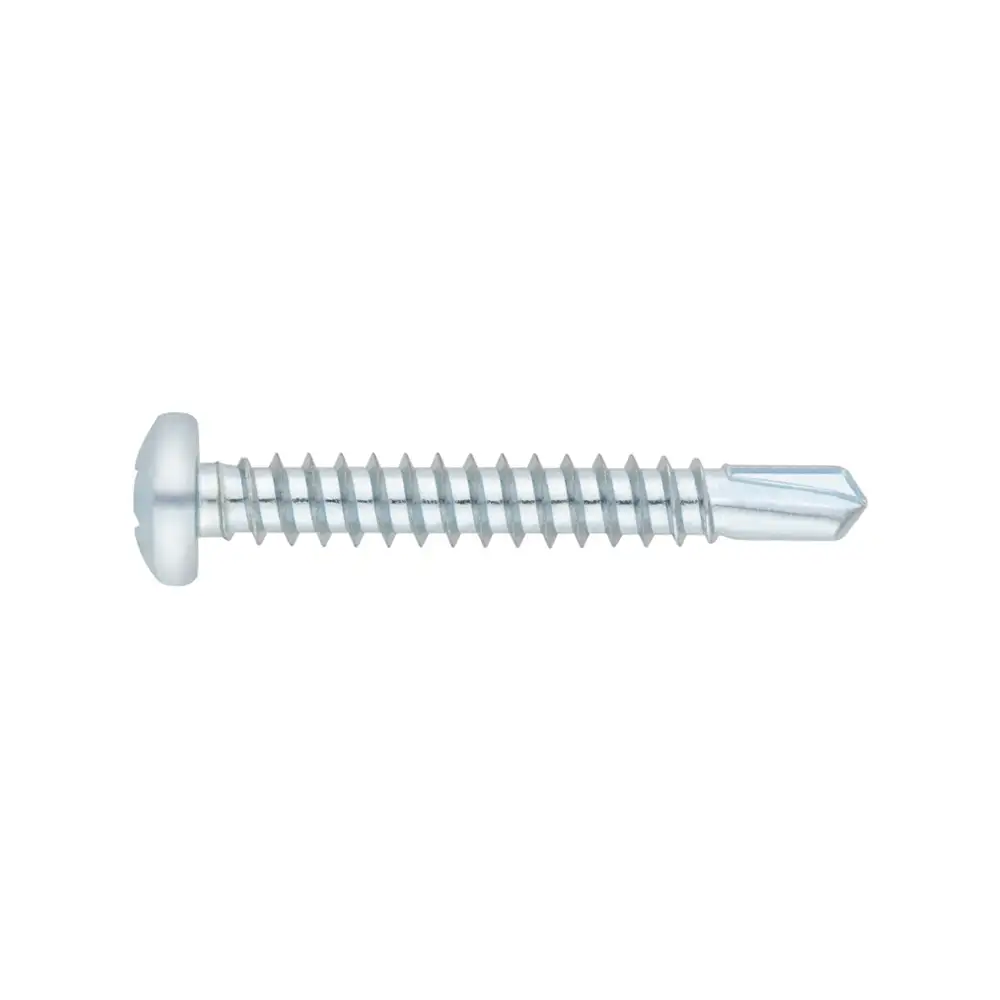

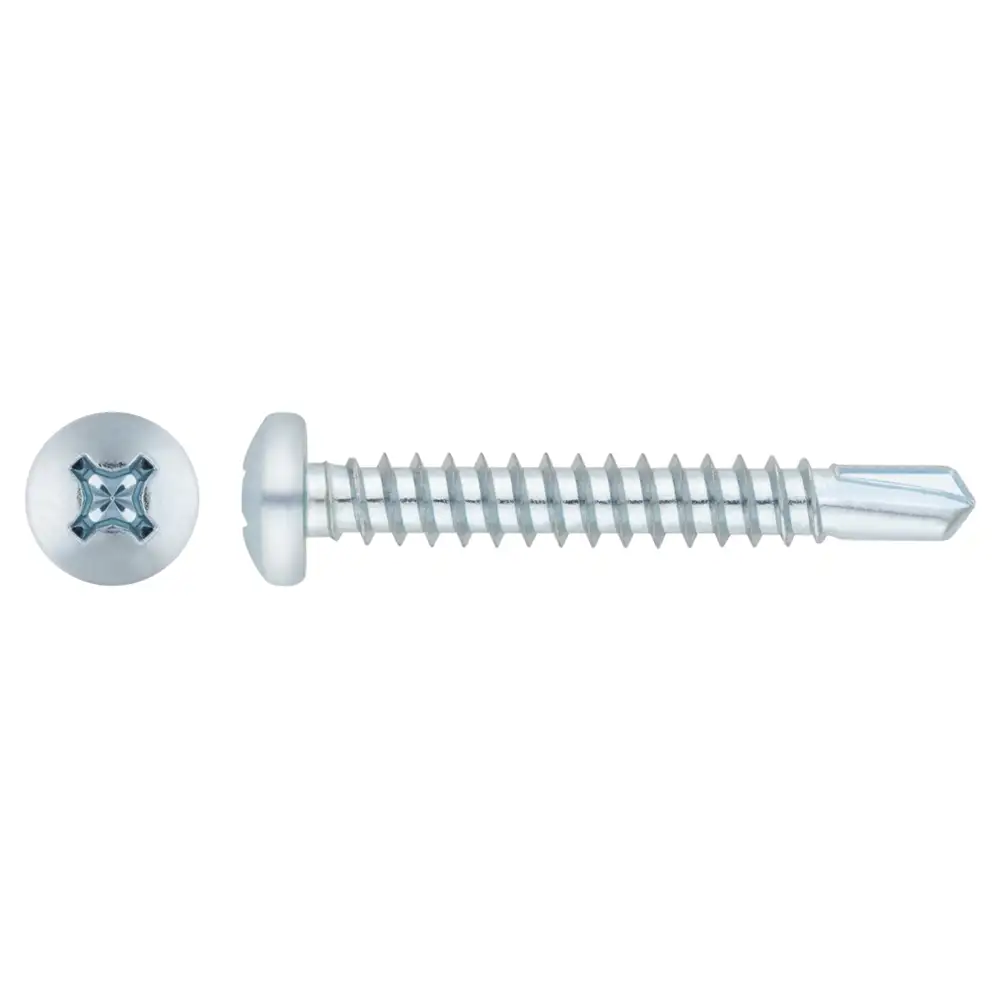

Self-drilling screw with drill point, panhead and PH recess in zinc plated finish

Ref.: 607411

It is a self-drilling screw, or drill point, with zinc-plated coating. Its design has a rounded head, P-marking and full thread. It is used in metal surfaces and as it is self-drilling it does not require pre-drilling.

Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
3,5 x 9,5	6074113,5X009,5	1.000	0.8	24.000	19.2	-	0	8423533121004	0.0008
	M3,5 L9,5 k2,6 dk6,9 dp2,8
3,5 x 11	6074113,5X011,0	1.000	0.9	24.000	21.6	-	0	8423533121103	0.0009
	M3,5 L11 k2,6 dk6,9 dp2,8
3,5 x 13	6074113,5X013,0	1.000	0.94	24.000	22.56	-	0	8423533121202	0.00094
	M3,5 L13 k2,6 dk6,9 dp2,8
3,5 x 16	6074113,5X016,0	1.000	1.1	16.000	17.6	-	0	8423533121301	0.0011
	M3,5 L16 k2,6 dk6,9 dp2,8
3,5 x 19	6074113,5X019,0	1.000	1.3	12.000	15.6	-	0	8423533121400	0.0013
	M3,5 L19 k2,6 dk6,9 dp2,8
3,5 x 22	6074113,5X022,0	1.000	1.4	12.000	16.8	-	0	8423533121509	0.0014
	M3,5 L22 k2,6 dk6,9 dp2,8
3,5 x 25	6074113,5X025,0	500	0.75	12.000	18	-	0	8423533120540	0.0015
	M3,5 L25 k2,6 dk6,9 dp2,8
3,5 x 32	6074113,5X032,0	500	0.95	6.000	11.4	-	0	8423533120564	0.0019
	M3,5 L32 k2,6 dk6,9 dp2,8
3,9 x 13	6074113,9X013,0	1.000	1.2	16.000	19.2	-	0	8423533121806	0.0012
	M3,9 L13 k2,8 dk7,5 dp3,1
3,9 x 16	6074113,9X016,0	1.000	1.5	12.000	18	-	0	8423533121905	0.0015
	M3,9 L16 k2,8 dk7,5 dp3,1
3,9 x 19	6074113,9X019,0	1.000	1.7	12.000	20.4	-	0	8423533122001	0.0017
	M3,9 L19 k2,8 dk7,5 dp3,1
3,9 x 25	6074113,9X025,0	500	1.05	8.000	16.8	-	0	8423533121127	0.0021
	M3,9 L25 k2,8 dk7,5 dp3,1
3,9 x 32	6074113,9X032,0	500	1.15	6.000	13.8	-	0	8423533121042	0.0023
	M3,9 L32 k2,8 dk7,5 dp3,1
4,2 x 13	6074114,2X013,0	1.000	1.4	12.000	16.8	-	0	8423533122506	0.0014
	M4,2 L13 k3,05 dk8,2 dp3,6
4,2 x 16	6074114,2X016,0	1.000	1.6	12.000	19.2	-	0	8423533122605	0.0016
	M4,2 L16 k3,05 dk8,2 dp3,6
4,2 x 19	6074114,2X019,0	1.000	1.9	12.000	22.8	-	0	8423533122704	0.0019
	M4,2 L19 k3,05 dk8,2 dp3,6
4,2 x 22	6074114,2X022,0	500	1	8.000	16	-	0	8423533121165	0.002
	M4,2 L22 k3,05 dk8,2 dp3,6
4,2 x 25	6074114,2X025,0	500	1.15	6.000	13.8	-	0	8423533119742	0.0023
	M4,2 L25 k3,05 dk8,2 dp3,6
4,2 x 32	6074114,2X032,0	500	1.35	6.000	16.2	-	0	8423533120045	0.0027
	M4,2 L32 k3,05 dk8,2 dp3,6
4,2 x 38	6074114,2X038,0	500	1.55	6.000	18.6	-	0	8423533121363	0.0031
	M4,2 L38 k3,05 dk8,2 dp3,6
4,8 x 13	6074114,8X013,0	1.000	2.1	8.000	16.8	-	0	8423533123305	0.0021
	M4,8 L13 k3,55 dk9,5 dp4,1
4,8 x 16	6074114,8X016,0	1.000	2.4	8.000	19.2	-	0	8423533123404	0.0024
	M4,8 L16 k3,55 dk9,5 dp4,1
4,8 x 19	6074114,8X019,0	1.000	2.6	8.000	20.8	-	0	8423533123503	0.0026
	M4,8 L19 k3,55 dk9,5 dp4,1
4,8 x 22	6074114,8X022,0	500	1.45	6.000	17.4	-	0	8423533118370	0.0029
	M4,8 L22 k3,55 dk9,5 dp4,1
4,8 x 25	6074114,8X025,0	500	1.6	6.000	19.2	-	0	8423533191458	0.0032
	M4,8 L25 k3,55 dk9,5 dp4,1
4,8 x 32	6074114,8X032,0	500	1.9	6.000	22.8	-	0	8423533122049	0.0038
	M4,8 L32 k3,55 dk9,5 dp4,1
4,8 x 38	6074114,8X038,0	500	2.15	3.000	12.9	-	0	8423533121349	0.0043
	M4,8 L38 k3,55 dk9,5 dp4,1
4,8 x 45	6074114,8X045,0	500	2.45	3.000	14.7	-	0	8423533121943	0.0049
	M4,8 L45 k3,55 dk9,5 dp4,1
4,8 x 50	6074114,8X050,0	500	2.7	3.000	16.2	-	0	8423533119971	0.0054
	M4,8 L50 k3,55 dk9,5 dp4,1
4,8 x 60	6074114,8X060,0	500	3.15	2.000	12.6	-	0	8423533124203	0.0063
	M4,8 L60 k3,55 dk9,5 dp4,1
4,8 x 80	6074114,8X080,0	250	2.06	1.500	12.36	-	0	8423533009340	0.00824
	M4,8 L80 k3,55 dk9,5 dp4,1
4,8 x 90	6074114,8X090,0	100	0.917	1.200	11.004	-	0	8423533009333	0.00917
	M4,8 L90 k3,55 dk9,5 dp4,1
5,5 x 19	6074115,5X019,0	500	1.925	6.000	23.1	-	0	8423533120717	0.00385
	M5,5 L19 k3,95 dk10,8 dp4,8
5,5 x 22	6074115,5X022,0	500	2.05	6.000	24.6	-	0	8423533119872	0.0041
	M5,5 L22 k3,95 dk10,8 dp4,8
5,5 x 25	6074115,5X025,0	500	2.15	4.000	17.2	-	0	8423533122063	0.0043
	M5,5 L25 k3,95 dk10,8 dp4,8
5,5 x 32	6074115,5X032,0	500	2.55	3.000	15.3	-	0	8423533124708	0.0051
	M5,5 L32 k3,95 dk10,8 dp4,8
5,5 x 38	6074115,5X038,0	500	2.95	3.000	17.7	-	0	8423533117113	0.0059
	M5,5 L38 k3,95 dk10,8 dp4,8
5,5 x 45	6074115,5X045,0	500	3.4	3.000	20.4	-	0	8423533116512	0.0068
	M5,5 L45 k3,95 dk10,8 dp4,8
5,5 x 60	6074115,5X060,0	250	2.125	1.500	12.75	-	0	8423533117878	0.0085
	M5,5 L60 k3,95 dk10,8 dp4,8
5,5 x 73	6074115,5X073,0	250	2.5	1.500	15	-	0	8423533118615	0.01
	M5,5 L73 k2,6 dk6,9 dp2,8
3,5 x 9,5	20RXX74113,5X009,5	1.000	0.8	16.000	12.8	576.000	460.8	8445222273351	0.0008

3,5 x 11	20RXX74113,5X011,0	1.000	0.9	16.000	14.4	576.000	518.4	8445222273368	0.0009

3,5 x 13	20RXX74113,5X013,0	1.000	0.94	16.000	15.04	576.000	541.44	8445222273375	0.00094

3,5 x 16	20RXX74113,5X016,0	1.000	1.1	16.000	17.6	576.000	633.6	8445222273382	0.0011

3,5 x 19	20RXX74113,5X019,0	1.000	1.3	10.000	13	360.000	468	8445222273399	0.0013

3,5 x 22	20RXX74113,5X022,0	1.000	1.4	8.000	11.2	288.000	403.2	8445222273405	0.0014

3,5 x 25	20RXX74113,5X025,0	500	0.75	4.000	6	144.000	216	8445222273412	0.0015

3,5 x 32	20RXX74113,5X032,0	500	0.95	4.000	7.6	144.000	273.6	8445222273429	0.0019

3,9 x 13	20RXX74113,9X013,0	1.000	1.2	16.000	19.2	576.000	691.2	8445222273436	0.0012

3,9 x 16	20RXX74113,9X016,0	1.000	1.5	16.000	24	576.000	864	8445222273443	0.0015

3,9 x 19	20RXX74113,9X019,0	1.000	1.7	16.000	27.2	576.000	979.2	8445222273450	0.0017

3,9 x 25	20RXX74113,9X025,0	500	1.05	4.000	8.4	144.000	302.4	8445222273474	0.0021

3,9 x 32	20RXX74113,9X032,0	500	1.15	4.000	9.2	144.000	331.2	8445222273481	0.0023

4,2 x 13	20RXX74114,2X013,0	1.000	1.4	10.000	14	360.000	504	8445222273504	0.0014

4,2 x 16	20RXX74114,2X016,0	1.000	1.6	10.000	16	360.000	576	8445222273511	0.0016

4,2 x 19	20RXX74114,2X019,0	1.000	1.9	10.000	19	360.000	684	8445222273528	0.0019

4,2 x 22	20RXX74114,2X022,0	500	1	4.000	8	144.000	288	8445222273535	0.002

4,2 x 25	20RXX74114,2X025,0	500	1.15	4.000	9.2	144.000	331.2	8445222273542	0.0023

4,2 x 32	20RXX74114,2X032,0	500	1.35	4.000	10.8	144.000	388.8	8445222273559	0.0027

4,2 x 38	20RXX74114,2X038,0	500	1.55	4.000	12.4	144.000	446.4	8445222273566	0.0031

4,2 x 50	20RXX74114,2X050,0	-		-		-

4,8 x 13	20RXX74114,8X013,0	1.000	2.1	8.000	16.8	288.000	604.8	8445222273580	0.0021

4,8 x 16	20RXX74114,8X016,0	1.000	2.4	8.000	19.2	288.000	691.2	8445222273597	0.0024

4,8 x 19	20RXX74114,8X019,0	1.000	2.6	10.000	26	360.000	936	8445222273603	0.0026

4,8 x 22	20RXX74114,8X022,0	500	1.45	5.000	14.5	180.000	522	8445222273610	0.0029

4,8 x 25	20RXX74114,8X025,0	500	1.6	5.000	16	180.000	576	8445222273627	0.0032

4,8 x 32	20RXX74114,8X032,0	500	1.9	4.000	15.2	144.000	547.2	8445222273634	0.0038

4,8 x 38	20RXX74114,8X038,0	500	2.15	2.000	8.6	72.000	309.6	8445222273641	0.0043

4,8 x 45	20RXX74114,8X045,0	500	2.45	2.000	9.8	72.000	352.8	8445222273658	0.0049

4,8 x 50	20RXX74114,8X050,0	500	2.7	2.000	10.8	72.000	388.8	8445222273665	0.0054

4,8 x 60	20RXX74114,8X060,0	500	3.15	-	0	-	0	8445222273672	0.0063

4,8 x 80	20RXX74114,8X080,0	250	2.06	-	0	-	0	8445222273702	0.00824

4,8 x 90	20RXX74114,8X090,0	100	0.917	400	3.668	14.400	132.048	8445222273719	0.00917

4,8 x 100	20RXX74114,8X100,0	-		-		-

4,8 x 110	20RXX74114,8X110,0	-		-		-

5,5 x 19	20RXX74115,5X019,0	500	1.925	4.000	15.4	144.000	554.4	8445222273740	0.00385

5,5 x 22	20RXX74115,5X022,0	500	2.05	4.000	16.4	144.000	590.4	8445222273757	0.0041

5,5 x 25	20RXX74115,5X025,0	500	2.15	4.000	17.2	144.000	619.2	8445222273764	0.0043

5,5 x 32	20RXX74115,5X032,0	500	2.55	2.000	10.2	72.000	367.2	8445222273771	0.0051

5,5 x 38	20RXX74115,5X038,0	500	2.95	2.000	11.8	72.000	424.8	8445222273788	0.0059

5,5 x 45	20RXX74115,5X045,0	500	3.4	2.000	13.6	72.000	489.6	8445222273795	0.0068

5,5 x 60	20RXX74115,5X060,0	250	2.125	500	4.25	18.000	153	8445222273801	0.0085

5,5 x 73	20RXX74115,5X073,0	250	2.5	500	5	18.000	180	8445222273818	0.01
