Nfe washers

NFE 25513 ÉTROITE [Z] ZP

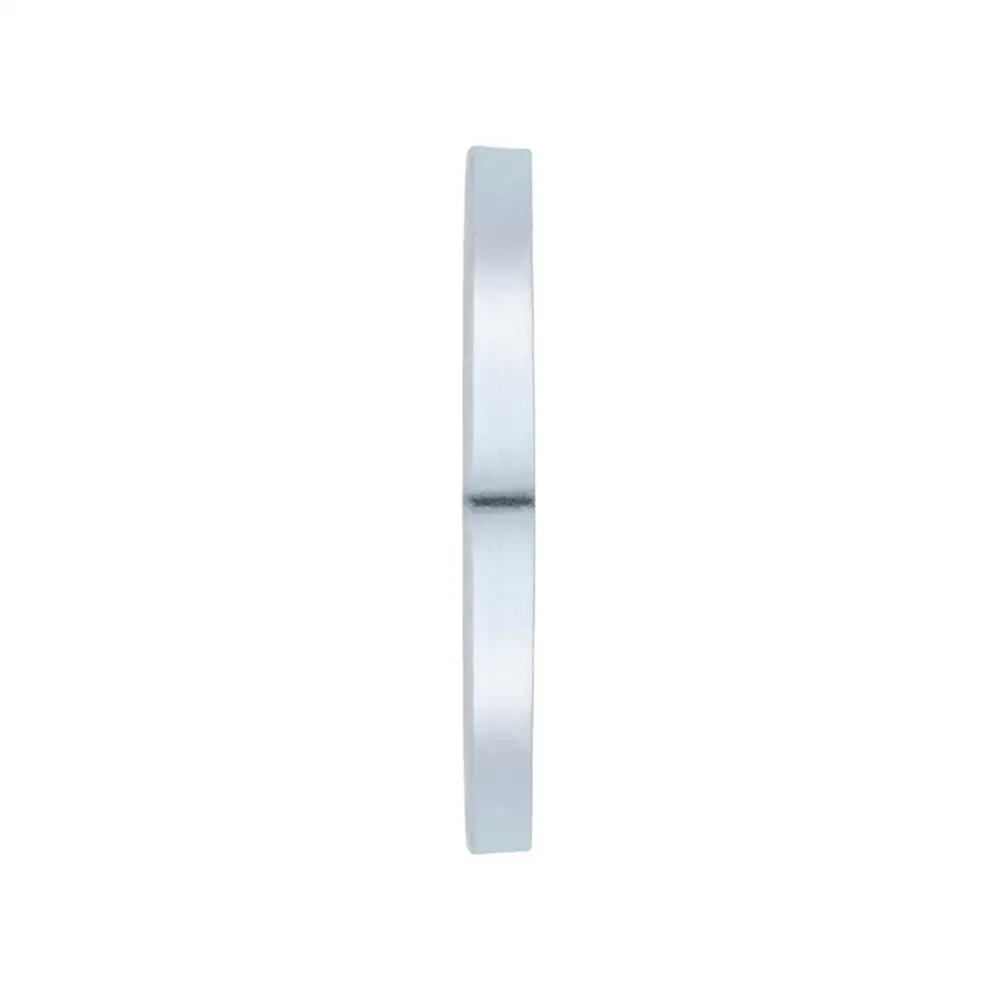

Flat washer "Étroite" [Z] in zinc plated finish

Ref.: 1109761
It is a narrow flat washer Z manufactured in HV 160 quality and zinc plated. It is used in applications where a flat, supporting surface is required in mechanical assemblies and construction.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
M3 110976103 1.000 0.01 48.000 0.48 1.728.000 17.28 8432569956986 0.00001
  • M3
  • d13,2
  • d26
  • S0,8
M4 110976104 1.000 0.01 48.000 0.48 1.728.000 17.28 8432569955255 0.00001
  • M4
  • d14,3
  • d28
  • S0,8
M5 110976105 1.000 0.44 24.000 10.56 864.000 380.16 8432569955262 0.00044
  • M5
  • d15,3
  • d210
  • S1
M6 110976106 500 0.51 12.000 12.24 432.000 440.64 8432569955279 0.00102
  • M6
  • d16,4
  • d212
  • S1,2
M8 110976108 500 0.915 12.000 21.96 432.000 790.56 8432569955286 0.00183
  • M8
  • d18,4
  • d216
  • S1,5
M10 110976110 200 0.714 4.800 17.136 172.800 616.896 8432569955293 0.00357
  • M10
  • d110,5
  • d220
  • S2
M12 110976112 200 1.254 2.400 15.048 86.400 541.728 8432569955309 0.00627
  • M12
  • d113
  • d224
  • S2,5
M14 110976114 200 1.724 2.400 20.688 86.400 744.768 8432569955316 0.00862
  • M14
  • d115
  • d227
  • S2,5
M16 110976116 100 1.13 1.200 13.56 43.200 488.16 8432569955323 0.0113
  • M16
  • d117
  • d230
  • S3
M18 110976118 100 1.47 1.200 17.64 43.200 635.04 8432569955330 0.0147
  • M18
  • d119
  • d232
  • S3
M20 110976120 100 1.716 1.200 20.592 43.200 741.312 8432569955347 0.01716
  • M20
  • d121
  • d236
  • S3
M22 110976122 50 0.984 600 11.808 21.600 425.088 8432569955354 0.01968
  • M22
  • d123
  • d240
  • S3
M24 110976124 50 1.717 600 20.604 21.600 741.744 8432569955361 0.03434
  • M24
  • d125
  • d245
  • S4
M27 110976127 25 0.9325 300 11.19 10.800 402.84 8432569955378 0.0373
  • M27
  • d128
  • d248
  • S4
M30 110976130 25 1.0675 200 8.54 7.200 307.44 8432569955385 0.0427
  • M30
  • d131
  • d252
  • S4
M3 20RX0976103 1.000 0.01 30.000 0.3 1.080.000 10.8 8445222289321 0.00001
M4 20RX0976104 1.000 0.01 30.000 0.3 1.080.000 10.8 8445222289338 0.00001
M5 20RX0976105 1.000 0.44 30.000 13.2 1.080.000 475.2 8445222289345 0.00044
M6 20RX0976106 500 0.51 15.000 15.3 540.000 550.8 8445222289352 0.00102
M8 20RX0976108 200 0.366 6.000 10.98 216.000 395.28 8445222289369 0.00183
M10 20RX0976110 200 0.714 4.000 14.28 144.000 514.08 8445222289376 0.00357
M12 20RX0976112 200 1.254 3.200 20.064 115.200 722.304 8445222289383 0.00627
M14 20RX0976114 100 0.862 2.000 17.24 72.000 620.64 8445222289390 0.00862
M16 20RX0976116 100 1.13 1.600 18.08 57.600 650.88 8445222289406 0.0113
M18 20RX0976118 100 1.47 1.000 14.7 36.000 529.2 8445222289413 0.0147
M20 20RX0976120 50 0.858 500 8.58 18.000 308.88 8445222289420 0.01716
M22 20RX0976122 50 0.984 800 15.744 28.800 566.784 8445222289437 0.01968
M24 20RX0976124 50 1.717 400 13.736 14.400 494.496 8445222289444 0.03434
M27 20RX0976127 25 0.9325 400 14.92 14.400 537.12 8445222289451 0.0373
M30 20RX0976130 25 1.0675 400 17.08 14.400 614.88 8445222289468 0.0427
