EXPERTS IN FASTENERS AND WELDING SOLUTIONS when everything fits
Nfe washers

NFE 25514 [Z] A2

Flat washer "Étroite" [Z] in stainless steel A2

Ref.: 1124230

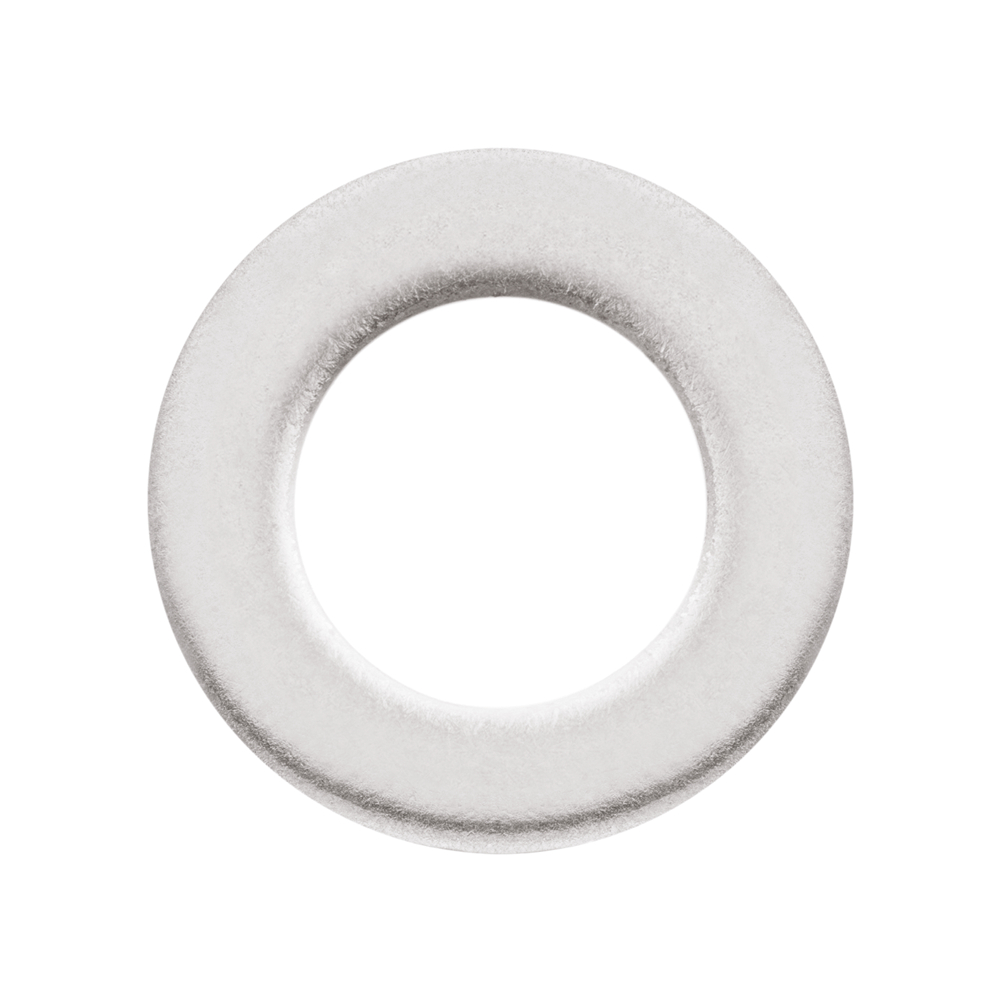

It is a narrow flat washer Z made of A2 stainless steel. It is used in applications where a flat, supporting surface is required in mechanical assemblies and construction.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M3 112423003 500 0.005 30.000 0.3 - 0 8445222185425 0.00001
  • M3
  • d13,2
  • d26
  • S0,8
M4 112423004 500 0.005 30.000 0.3 - 0 8445222185432 0.00001
  • M4
  • d14,3
  • d28
  • S0,8
M5 112423005 200 0.088 12.000 5.28 - 0 8445222185449 0.00044
  • M5
  • d15,3
  • d210
  • S1
M6 112423006 200 0.204 12.000 12.24 - 0 8445222185456 0.00102
  • M6
  • d16,4
  • d212
  • S1,2
M8 112423008 200 0.366 10.000 18.3 - 0 8445222185463 0.00183
  • M8
  • d18,4
  • d216
  • S1,5
M10 112423010 100 0.357 5.000 17.85 - 0 8445222185470 0.00357
  • M10
  • d110,5
  • d220
  • S2
M12 112423012 100 0.627 3.000 18.81 - 0 8445222185487 0.00627
  • M12
  • d113
  • d224
  • S2,5
M14 112423014 50 0.431 2.500 21.55 - 0 8445222185494 0.00862
  • M14
  • d115
  • d227
  • S2,5
M16 112423016 50 0.565 1.800 20.34 - 0 8445222185500 0.0113
  • M16
  • d117
  • d230
  • S3
M18 112423018 50 0.735 1.600 23.52 - 0 8445222185517 0.0147
  • M18
  • d119
  • d232
  • S3
M20 112423020 50 0.858 1.200 20.592 - 0 8445222185524 0.01716
  • M20
  • d121
  • d236
  • S3
M22 112423022 25 0.492 1.000 19.68 - 0 8445222185531 0.01968
  • M22
  • d123
  • d240
  • S3
M24 112423024 25 0.8585 500 17.17 - 0 8445222185548 0.03434
  • M24
  • d125
  • d245
  • S4
M27 112423027 25 0.9325 500 18.65 - 0 8445222185555 0.0373
  • M27
  • d128
  • d248
  • S4
M30 112423030 25 1.0675 400 17.08 - 0 8445222185562 0.0427
  • M30
  • d131
  • d252
  • S4
