DIN 2093A

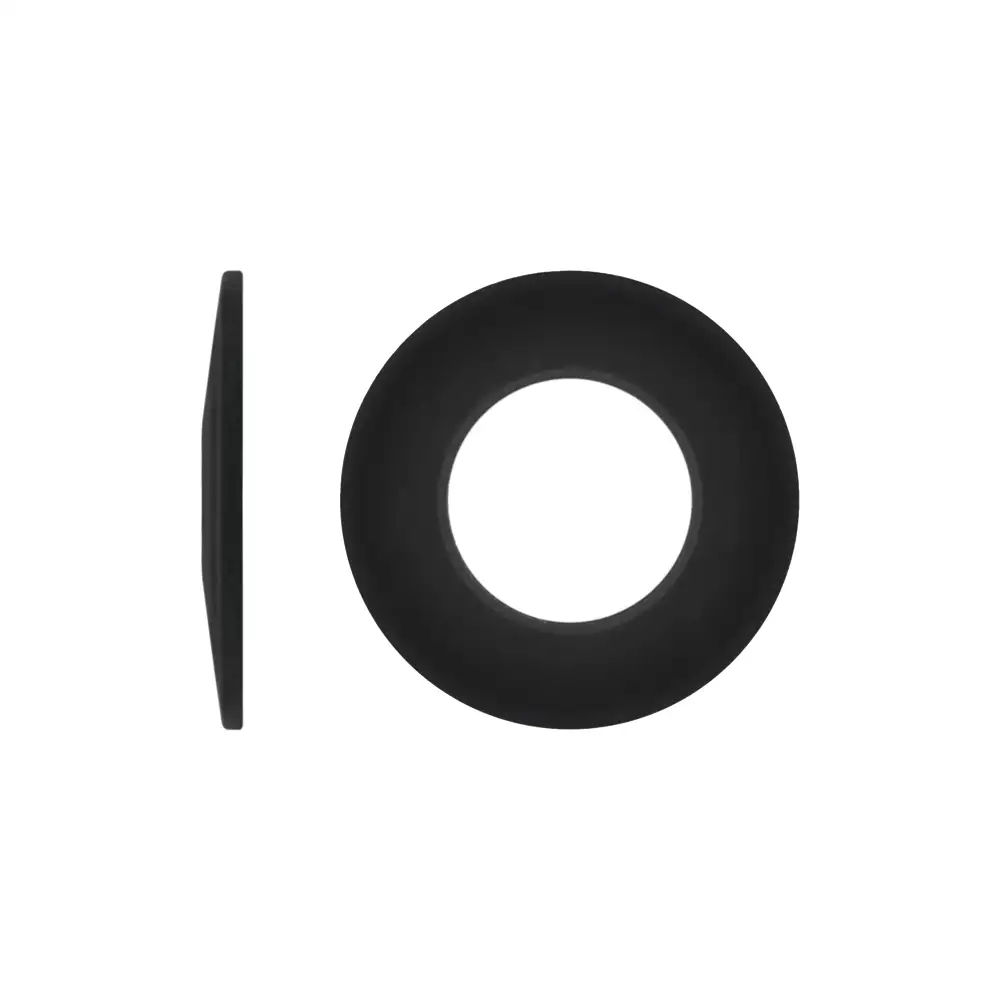

Black disc spring washer

Ref.: 1103010

It is a Belleville washer with an outside diameter, shape A and black coating. It is used to absorb vibrations and compensate for stress in dynamic loads.

Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
OD8	1103010008,0	1.000	0.1	120.000	12	1.080.000	108	8432569016512	0.0001
	d14,2 de8 L10,6 t0,4 s0,15
OD10	1103010010,0	1.000	0.2	80.000	16	1.080.000	216	8432569016529	0.0002
	d15,2 de10 L10,75 t0,5 s0,19
OD12,5	1103010012,5	1.000	0.5	32.000	16	1.080.000	540	8432569016536	0.0005
	d16,2 de12,5 L11 t0,7 s0,23
OD14	1103010014,0	1.000	0.6	20.000	12	1.080.000	648	8432569016543	0.0006
	d17,2 de14 L11,1 t0,8 s0,23
OD16	1103010016,0	1.000	1	12.000	12	576.000	576	8432569016550	0.001
	d18,2 de16 L11,25 t0,9 s0,26
OD18	1103010018,0	1.000	1.4	12.000	16.8	576.000	806.4	8432569016567	0.0014
	d19,2 de18 L11,4 t1 s0,3
OD20	1103010020,0	500	0.95	8.000	15.2	288.000	547.2	8432569016574	0.0019
	d110,2 de20 L11,55 t1,1 s0,34
OD22,5	1103010022,5	500	1.4	5.000	14	288.000	806.4	8432569016598	0.0028
	d111,2 de22,5 L11,75 t1,25 s0,38
OD25	1103010025,0	200	0.84	5.000	21	115.200	483.84	8432569016604	0.0042
	d112,2 de25 L12,05 t1,5 s0,41
OD28	1103010028,0	200	0.68	3.000	10.2	115.200	391.68	8432569016611	0.0034
	d114,2 de28 L12,15 t1,5 s0,49
OD31,5	1103010031,5	100	0.74	2.000	14.8	57.600	426.24	8432569016635	0.0074
	d116,3 de31,5 L12,45 t1,75 s0,53
OD35,5	1103010035,5	100	1.1	1.200	13.2	57.600	633.6	8432569016642	0.011
	d118,3 de35,5 L12,8 t2 s0,6
OD40	1103010040,0	100	1.58	800	12.64	28.800	455.04	8432569016666	0.0158
	d120,4 de40 L13,15 t2,25 s0,68
OD45	1103010045,0	100	2.27	600	13.62	28.800	653.76	8432569016673	0.0227
	d122,4 de45 L13,5 t2,5 s0,75
OD50	1103010050,0	100	3.23	400	12.92	14.400	465.12	8432569016680	0.0323
	d125,4 de50 L14,1 t3 s0,83
OD56	1103010056,0	50	2.06	350	14.42	14.400	593.28	8432569016697	0.0412
	d128,5 de56 L14,3 t3 s0,98
OD63	1103010063,0	50	3.12	250	15.6	14.400	898.56	8432569016703	0.0624
	d131 de63 L14,9 t3,5 s1,05
OD71	1103010071,0	50	4.38	150	13.14	7.200	630.72	8432569016727	0.0876
	d136 de71 L15,6 t4 s1,2
OD80	1103010080,0	25	3.465	100	13.86	3.600	498.96	8432569016741	0.1386
	d141 de80 L16,7 t5 s1,28
OD90	1103010090,0	10	1.77	80	14.16	2.880	509.76	8432569016758	0.177
	d146 de90 L17 t5 s1,5
OD100	1103010100,0	10	2.64	50	13.2	2.880	760.32	8432569016765	0.264
	d151 de100 L18,2 t6 s1,65
OD125	1103010125,0	5	0.95	30	5.7	-	0	8432569016796	0.19
	d164 de125 L110,6 t8 s1,95
OD8	20RX03010008,0	1.000	0.1	20.000	2	720.000	72	8445222286009	0.0001

OD10	20RX03010010,0	1.000	0.2	20.000	4	720.000	144	8445222286016	0.0002

OD12,5	20RX03010012,5	1.000	0.5	20.000	10	720.000	360	8445222286023	0.0005

OD14	20RX03010014,0	1.000	0.6	16.000	9.6	576.000	345.6	8445222286030	0.0006

OD16	20RX03010016,0	1.000	1	16.000	16	576.000	576	8445222286047	0.001

OD18	20RX03010018,0	1.000	1.4	10.000	14	360.000	504	8445222286054	0.0014

OD20	20RX03010020,0	500	0.95	8.000	15.2	288.000	547.2	8445222286061	0.0019

OD22,5	20RX03010022,5	500	1.4	5.000	14	180.000	504	8445222286085	0.0028

OD25	20RX03010025,0	200	0.84	4.000	16.8	144.000	604.8	8445222286092	0.0042

OD28	20RX03010028,0	200	0.68	3.200	10.88	115.200	391.68	8445222286108	0.0034

OD31,5	20RX03010031,5	100	0.74	1.600	11.84	57.600	426.24	8445222286122	0.0074

OD35,5	20RX03010035,5	100	1.1	1.000	11	36.000	396	8445222286139	0.011

OD40	20RX03010040,0	100	1.58	1.000	15.8	36.000	568.8	8445222286153	0.0158

OD45	20RX03010045,0	100	2.27	1.000	22.7	36.000	817.2	8445222286160	0.0227

OD50	20RX03010050,0	100	3.23	400	12.92	14.400	465.12	8445222286177	0.0323

OD56	20RX03010056,0	50	2.06	500	20.6	18.000	741.6	8445222286184	0.0412

OD63	20RX03010063,0	50	3.12	400	24.96	14.400	898.56	8445222286191	0.0624

OD71	20RX03010071,0	50	4.38	200	17.52	7.200	630.72	8445222286214	0.0876

OD80	20RX03010080,0	25	3.465	200	27.72	7.200	997.92	8445222286238	0.1386

OD90	20RX03010090,0	10	1.77	100	17.7	3.600	637.2	8445222286245	0.177

OD100	20RX03010100,0	10	2.64	40	10.56	1.440	380.16	8445222286252	0.264

OD125	20RX03010125,0	5	0.95	20	3.8	720	136.8	8445222286283	0.19
