Other washers

DIN 6798 A

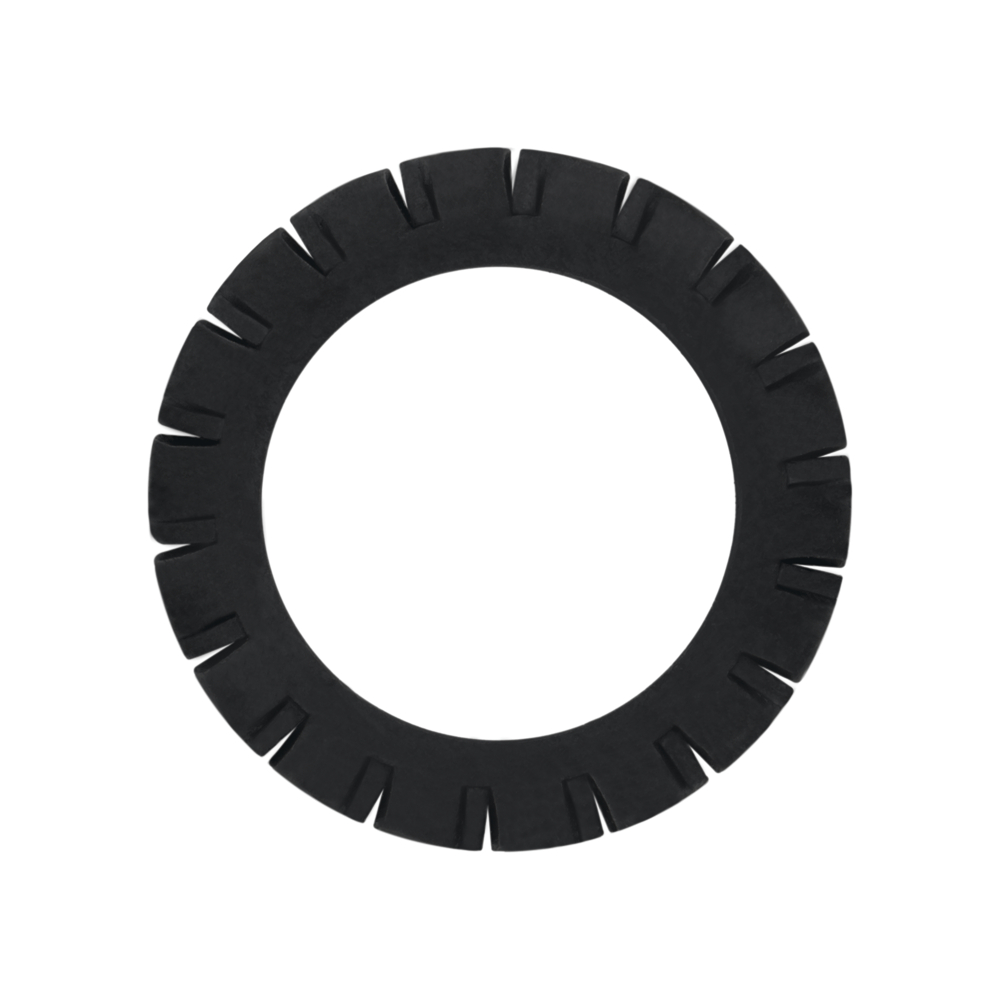

Toothed lock washer external teeth with "A" form

Ref.: 1106260
It is an external serrated washer with a black-oxide coating. It is used to immobilise connecting elements that are subject to vibration.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
M3 110626003 2.000 0.14 200.000 14 - 0 8432569018028 0.00007
  • M3
  • d13,2
  • d26
  • S0,4
M4 110626004 2.000 0.2 200.000 20 - 0 8432569018035 0.0001
  • M4
  • d14,3
  • d28
  • S0,5
M5 110626005 1.000 0.17 115.000 19.55 - 0 8432569018042 0.00017
  • M5
  • d15,3
  • d210
  • S0,6
M6 110626006 1.000 0.32 60.000 19.2 - 0 8432569018059 0.00032
  • M6
  • d16,4
  • d211
  • S0,7
M7 110626007 1.000 0.45 40.000 18 - 0 8432569018066 0.00045
  • M7
  • d17,4
  • d212,5
  • S0,8
M8 110626008 1.000 0.59 34.000 20.06 - 0 8432569018073 0.00059
  • M8
  • d18,4
  • d215
  • S0,8
M10 110626010 1.000 1.15 18.000 20.7 - 0 8432569018080 0.00115
  • M10
  • d110,5
  • d218
  • S0,9
M12 110626012 1.000 1.37 16.000 21.92 - 0 8432569018097 0.00137
  • M12
  • d112,5
  • d220,5
  • S1
M14 110626014 500 1.03 10.000 20.6 - 0 8432569018110 0.00206
  • M14
  • d114,5
  • d224
  • S1
M16 110626016 500 1.43 8.000 22.88 - 0 8432569018127 0.00286
  • M16
  • d116,5
  • d226
  • S1,2
M18 110626018 250 1.1225 4.000 17.96 - 0 8432569018134 0.00449
  • M18
  • d119
  • d230
  • S1,4
M20 110626020 250 1.4225 3.500 19.915 - 0 8432569018141 0.00569
  • M20
  • d121
  • d233
  • S1,4
M22 110626022 200 1.224 3.000 18.36 - 0 8432569018158 0.00612
  • M22
  • d123
  • d236
  • S1,5
M24 110626024 150 1.08 3.000 21.6 - 0 8432569018165 0.0072
  • M24
  • d125
  • d238
  • S1,5
M27 110626027 100 0.925 2.000 18.5 - 0 8432569018189 0.00925
  • M27
  • d128
  • d244
  • S1,6
M30 110626030 100 1.22 1.600 19.52 - 0 8432569018196 0.0122
  • M30
  • d131
  • d248
  • S1,6
M3 20RX0626003 2.000 0.14 60.000 4.2 2.160.000 151.2 8445222286641 0.00007
M4 20RX0626004 2.000 0.2 60.000 6 2.160.000 216 8445222286658 0.0001
M5 20RX0626005 1.000 0.17 30.000 5.1 1.080.000 183.6 8445222286665 0.00017
M6 20RX0626006 1.000 0.32 20.000 6.4 720.000 230.4 8445222286672 0.00032
M7 20RX0626007 1.000 0.45 16.000 7.2 576.000 259.2 8445222286689 0.00045
M8 20RX0626008 1.000 0.59 10.000 5.9 360.000 212.4 8445222286696 0.00059
M10 20RX0626010 1.000 1.15 8.000 9.2 288.000 331.2 8445222286702 0.00115
M12 20RX0626012 1.000 1.37 4.000 5.48 144.000 197.28 8445222286719 0.00137
M14 20RX0626014 500 1.03 2.000 4.12 72.000 148.32 8445222286733 0.00206
M16 20RX0626016 500 1.43 2.000 5.72 72.000 205.92 8445222286740 0.00286
M18 20RX0626018 250 1.1225 2.000 8.98 72.000 323.28 8445222286757 0.00449
M20 20RX0626020 250 1.4225 1.000 5.69 36.000 204.84 8445222286764 0.00569
M22 20RX0626022 200 1.224 800 4.896 28.800 176.256 8445222286771 0.00612
M24 20RX0626024 150 1.08 600 4.32 21.600 155.52 8445222286788 0.0072
M27 20RX0626027 100 0.925 800 7.4 28.800 266.4 8445222286801 0.00925
M30 20RX0626030 100 1.22 400 4.88 14.400 175.68 8445222286818 0.0122
