Plain washers

DIN 7989

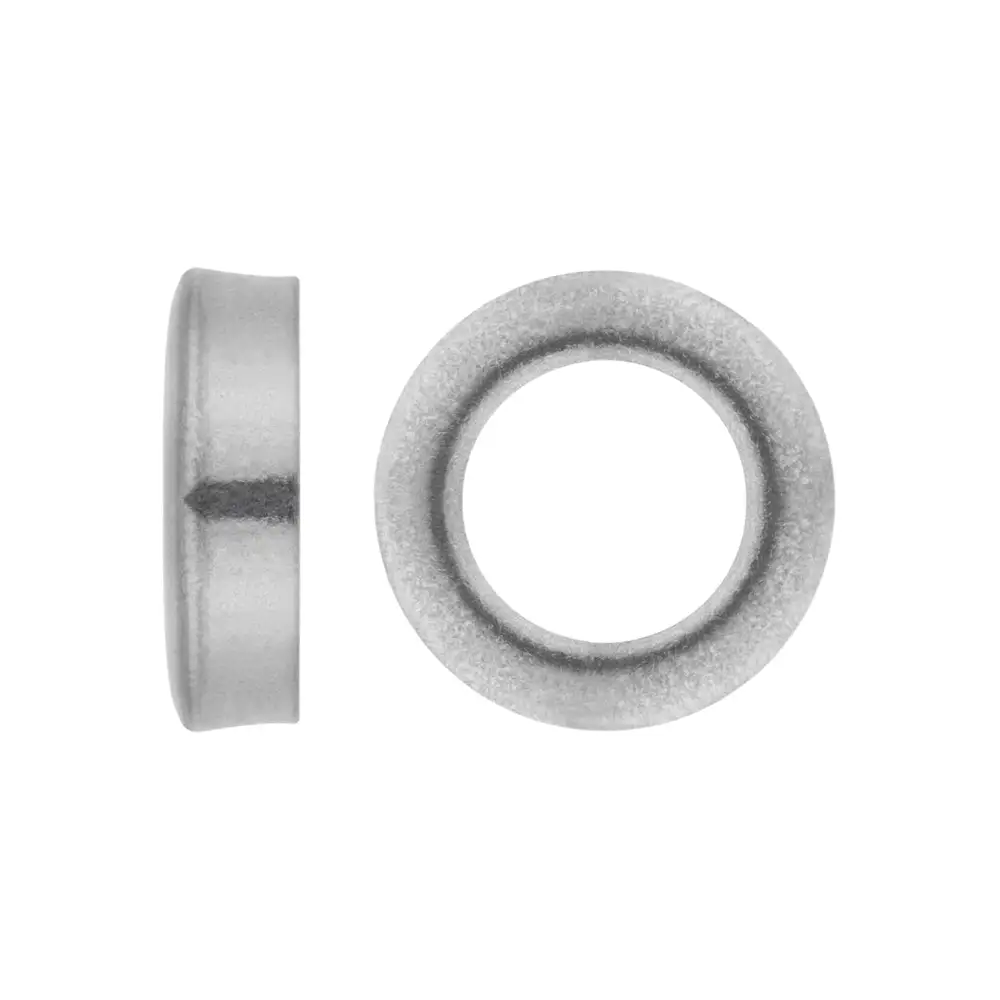

Plain washer for steel structures

Ref.: 1107510
It is a flat washer without bath made of HV 100 quality. It is used especially in the construction of metal structures.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
M12 - A14 1107510M-12/A-14,0 100 1.88 800 15.04 28.800 541.44 8432569019742 0.0188
  • M12
  • d114
  • d224
  • h8
M14 - A16 1107510M-14/A-16,0 100 2.33 800 18.64 28.800 671.04 8432569019759 0.0233
  • M14
  • d116
  • d228
  • h8
M16 - A18 1107510M-16/A-18,0 50 1.415 600 16.98 21.600 611.28 8432569019766 0.0283
  • M16
  • d118
  • d230
  • h8
M20 - A22 1107510M-20/A-22,0 50 2.18 400 17.44 14.400 627.84 8432569019773 0.0436
  • M20
  • d122
  • d237
  • h8
M24 - A26 1107510M-24/A-26,0 25 1.5375 200 12.3 7.200 442.8 8432569019797 0.0615
  • M24
  • d126
  • d244
  • h8
M27 - A30 1107510M-27/A-30,0 25 1.975 200 15.8 7.200 568.8 8432569019803 0.079
  • M27
  • d130
  • d250
  • h8
M30 - A33 1107510M-30/A-33,0 15 1.515 180 18.18 6.480 654.48 8432569019810 0.101
  • M30
  • d133
  • d256
  • h8
M12 - A14 20RX07510M-12/A-14,0 100 1.88 800 15.04 28.800 541.44 8445222288041 0.0188
M14 - A16 20RX07510M-14/A-16,0 100 2.33 800 18.64 28.800 671.04 8445222288058 0.0233
M16 - A18 20RX07510M-16/A-18,0 50 1.415 800 22.64 28.800 815.04 8445222288065 0.0283
M20 - A22 20RX07510M-20/A-22,0 50 2.18 400 17.44 14.400 627.84 8445222288089 0.0436
M24 - A26 20RX07510M-24/A-26,0 25 1.5375 200 12.3 7.200 442.8 8445222288102 0.0615
M27 - A30 20RX07510M-27/A-30,0 25 1.975 200 15.8 7.200 568.8 8445222288119 0.079
M30 - A33 20RX07510M-30/A-33,0 15 1.515 120 12.12 4.320 436.32 8445222288126 0.101
