Eyebolts

ART. 582 A2

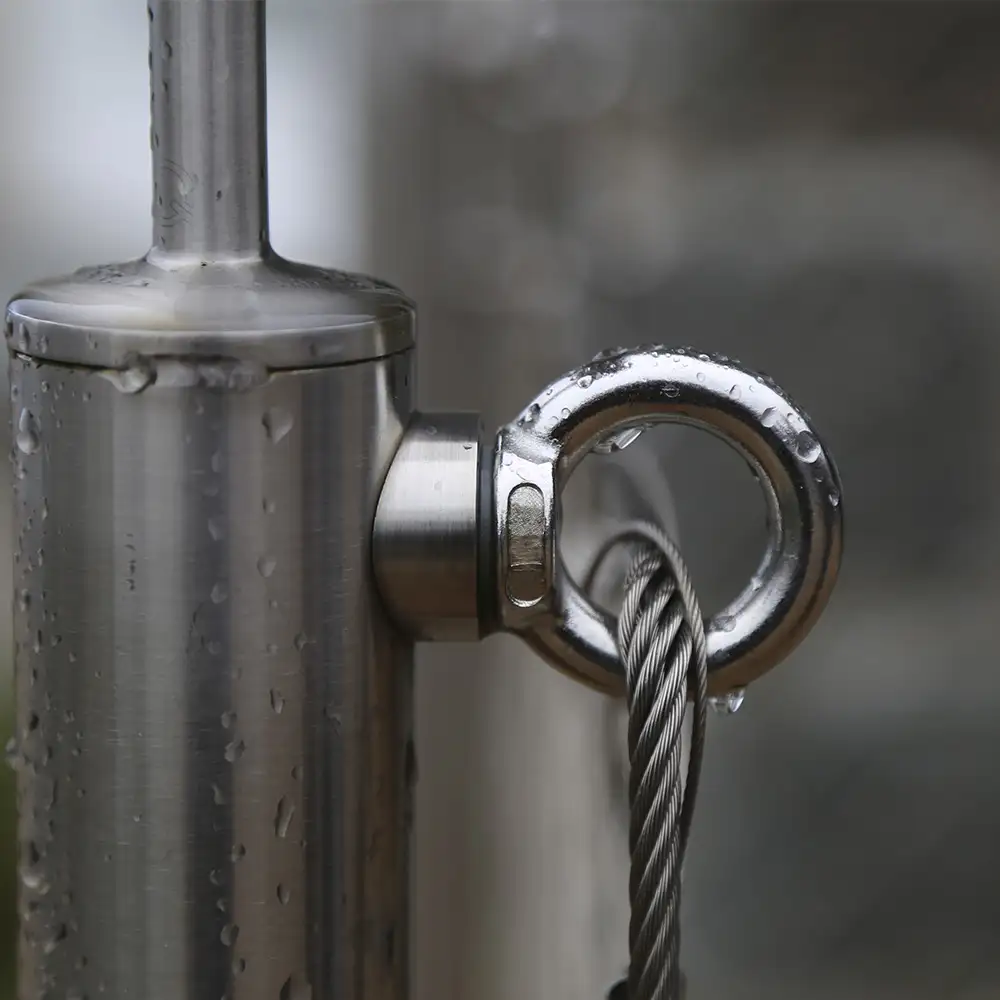

Eye nut D-582 in stainless steel A2

Ref.: 6922465
This product is NOT covered by the 2006/42/EC directive. In any case it is not a valid item of personal protective equipment.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
M6 692246506 25 0.25 400 4 14.400 144 8432569772777 0.01
  • M6
  • d120
  • d220
  • h36
  • L136
M8 692246508 25 1.25 400 20 14.400 720 8432569772784 0.05
  • M8
  • d120
  • d220
  • h36
  • L136
M10 692246510 25 2.25 200 18 7.200 648 8432569772791 0.09
  • M10
  • d125
  • d225
  • h45
  • L145
M12 692246512 15 2.4 120 19.2 4.320 691.2 8432569772807 0.16
  • M12
  • d130
  • d230
  • h53
  • L154
M16 692246516 10 2.4 80 19.2 2.880 691.2 8432569772821 0.24
  • M16
  • d135
  • d235
  • h62
  • L163
M20 692246520 10 3.6 40 14.4 1.440 518.4 8432569772845 0.36
  • M20
  • d140
  • d240
  • h71
  • L172
M24 692246524 5 3.6 20 14.4 720 518.4 8432569772869 0.72
  • M24
  • d150
  • d250
  • h90
  • L190
M6 20RX2246506 25 0.25 400 4 14.400 144 8445222343085 0.01
M8 20RX2246508 25 1.25 250 12.5 9.000 450 8445222343092 0.05
M10 20RX2246510 25 2.25 200 18 7.200 648 8445222343108 0.09
M12 20RX2246512 15 2.4 120 19.2 4.320 691.2 8445222343115 0.16
M14 20RX2246514 10 2 100 20 3.600 720 8445222343122 0.2
M16 20RX2246516 10 2.4 40 9.6 1.440 345.6 8445222343139 0.24
M18 20RX2246518 10 3 80 24 2.880 864 8445222343146 0.3
M20 20RX2246520 10 3.6 40 14.4 1.440 518.4 8445222343153 0.36
M22 20RX2246522 10 5.4 40 21.6 1.440 777.6 8445222343160 0.54
M24 20RX2246524 5 3.6 20 14.4 720 518.4 8445222343177 0.72
M30 20RX2246530 - - -
M36 20RX2246536 - - -
