EXPERTS IN FASTENERS AND WELDING SOLUTIONS when everything fits

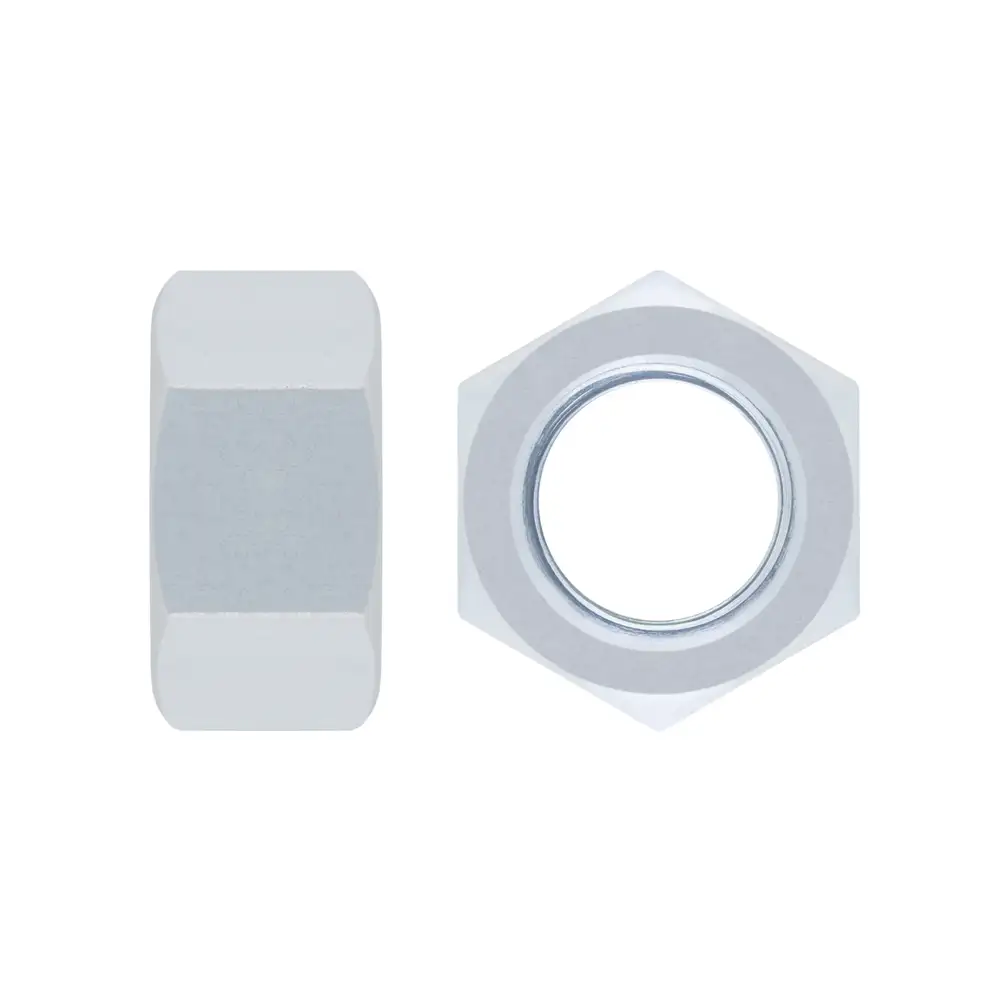

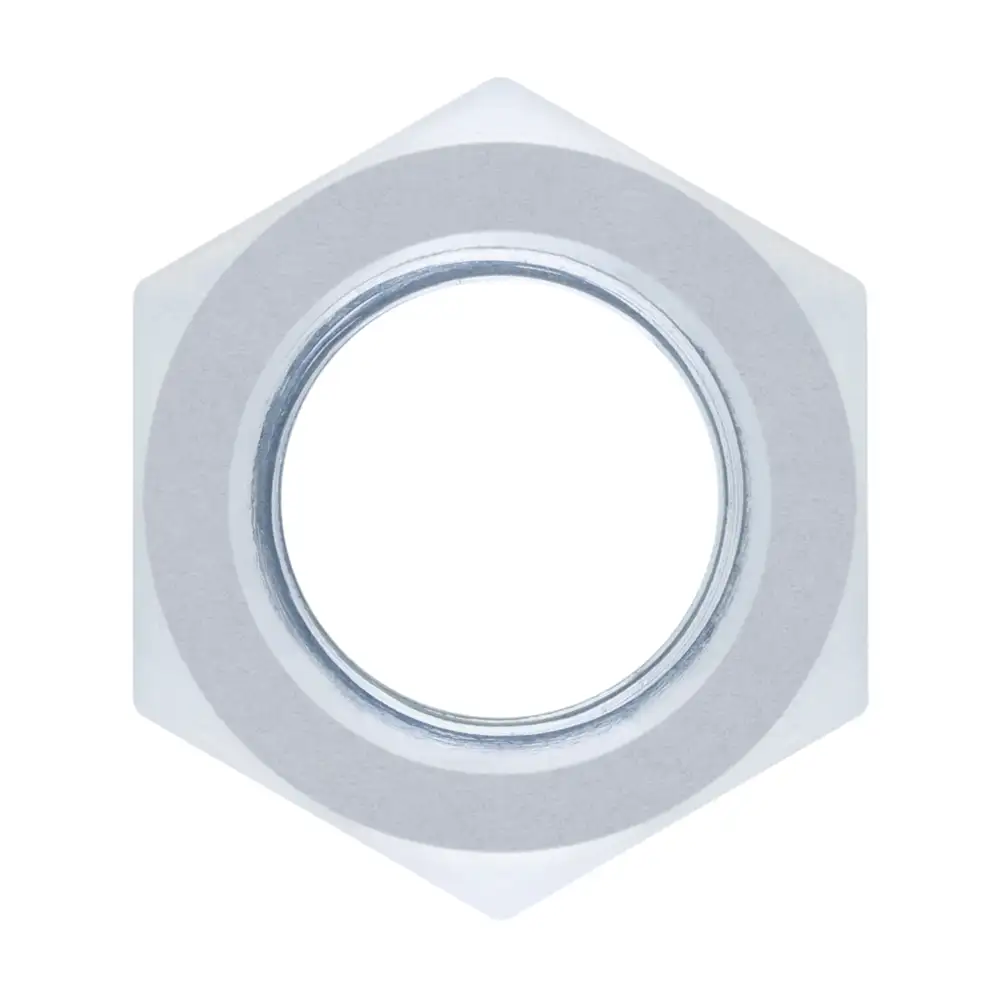

Hexagonal nuts

DIN 934 ZP BU

ISO 4032

Hexagonal nut. Zinc plated. Bulk

Ref.: 6600015
It is a hexagonal nut sold in bulk with ISO 4032 equivalence, manufactured in quality 6 and zinc plated. Its design is smooth finish and threaded on the inside. It is used to secure the fastening of bolts.
Size Code Pcs. Box PCS. Master Uds. Palé EAN Box Weight (Pc/Kg) Technical Information
M5 660001505 0 19.000 684.000 8432569291407 0.0012
  • M5
  • M('')5
  • e8,79
  • m4/4,7
  • S8
M6 660001506 0 8.000 288.000 8432569291414 0.0025
  • M6
  • M('')6
  • e11,05
  • m5/5,2
  • S10
M7 660001507 0 6.000 216.000 8432569291421 0.0031
  • M7
  • M('')7
  • e12,12
  • m5,5
  • S11
M8 660001508 0 4.000 144.000 8432569291438 0.0055
  • M8
  • M('')8
  • e14,38
  • m6,8/6,5
  • S13
M10 660001510 0 1.600 57.600 8432569291445 0.0116
  • M10
  • M('')10
  • e18,9/17,77
  • m8/8,4
  • S17/16
M12 660001512 0 1.200 43.200 8432569291452 0.014
  • M12
  • M('')12
  • e21,1/20,03
  • m10/10,8
  • S19/18
M14 660001514 0 800 28.800 8432569291469 0.025
  • M14
  • M('')14
  • e24,49/23,36
  • m11/12,8
  • S22/21
M16 660001516 0 600 21.600 8432569291476 0.0333
  • M16
  • M('')16
  • e26,75
  • m13/14,8
  • S24
M18 660001518 0 400 14.400 8432569291483 0.0494
  • M18
  • M('')18
  • e29,56
  • m15/15,8
  • S27
M20 660001520 0 300 10.800 8432569291490 0.0644
  • M20
  • M('')20
  • e32,95
  • m16/18
  • S30
M22 660001522 0 280 10.080 8432569291506 0.079
  • M22
  • M('')22
  • e35,03/37,29
  • m18/19,4
  • S32/34
M24 660001524 0 200 7.200 8432569291513 0.11
  • M24
  • M('')24
  • e39,55
  • m19/21,5
  • S36
M27 660001527 0 120 4.320 8432569291520 0.165
  • M27
  • M('')27
  • e45,2
  • m22/23,8
  • S41
M30 660001530 0 90 3.240 8432569291537 0.223
  • M30
  • M('')30
  • e50,85
  • m24/25,6
  • S46
M33 660001533 0 65 2.340 8432569291544 0.288
  • M33
  • M('')33
  • e55,37
  • m26/28,7
  • S50
M36 660001536 0 50 1.800 8432569291551 0.393
  • M36
  • M('')36
  • e60,79
  • m29/31
  • S55
M52 660001552 0 18 648 8432569570687 1.22
  • M52
  • M('')52
  • e88,25
  • m42
  • S80
