Other nuts

DIN 6923 ZP

EN 1661

Hexagon nut with flange in zinc plated finish

Ref.: 6608561
It is a EN 1661-equivalent, drawn flange nut, manufactured in quality 6 and zinc plated. Its design with built-in washer provides an enlarged bearing surface, ensuring even load distribution and a firm hold.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
M4 660856104 1.000 1.25 12.000 15 432.000 540 8432569947823 0.00125
  • M4
  • dc10
  • e7,66
  • m4,65
  • S7
M5 660856105 1.000 1.69 8.000 13.52 288.000 486.72 8432569947830 0.00169
  • M5
  • dc11,8
  • e8,79
  • m5
  • S8
M6 660856106 1.000 3.2 4.000 12.8 144.000 460.8 8432569947847 0.0032
  • M6
  • dc14,2
  • e11,05
  • m6
  • S10
M8 660856108 500 3.3 2.000 13.2 72.000 475.2 8432569947854 0.0066
  • M8
  • dc17,9
  • e14,38
  • m8
  • S13
M10 660856110 500 5.6 1.500 16.8 54.000 604.8 8432569947861 0.0112
  • M10
  • dc21,8
  • e16,64
  • m10
  • S15
M12 660856112 200 3.25 800 13 28.800 468 8432569947878 0.01625
  • M12
  • dc26
  • e20,03
  • m12
  • S18
M14 660856114 100 4.1 400 16.4 14.400 590.4 8432569947885 0.041
  • M14
  • dc29,9
  • e23,36
  • m14
  • S21
M16 660856116 100 5.4 400 21.6 14.400 777.6 8432569947892 0.054
  • M16
  • dc34,5
  • e26,75
  • m16
  • S24
M20 660856120 50 5 200 20 7.200 720 8432569947908 0.1
  • M20
  • dc42,8
  • e32,95
  • m20
  • S30
M4 20RX0856104 500 0.625 10.000 12.5 360.000 450 8445222282940 0.00125
M5 20RX0856105 500 0.845 10.000 16.9 360.000 608.4 8445222282957 0.00169
M6 20RX0856106 200 0.64 3.200 10.24 115.200 368.64 8445222282964 0.0032
M8 20RX0856108 200 1.32 3.200 21.12 115.200 760.32 8445222282988 0.0066
M10 20RX0856110 100 1.12 800 8.96 28.800 322.56 8445222282995 0.0112
M12 20RX0856112 100 1.625 400 6.5 14.400 234 8445222283008 0.01625
M14 20RX0856114 50 2.05 500 20.5 18.000 738 8445222283015 0.041
M16 20RX0856116 50 2.7 400 21.6 14.400 777.6 8445222283022 0.054
M20 20RX0856120 25 2.5 200 20 7.200 720 8445222283039 0.1
RELATED PRODUCTS

DIN 6923 ZP BU

EN 1661

Zinc plated finish bulk hexagon nut with flange

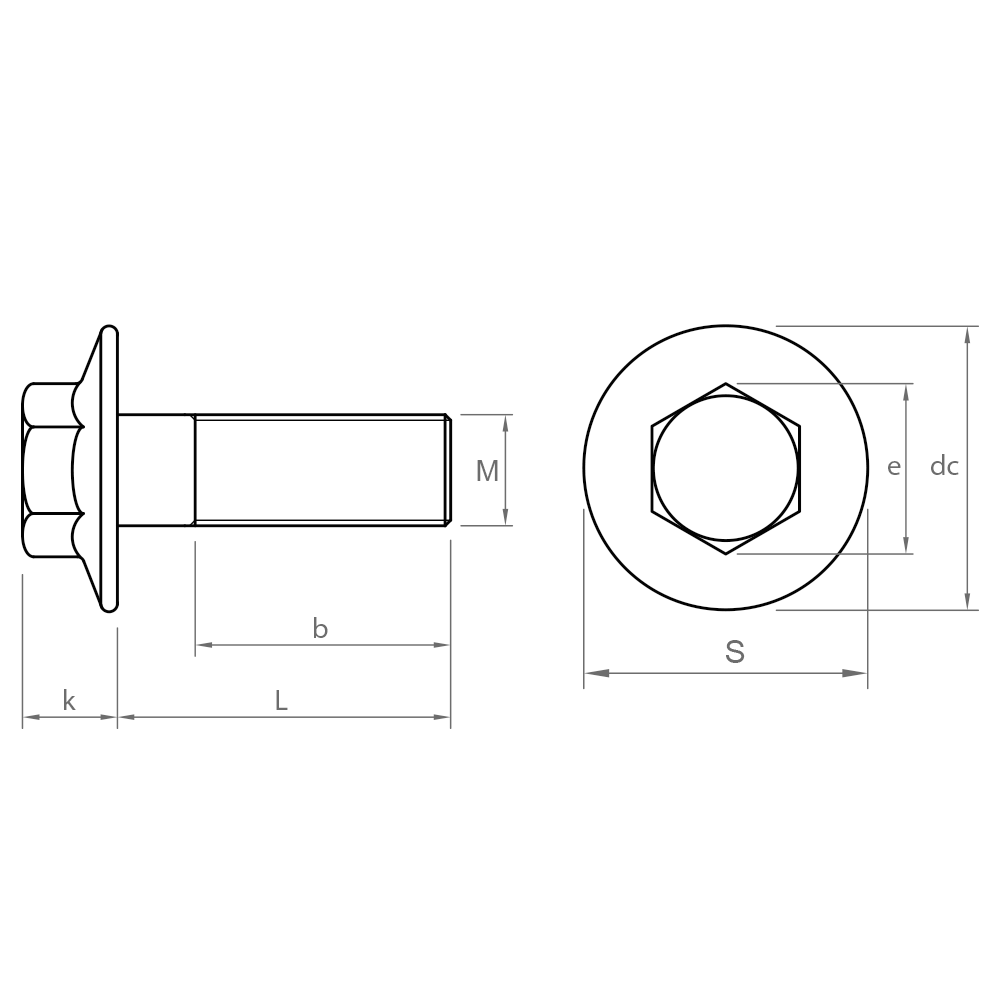

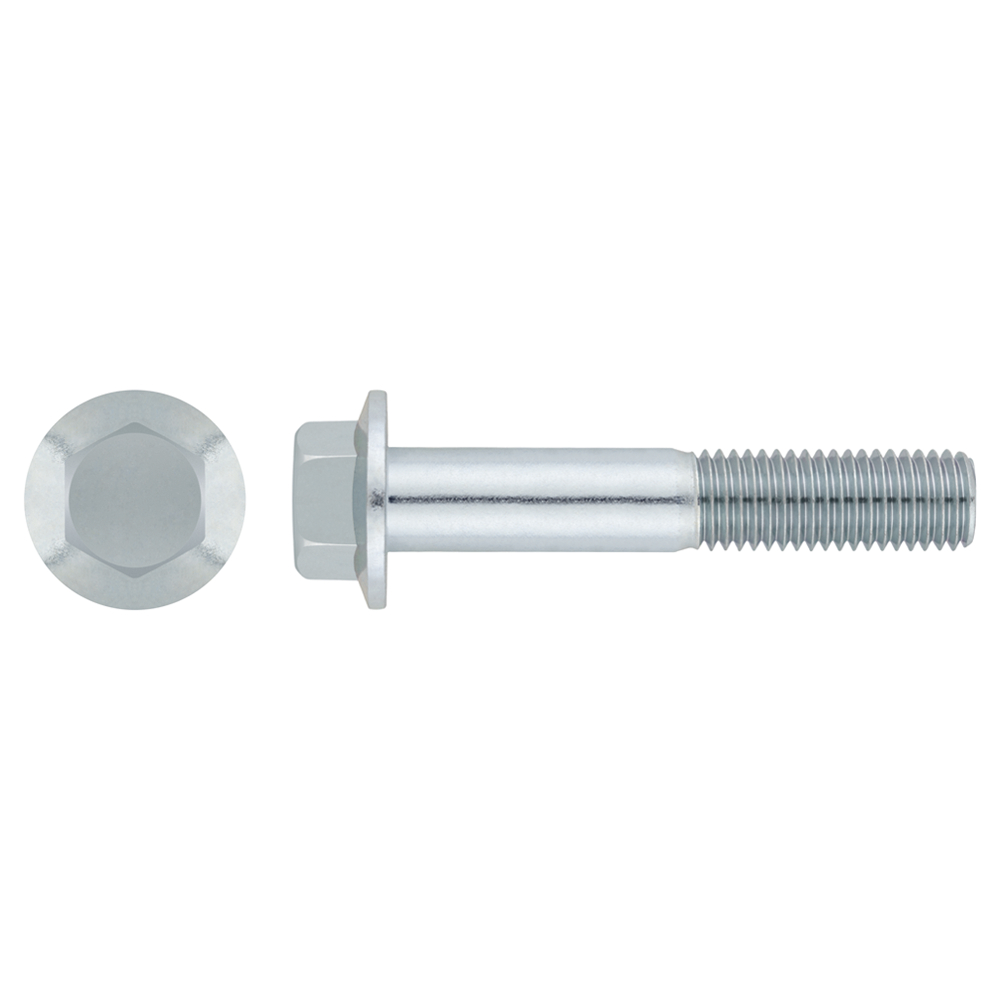

DIN 6921 8.8 ZP
