DIN 7991 10.9 ZP

ISO 10642

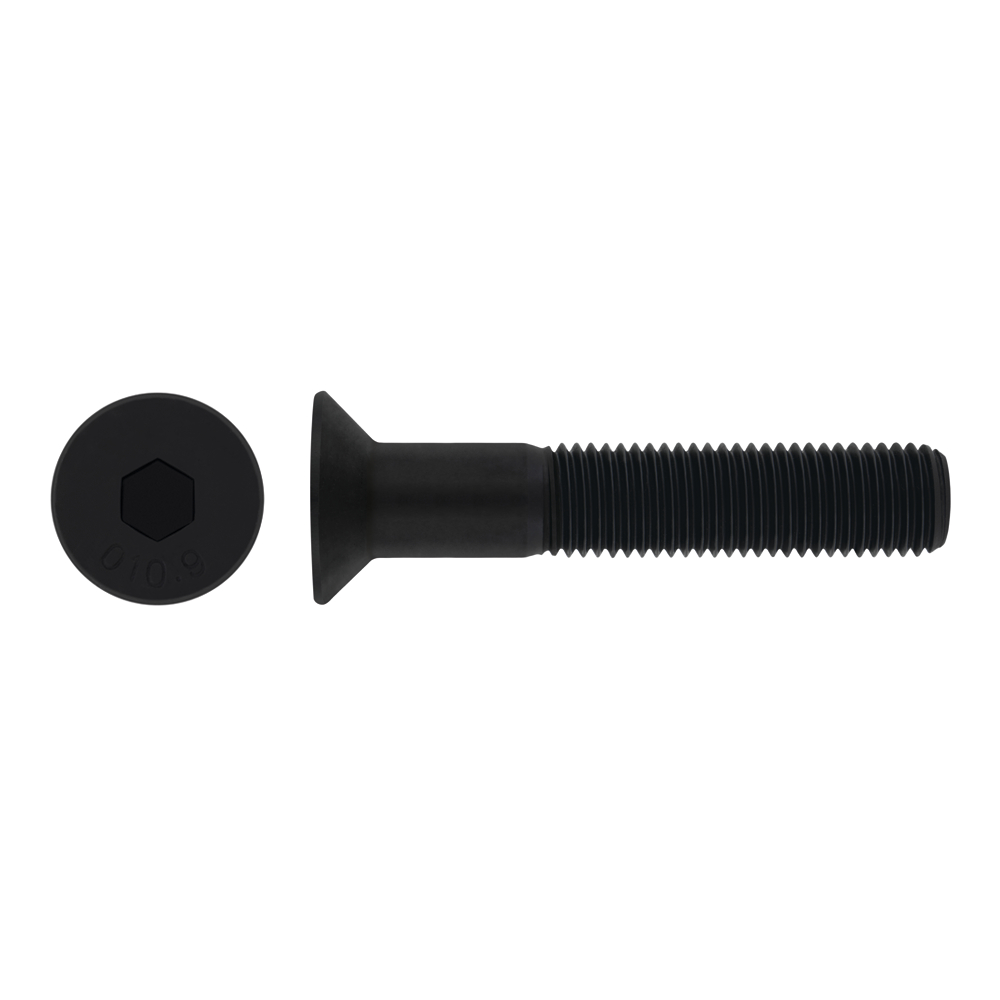

Hexagonal socket countersunk head screw in zinc plated finish and quality 10.9

Ref.: 608101

It is a hexagon socket countersunk screw with ISO 10642 equivalence, manufactured in quality 10.9 and zinc plated. Its design has a countersunk head and hexagon socket which allows a secure and firm fit when joining parts.

Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
M3 x 6	60810103X006	1.000	0.3	30.000	9	1.080.000	324	8432569261585	0.0003
	M3 L6 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2 Full threaded.
M3 x 8	60810103X008	500	0.2	15.000	6	540.000	216	8432569261592	0.0004
	M3 L8 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2 Full threaded.
M3 x 10	60810103X010	500	0.25	15.000	7.5	540.000	270	8432569261608	0.0005
	M3 L10 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2 Full threaded.
M3 x 12	60810103X012	500	0.3	15.000	9	540.000	324	8432569261615	0.0006
	M3 L12 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2 Full threaded.
M3 x 16	60810103X016	500	0.4	15.000	12	540.000	432	8432569261639	0.0008
	M3 L16 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M3 x 20	60810103X020	500	0.5	15.000	15	540.000	540	8432569261653	0.001
	M3 L20 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M3 x 25	60810103X025	500	0.65	8.000	10.4	288.000	374.4	8432569261660	0.0013
	M3 L25 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M3 x 30	60810103X030	500	0.8	8.000	12.8	288.000	460.8	8432569261677	0.0016
	M3 L30 k1,7 dk6 a90° b12 ds3 e2,3 t1,2 S2
M4 x 6	60810104X006	500	0.35	15.000	10.5	540.000	378	8432569261707	0.0007
	M4 L6 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5 Full threaded.
M4 x 8	60810104X008	500	0.45	15.000	13.5	540.000	486	8432569261714	0.0009
	M4 L8 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5 Full threaded.
M4 x 10	60810104X010	500	0.55	15.000	16.5	540.000	594	8432569261721	0.0011
	M4 L10 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5 Full threaded.
M4 x 12	60810104X012	500	0.6	15.000	18	540.000	648	8432569261738	0.0012
	M4 L12 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5 Full threaded.
M4 x 16	60810104X016	500	0.75	8.000	12	288.000	432	8432569261752	0.0015
	M4 L16 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 20	60810104X020	500	0.9	8.000	14.4	288.000	518.4	8432569261776	0.0018
	M4 L20 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 25	60810104X025	500	1.1	8.000	17.6	288.000	633.6	8432569261783	0.0022
	M4 L25 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 30	60810104X030	500	1.45	4.000	11.6	144.000	417.6	8432569261790	0.0029
	M4 L30 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 35	60810104X035	500	1.7	4.000	13.6	144.000	489.6	8432569261806	0.0034
	M4 L35 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 40	60810104X040	500	1.95	4.000	15.6	144.000	561.6	8432569261813	0.0039
	M4 L40 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 45	60810104X045	500	2.2	4.000	17.6	144.000	633.6	8432569261820	0.0044
	M4 L45 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M4 x 50	60810104X050	500	2.45	2.000	9.8	72.000	352.8	8432569261837	0.0049
	M4 L50 k2,3 dk8 a90° b14 ds4 e2,87 t1,8 S2,5
M5 x 8	60810105X008	500	0.8	15.000	24	540.000	864	8432569261875	0.0016
	M5 L8 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3 Full threaded.
M5 x 10	60810105X010	500	0.9	8.000	14.4	288.000	518.4	8432569261882	0.0018
	M5 L10 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3 Full threaded.
M5 x 12	60810105X012	500	1.05	8.000	16.8	288.000	604.8	8432569261899	0.0021
	M5 L12 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3 Full threaded.
M5 x 16	60810105X016	500	1.3	4.000	10.4	144.000	374.4	8432569261929	0.0026
	M5 L16 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3 Full threaded.
M5 x 20	60810105X020	500	1.55	4.000	12.4	144.000	446.4	8432569261943	0.0031
	M5 L20 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 25	60810105X025	500	1.85	4.000	14.8	144.000	532.8	8432569261950	0.0037
	M5 L25 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 30	60810105X030	500	2.15	4.000	17.2	144.000	619.2	8432569261967	0.0043
	M5 L30 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 35	60810105X035	200	1.08	3.200	17.28	115.200	622.08	8432569261974	0.0054
	M5 L35 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 40	60810105X040	200	1.24	3.200	19.84	115.200	714.24	8432569261981	0.0062
	M5 L40 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 45	60810105X045	200	1.38	1.600	11.04	57.600	397.44	8432569261998	0.0069
	M5 L45 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M5 x 50	60810105X050	200	1.54	1.600	12.32	57.600	443.52	8432569262001	0.0077
	M5 L50 k2,8 dk10 a90° b16 ds5 e3,44 t2,3 S3
M6 x 8	60810106X008	500	1.15	8.000	18.4	288.000	662.4	8432569262049	0.0023
	M6 L8 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4 Full threaded.
M6 x 10	60810106X010	500	1.35	8.000	21.6	288.000	777.6	8432569262056	0.0027
	M6 L10 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4 Full threaded.
M6 x 12	60810106X012	500	1.5	8.000	24	288.000	864	8432569262063	0.003
	M6 L12 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4 Full threaded.
M6 x 16	60810106X016	500	1.85	4.000	14.8	144.000	532.8	8432569262087	0.0037
	M6 L16 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4 Full threaded.
M6 x 20	60810106X020	500	2.2	4.000	17.6	144.000	633.6	8432569262100	0.0044
	M6 L20 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 25	60810106X025	500	2.65	4.000	21.2	144.000	763.2	8432569262117	0.0053
	M6 L25 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 30	60810106X030	500	3.1	4.000	24.8	144.000	892.8	8432569262124	0.0062
	M6 L30 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 35	60810106X035	200	1.42	1.600	11.36	57.600	408.96	8432569262131	0.0071
	M6 L35 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 40	60810106X040	200	1.76	1.600	14.08	57.600	506.88	8432569262148	0.0088
	M6 L40 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 45	60810106X045	200	1.98	1.600	15.84	57.600	570.24	8432569262155	0.0099
	M6 L45 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 50	60810106X050	200	2.2	1.600	17.6	57.600	633.6	8432569262162	0.011
	M6 L50 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 55	60810106X055	200	2.42	1.600	19.36	57.600	696.96	8432569262179	0.0121
	M6 L55 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 60	60810106X060	200	2.64	1.600	21.12	57.600	760.32	8432569262186	0.0132
	M6 L60 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 70	60810106X070	200	3.08	800	12.32	28.800	443.52	8432569262193	0.0154
	M6 L70 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M6 x 80	60810106X080	200	3.52	800	14.08	28.800	506.88	8432569262209	0.0176
	M6 L80 k3,3 dk12 a90° b18 ds6 e4,58 t2,5 S4
M8 x 10	60810108X010	200	1.08	3.200	17.28	115.200	622.08	8432569262254	0.0054
	M8 L10 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5 Full threaded.
M8 x 12	60810108X012	200	1.22	3.200	19.52	115.200	702.72	8432569262261	0.0061
	M8 L12 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5 Full threaded.
M8 x 16	60810108X016	200	1.46	3.200	23.36	115.200	840.96	8432569262285	0.0073
	M8 L16 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5 Full threaded.
M8 x 20	60810108X020	200	1.72	1.600	13.76	57.600	495.36	8432569262308	0.0086
	M8 L20 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5 Full threaded.
M8 x 25	60810108X025	200	2.04	1.600	16.32	57.600	587.52	8432569262315	0.0102
	M8 L25 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 30	60810108X030	200	2.34	1.600	18.72	57.600	673.92	8432569262322	0.0117
	M8 L30 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 35	60810108X035	200	2.66	1.600	21.28	57.600	766.08	8432569262339	0.0133
	M8 L35 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 40	60810108X040	200	2.96	800	11.84	28.800	426.24	8432569262346	0.0148
	M8 L40 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 45	60810108X045	200	3.46	800	13.84	28.800	498.24	8432569262353	0.0173
	M8 L45 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 50	60810108X050	200	3.98	800	15.92	28.800	573.12	8432569262360	0.0199
	M8 L50 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 55	60810108X055	200	4.48	800	17.92	28.800	645.12	8432569262377	0.0224
	M8 L55 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 60	60810108X060	200	4.98	800	19.92	28.800	717.12	8432569262384	0.0249
	M8 L60 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 70	60810108X070	200	6	400	12	14.400	432	8432569262407	0.03
	M8 L70 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 80	60810108X080	200	7.02	400	14.04	14.400	505.44	8432569262414	0.0351
	M8 L80 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 90	60810108X090	100	4.02	400	16.08	14.400	578.88	8432569262421	0.0402
	M8 L90 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M8 x 100	60810108X100	100	4.53	400	18.12	14.400	652.32	8432569262438	0.0453
	M8 L100 k4,4 dk16 a90° b22 ds8 e5,72 t3,5 S5
M10 x 16	60810110X016	200	2.42	1.600	19.36	57.600	696.96	8432569262483	0.0121
	M10 L16 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6 Full threaded.
M10 x 20	60810110X020	200	2.82	1.600	22.56	57.600	812.16	8432569262506	0.0141
	M10 L20 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6 Full threaded.
M10 x 25	60810110X025	200	3.32	800	13.28	28.800	478.08	8432569262513	0.0166
	M10 L25 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6 Full threaded.
M10 x 30	60810110X030	200	3.82	800	15.28	28.800	550.08	8432569262520	0.0191
	M10 L30 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 35	60810110X035	100	2.16	800	17.28	28.800	622.08	8432569262537	0.0216
	M10 L35 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 40	60810110X040	100	2.41	800	19.28	28.800	694.08	8432569262544	0.0241
	M10 L40 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 45	60810110X045	100	2.71	800	21.68	28.800	780.48	8432569262551	0.0271
	M10 L45 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 50	60810110X050	100	3.01	800	24.08	28.800	866.88	8432569262568	0.0301
	M10 L50 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 55	60810110X055	100	3.29	400	13.16	14.400	473.76	8432569262575	0.0329
	M10 L55 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 60	60810110X060	100	3.57	400	14.28	14.400	514.08	8432569262582	0.0357
	M10 L60 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 70	60810110X070	100	4.12	400	16.48	14.400	593.28	8432569262599	0.0412
	M10 L70 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 80	60810110X080	100	4.68	400	18.72	14.400	673.92	8432569262605	0.0468
	M10 L80 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 90	60810110X090	100	5.24	400	20.96	14.400	754.56	8432569262612	0.0524
	M10 L90 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M10 x 100	60810110X100	100	5.8	400	23.2	14.400	835.2	8432569262629	0.058
	M10 L100 k6,2 dk20 a90° b26 ds10 e6,86 t4,4 S6
M12 x 20	60810112X020	100	2.12	800	16.96	28.800	610.56	8432569262674	0.0212
	M12 L20 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8 Full threaded.
M12 x 25	60810112X025	100	2.48	800	19.84	28.800	714.24	8432569262681	0.0248
	M12 L25 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8 Full threaded.
M12 x 30	60810112X030	100	2.85	800	22.8	28.800	820.8	8432569262698	0.0285
	M12 L30 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8 Full threaded.
M12 x 35	60810112X035	100	3.21	400	12.84	14.400	462.24	8432569262704	0.0321
	M12 L35 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 40	60810112X040	100	3.57	400	14.28	14.400	514.08	8432569262711	0.0357
	M12 L40 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 45	60810112X045	100	3.93	400	15.72	14.400	565.92	8432569262728	0.0393
	M12 L45 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 50	60810112X050	100	4.3	400	17.2	14.400	619.2	8432569262735	0.043
	M12 L50 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 55	60810112X055	100	4.66	400	18.64	14.400	671.04	8432569262742	0.0466
	M12 L55 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 60	60810112X060	100	5.4	400	21.6	14.400	777.6	8432569262759	0.054
	M12 L60 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 70	60810112X070	50	3.145	200	12.58	7.200	452.88	8432569262773	0.0629
	M12 L70 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 80	60810112X080	50	3.59	200	14.36	7.200	516.96	8432569262780	0.0718
	M12 L80 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 90	60810112X090	50	4.035	200	16.14	7.200	581.04	8432569262797	0.0807
	M12 L90 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M12 x 100	60810112X100	50	4.48	200	17.92	7.200	645.12	8432569262803	0.0896
	M12 L100 k6,5 dk24 a90° b30 ds12 e9,15 t4,6 S8
M14 x 30	60810114X030	100	4.05	400	16.2	14.400	583.2	8432569262841	0.0405
	M14 L30 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10 Full threaded.
M14 x 35	60810114X035	50	2.26	400	18.08	14.400	650.88	8432569262858	0.0452
	M14 L35 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M14 x 40	60810114X040	50	2.25	400	18	14.400	648	8432569262865	0.045
	M14 L40 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M14 x 45	60810114X045	50	2.25	400	18	14.400	648	8432569262872	0.045
	M14 L45 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M14 x 50	60810114X050	50	3.035	200	12.14	7.200	437.04	8432569262889	0.0607
	M14 L50 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M14 x 60	60810114X060	50	3.64	200	14.56	7.200	524.16	8432569262902	0.0728
	M14 L60 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M14 x 70	60810114X070	50	4.345	200	17.38	7.200	625.68	8432569262919	0.0869
	M14 L70 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M14 x 80	60810114X080	50	5.05	200	20.2	7.200	727.2	8432569262926	0.101
	M14 L80 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M14 x 90	60810114X090	50	5.755	200	23.02	7.200	828.72	8432569262933	0.1151
	M14 L90 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M14 x 100	60810114X100	50	6.46	100	12.92	3.600	465.12	8432569262940	0.1292
	M14 L100 k7 dk27 a90° b34 ds14 e11,43 t4,8 S10
M16 x 30	60810116X030	50	2.59	400	20.72	14.400	745.92	8432569262964	0.0518
	M16 L30 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10 Full threaded.
M16 x 35	60810116X035	50	2.92	200	11.68	7.200	420.48	8432569262971	0.0584
	M16 L35 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10 Full threaded.
M16 x 40	60810116X040	50	3.255	200	13.02	7.200	468.72	8432569262988	0.0651
	M16 L40 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 45	60810116X045	50	3.585	200	14.34	7.200	516.24	8432569262995	0.0717
	M16 L45 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 50	60810116X050	50	3.92	200	15.68	7.200	564.48	8432569263008	0.0784
	M16 L50 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 60	60810116X060	50	4.585	200	18.34	7.200	660.24	8432569263022	0.0917
	M16 L60 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 70	60810116X070	25	2.775	100	11.1	3.600	399.6	8432569263039	0.111
	M16 L70 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 80	60810116X080	25	3.175	100	12.7	3.600	457.2	8432569263046	0.127
	M16 L80 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 90	60810116X090	25	3.575	100	14.3	3.600	514.8	8432569263053	0.143
	M16 L90 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 100	60810116X100	25	3.975	100	15.9	3.600	572.4	8432569263060	0.159
	M16 L100 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M16 x 110	60810116X110	25	4.375	100	17.5	3.600	630	8432569263077	0.175
	M16 L110 k7,5 dk30 a90° b38 ds16 e11,43 t5,3 S10
M20 x 40	60810120X040	25	2.5	200	20	7.200	720	8432569263121	0.1
	M20 L40 k8,5 dk36 a90° b46 ds20 e13,72 t5,9 S12 Full threaded.
M20 x 50	60810120X050	25	3	200	24	7.200	864	8432569263145	0.12
	M20 L50 k8,5 dk36 a90° b46 ds20 e13,72 t5,9 S12
M20 x 60	60810120X060	25	3.5	100	14	3.600	504	8432569263169	0.14
	M20 L60 k8,5 dk36 a90° b46 ds20 e13,72 t5,9 S12
M20 x 70	60810120X070	25	4	100	16	3.600	576	8432569263176	0.16
	M20 L70 k8,5 dk36 a90° b46 ds20 e13,72 t5,9 S12
M20 x 80	60810120X080	25	5	100	20	3.600	720	8432569263190	0.2
	M20 L80 k8,5 dk36 a90° b46 ds20 e13,72 t5,9 S12
M20 x 90	60810120X090	25	5.65	100	22.6	3.600	813.6	8432569263213	0.226
	M20 L90 k8,5 dk36 a90° b46 ds20 e13,72 t5,9 S12
M20 x 100	60810120X100	25	6.325	50	12.65	1.800	455.4	8432569263220	0.253
	M20 L100 k8,5 dk36 a90° b46 ds20 e13,72 t5,9 S12
M3 x 6	20RXX810103X006	1.000	0.3	20.000	6	720.000	216	8445222258563	0.0003
	* Full threaded.
M3 x 8	20RXX810103X008	500	0.2	15.000	6	540.000	216	8445222258570	0.0004
	* Full threaded.
M3 x 10	20RXX810103X010	500	0.25	15.000	7.5	540.000	270	8445222258587	0.0005
	* Full threaded.
M3 x 12	20RXX810103X012	500	0.3	10.000	6	360.000	216	8445222258594	0.0006
	* Full threaded.
M3 x 14	20RXX810103X014	-		-		-
	* Full threaded.
M3 x 16	20RXX810103X016	500	0.4	10.000	8	360.000	288	8445222258617	0.0008
	* Full threaded.
M3 x 18	20RXX810103X018	-		-		-
	* Full threaded.
M3 x 20	20RXX810103X020	500	0.5	10.000	10	360.000	360	8445222258631	0.001
	* Full threaded.
M3 x 25	20RXX810103X025	500	0.65	8.000	10.4	288.000	374.4	8445222258648	0.0013
	* Full threaded.
M3 x 30	20RXX810103X030	500	0.8	8.000	12.8	288.000	460.8	8445222258655	0.0016
	* Full threaded.
M3 x 35	20RXX810103X035	-		-		-
	* Full threaded.
M3 x 40	20RXX810103X040	-		-		-
	* Full threaded.
M4 x 6	20RXX810104X006	500	0.35	15.000	10.5	540.000	378	8445222258686	0.0007
	* Full threaded.
M4 x 8	20RXX810104X008	500	0.45	15.000	13.5	540.000	486	8445222258693	0.0009
	* Full threaded.
M4 x 10	20RXX810104X010	500	0.55	15.000	16.5	540.000	594	8445222258709	0.0011
	* Full threaded.
M4 x 12	20RXX810104X012	500	0.6	10.000	12	360.000	432	8445222258716	0.0012
	* Full threaded.
M4 x 14	20RXX810104X014	-		-		-
	* Full threaded.
M4 x 16	20RXX810104X016	500	0.75	8.000	12	288.000	432	8445222258730	0.0015
	* Full threaded.
M4 x 18	20RXX810104X018	-		-		-
	* Full threaded.
M4 x 20	20RXX810104X020	500	0.9	8.000	14.4	288.000	518.4	8445222258754	0.0018
	* Full threaded.
M4 x 25	20RXX810104X025	500	1.1	5.000	11	180.000	396	8445222258761	0.0022
	* Full threaded.
M4 x 30	20RXX810104X030	500	1.45	5.000	14.5	180.000	522	8445222258778	0.0029
	* Full threaded.
M4 x 35	20RXX810104X035	500	1.7	5.000	17	180.000	612	8445222258785	0.0034
	* Full threaded.
M4 x 40	20RXX810104X040	500	1.95	2.000	7.8	72.000	280.8	8445222258792	0.0039
	* Full threaded.
M4 x 45	20RXX810104X045	500	2.2	2.000	8.8	72.000	316.8	8445222258808	0.0044
	* Full threaded.
M4 x 50	20RXX810104X050	500	2.45	2.000	9.8	72.000	352.8	8445222258815	0.0049
	* Full threaded.
M4 x 55	20RXX810104X055	-		-		-
	* Full threaded.
M5 x 8	20RXX810105X008	500	0.8	8.000	12.8	288.000	460.8	8445222258853	0.0016
	* Full threaded.
M5 x 10	20RXX810105X010	500	0.9	8.000	14.4	288.000	518.4	8445222258860	0.0018
	* Full threaded.
M5 x 12	20RXX810105X012	500	1.05	8.000	16.8	288.000	604.8	8445222258877	0.0021
	* Full threaded.
M5 x 14	20RXX810105X014	-		-		-
	* Full threaded.
M5 x 16	20RXX810105X016	500	1.3	5.000	13	180.000	468	8445222258891	0.0026
	* Full threaded.
M5 x 18	20RXX810105X018	-		-		-
	* Full threaded.
M5 x 20	20RXX810105X020	500	1.55	5.000	15.5	180.000	558	8445222258914	0.0031
	* Full threaded.
M5 x 25	20RXX810105X025	500	1.85	4.000	14.8	144.000	532.8	8445222258921	0.0037
	* Full threaded.
M5 x 30	20RXX810105X030	500	2.15	4.000	17.2	144.000	619.2	8445222258938	0.0043
	* Full threaded.
M5 x 35	20RXX810105X035	200	1.08	2.000	10.8	72.000	388.8	8445222258945	0.0054
	* Full threaded.
M5 x 40	20RXX810105X040	200	1.24	1.600	9.92	57.600	357.12	8445222258952	0.0062
	* Full threaded.
M5 x 45	20RXX810105X045	200	1.38	1.600	11.04	57.600	397.44	8445222258969	0.0069
	* Full threaded.
M5 x 50	20RXX810105X050	200	1.54	1.600	12.32	57.600	443.52	8445222258976	0.0077
	* Full threaded.
M5 x 60	20RXX810105X060	-		-		-
	* Full threaded.
M5 x 70	20RXX810105X070	-		-		-
	* Full threaded.
M6 x 8	20RXX810106X008	500	1.15	5.000	11.5	180.000	414	8445222259010	0.0023
	* Full threaded.
M6 x 10	20RXX810106X010	500	1.35	5.000	13.5	180.000	486	8445222259027	0.0027
	* Full threaded.
M6 x 12	20RXX810106X012	500	1.5	5.000	15	180.000	540	8445222259034	0.003
	* Full threaded.
M6 x 14	20RXX810106X014	-		-		-
	* Full threaded.
M6 x 16	20RXX810106X016	500	1.85	5.000	18.5	180.000	666	8445222259065	0.0037
	* Full threaded.
M6 x 18	20RXX810106X018	-		-		-
	* Full threaded.
M6 x 20	20RXX810106X020	500	2.2	4.000	17.6	144.000	633.6	8445222259089	0.0044
	* Full threaded.
M6 x 25	20RXX810106X025	500	2.65	2.000	10.6	72.000	381.6	8445222259096	0.0053
	* Full threaded.
M6 x 30	20RXX810106X030	500	3.1	2.000	12.4	72.000	446.4	8445222259102	0.0062
	* Full threaded.
M6 x 35	20RXX810106X035	200	1.42	1.600	11.36	57.600	408.96	8445222259119	0.0071
	* Full threaded.
M6 x 40	20RXX810106X040	200	1.76	1.600	14.08	57.600	506.88	8445222259126	0.0088
	* Full threaded.
M6 x 45	20RXX810106X045	200	1.98	1.600	15.84	57.600	570.24	8445222259133	0.0099
	* Full threaded.
M6 x 50	20RXX810106X050	200	2.2	800	8.8	28.800	316.8	8445222259140	0.011
	* Full threaded.
M6 x 55	20RXX810106X055	200	2.42	800	9.68	28.800	348.48	8445222259157	0.0121
	* Full threaded.
M6 x 60	20RXX810106X060	200	2.64	800	10.56	28.800	380.16	8445222259164	0.0132
	* Full threaded.
M6 x 70	20RXX810106X070	200	3.08	800	12.32	28.800	443.52	8445222259188	0.0154
	* Full threaded.
M6 x 80	20RXX810106X080	200	3.52	800	14.08	28.800	506.88	8445222259195	0.0176
	* Full threaded.
M6 x 90	20RXX810106X090	-		-		-
	* Full threaded.
M8 x 10	20RXX810108X010	200	1.08	3.200	17.28	115.200	622.08	8445222259249	0.0054
	* Full threaded.
M8 x 12	20RXX810108X012	200	1.22	3.200	19.52	115.200	702.72	8445222259256	0.0061
	* Full threaded.
M8 x 14	20RXX810108X014	-		-		-
	* Full threaded.
M8 x 16	20RXX810108X016	200	1.46	2.000	14.6	72.000	525.6	8445222259270	0.0073
	* Full threaded.
M8 x 18	20RXX810108X018	-		-		-
	* Full threaded.
M8 x 20	20RXX810108X020	200	1.72	2.000	17.2	72.000	619.2	8445222259294	0.0086
	* Full threaded.
M8 x 25	20RXX810108X025	200	2.04	1.600	16.32	57.600	587.52	8445222259317	0.0102
	* Full threaded.
M8 x 30	20RXX810108X030	200	2.34	1.600	18.72	57.600	673.92	8445222259324	0.0117
	* Full threaded.
M8 x 35	20RXX810108X035	200	2.66	1.600	21.28	57.600	766.08	8445222259331	0.0133
	* Full threaded.
M8 x 40	20RXX810108X040	200	2.96	800	11.84	28.800	426.24	8445222259348	0.0148
	* Full threaded.
M8 x 45	20RXX810108X045	200	3.46	800	13.84	28.800	498.24	8445222259355	0.0173
	* Full threaded.
M8 x 50	20RXX810108X050	200	3.98	800	15.92	28.800	573.12	8445222259362	0.0199
	* Full threaded.
M8 x 55	20RXX810108X055	200	4.48	800	17.92	28.800	645.12	8445222259379	0.0224
	* Full threaded.
M8 x 60	20RXX810108X060	200	4.98	800	19.92	28.800	717.12	8445222259386	0.0249
	* Full threaded.
M8 x 70	20RXX810108X070	200	6	800	24	28.800	864	8445222259409	0.03
	* Full threaded.
M8 x 80	20RXX810108X080	200	7.02	400	14.04	14.400	505.44	8445222259416	0.0351
	* Full threaded.
M8 x 90	20RXX810108X090	100	4.02	-	0	-	0	8445222259423	0.0402
	* Full threaded.
M8 x 100	20RXX810108X100	100	4.53	-	0	-	0	8445222259430	0.0453
	* Full threaded.
M10 x 14	20RXX810110X014	-		-		-
	* Full threaded.
M10 x 16	20RXX810110X016	200	2.42	1.600	19.36	57.600	696.96	8445222259485	0.0121
	* Full threaded.
M10 x 18	20RXX810110X018	-		-		-
	* Full threaded.
M10 x 20	20RXX810110X020	200	2.82	800	11.28	28.800	406.08	8445222259508	0.0141
	* Full threaded.
M10 x 25	20RXX810110X025	300	4.98	1.200	19.92	43.200	717.12	8445222259515	0.0166
	* Full threaded.
M10 x 30	20RXX810110X030	200	3.82	800	15.28	28.800	550.08	8445222259522	0.0191
	* Full threaded.
M10 x 35	20RXX810110X035	100	2.16	800	17.28	28.800	622.08	8445222259539	0.0216
	* Full threaded.
M10 x 40	20RXX810110X040	100	2.41	800	19.28	28.800	694.08	8445222259546	0.0241
	* Full threaded.
M10 x 45	20RXX810110X045	100	2.71	800	21.68	28.800	780.48	8445222259553	0.0271
	* Full threaded.
M10 x 50	20RXX810110X050	100	3.01	400	12.04	14.400	433.44	8445222259560	0.0301
	* Full threaded.
M10 x 55	20RXX810110X055	100	3.29	400	13.16	14.400	473.76	8445222259577	0.0329
	* Full threaded.
M10 x 60	20RXX810110X060	100	3.57	400	14.28	14.400	514.08	8445222259584	0.0357
	* Full threaded.
M10 x 70	20RXX810110X070	100	4.12	-	0	-	0	8445222259591	0.0412
	* Full threaded.
M10 x 80	20RXX810110X080	100	4.68	-	0	-	0	8445222259614	0.0468
	* Full threaded.
M10 x 90	20RXX810110X090	100	5.24	-	0	-	0	8445222259621	0.0524
	* Full threaded.
M10 x 100	20RXX810110X100	100	5.8	200	11.6	7.200	417.6	8445222259638	0.058
	* Full threaded.
M12 x 20	20RXX810112X020	100	2.12	800	16.96	28.800	610.56	8445222259690	0.0212
	* Full threaded.
M12 x 25	20RXX810112X025	100	2.48	400	9.92	14.400	357.12	8445222259706	0.0248
	* Full threaded.
M12 x 30	20RXX810112X030	100	2.85	400	11.4	14.400	410.4	8445222259713	0.0285
	* Full threaded.
M12 x 35	20RXX810112X035	100	3.21	400	12.84	14.400	462.24	8445222259720	0.0321
	* Full threaded.
M12 x 40	20RXX810112X040	100	3.57	400	14.28	14.400	514.08	8445222259737	0.0357
	* Full threaded.
M12 x 45	20RXX810112X045	100	3.93	400	15.72	14.400	565.92	8445222259744	0.0393
	* Full threaded.
M12 x 50	20RXX810112X050	100	4.3	400	17.2	14.400	619.2	8445222259751	0.043
	* Full threaded.
M12 x 55	20RXX810112X055	100	4.66	-	0	-	0	8445222259768	0.0466
	* Full threaded.
M12 x 60	20RXX810112X060	100	5.4	-	0	-	0	8445222259775	0.054
	* Full threaded.
M12 x 70	20RXX810112X070	50	3.145	200	12.58	7.200	452.88	8445222259799	0.0629
	* Full threaded.
M12 x 80	20RXX810112X080	50	3.59	200	14.36	7.200	516.96	8445222259812	0.0718
	* Full threaded.
M12 x 90	20RXX810112X090	50	4.035	200	16.14	7.200	581.04	8445222259829	0.0807
	* Full threaded.
M12 x 100	20RXX810112X100	50	4.48	-	0	-	0	8445222259836	0.0896
	* Full threaded.
M14 x 25	20RXX810114X025	-		-		-
	* Full threaded.
M14 x 30	20RXX810114X030	100	4.05	400	16.2	14.400	583.2	8445222259874	0.0405
	* Full threaded.
M14 x 35	20RXX810114X035	50	2.26	200	9.04	7.200	325.44	8445222259881	0.0452
	* Full threaded.
M14 x 40	20RXX810114X040	50	2.25	200	9	7.200	324	8445222259898	0.045
	* Full threaded.
M14 x 45	20RXX810114X045	50	2.25	200	9	7.200	324	8445222259904	0.045
	* Full threaded.
M14 x 50	20RXX810114X050	50	3.035	200	12.14	7.200	437.04	8445222259911	0.0607
	* Full threaded.
M14 x 55	20RXX810114X055	-		-		-
	* Full threaded.
M14 x 60	20RXX810114X060	50	3.64	200	14.56	7.200	524.16	8445222259935	0.0728
	* Full threaded.
M14 x 70	20RXX810114X070	50	4.345	200	17.38	7.200	625.68	8445222259942	0.0869
	* Full threaded.
M14 x 80	20RXX810114X080	50	5.05	200	20.2	7.200	727.2	8445222259959	0.101
	* Full threaded.
M14 x 90	20RXX810114X090	50	5.755	200	23.02	7.200	828.72	8445222259966	0.1151
	* Full threaded.
M14 x 100	20RXX810114X100	50	6.46	-	0	-	0	8445222259973	0.1292
	* Full threaded.
M16 x 30	20RXX810116X030	50	2.59	200	10.36	7.200	372.96	8445222259997	0.0518
	* Full threaded.
M16 x 35	20RXX810116X035	50	2.92	200	11.68	7.200	420.48	8445222260009	0.0584
	* Full threaded.
M16 x 40	20RXX810116X040	50	3.255	200	13.02	7.200	468.72	8445222260016	0.0651
	* Full threaded.
M16 x 45	20RXX810116X045	50	3.585	200	14.34	7.200	516.24	8445222260023	0.0717
	* Full threaded.
M16 x 50	20RXX810116X050	50	3.92	200	15.68	7.200	564.48	8445222260030	0.0784
	* Full threaded.
M16 x 55	20RXX810116X055	-		-		-
	* Full threaded.
M16 x 60	20RXX810116X060	50	4.585	200	18.34	7.200	660.24	8445222260054	0.0917
	* Full threaded.
M16 x 70	20RXX810116X070	25	2.775	100	11.1	3.600	399.6	8445222260078	0.111
	* Full threaded.
M16 x 80	20RXX810116X080	25	3.175	100	12.7	3.600	457.2	8445222260085	0.127
	* Full threaded.
M16 x 90	20RXX810116X090	25	3.575	100	14.3	3.600	514.8	8445222260092	0.143
	* Full threaded.
M16 x 100	20RXX810116X100	25	3.975	-	0	-	0	8445222260108	0.159
	* Full threaded.
M16 x 110	20RXX810116X110	25	4.375	-	0	-	0	8445222260115	0.175
	* Full threaded.
M20 x 40	20RXX810120X040	25	2.5	100	10	3.600	360	8445222260184	0.1
	* Full threaded.
M20 x 45	20RXX810120X045	-		-		-
	* Full threaded.
M20 x 50	20RXX810120X050	25	3	100	12	3.600	432	8445222260207	0.12
	* Full threaded.
M20 x 60	20RXX810120X060	25	3.5	100	14	3.600	504	8445222260221	0.14
	* Full threaded.
M20 x 70	20RXX810120X070	25	4	100	16	3.600	576	8445222260238	0.16
	* Full threaded.
M20 x 80	20RXX810120X080	25	5	-	0	-	0	8445222260252	0.2
	* Full threaded.
M20 x 90	20RXX810120X090	25	5.65	-	0	-	0	8445222260276	0.226
	* Full threaded.
M20 x 100	20RXX810120X100	25	6.325	-	0	-	0	8445222260283	0.253
	* Full threaded.

DIN 7991 10.9 BL

ISO 10642

Hexagonal socket countersunk head screw in black finish and quality 10.9

Do you need more information?

Full name

Teléfono

Company

Country

Province

Query / Message

Datos

I accept the use of my personal data by the technical staff at CHAVES BILBAO, S.L. (Tax ID (CIF) B-48044473) in order to contact me exclusively for informing me of and advising me on its products.

Privacidad

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google privacy policy and terms of service that apply.

CHAVES BILBAO, S.L. informs you that the personal data provided voluntarily on this website, the purpose, intended transfers and other circumstances of which are communicated when the personal data is collected, may, depending on the specific case, have any of the following purposes: responding to your request, complaint or question, maintaining the established relationship, the comprehensive and commercial management of customers, accounting and invoicing or sending of communications of news and activities related with CHAVES BILBAO, S.L., including by electronic means. The data included in our files is absolutely confidential and will be processed with the utmost confidentiality and in compliance with all the requirements set out in the General Data Protection Regulation (GDPR) of the 27th of April 2016. The data is registered in our files for the time necessary for the purpose for which it was collected. The period during which the personal data will be kept will be that established by current legislation and always during the period of the provision of the service for which it was provided. We do not recommend sending personal data that is classified as highly confidential by data protection legislation, such as that related to health, as it is not sent coded or encrypted. Therefore, if you send this type of data, it will be at your own risk. The user may at any time exercise their rights to access, rectify, oppose, cancel, limit processing or request its portability in accordance with the General Data Protection Regulation (GDPR) of the 27th of April 2016, sending a letter along with a photocopy of their DNI identity document, to CHAVES BILBAO, S.L. C/Bizkargi, 6 Polígono Industrial Sarrikola 48195 Larrabetzu - Bizkaia - Spain, or using the email address info@chavesbao.com.

DIN 7991 10.9 ZP

Hexagonal socket countersunk head screw in zinc plated finish and quality 10.9

DIN 7991 10.9 BL

Do you need more information?

customer area

language
