DIN 912 A4

ISO 4762

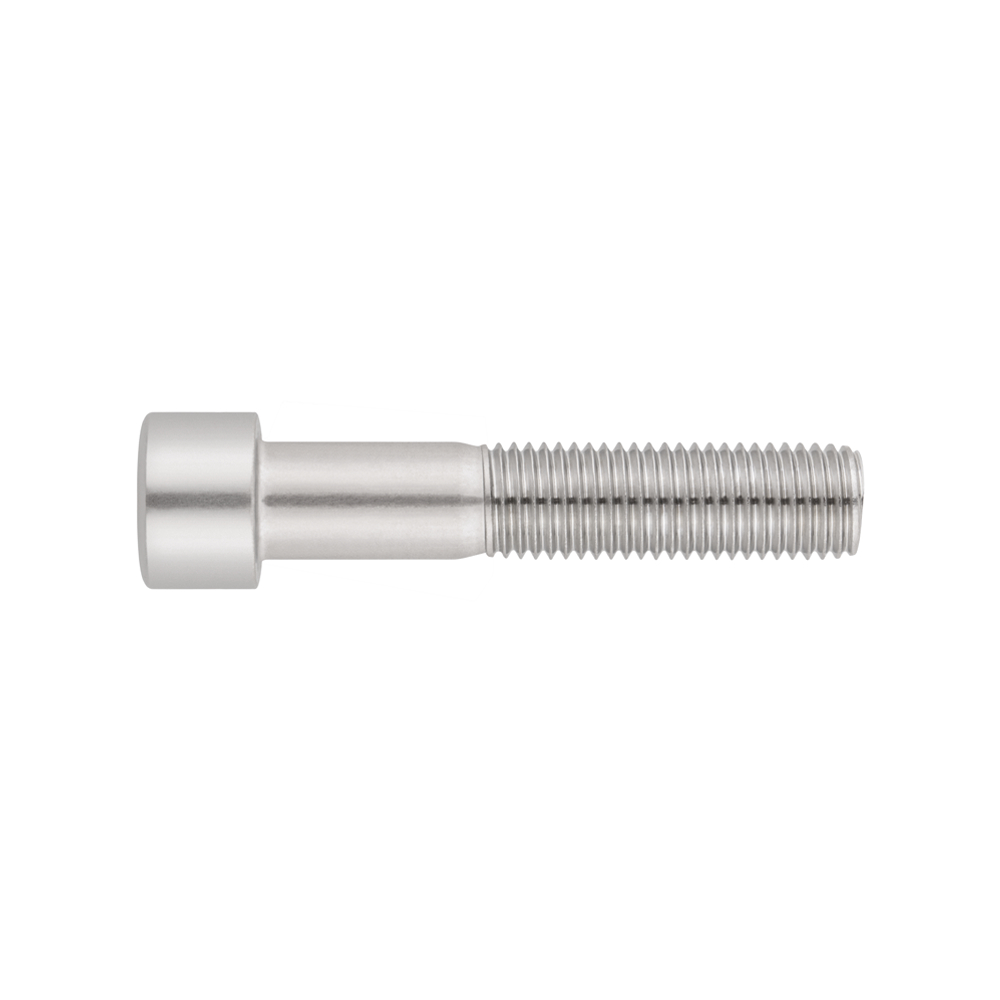

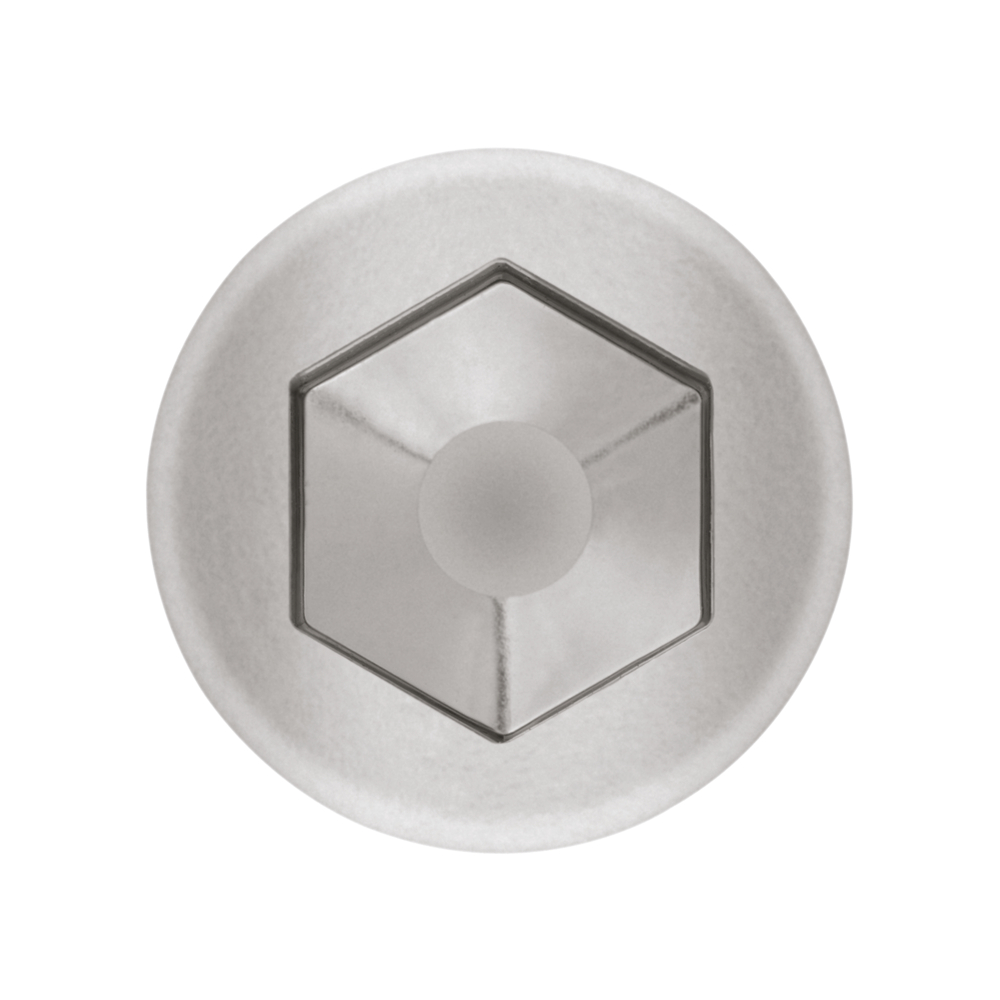

Hexagon socket head cap screw in stainless Steel A4

Ref.: 6132700

It is a hexagon socket head cap screw with ISO 4762 equivalence and is manufactured from A4 stainless steel for corrosion resistance and durability. It has a partial thread design and a cylindrical head with an Allen socket. It is used for applications requiring precise and strong fastening.

Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)	Technical Info.
M3 x 6	613270003X006	500	0.355	15.000	10.65	540.000	383.4	8432569833836	0.00071
	M3 L6 k3 dk5,5 b18 S2,5 Full threaded.
M3 x 8	613270003X008	500	0.4	15.000	12	540.000	432	8432569758429	0.0008
	M3 L8 k3 dk5,5 b18 S2,5 Full threaded.
M3 x 10	613270003X010	500	0.44	15.000	13.2	540.000	475.2	8432569790283	0.00088
	M3 L10 k3 dk5,5 b18 S2,5 Full threaded.
M3 x 16	613270003X016	500	0.58	15.000	17.4	540.000	626.4	8432569790306	0.00116
	M3 L16 k3 dk5,5 b18 S2,5 Full threaded.
M3 x 20	613270003X020	500	0.68	8.000	10.88	288.000	391.68	8432569790313	0.00136
	M3 L20 k3 dk5,5 b18 S2,5
M3 x 25	613270003X025	500	0.805	8.000	12.88	288.000	463.68	8432569833843	0.00161
	M3 L25 k3 dk5,5 b18 S2,5
M3 x 30	613270003X030	500	0.93	8.000	14.88	288.000	535.68	8432569833850	0.00186
	M3 L30 k3 dk5,5 b18 S2,5
M4 x 6	613270004X006	500	0.75	15.000	22.5	540.000	810	8432569790320	0.0015
	M4 L6 k4 dk7 b20 S3 Full threaded.
M4 x 8	613270004X008	200	0.33	6.000	9.9	216.000	356.4	8432569818284	0.00165
	M4 L8 k4 dk7 b20 S3 Full threaded.
M4 x 10	613270004X010	200	0.36	6.000	10.8	216.000	388.8	8432569833720	0.0018
	M4 L10 k4 dk7 b20 S3 Full threaded.
M4 x 12	613270004X012	200	0.39	6.000	11.7	216.000	421.2	8432569833737	0.00195
	M4 L12 k4 dk7 b20 S3 Full threaded.
M4 x 16	613270004X016	200	0.45	3.200	7.2	115.200	259.2	8432569833744	0.00225
	M4 L16 k4 dk7 b20 S3 Full threaded.
M4 x 20	613270004X020	200	0.53	3.200	8.48	115.200	305.28	8432569790337	0.00265
	M4 L20 k4 dk7 b20 S3 Full threaded.
M4 x 25	613270004X025	200	0.63	3.200	10.08	115.200	362.88	8432569790344	0.00315
	M4 L25 k4 dk7 b20 S3
M4 x 30	613270004X030	200	0.73	3.200	11.68	115.200	420.48	8432569790351	0.00365
	M4 L30 k4 dk7 b20 S3
M4 x 40	613270004X040	200	0.92	3.200	14.72	115.200	529.92	8432569289558	0.0046
	M4 L40 k4 dk7 b20 S3
M4 x 45	613270004X045	200	1.02	3.200	16.32	115.200	587.52	8432569834420	0.0051
	M4 L45 k4 dk7 b20 S3
M4 x 50	613270004X050	200	1.04	3.200	16.64	115.200	599.04	8432569790368	0.0052
	M4 L50 k4 dk7 b20 S3
M5 x 8	613270005X008	200	0.46	6.000	13.8	216.000	496.8	8432569790382	0.0023
	M5 L8 k5 dk8,5 b22 S4 Full threaded.
M5 x 10	613270005X010	200	0.54	6.000	16.2	216.000	583.2	8432569289565	0.0027
	M5 L10 k5 dk8,5 b22 S4 Full threaded.
M5 x 12	613270005X012	200	0.58	6.000	17.4	216.000	626.4	8432569289572	0.0029
	M5 L12 k5 dk8,5 b22 S4 Full threaded.
M5 x 16	613270005X016	200	0.68	6.000	20.4	216.000	734.4	8432569451139	0.0034
	M5 L16 k5 dk8,5 b22 S4 Full threaded.
M5 x 20	613270005X020	200	0.802	3.200	12.832	115.200	461.952	8432569704860	0.00401
	M5 L20 k5 dk8,5 b22 S4 Full threaded.
M5 x 25	613270005X025	200	0.956	3.200	15.296	115.200	550.656	8432569516838	0.00478
	M5 L25 k5 dk8,5 b22 S4
M5 x 30	613270005X030	200	1.11	3.200	17.76	115.200	639.36	8432569790399	0.00555
	M5 L30 k5 dk8,5 b22 S4
M5 x 35	613270005X035	200	1.264	3.200	20.224	115.200	728.064	8432569790405	0.00632
	M5 L35 k5 dk8,5 b22 S4
M5 x 40	613270005X040	200	1.418	1.600	11.344	57.600	408.384	8432569562910	0.00709
	M5 L40 k5 dk8,5 b22 S4
M5 x 45	613270005X045	200	1.56	1.600	12.48	57.600	449.28	8432569834451	0.0078
	M5 L45 k5 dk8,5 b22 S4
M5 x 50	613270005X050	200	1.726	1.600	13.808	57.600	497.088	8432569562927	0.00863
	M5 L50 k5 dk8,5 b22 S4
M5 x 70	613270005X070	200	2.36	1.600	18.88	57.600	679.68	8432569834499	0.0118
	M5 L70 k5 dk8,5 b22 S4
M6 x 8	613270006X008	200	0.86	3.200	13.76	115.200	495.36	8432569562934	0.0043
	M6 L8 k6 dk10 b24 S5 Full threaded.
M6 x 10	613270006X010	200	0.94	3.200	15.04	115.200	541.44	8432569834567	0.0047
	M6 L10 k6 dk10 b24 S5 Full threaded.
M6 x 12	613270006X012	200	1.02	3.200	16.32	115.200	587.52	8432569562958	0.0051
	M6 L12 k6 dk10 b24 S5 Full threaded.
M6 x 16	613270006X016	200	1.15	3.200	18.4	115.200	662.4	8432569562941	0.00575
	M6 L16 k6 dk10 b24 S5 Full threaded.
M6 x 20	613270006X020	200	1.3	3.200	20.8	115.200	748.8	8432569289589	0.0065
	M6 L20 k6 dk10 b24 S5 Full threaded.
M6 x 25	613270006X025	200	1.068	1.600	8.544	57.600	307.584	8432569562965	0.00534
	M6 L25 k6 dk10 b24 S5
M6 x 30	613270006X030	200	1.4	1.600	11.2	57.600	403.2	8432569562972	0.007
	M6 L30 k6 dk10 b24 S5
M6 x 35	613270006X035	200	1.98	1.600	15.84	57.600	570.24	8432569790412	0.0099
	M6 L35 k6 dk10 b24 S5
M6 x 40	613270006X040	200	2.2	1.600	17.6	57.600	633.6	8432569562989	0.011
	M6 L40 k6 dk10 b24 S5
M6 x 45	613270006X045	200	2.42	1.600	19.36	57.600	696.96	8432569834581	0.0121
	M6 L45 k6 dk10 b24 S5
M6 x 50	613270006X050	200	2.64	1.600	21.12	57.600	760.32	8432569562996	0.0132
	M6 L50 k6 dk10 b24 S5
M6 x 60	613270006X060	200	3.08	1.600	24.64	57.600	887.04	8432569790429	0.0154
	M6 L60 k6 dk10 b24 S5
M6 x 70	613270006X070	200	3.2	800	12.8	28.800	460.8	8432569790436	0.016
	M6 L70 k6 dk10 b24 S5
M6 x 80	613270006X080	100	1.8	800	14.4	28.800	518.4	8432569833751	0.018
	M6 L80 k6 dk10 b24 S5
M8 x 10	613270008X010	200	0.94	1.600	7.52	57.600	270.72	8432569790443	0.0047
	M8 L10 k8 dk13 b28 S6 Full threaded.
M8 x 12	613270008X012	200	2.2	1.600	17.6	57.600	633.6	8432569790450	0.011
	M8 L12 k8 dk13 b28 S6 Full threaded.
M8 x 16	613270008X016	200	2.42	1.600	19.36	57.600	696.96	8432569563009	0.0121
	M8 L16 k8 dk13 b28 S6 Full threaded.
M8 x 20	613270008X020	200	2.68	1.600	21.44	57.600	771.84	8432569289596	0.0134
	M8 L20 k8 dk13 b28 S6 Full threaded.
M8 x 25	613270008X025	200	3	1.600	24	57.600	864	8432569289602	0.015
	M8 L25 k8 dk13 b28 S6 Full threaded.
M8 x 30	613270008X030	200	3.38	800	13.52	28.800	486.72	8432569474879	0.0169
	M8 L30 k8 dk13 b28 S6
M8 x 35	613270008X035	200	3.78	800	15.12	28.800	544.32	8432569563016	0.0189
	M8 L35 k8 dk13 b28 S6
M8 x 40	613270008X040	200	4.18	800	16.72	28.800	601.92	8432569563023	0.0209
	M8 L40 k8 dk13 b28 S6
M8 x 45	613270008X045	100	2.29	800	18.32	28.800	659.52	8432569698527	0.0229
	M8 L45 k8 dk13 b28 S6
M8 x 50	613270008X050	100	2.49	800	19.92	28.800	717.12	8432569563030	0.0249
	M8 L50 k8 dk13 b28 S6
M8 x 60	613270008X060	100	2.89	800	23.12	28.800	832.32	8432569698534	0.0289
	M8 L60 k8 dk13 b28 S6
M8 x 70	613270008X070	100	3.3	400	13.2	14.400	475.2	8432569754414	0.033
	M8 L70 k8 dk13 b28 S6
M8 x 80	613270008X080	100	3.7	400	14.8	14.400	532.8	8432569790467	0.037
	M8 L80 k8 dk13 b28 S6
M8 x 90	613270008X090	100	3.9	400	15.6	14.400	561.6	8432569790474	0.039
	M8 L90 k8 dk13 b28 S6
M8 x 100	613270008X100	100	4.1	400	16.4	14.400	590.4	8432569834680	0.041
	M8 L100 k8 dk13 b28 S6
M10 x 16	613270010X016	200	4.18	800	16.72	28.800	601.92	8432569833768	0.0209
	M10 L16 k10 dk16 b32 S8 Full threaded.
M10 x 20	613270010X020	200	4.58	800	18.32	28.800	659.52	8432569563177	0.0229
	M10 L20 k10 dk16 b32 S8 Full threaded.
M10 x 25	613270010X025	200	5.18	800	20.72	28.800	745.92	8432569563184	0.0259
	M10 L25 k10 dk16 b32 S8 Full threaded.
M10 x 30	613270010X030	100	2.79	800	22.32	28.800	803.52	8432569563191	0.0279
	M10 L30 k10 dk16 b32 S8 Full threaded.
M10 x 35	613270010X035	100	3.1	800	24.8	28.800	892.8	8432569698541	0.031
	M10 L35 k10 dk16 b32 S8
M10 x 40	613270010X040	100	3.41	400	13.64	14.400	491.04	8432569563207	0.0341
	M10 L40 k10 dk16 b32 S8
M10 x 45	613270010X045	100	3.72	400	14.88	14.400	535.68	8432569639889	0.0372
	M10 L45 k10 dk16 b32 S8
M10 x 50	613270010X050	100	4.03	400	16.12	14.400	580.32	8432569563214	0.0403
	M10 L50 k10 dk16 b32 S8
M10 x 55	613270010X055	100	4.34	400	17.36	14.400	624.96	8432569742534	0.0434
	M10 L55 k10 dk16 b32 S8
M10 x 60	613270010X060	100	4.65	400	18.6	14.400	669.6	8432569685879	0.0465
	M10 L60 k10 dk16 b32 S8
M10 x 70	613270010X070	50	2.635	400	21.08	14.400	758.88	8432569698695	0.0527
	M10 L70 k10 dk16 b32 S8
M10 x 80	613270010X080	50	2.945	200	11.78	7.200	424.08	8432569698701	0.0589
	M10 L80 k10 dk16 b32 S8
M10 x 90	613270010X090	50	3.255	200	13.02	7.200	468.72	8432569639537	0.0651
	M10 L90 k10 dk16 b32 S8
M10 x 100	613270010X100	50	3.565	200	14.26	7.200	513.36	8432569553758	0.0713
	M10 L100 k10 dk16 b32 S8
M10 x 110	613270010X110	50	3.87	200	15.48	7.200	557.28	8432569790481	0.0774
	M10 L110 k10 dk16 b32 S8
M12 x 20	613270012X020	100	3.21	400	12.84	14.400	462.24	8432569563221	0.0321
	M12 L20 k12 dk18 b36 S10 Full threaded.
M12 x 25	613270012X025	100	3.57	400	14.28	14.400	514.08	8432569698718	0.0357
	M12 L25 k12 dk18 b36 S10 Full threaded.
M12 x 30	613270012X030	100	3.93	400	15.72	14.400	565.92	8432569563238	0.0393
	M12 L30 k12 dk18 b36 S10 Full threaded.
M12 x 35	613270012X035	100	3.21	400	12.84	14.400	462.24	8432569698558	0.0321
	M12 L35 k12 dk18 b36 S10 Full threaded.
M12 x 40	613270012X040	50	2.365	400	18.92	14.400	681.12	8432569563245	0.0473
	M12 L40 k12 dk18 b36 S10
M12 x 45	613270012X045	50	2.585	400	20.68	14.400	744.48	8432569825268	0.0517
	M12 L45 k12 dk18 b36 S10
M12 x 50	613270012X050	50	2.805	400	22.44	14.400	807.84	8432569563252	0.0561
	M12 L50 k12 dk18 b36 S10
M12 x 55	613270012X055	50	3.025	400	24.2	14.400	871.2	8432569834840	0.0605
	M12 L55 k12 dk18 b36 S10
M12 x 60	613270012X060	50	3.245	200	12.98	7.200	467.28	8432569563269	0.0649
	M12 L60 k12 dk18 b36 S10
M12 x 65	613270012X065	50	3.465	200	13.86	7.200	498.96	8432569834857	0.0693
	M12 L65 k12 dk18 b36 S10
M12 x 70	613270012X070	50	3.685	200	14.74	7.200	530.64	8432569698565	0.0737
	M12 L70 k12 dk18 b36 S10
M12 x 75	613270012X075	50	3.905	200	15.62	7.200	562.32	8432569834864	0.0781
	M12 L75 k12 dk18 b36 S10
M12 x 80	613270012X080	50	4.125	200	16.5	7.200	594	8432569289619	0.0825
	M12 L80 k12 dk18 b36 S10
M12 x 90	613270012X090	50	4.565	200	18.26	7.200	657.36	8432569647686	0.0913
	M12 L90 k12 dk18 b36 S10
M12 x 100	613270012X100	50	5	200	20	7.200	720	8432569711837	0.1
	M12 L100 k12 dk18 b36 S10
M12 x 110	613270012X110	50	5.45	200	21.8	7.200	784.8	8432569834871	0.109
	M12 L110 k12 dk18 b36 S10
M12 x 120	613270012X120	50	5.9	200	23.6	7.200	849.6	8432569711844	0.118
	M12 L120 k12 dk18 b36 S10
M16 x 25	613270016X025	25	1.78	200	14.24	7.200	512.64	8432569835076	0.0712
	M16 L25 k16 dk24 b44 S14 Full threaded.
M16 x 30	613270016X030	25	1.945	200	15.56	7.200	560.16	8432569790498	0.0778
	M16 L30 k16 dk24 b44 S14 Full threaded.
M16 x 35	613270016X035	25	2.11	200	16.88	7.200	607.68	8432569790504	0.0844
	M16 L35 k16 dk24 b44 S14 Full threaded.
M16 x 40	613270016X040	25	2.275	200	18.2	7.200	655.2	8432569563276	0.091
	M16 L40 k16 dk24 b44 S14 Full threaded.
M16 x 45	613270016X045	25	2.44	200	19.52	7.200	702.72	8432569563283	0.0976
	M16 L45 k16 dk24 b44 S14
M16 x 50	613270016X050	25	2.65	200	21.2	7.200	763.2	8432569563306	0.106
	M16 L50 k16 dk24 b44 S14
M16 x 55	613270016X055	25	2.85	200	22.8	7.200	820.8	8432569833553	0.114
	M16 L55 k16 dk24 b44 S14
M16 x 60	613270016X060	25	3.05	200	24.4	7.200	878.4	8432569698572	0.122
	M16 L60 k16 dk24 b44 S14
M16 x 70	613270016X070	25	3.45	100	13.8	3.600	496.8	8432569563313	0.138
	M16 L70 k16 dk24 b44 S14
M16 x 80	613270016X080	25	3.85	100	15.4	3.600	554.4	8432569563320	0.154
	M16 L80 k16 dk24 b44 S14
M16 x 90	613270016X090	25	4.25	100	17	3.600	612	8432569698725	0.17
	M16 L90 k16 dk24 b44 S14
M16 x 100	613270016X100	25	4.65	100	18.6	3.600	669.6	8432569711851	0.186
	M16 L100 k16 dk24 b44 S14
M20 x 30	613270020X030	25	3.2	100	12.8	3.600	460.8	8432569996944	0.128
	M20 L30 k20 dk30 b52 S17 Full threaded.
M20 x 35	613270020X035	25	3.5	100	14	3.600	504	8432569833867	0.14
	M20 L35 k20 dk30 b52 S17 Full threaded.
M20 x 40	613270020X040	25	3.75	100	15	3.600	540	8432569563337	0.15
	M20 L40 k20 dk30 b52 S17 Full threaded.
M20 x 45	613270020X045	25	4.025	100	16.1	3.600	579.6	8432569835144	0.161
	M20 L45 k20 dk30 b52 S17 Full threaded.
M20 x 50	613270020X050	25	4.3	100	17.2	3.600	619.2	8432569563368	0.172
	M20 L50 k20 dk30 b52 S17 Full threaded.
M20 x 60	613270020X060	25	4.875	100	19.5	3.600	702	8432569698732	0.195
	M20 L60 k20 dk30 b52 S17
M20 x 70	613270020X070	25	5.5	100	22	3.600	792	8432569835175	0.22
	M20 L70 k20 dk30 b52 S17
M20 x 80	613270020X080	25	6.1	100	24.4	3.600	878.4	8432569833874	0.244
	M20 L80 k20 dk30 b52 S17
M20 x 90	613270020X090	10	2.69	80	21.52	2.880	774.72	8432569835182	0.269
	M20 L90 k20 dk30 b52 S17
M20 x 100	613270020X100	10	2.94	40	11.76	1.440	423.36	8432569835199	0.294
	M20 L100 k20 dk30 b52 S17
M3 x 6	20RX3270003X006	500	0.355	15.000	10.65	540.000	383.4	8445222308336	0.00071
	* Full threaded.
M3 x 8	20RX3270003X008	500	0.4	15.000	12	540.000	432	8445222308343	0.0008
	* Full threaded.
M3 x 10	20RX3270003X010	500	0.44	15.000	13.2	540.000	475.2	8445222308350	0.00088
	* Full threaded.
M3 x 12	20RX3270003X012	-		-		-
	* Full threaded.
M3 x 16	20RX3270003X016	500	0.58	8.000	9.28	288.000	334.08	8445222308381	0.00116
	* Full threaded.
M3 x 20	20RX3270003X020	500	0.68	8.000	10.88	288.000	391.68	8445222308398	0.00136
	* Full threaded.
M3 x 25	20RX3270003X025	500	0.805	8.000	12.88	288.000	463.68	8445222308404	0.00161
	* Full threaded.
M3 x 30	20RX3270003X030	500	0.93	8.000	14.88	288.000	535.68	8445222308411	0.00186
	* Full threaded.
M3 x 40	20RX3270003X040	-		-		-
	* Full threaded.
M4 x 6	20RX3270004X006	500	0.75	15.000	22.5	540.000	810	8445222308459	0.0015
	* Full threaded.
M4 x 8	20RX3270004X008	200	0.33	6.000	9.9	216.000	356.4	8445222308466	0.00165
	* Full threaded.
M4 x 10	20RX3270004X010	200	0.36	6.000	10.8	216.000	388.8	8445222308473	0.0018
	* Full threaded.
M4 x 12	20RX3270004X012	200	0.39	6.000	11.7	216.000	421.2	8445222308480	0.00195
	* Full threaded.
M4 x 14	20RX3270004X014	-		-		-
	* Full threaded.
M4 x 16	20RX3270004X016	200	0.45	3.200	7.2	115.200	259.2	8445222308503	0.00225
	* Full threaded.
M4 x 20	20RX3270004X020	200	0.53	3.200	8.48	115.200	305.28	8445222308527	0.00265
	* Full threaded.
M4 x 25	20RX3270004X025	200	0.63	3.200	10.08	115.200	362.88	8445222308534	0.00315
	* Full threaded.
M4 x 30	20RX3270004X030	200	0.73	3.200	11.68	115.200	420.48	8445222308541	0.00365
	* Full threaded.
M4 x 35	20RX3270004X035	-		-		-
	* Full threaded.
M4 x 40	20RX3270004X040	200	0.92	2.000	9.2	72.000	331.2	8445222308565	0.0046
	* Full threaded.
M4 x 45	20RX3270004X045	200	1.02	2.000	10.2	72.000	367.2	8445222308572	0.0051
	* Full threaded.
M4 x 50	20RX3270004X050	200	1.04	2.000	10.4	72.000	374.4	8445222308589	0.0052
	* Full threaded.
M4 x 60	20RX3270004X060	-		-		-
	* Full threaded.
M4 x 70	20RX3270004X070	-		-		-
	* Full threaded.
M5 x 6	20RX3270005X006	-		-		-
	* Full threaded.
M5 x 8	20RX3270005X008	200	0.46	6.000	13.8	216.000	496.8	8445222308626	0.0023
	* Full threaded.
M5 x 10	20RX3270005X010	200	0.54	3.200	8.64	115.200	311.04	8445222308633	0.0027
	* Full threaded.
M5 x 12	20RX3270005X012	200	0.58	3.200	9.28	115.200	334.08	8445222308640	0.0029
	* Full threaded.
M5 x 16	20RX3270005X016	200	0.68	3.200	10.88	115.200	391.68	8445222308657	0.0034
	* Full threaded.
M5 x 20	20RX3270005X020	200	0.802	3.200	12.832	115.200	461.952	8445222308664	0.00401
	* Full threaded.
M5 x 25	20RX3270005X025	200	0.956	3.200	15.296	115.200	550.656	8445222308671	0.00478
	* Full threaded.
M5 x 30	20RX3270005X030	200	1.11	3.200	17.76	115.200	639.36	8445222308688	0.00555
	* Full threaded.
M5 x 35	20RX3270005X035	200	1.264	3.200	20.224	115.200	728.064	8445222308695	0.00632
	* Full threaded.
M5 x 40	20RX3270005X040	200	1.418	1.600	11.344	57.600	408.384	8445222308701	0.00709
	* Full threaded.
M5 x 45	20RX3270005X045	200	1.56	800	6.24	28.800	224.64	8445222308718	0.0078
	* Full threaded.
M5 x 50	20RX3270005X050	200	1.726	800	6.904	28.800	248.544	8445222308725	0.00863
	* Full threaded.
M5 x 55	20RX3270005X055	-		-		-
	* Full threaded.
M5 x 60	20RX3270005X060	-		-		-
	* Full threaded.
M5 x 65	20RX3270005X065	-		-		-
	* Full threaded.
M5 x 70	20RX3270005X070	200	2.36	800	9.44	28.800	339.84	8445222308763	0.0118
	* Full threaded.
M5 x 75	20RX3270005X075	-		-		-
	* Full threaded.
M5 x 80	20RX3270005X080	-		-		-
	* Full threaded.
M5 x 90	20RX3270005X090	-		-		-
	* Full threaded.
M6 x 8	20RX3270006X008	200	0.86	3.200	13.76	115.200	495.36	8445222308848	0.0043
	* Full threaded.
M6 x 10	20RX3270006X010	200	0.94	3.200	15.04	115.200	541.44	8445222308855	0.0047
	* Full threaded.
M6 x 12	20RX3270006X012	200	1.02	3.200	16.32	115.200	587.52	8445222308862	0.0051
	* Full threaded.
M6 x 14	20RX3270006X014	-		-		-
	* Full threaded.
M6 x 16	20RX3270006X016	200	1.15	3.200	18.4	115.200	662.4	8445222308886	0.00575
	* Full threaded.
M6 x 20	20RX3270006X020	200	1.3	3.200	20.8	115.200	748.8	8445222308909	0.0065
	* Full threaded.
M6 x 25	20RX3270006X025	200	1.068	2.000	10.68	72.000	384.48	8445222308916	0.00534
	* Full threaded.
M6 x 30	20RX3270006X030	200	1.4	1.600	11.2	57.600	403.2	8445222308923	0.007
	* Full threaded.
M6 x 35	20RX3270006X035	200	1.98	1.600	15.84	57.600	570.24	8445222308930	0.0099
	* Full threaded.
M6 x 40	20RX3270006X040	200	2.2	1.600	17.6	57.600	633.6	8445222308947	0.011
	* Full threaded.
M6 x 45	20RX3270006X045	200	2.42	1.600	19.36	57.600	696.96	8445222308954	0.0121
	* Full threaded.
M6 x 50	20RX3270006X050	200	2.64	1.600	21.12	57.600	760.32	8445222308961	0.0132
	* Full threaded.
M6 x 55	20RX3270006X055	-		-		-
	* Full threaded.
M6 x 60	20RX3270006X060	200	3.08	800	12.32	28.800	443.52	8445222308985	0.0154
	* Full threaded.
M6 x 65	20RX3270006X065	-		-		-
	* Full threaded.
M6 x 70	20RX3270006X070	200	3.2	800	12.8	28.800	460.8	8445222309005	0.016
	* Full threaded.
M6 x 75	20RX3270006X075	-		-		-
	* Full threaded.
M6 x 80	20RX3270006X080	100	1.8	800	14.4	28.800	518.4	8445222309029	0.018
	* Full threaded.
M6 x 90	20RX3270006X090	-		-		-
	* Full threaded.
M6 x 100	20RX3270006X100	-		-		-
	* Full threaded.
M6 x 110	20RX3270006X110	-		-		-
	* Full threaded.
M6 x 120	20RX3270006X120	-		-		-
	* Full threaded.
M8 x 10	20RX3270008X010	200	0.94	2.000	9.4	72.000	338.4	8445222309081	0.0047
	* Full threaded.
M8 x 12	20RX3270008X012	200	2.2	1.600	17.6	57.600	633.6	8445222309098	0.011
	* Full threaded.
M8 x 16	20RX3270008X016	200	2.42	1.600	19.36	57.600	696.96	8445222309104	0.0121
	* Full threaded.
M8 x 20	20RX3270008X020	200	2.68	1.600	21.44	57.600	771.84	8445222309128	0.0134
	* Full threaded.
M8 x 25	20RX3270008X025	200	3	800	12	28.800	432	8445222309135	0.015
	* Full threaded.
M8 x 30	20RX3270008X030	200	3.38	800	13.52	28.800	486.72	8445222309142	0.0169
	* Full threaded.
M8 x 35	20RX3270008X035	200	3.78	800	15.12	28.800	544.32	8445222309159	0.0189
	* Full threaded.
M8 x 40	20RX3270008X040	200	4.18	800	16.72	28.800	601.92	8445222309166	0.0209
	* Full threaded.
M8 x 45	20RX3270008X045	100	2.29	800	18.32	28.800	659.52	8445222309173	0.0229
	* Full threaded.
M8 x 50	20RX3270008X050	100	2.49	800	19.92	28.800	717.12	8445222309180	0.0249
	* Full threaded.
M8 x 55	20RX3270008X055	100	2.69	400	10.76	14.400	387.36	8445222309197	0.0269
	* Full threaded.
M8 x 60	20RX3270008X060	-		-		-
	* Full threaded.
M8 x 65	20RX3270008X065	100	3.1	400	12.4	14.400	446.4	8445222309210	0.031
	* Full threaded.
M8 x 70	20RX3270008X070	-		-		-
	* Full threaded.
M8 x 75	20RX3270008X075	100	0	400	0	14.400	0	8445222309234	0
	* Full threaded.
M8 x 80	20RX3270008X080	-		-		-
	* Full threaded.
M8 x 90	20RX3270008X090	100	3.9	400	15.6	14.400	561.6	8445222309258	0.039
	* Full threaded.
M8 x 100	20RX3270008X100	100	4.1	400	16.4	14.400	590.4	8445222309265	0.041
	* Full threaded.
M8 x 110	20RX3270008X110	100	2	400	8	14.400	288	8445222309272	0.02
	* Full threaded.
M8 x 120	20RX3270008X120	-		-		-
	* Full threaded.
M8 x 130	20RX3270008X130	-		-		-
	* Full threaded.
M8 x 140	20RX3270008X140	-		-		-
	* Full threaded.
M8 x 150	20RX3270008X150	-		-		-
	* Full threaded.
M10 x 16	20RX3270010X016	200	4.18	800	16.72	28.800	601.92	8445222309340	0.0209
	* Full threaded.
M10 x 20	20RX3270010X020	200	4.58	800	18.32	28.800	659.52	8445222309357	0.0229
	* Full threaded.
M10 x 25	20RX3270010X025	200	5.18	800	20.72	28.800	745.92	8445222309371	0.0259
	* Full threaded.
M10 x 30	20RX3270010X030	100	2.79	800	22.32	28.800	803.52	8445222309388	0.0279
	* Full threaded.
M10 x 35	20RX3270010X035	100	3.1	400	12.4	14.400	446.4	8445222309395	0.031
	* Full threaded.
M10 x 40	20RX3270010X040	100	3.41	400	13.64	14.400	491.04	8445222309401	0.0341
	* Full threaded.
M10 x 45	20RX3270010X045	100	3.72	400	14.88	14.400	535.68	8445222309418	0.0372
	* Full threaded.
M10 x 50	20RX3270010X050	100	4.03	400	16.12	14.400	580.32	8445222309425	0.0403
	* Full threaded.
M10 x 55	20RX3270010X055	100	4.34	-	0	-	0	8445222309432	0.0434
	* Full threaded.
M10 x 60	20RX3270010X060	100	4.65	-	0	-	0	8445222309449	0.0465
	* Full threaded.
M10 x 65	20RX3270010X065	-		-		-
	* Full threaded.
M10 x 70	20RX3270010X070	50	2.635	400	21.08	14.400	758.88	8445222309463	0.0527
	* Full threaded.
M10 x 75	20RX3270010X075	-		-		-
	* Full threaded.
M10 x 80	20RX3270010X080	50	2.945	200	11.78	7.200	424.08	8445222309487	0.0589
	* Full threaded.
M10 x 90	20RX3270010X090	50	3.255	200	13.02	7.200	468.72	8445222309494	0.0651
	* Full threaded.
M10 x 100	20RX3270010X100	50	3.565	200	14.26	7.200	513.36	8445222309500	0.0713
	* Full threaded.
M10 x 110	20RX3270010X110	50	3.87	200	15.48	7.200	557.28	8445222309517	0.0774
	* Full threaded.
M10 x 120	20RX3270010X120	-		-		-
	* Full threaded.
M10 x 130	20RX3270010X130	-		-		-
	* Full threaded.
M10 x 140	20RX3270010X140	-		-		-
	* Full threaded.
M10 x 150	20RX3270010X150	-		-		-
	* Full threaded.
M12 x 16	20RX3270012X016	-		-		-
	* Full threaded.
M12 x 20	20RX3270012X020	100	3.21	400	12.84	14.400	462.24	8445222309593	0.0321
	* Full threaded.
M12 x 25	20RX3270012X025	100	3.57	400	14.28	14.400	514.08	8445222309609	0.0357
	* Full threaded.
M12 x 30	20RX3270012X030	100	3.93	400	15.72	14.400	565.92	8445222309616	0.0393
	* Full threaded.
M12 x 35	20RX3270012X035	100	3.21	400	12.84	14.400	462.24	8445222309623	0.0321
	* Full threaded.
M12 x 40	20RX3270012X040	50	2.365	400	18.92	14.400	681.12	8445222309630	0.0473
	* Full threaded.
M12 x 45	20RX3270012X045	50	2.585	400	20.68	14.400	744.48	8445222309647	0.0517
	* Full threaded.
M12 x 50	20RX3270012X050	50	2.805	200	11.22	7.200	403.92	8445222309654	0.0561
	* Full threaded.
M12 x 55	20RX3270012X055	50	3.025	200	12.1	7.200	435.6	8445222309661	0.0605
	* Full threaded.
M12 x 60	20RX3270012X060	50	3.245	200	12.98	7.200	467.28	8445222309678	0.0649
	* Full threaded.
M12 x 65	20RX3270012X065	50	3.465	200	13.86	7.200	498.96	8445222309685	0.0693
	* Full threaded.
M12 x 70	20RX3270012X070	50	3.685	200	14.74	7.200	530.64	8445222309692	0.0737
	* Full threaded.
M12 x 75	20RX3270012X075	50	3.905	200	15.62	7.200	562.32	8445222309708	0.0781
	* Full threaded.
M12 x 80	20RX3270012X080	50	4.125	200	16.5	7.200	594	8445222309715	0.0825
	* Full threaded.
M12 x 90	20RX3270012X090	50	4.565	200	18.26	7.200	657.36	8445222309722	0.0913
	* Full threaded.
M12 x 100	20RX3270012X100	50	5	200	20	7.200	720	8445222309739	0.1
	* Full threaded.
M12 x 110	20RX3270012X110	50	5.45	200	21.8	7.200	784.8	8445222309746	0.109
	* Full threaded.
M12 x 120	20RX3270012X120	50	5.9	200	23.6	7.200	849.6	8445222309753	0.118
	* Full threaded.
M12 x 130	20RX3270012X130	-		-		-
	* Full threaded.
M12 x 140	20RX3270012X140	-		-		-
	* Full threaded.
M12 x 150	20RX3270012X150	-		-		-
	* Full threaded.
M12 x 160	20RX3270012X160	-		-		-
	* Full threaded.
M12 x 170	20RX3270012X170	-		-		-
	* Full threaded.
M16 x 25	20RX3270016X025	25	1.78	200	14.24	7.200	512.64	8445222309999	0.0712
	* Full threaded.
M16 x 30	20RX3270016X030	25	1.945	200	15.56	7.200	560.16	8445222310001	0.0778
	* Full threaded.
M16 x 35	20RX3270016X035	25	2.11	200	16.88	7.200	607.68	8445222310018	0.0844
	* Full threaded.
M16 x 40	20RX3270016X040	25	2.275	200	18.2	7.200	655.2	8445222310025	0.091
	* Full threaded.
M16 x 45	20RX3270016X045	25	2.44	100	9.76	3.600	351.36	8445222310032	0.0976
	* Full threaded.
M16 x 50	20RX3270016X050	25	2.65	100	10.6	3.600	381.6	8445222310049	0.106
	* Full threaded.
M16 x 55	20RX3270016X055	25	2.85	100	11.4	3.600	410.4	8445222310056	0.114
	* Full threaded.
M16 x 60	20RX3270016X060	25	3.05	100	12.2	3.600	439.2	8445222310063	0.122
	* Full threaded.
M16 x 65	20RX3270016X065	-		-		-
	* Full threaded.
M16 x 70	20RX3270016X070	25	3.45	100	13.8	3.600	496.8	8445222310087	0.138
	* Full threaded.
M16 x 75	20RX3270016X075	-		-		-
	* Full threaded.
M16 x 80	20RX3270016X080	25	3.85	100	15.4	3.600	554.4	8445222310100	0.154
	* Full threaded.
M16 x 90	20RX3270016X090	25	4.25	100	17	3.600	612	8445222310117	0.17
	* Full threaded.
M16 x 100	20RX3270016X100	25	4.65	100	18.6	3.600	669.6	8445222310124	0.186
	* Full threaded.
M20 x 30	20RX3270020X030	25	3.2	100	12.8	3.600	460.8	8445222310223	0.128
	* Full threaded.
M20 x 35	20RX3270020X035	25	3.5	100	14	3.600	504	8445222310230	0.14
	* Full threaded.
M20 x 40	20RX3270020X040	25	3.75	100	15	3.600	540	8445222310247	0.15
	* Full threaded.
M20 x 45	20RX3270020X045	25	4.025	100	16.1	3.600	579.6	8445222310254	0.161
	* Full threaded.
M20 x 50	20RX3270020X050	25	4.3	100	17.2	3.600	619.2	8445222310261	0.172
	* Full threaded.
M20 x 55	20RX3270020X055	-		-		-
	* Full threaded.
M20 x 60	20RX3270020X060	25	4.875	100	19.5	3.600	702	8445222310285	0.195
	* Full threaded.
M20 x 65	20RX3270020X065	-		-		-
	* Full threaded.
M20 x 70	20RX3270020X070	25	5.5	100	22	3.600	792	8445222310308	0.22
	* Full threaded.
M20 x 80	20RX3270020X080	25	6.1	-	0	-	0	8445222310315	0.244
	* Full threaded.
M20 x 90	20RX3270020X090	10	2.69	40	10.76	1.440	387.36	8445222310322	0.269
	* Full threaded.
M20 x 100	20RX3270020X100	10	2.94	40	11.76	1.440	423.36	8445222310339	0.294
	* Full threaded.
M20 x 110	20RX3270020X110	-		-		-
	* Full threaded.
M20 x 120	20RX3270020X120	-		-		-
	* Full threaded.
M20 x 130	20RX3270020X130	-		-		-
	* Full threaded.
M20 x 140	20RX3270020X140	-		-		-
	* Full threaded.
M20 x 150	20RX3270020X150	-		-		-
	* Full threaded.
M24 x 50	20RX3270024X050	-		-		-
	* Full threaded.
M24 x 60	20RX3270024X060	-		-		-
	* Full threaded.

Do you need more information?

Full name

Teléfono

Company

Country

Province

Query / Message

Datos

I accept the use of my personal data by the technical staff at CHAVES BILBAO, S.L. (Tax ID (CIF) B-48044473) in order to contact me exclusively for informing me of and advising me on its products.

Privacidad

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google privacy policy and terms of service that apply.

CHAVES BILBAO, S.L. informs you that the personal data provided voluntarily on this website, the purpose, intended transfers and other circumstances of which are communicated when the personal data is collected, may, depending on the specific case, have any of the following purposes: responding to your request, complaint or question, maintaining the established relationship, the comprehensive and commercial management of customers, accounting and invoicing or sending of communications of news and activities related with CHAVES BILBAO, S.L., including by electronic means. The data included in our files is absolutely confidential and will be processed with the utmost confidentiality and in compliance with all the requirements set out in the General Data Protection Regulation (GDPR) of the 27th of April 2016. The data is registered in our files for the time necessary for the purpose for which it was collected. The period during which the personal data will be kept will be that established by current legislation and always during the period of the provision of the service for which it was provided. We do not recommend sending personal data that is classified as highly confidential by data protection legislation, such as that related to health, as it is not sent coded or encrypted. Therefore, if you send this type of data, it will be at your own risk. The user may at any time exercise their rights to access, rectify, oppose, cancel, limit processing or request its portability in accordance with the General Data Protection Regulation (GDPR) of the 27th of April 2016, sending a letter along with a photocopy of their DNI identity document, to CHAVES BILBAO, S.L. C/Bizkargi, 6 Polígono Industrial Sarrikola 48195 Larrabetzu - Bizkaia - Spain, or using the email address info@chavesbao.com.

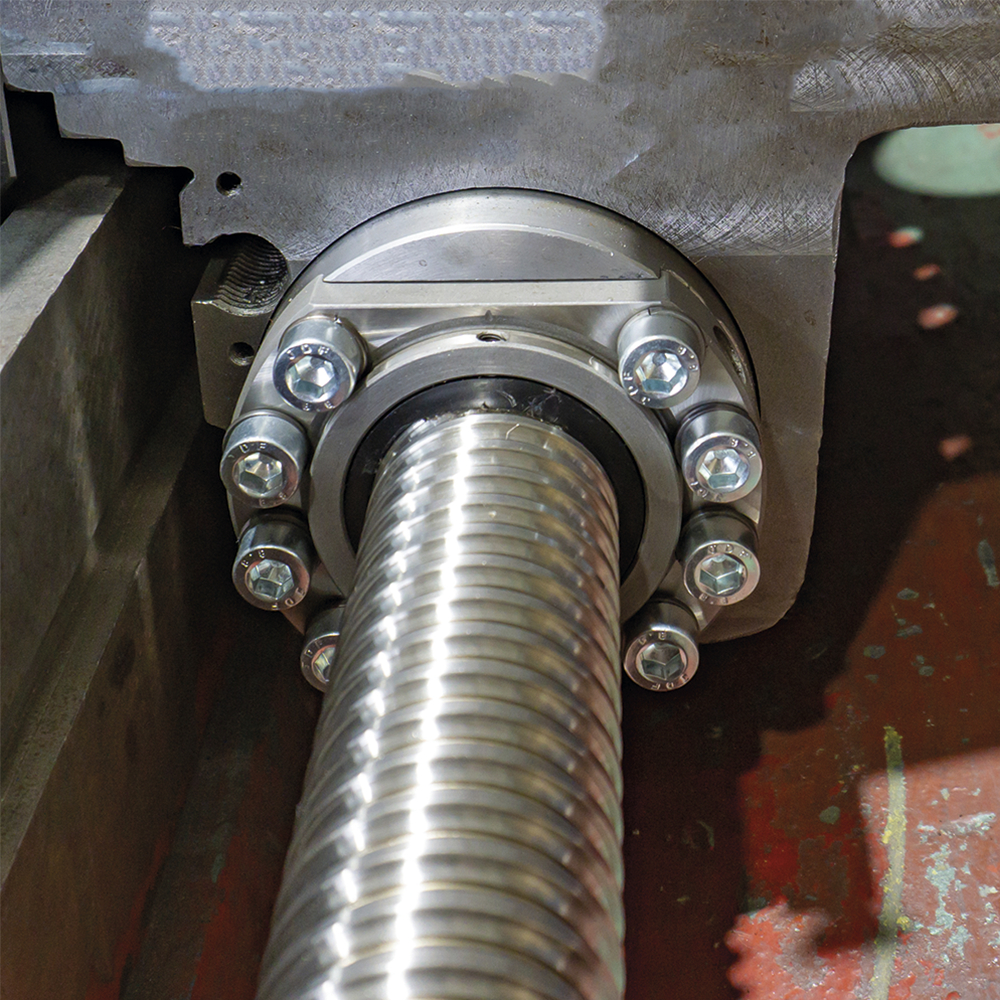

DIN 912 A4

Hexagon socket head cap screw in stainless Steel A4

Do you need more information?

customer area

language
