Machine screws

DIN 963 ZP

ISO 2009

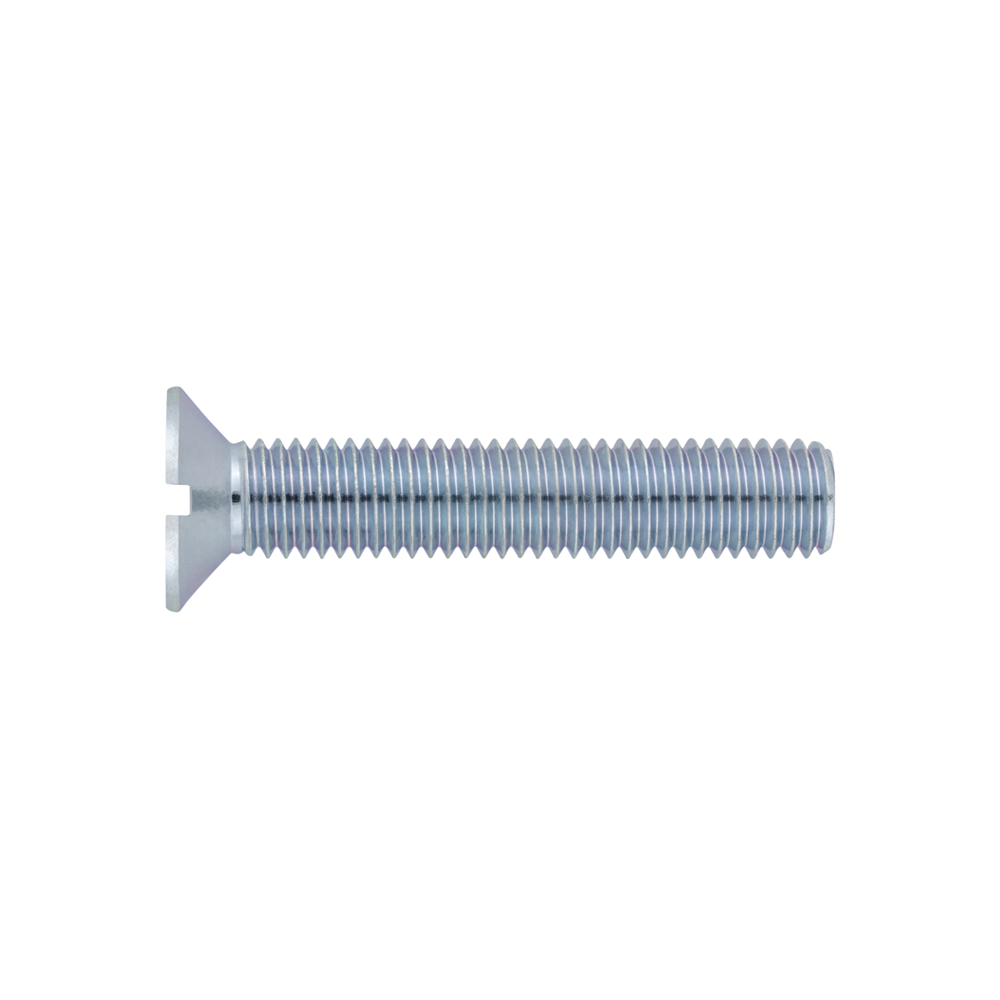

Slotted countersunk head screw in zinc plated finish

Ref.: 603150
It is a screw with ISO 2009 equivalence and zinc-plated coating. It has a countersunk head design with groove and full thread. It is used in different applications such as carpentry and is used for its aesthetic finish as it is flush with the surface.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé kg_pallet EAN Box Weight (Pc/Kg) Technical Info.
M3 x 5 60315003X005 2.000 0 60.000 0 2.160.000 8432569242829 0.0003
  • M3
  • L5
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 6 60315003X006 2.000 0 32.000 0 1.152.000 8432569242836 0.0003
  • M3
  • L6
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 8 60315003X008 2.000 0 32.000 0 1.152.000 8432569242850 0.0004
  • M3
  • L8
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 10 60315003X010 2.000 0 32.000 0 1.152.000 8432569242867 0.0005
  • M3
  • L10
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 12 60315003X012 2.000 0 16.000 0 576.000 8432569242874 0.0006
  • M3
  • L12
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 16 60315003X016 2.000 0 16.000 0 576.000 8432569002171 0.0008
  • M3
  • L16
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 20 60315003X020 2.000 0 16.000 0 576.000 8432569242928 0.001
  • M3
  • L20
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 25 60315003X025 2.000 0 16.000 0 576.000 8432569242935 0.0012
  • M3
  • L25
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 30 60315003X030 2.000 0 8.000 0 288.000 8432569242942 0.0014
  • M3
  • L30
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 35 60315003X035 2.000 0 8.000 0 288.000 8432569242959 0.0015
  • M3
  • L35
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 40 60315003X040 1.000 0 4.000 0 144.000 8432569242966 0.0018
  • M3
  • L40
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 45 60315003X045 1.000 0 4.000 0 144.000 8432569242973 0.002
  • M3
  • L45
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M3 x 50 60315003X050 1.000 0 4.000 0 144.000 8432569242980 0.0022
  • M3
  • L50
  • k1,65
  • dk5,6/5,5
  • n0,8
  • t0,85
M4 x 6 60315004X006 2.000 0 16.000 0 576.000 8432569243000 0.0007
  • M4
  • L6
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 8 60315004X008 2.000 0 8.000 0 288.000 8432569243024 0.0009
  • M4
  • L8
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 10 60315004X010 2.000 0 8.000 0 288.000 8432569243031 0.0011
  • M4
  • L10
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 12 60315004X012 2.000 0 8.000 0 288.000 8432569243048 0.0012
  • M4
  • L12
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 16 60315004X016 2.000 0 8.000 0 288.000 8432569243079 0.0015
  • M4
  • L16
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 20 60315004X020 2.000 0 8.000 0 288.000 8432569243086 0.0018
  • M4
  • L20
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 25 60315004X025 1.000 0 8.000 0 288.000 8432569243093 0.0022
  • M4
  • L25
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 30 60315004X030 1.000 0 4.000 0 144.000 8432569243109 0.0026
  • M4
  • L30
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 35 60315004X035 1.000 0 4.000 0 144.000 8432569243116 0.003
  • M4
  • L35
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 40 60315004X040 1.000 0 4.000 0 144.000 8432569002164 0.0034
  • M4
  • L40
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 45 60315004X045 1.000 0 4.000 0 144.000 8432569243130 0.0037
  • M4
  • L45
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 50 60315004X050 1.000 0 4.000 0 144.000 8432569243147 0.0041
  • M4
  • L50
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 60 60315004X060 500 0 2.000 0 72.000 8432569243154 0.0049
  • M4
  • L60
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M4 x 70 60315004X070 500 0 2.000 0 72.000 8432569243161 0.0057
  • M4
  • L70
  • k2,2
  • dk7,5/8,4
  • n1,1
  • t1
M5 x 8 60315005X008 500 0 4.000 0 144.000 8432569243208 0.0014
  • M5
  • L8
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 10 60315005X010 500 0 4.000 0 144.000 8432569243215 0.0017
  • M5
  • L10
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 12 60315005X012 500 0 4.000 0 144.000 8432569243222 0.0019
  • M5
  • L12
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 16 60315005X016 500 0 4.000 0 144.000 8432569243253 0.0024
  • M5
  • L16
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 20 60315005X020 500 0 4.000 0 144.000 8432569243260 0.0029
  • M5
  • L20
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 25 60315005X025 500 0 4.000 0 144.000 8432569243277 0.0035
  • M5
  • L25
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 30 60315005X030 500 0 4.000 0 144.000 8432569243284 0.0042
  • M5
  • L30
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 35 60315005X035 500 0 2.000 0 72.000 8432569243291 0.0046
  • M5
  • L35
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 40 60315005X040 500 0 2.000 0 72.000 8432569243307 0.0054
  • M5
  • L40
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 45 60315005X045 500 0 2.000 0 72.000 8432569243314 0.006
  • M5
  • L45
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 50 60315005X050 500 0 2.000 0 72.000 8432569243321 0.0066
  • M5
  • L50
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 60 60315005X060 500 0 1.000 0 36.000 8432569243345 0.0082
  • M5
  • L60
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 70 60315005X070 500 0 1.000 0 36.000 8432569243352 0.0096
  • M5
  • L70
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M5 x 80 60315005X080 500 0 1.000 0 36.000 8432569552591 0.0104
  • M5
  • L80
  • k2,5
  • dk9,2/9,3
  • n1,2
  • t1,3
M6 x 10 60315006X010 1.000 0 4.000 0 144.000 8432569243369 0.0025
  • M6
  • L10
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 12 60315006X012 1.000 0 4.000 0 144.000 8432569243376 0.0029
  • M6
  • L12
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 16 60315006X016 1.000 0 4.000 0 144.000 8432569243406 0.0036
  • M6
  • L16
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 20 60315006X020 500 0 2.000 0 72.000 8432569243420 0.0043
  • M6
  • L20
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 25 60315006X025 500 0 2.000 0 72.000 8432569243437 0.0052
  • M6
  • L25
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 30 60315006X030 500 0 2.000 0 72.000 8432569243444 0.0061
  • M6
  • L30
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 35 60315006X035 500 0 2.000 0 72.000 8432569243451 0.0069
  • M6
  • L35
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 40 60315006X040 500 0 2.000 0 72.000 8432569243468 0.0078
  • M6
  • L40
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 45 60315006X045 500 0 2.000 0 72.000 8432569243475 0.0087
  • M6
  • L45
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 50 60315006X050 200 0 1.600 0 57.600 8432569243482 0.0096
  • M6
  • L50
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 60 60315006X060 200 0 1.600 0 57.600 8432569243499 0.0114
  • M6
  • L60
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 70 60315006X070 200 0 800 0 28.800 8432569243505 0.0129
  • M6
  • L70
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M6 x 80 60315006X080 200 0 800 0 28.800 8432569243512 0.0147
  • M6
  • L80
  • k3
  • dk11/11,3
  • n1,6
  • t1,6
M8 x 10 60315008X010 500 0 2.000 0 72.000 8432569243529 0.005
  • M8
  • L10
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 12 60315008X012 500 0 2.000 0 72.000 8432569243536 0.0056
  • M8
  • L12
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 16 60315008X016 500 0 2.000 0 72.000 8432569243567 0.0069
  • M8
  • L16
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 20 60315008X020 500 0 2.000 0 72.000 8432569243574 0.0082
  • M8
  • L20
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 25 60315008X025 500 0 2.000 0 72.000 8432569243581 0.0098
  • M8
  • L25
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 30 60315008X030 200 0 800 0 28.800 8432569243598 0.0114
  • M8
  • L30
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 35 60315008X035 200 0 800 0 28.800 8432569243604 0.013
  • M8
  • L35
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 40 60315008X040 200 0 800 0 28.800 8432569243611 0.0146
  • M8
  • L40
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 45 60315008X045 200 0 800 0 28.800 8432569243628 0.0162
  • M8
  • L45
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 50 60315008X050 200 0 800 0 28.800 8432569243635 0.0178
  • M8
  • L50
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 60 60315008X060 200 0 800 0 28.800 8432569243642 0.0198
  • M8
  • L60
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 70 60315008X070 200 0 800 0 28.800 8432569243659 0.0229
  • M8
  • L70
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M8 x 80 60315008X080 100 0 400 0 14.400 8432569243666 0.026
  • M8
  • L80
  • k4
  • dk14,5/15,8
  • n2
  • t2,1
M10 x 16 60315010X016 200 0 800 0 28.800 8432569243697 0.0116
  • M10
  • L16
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 20 60315010X020 200 0 800 0 28.800 8432569243703 0.0136
  • M10
  • L20
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 25 60315010X025 200 0 800 0 28.800 8432569243710 0.0161
  • M10
  • L25
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 30 60315010X030 200 0 800 0 28.800 8432569243727 0.0186
  • M10
  • L30
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 35 60315010X035 200 0 800 0 28.800 8432569243734 0.0211
  • M10
  • L35
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 40 60315010X040 200 0 800 0 28.800 8432569243741 0.0236
  • M10
  • L40
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 45 60315010X045 100 0 400 0 14.400 8432569243758 0.0261
  • M10
  • L45
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 50 60315010X050 100 0 400 0 14.400 8432569243765 0.0286
  • M10
  • L50
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 60 60315010X060 100 0 400 0 14.400 8432569243772 0.0337
  • M10
  • L60
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 70 60315010X070 100 0 400 0 14.400 8432569243789 0.0365
  • M10
  • L70
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M10 x 80 60315010X080 100 0 400 0 14.400 8432569243796 0.0415
  • M10
  • L80
  • k5
  • dk18/18,3
  • n2,5
  • t2,6
M12 x 20 60315012X020 200 0 800 0 28.800 8432569515510 0.0208
  • M12
  • L20
  • k6
  • dk22
  • n3
  • t3
M12 x 25 60315012X025 200 0 800 0 28.800 8432569243802 0.0244
  • M12
  • L25
  • k6
  • dk22
  • n3
  • t3
M12 x 30 60315012X030 100 0 400 0 14.400 8432569243819 0.0281
  • M12
  • L30
  • k6
  • dk22
  • n3
  • t3
M12 x 35 60315012X035 100 0 400 0 14.400 8432569243826 0.0317
  • M12
  • L35
  • k6
  • dk22
  • n3
  • t3
M12 x 40 60315012X040 100 0 400 0 14.400 8432569243833 0.0353
  • M12
  • L40
  • k6
  • dk22
  • n3
  • t3
M12 x 45 60315012X045 100 0 400 0 14.400 8432569243840 0.039
  • M12
  • L45
  • k6
  • dk22
  • n3
  • t3
M12 x 50 60315012X050 100 0 400 0 14.400 8432569243857 0.0426
  • M12
  • L50
  • k6
  • dk22
  • n3
  • t3
M12 x 60 60315012X060 50 0 400 0 14.400 8432569243864 0.0498
  • M12
  • L60
  • k6
  • dk22
  • n3
  • t3
M12 x 70 60315012X070 50 0 200 0 7.200 8432569243871 0.0571
  • M12
  • L70
  • k6
  • dk22
  • n3
  • t3
M12 x 80 60315012X080 50 0 200 0 7.200 8432569243888 0.0644
  • M12
  • L80
  • k6
  • dk22
  • n3
  • t3

Do you need more information?

CHAVES BILBAO, S.L. informs you that the personal data provided voluntarily on this website, the purpose, intended transfers and other circumstances of which are communicated when the personal data is collected, may, depending on the specific case, have any of the following purposes: responding to your request, complaint or question, maintaining the established relationship, the comprehensive and commercial management of customers, accounting and invoicing or sending of communications of news and activities related with CHAVES BILBAO, S.L., including by electronic means. The data included in our files is absolutely confidential and will be processed with the utmost confidentiality and in compliance with all the requirements set out in the General Data Protection Regulation (GDPR) of the 27th of April 2016. The data is registered in our files for the time necessary for the purpose for which it was collected. The period during which the personal data will be kept will be that established by current legislation and always during the period of the provision of the service for which it was provided. We do not recommend sending personal data that is classified as highly confidential by data protection legislation, such as that related to health, as it is not sent coded or encrypted. Therefore, if you send this type of data, it will be at your own risk. The user may at any time exercise their rights to access, rectify, oppose, cancel, limit processing or request its portability in accordance with the General Data Protection Regulation (GDPR) of the 27th of April 2016, sending a letter along with a photocopy of their DNI identity document, to CHAVES BILBAO, S.L. C/Bizkargi, 6 Polígono Industrial Sarrikola 48195 Larrabetzu - Bizkaia - Spain, or using the email address info@chavesbao.com.
Read more
