Machine screws

DIN 965 A2

ISO 7046

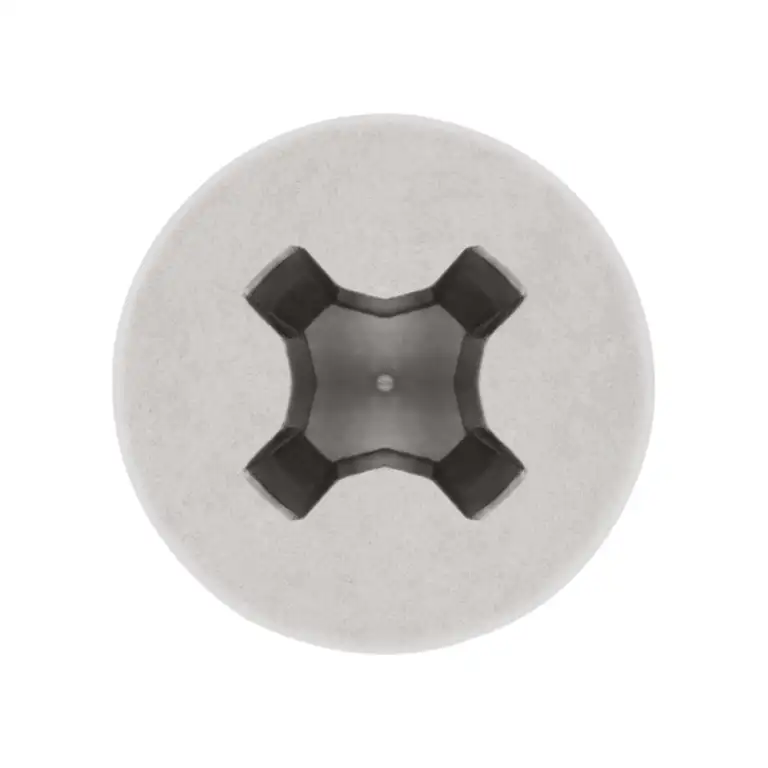

Countersunk screw with PH cross recessed. Stainless steel A2

Ref.: 6123220
It is a PH countersunk screw, ISO 7046 equivalence and manufactured from A2 stainless steel offering corrosion resistance and durability. It has a full thread design. It is used in various applications such as industrial projects or carpentry.
Size Code Pcs. Box PCS. Master Uds. Palé EAN Box Weight (Pc/Kg) Technical Information
M3 x 6 612322003X006 2.000 32.000 1.152.000 8432569564181 0.00038
  • M3
  • L6
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 8 612322003X008 2.000 32.000 1.152.000 8432569563993 0.00047
  • M3
  • L8
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 10 612322003X010 2.000 32.000 1.152.000 8432569463040 0.00056
  • M3
  • L10
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 12 612322003X012 2.000 16.000 576.000 8432569745641 0.00064
  • M3
  • L12
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 14 612322003X014 2.000 16.000 576.000 8432569745658 0.00073
  • M3
  • L14
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 16 612322003X016 2.000 16.000 576.000 8432569563962 0.00082
  • M3
  • L16
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 20 612322003X020 2.000 16.000 576.000 8432569563979 0.001
  • M3
  • L20
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 25 612322003X025 2.000 16.000 576.000 8432569563986 0.00122
  • M3
  • L25
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 30 612322003X030 2.000 8.000 288.000 8432569744811 0.00144
  • M3
  • L30
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 35 612322003X035 2.000 8.000 288.000 8432569744828 0.00166
  • M3
  • L35
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M3 x 40 612322003X040 1.000 4.000 144.000 8432569744835 0.00188
  • M3
  • L40
  • M('')3
  • k1,65
  • dk5,6/5,5
  • m2,9
M4 x 6 612322004X006 2.000 16.000 576.000 8432569565836 0.00188
  • M4
  • L6
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 8 612322004X008 2.000 8.000 288.000 8432569285048 0.0009
  • M4
  • L8
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 10 612322004X010 2.000 8.000 288.000 8432569285055 0.0011
  • M4
  • L10
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 12 612322004X012 2.000 8.000 288.000 8432569474299 0.0012
  • M4
  • L12
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 14 612322004X014 2.000 8.000 288.000 8432569744842 0.00137
  • M4
  • L14
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 16 612322004X016 2.000 8.000 288.000 8432569564006 0.00153
  • M4
  • L16
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 20 612322004X020 2.000 8.000 288.000 8432569562033 0.0018
  • M4
  • L20
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 25 612322004X025 1.000 8.000 288.000 8432569454253 0.0022
  • M4
  • L25
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 30 612322004X030 1.000 4.000 144.000 8432569656176 0.00261
  • M4
  • L30
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 35 612322004X035 1.000 4.000 144.000 8432569711585 0.003
  • M4
  • L35
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 40 612322004X040 1.000 4.000 144.000 8432569721423 0.00338
  • M4
  • L40
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 50 612322004X050 1.000 4.000 144.000 8432569744859 0.0036
  • M4
  • L50
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M4 x 60 612322004X060 500 2.000 72.000 8432569647983 0.0039
  • M4
  • L60
  • M('')4
  • k2,2
  • dk7,5/8,4
  • m4,4
M5 x 6 612322005X006 500 4.000 144.000 8432569713008 0.00121
  • M5
  • L6
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 8 612322005X008 500 4.000 144.000 8432569285062 0.0017
  • M5
  • L8
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 10 612322005X010 500 4.000 144.000 8432569285079 0.0017
  • M5
  • L10
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 12 612322005X012 500 4.000 144.000 8432569564648 0.00195
  • M5
  • L12
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 16 612322005X016 500 4.000 144.000 8432569564037 0.0024
  • M5
  • L16
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 20 612322005X020 500 4.000 144.000 8432569564645 0.003
  • M5
  • L20
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 25 612322005X025 500 4.000 144.000 8432569564655 0.0035
  • M5
  • L25
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 30 612322005X030 500 4.000 144.000 8432569285093 0.0041
  • M5
  • L30
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 35 612322005X035 500 2.000 72.000 8432569564662 0.00465
  • M5
  • L35
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 40 612322005X040 500 2.000 72.000 8432569564679 0.0054
  • M5
  • L40
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 45 612322005X045 500 2.000 72.000 8432569656107 0.00602
  • M5
  • L45
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 50 612322005X050 500 2.000 72.000 8432569564198 0.00665
  • M5
  • L50
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 60 612322005X060 500 1.000 36.000 8432569636055 0.0071
  • M5
  • L60
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M5 x 70 612322005X070 500 1.000 36.000 8432569636062 0.0076
  • M5
  • L70
  • M('')5
  • k2,5
  • dk9,2/9,3
  • m4,6
M6 x 8 612322006X008 1.000 4.000 144.000 8432569744873 0.0071
  • M6
  • L8
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 10 612322006X010 1.000 4.000 144.000 8432569564013 0.00254
  • M6
  • L10
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 12 612322006X012 1.000 4.000 144.000 8432569564020 0.00289
  • M6
  • L12
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 14 612322006X014 1.000 4.000 144.000 8432569745665 0.00324
  • M6
  • L14
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 16 612322006X016 1.000 4.000 144.000 8432569285109 0.0036
  • M6
  • L16
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 20 612322006X020 500 2.000 72.000 8432569285116 0.0043
  • M6
  • L20
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 25 612322006X025 500 2.000 72.000 8432569564686 0.0052
  • M6
  • L25
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 30 612322006X030 500 2.000 72.000 8432569285123 0.0061
  • M6
  • L30
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 35 612322006X035 500 2.000 72.000 8432569656183 0.00696
  • M6
  • L35
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 40 612322006X040 500 2.000 72.000 8432569575972 0.00784
  • M6
  • L40
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 45 612322006X045 500 2.000 72.000 8432569656190 0.00873
  • M6
  • L45
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 50 612322006X050 200 1.600 57.600 8432569659245 0.0096
  • M6
  • L50
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 60 612322006X060 200 1.600 57.600 8432569659252 0.0104
  • M6
  • L60
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M6 x 70 612322006X070 200 800 28.800 8432569644067 0.0132
  • M6
  • L70
  • M('')6
  • k3
  • dk11/11,3
  • m6,6
M8 x 16 612322008X016 500 2.000 72.000 8432569537741 0.00694
  • M8
  • L16
  • M('')8
  • k4
  • dk14,5/15,8
  • m8,7
M8 x 20 612322008X020 500 2.000 72.000 8432569464771 0.00821
  • M8
  • L20
  • M('')8
  • k4
  • dk14,5/15,8
  • m8,7
M8 x 25 612322008X025 500 2.000 72.000 8432569711813 0.00979
  • M8
  • L25
  • M('')8
  • k4
  • dk14,5/15,8
  • m8,7
M8 x 30 612322008X030 200 800 28.800 8432569285130 0.0114
  • M8
  • L30
  • M('')8
  • k4
  • dk14,5/15,8
  • m8,7
M8 x 35 612322008X035 200 800 28.800 8432569748147 0.017
  • M8
  • L35
  • M('')8
  • k4
  • dk14,5/15,8
  • m8,7
M8 x 40 612322008X040 200 800 28.800 8432569823110 0.0146
  • M8
  • L40
  • M('')8
  • k4
  • dk14,5/15,8
  • m8,7
M8 x 50 612322008X050 200 800 28.800 8432569634686 0.00178
  • M8
  • L50
  • M('')8
  • k4
  • dk14,5/15,8
  • m8,7
M8 x 60 612322008X060 200 800 28.800 8432569746433 0.00182
  • M8
  • L60
  • M('')8
  • k4
  • dk14,5/15,8
  • m8,7
M8 x 70 612322008X070 200 800 28.800 8432569745672 0.0019
  • M8
  • L70
  • M('')8
  • k4
  • dk14,5/15,8
  • m8,7
RELATED PRODUCTS

DIN 965 A4

ISO 7046

Countersunk screw with PH cross recessed. Stainless steel A4
