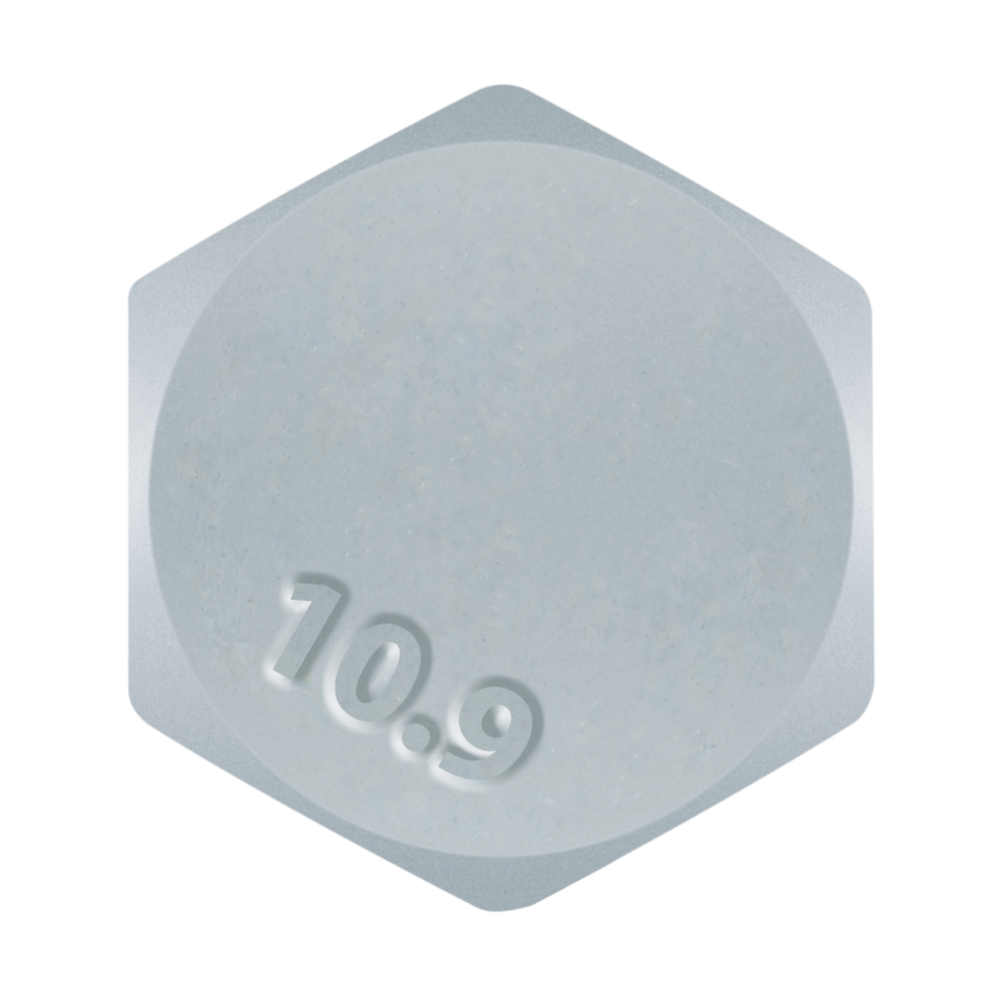

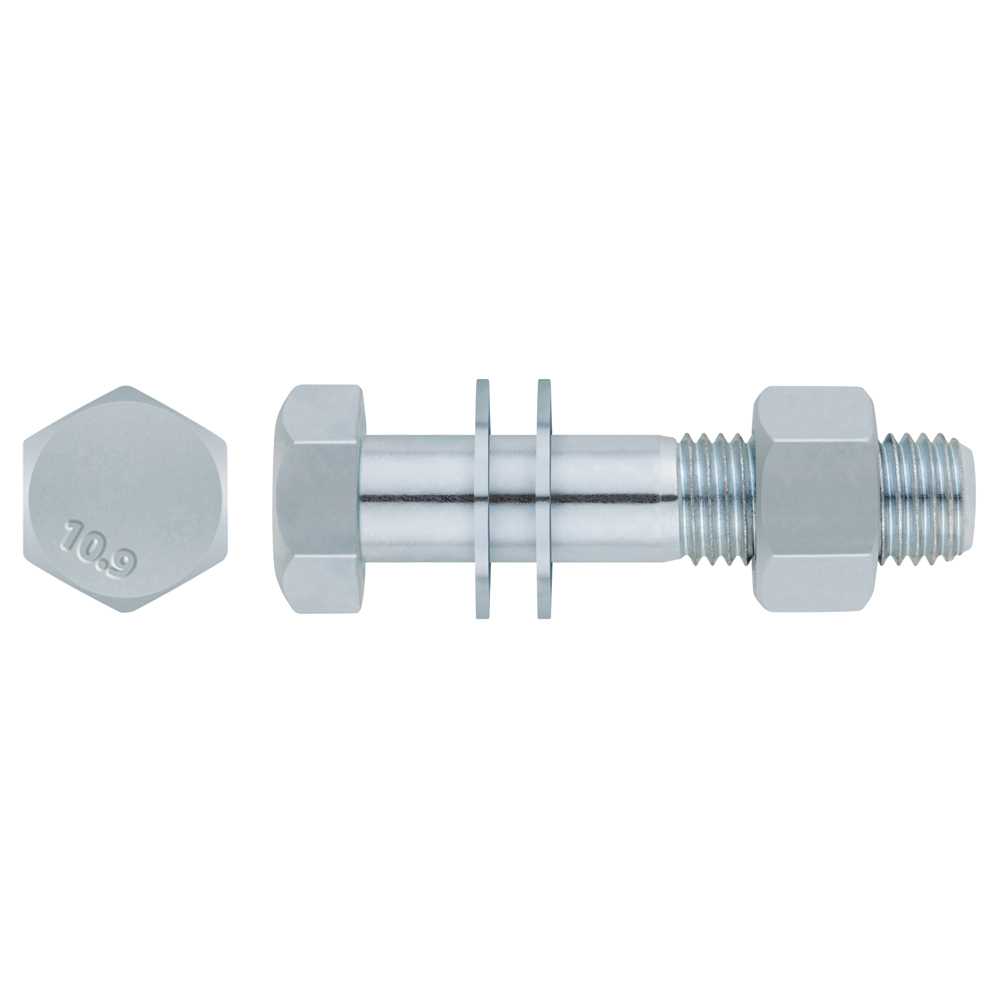

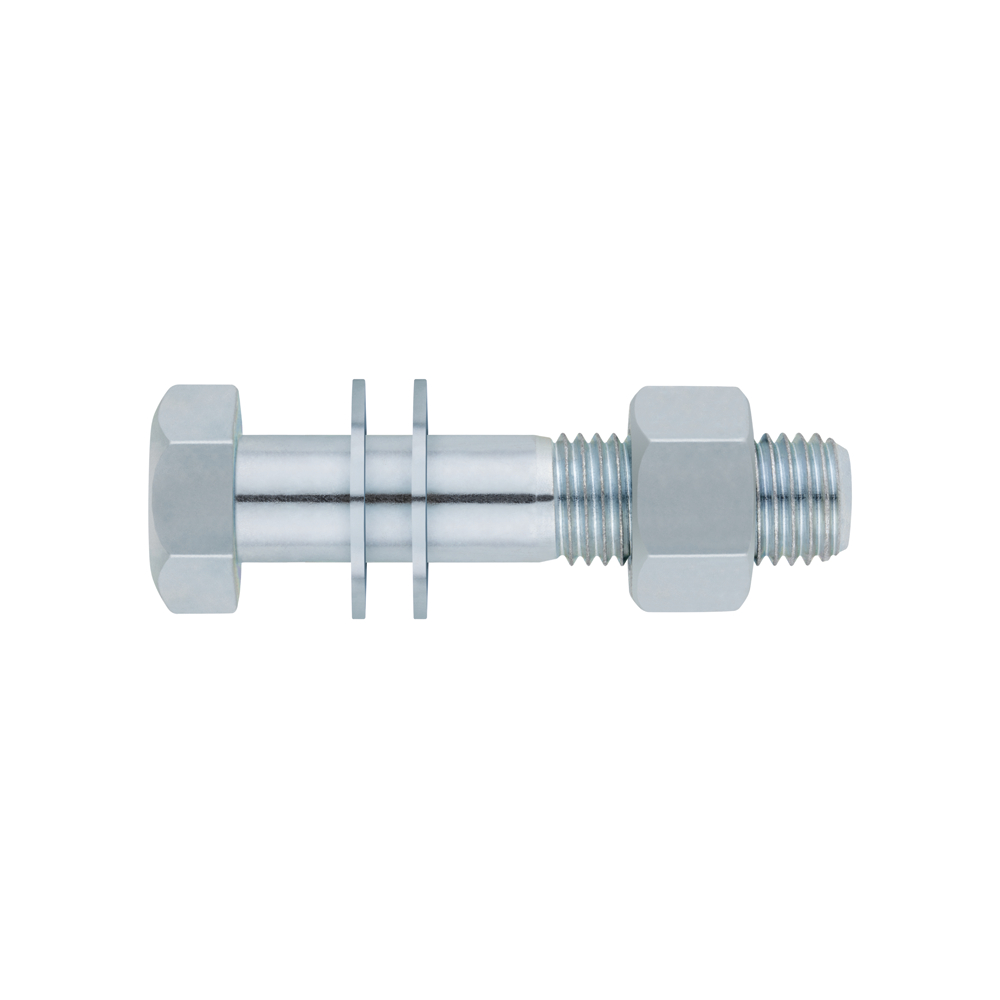

EN 14399-4 10.9 HV SET ZP

Set of high-strength structural bolts for preloading, HR system with CE marking, zinc plated finish and quality 10.9

Ref.: 606981

This is a set of high-strength structural bolts for preloading with HV system, CE marked and class K1. It consists of a half-thread hexagonal bolt, hexagonal nut and two flat washers, manufactured in quality 10.9 and zinc plated. It is used in high-strength, pre-loaded metal structural connections in the construction industry.

* In the zinc treatment of material in 10.9 or 10, there is a dehidrogenation process to minimize the risk of embrittlement. This notice exonerates CHAVESBAO from all liability for damages that may be caused.

Size	Code	Pcs. Box	KG Box	PCS. Master	KG Master	PCS. Pallet	KG Pallet	EAN Box	Weight (Pc/Kg)
M12 x 30	60698112X030	100	9.2	200	18.4	7.200	662.4	8432569988697	0.092

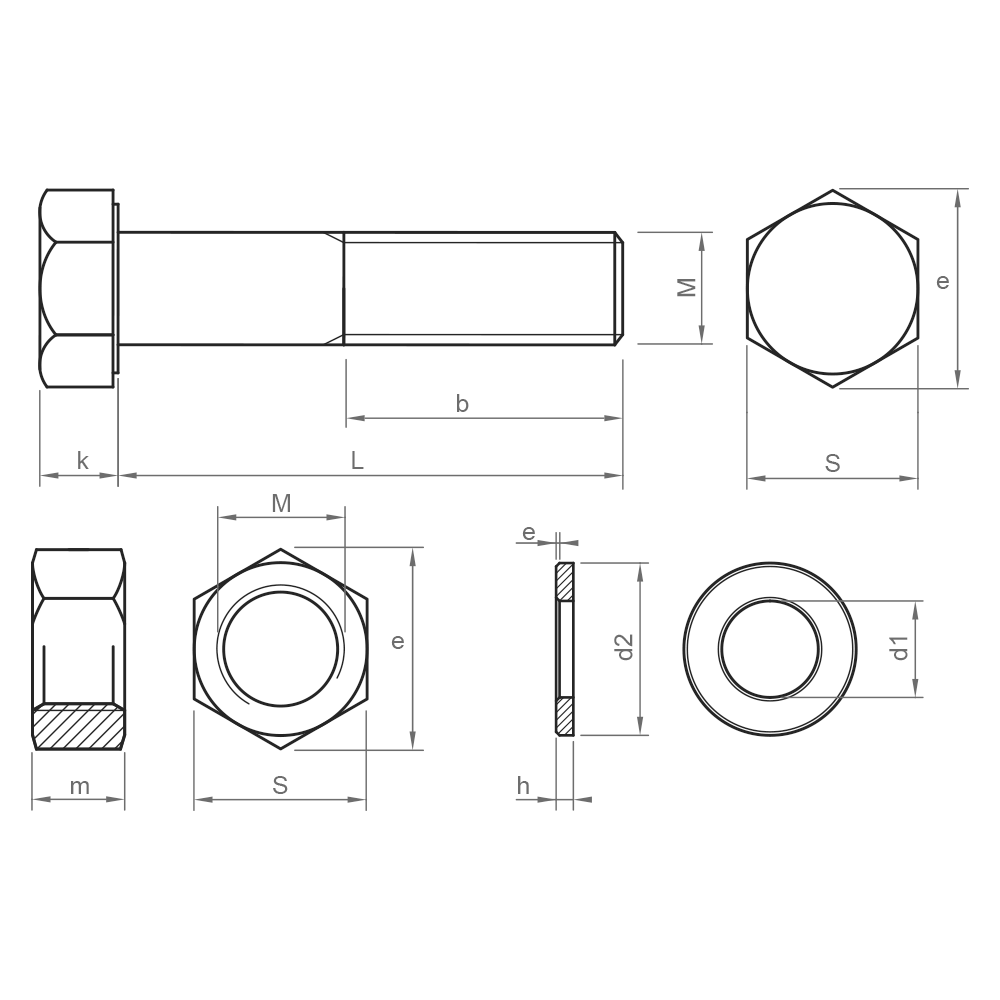

	M12 L30 M('')12 k8 b23 d113 d224 E23,91 e23,91 n0,5 m10 h3 S22 s22
M12 x 35	60698112X035	100	9.6	200	19.2	7.200	691.2	8432569988703	0.096
	M12 L35 M('')12 k8 b23 d113 d224 E23,91 e23,91 n0,5 m10 h3 S22 s22
M12 x 45	60698112X045	50	5.15	200	20.6	7.200	741.6	8432569988727	0.103
	M12 L45 M('')12 k8 b23 d113 d224 E23,91 e23,91 n0,5 m10 h3 S22 s22
M12 x 50	60698112X050	50	5.4	200	21.6	7.200	777.6	8432569988734	0.108
	M12 L50 M('')12 k8 b23 d113 d224 E23,91 e23,91 n0,5 m10 h3 S22 s22
M12 x 55	60698112X055	50	5.6	200	22.4	7.200	806.4	8432569988741	0.112
	M12 L55 M('')12 k8 b23 d113 d224 E23,91 e23,91 n0,5 m10 h3 S22 s22
M12 x 60	60698112X060	50	5.8	200	23.2	7.200	835.2	8432569988758	0.116
	M12 L60 M('')12 k8 b23 d113 d224 E23,91 e23,91 n0,5 m10 h3 S22 s22
M12 x 65	60698112X065	50	6.05	200	24.2	7.200	871.2	8432569988765	0.121
	M12 L65 M('')12 k8 b23 d113 d224 E23,91 e23,91 n0,5 m10 h3 S22 s22
M12 x 70	60698112X070	50	6.25	150	18.75	5.400	675	8432569988772	0.125
	M12 L70 M('')12 k8 b23 d113 d224 E23,91 e23,91 n0,5 m10 h3 S22 s22
M16 x 45	60698116X045	50	9.85	100	19.7	3.600	709.2	8432569988840	0.197
	M16 L45 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 50	60698116X050	50	10.25	100	20.5	3.600	738	8432569988857	0.205
	M16 L50 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 55	60698116X055	50	10.65	100	21.3	3.600	766.8	8432569988864	0.213
	M16 L55 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 60	60698116X060	40	8.84	80	17.68	2.880	636.48	8432569988871	0.221
	M16 L60 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 65	60698116X065	40	9.16	80	18.32	2.880	659.52	8432569988888	0.229
	M16 L65 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 70	60698116X070	40	9.48	80	18.96	2.880	682.56	8432569988895	0.237
	M16 L70 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 75	60698116X075	40	9.64	80	19.28	2.880	694.08	8432569988901	0.241
	M16 L75 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 80	60698116X080	40	9.96	80	19.92	2.880	717.12	8432569988918	0.249
	M16 L80 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 85	60698116X085	30	7.71	60	15.42	2.160	555.12	8432569988925	0.257
	M16 L85 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 90	60698116X090	30	7.95	60	15.9	2.160	572.4	8432569988932	0.265
	M16 L90 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 95	60698116X095	30	8.19	60	16.38	2.160	589.68	8432569988949	0.273
	M16 L95 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 100	60698116X100	30	8.43	60	16.86	2.160	606.96	8432569988956	0.281
	M16 L100 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 110	60698116X110	30	8.91	60	17.82	2.160	641.52	8432569988970	0.297
	M16 L110 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M16 x 120	60698116X120	30	9.39	60	18.78	2.160	676.08	8432569988994	0.313
	M16 L120 M('')16 k10 b28 d117 d230 E29,56 e29,56 n0,75 m13 h4 S27 s27
M20 x 50	60698120X050	30	9.9	60	19.8	2.160	712.8	8432569989076	0.33
	M20 L50 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 55	60698120X055	30	10.2	60	20.4	2.160	734.4	8432569989083	0.34
	M20 L55 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 60	60698120X060	30	10.8	60	21.6	2.160	777.6	8432569989090	0.36
	M20 L60 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 65	60698120X065	25	9.25	50	18.5	1.800	666	8432569989106	0.37
	M20 L65 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 70	60698120X070	25	9.5	50	19	1.800	684	8432569989113	0.38
	M20 L70 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 75	60698120X075	25	9.75	50	19.5	1.800	702	8432569989120	0.39
	M20 L75 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 80	60698120X080	25	10.25	50	20.5	1.800	738	8432569989137	0.41
	M20 L80 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 85	60698120X085	25	10.5	50	21	1.800	756	8432569989144	0.42
	M20 L85 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 90	60698120X090	25	10.5	50	21	1.800	756	8432569989151	0.42
	M20 L90 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 95	60698120X095	20	8.8	40	17.6	1.440	633.6	8432569989168	0.44
	M20 L95 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 100	60698120X100	20	9	40	18	1.440	648	8432569989175	0.45
	M20 L100 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 110	60698120X110	20	9.4	40	18.8	1.440	676.8	8432569989199	0.47
	M20 L110 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 120	60698120X120	20	10	40	20	1.440	720	8432569989212	0.5
	M20 L120 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 130	60698120X130	20	10.4	40	20.8	1.440	748.8	8432569989236	0.52
	M20 L130 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M20 x 140	60698120X140	15	8.25	30	16.5	1.080	594	8432569989250	0.55
	M20 L140 M('')20 k13 b33 d121 d237 E35,03 e35,03 n0,75 m16 h4 S32 s32
M22 x 50	60698122X050	20	8.6	40	17.2	1.440	619.2	8432569989342	0.43
	M22 L50 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 55	60698122X055	20	8.8	40	17.6	1.440	633.6	8432569989359	0.44
	M22 L55 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 60	60698122X060	20	9.2	40	18.4	1.440	662.4	8432569989366	0.46
	M22 L60 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 65	60698122X065	20	9.4	40	18.8	1.440	676.8	8432569989373	0.47
	M22 L65 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 70	60698122X070	20	9.7	40	19.4	1.440	698.4	8432569989380	0.485
	M22 L70 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 75	60698122X075	20	10	40	20	1.440	720	8432569989397	0.5
	M22 L75 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 80	60698122X080	20	10.3	40	20.6	1.440	741.6	8432569989403	0.515
	M22 L80 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 85	60698122X085	20	10.6	40	21.2	1.440	763.2	8432569989410	0.53
	M22 L85 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 90	60698122X090	20	10.78	40	21.56	1.440	776.16	8432569989427	0.539
	M22 L90 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 100	60698122X100	15	8.535	30	17.07	1.080	614.52	8432569989441	0.569
	M22 L100 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 110	60698122X110	15	8.985	30	17.97	1.080	646.92	8432569989465	0.599
	M22 L110 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 115	60698122X115	15	9.21	30	18.42	1.080	663.12	8432569989472	0.614
	M22 L115 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 120	60698122X120	15	9.435	30	18.87	1.080	679.32	8432569989489	0.629
	M22 L120 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 130	60698122X130	15	9.885	30	19.77	1.080	711.72	8432569989502	0.659
	M22 L130 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 140	60698122X140	15	10.335	30	20.67	1.080	744.12	8432569989526	0.689
	M22 L140 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M22 x 150	60698122X150	12	8.628	24	17.256	864	621.216	8432569989540	0.719
	M22 L150 M('')22 k14 b34 d123 d239 E39,55 e39,55 n0,75 m18 h4 S36 s36
M24 x 60	60698124X060	15	9.15	30	18.3	1.080	658.8	8432569989618	0.61
	M24 L60 M('')24 k15 b39 d125 d244 E45,2 e45,2 n0,75 m20 h4 S41 s41
M24 x 80	60698124X080	15	10.17	30	20.34	1.080	732.24	8432569989656	0.678
	M24 L80 M('')24 k15 b39 d125 d244 E45,2 e45,2 n0,75 m20 h4 S41 s41
M24 x 95	60698124X095	15	10.8	30	21.6	1.080	777.6	8432569989687	0.72
	M24 L95 M('')24 k15 b39 d125 d244 E45,2 e45,2 n0,75 m20 h4 S41 s41
M24 x 130	60698124X130	12	10.152	24	20.304	864	730.944	8432569989755	0.846
	M24 L130 M('')24 k15 b39 d125 d244 E45,2 e45,2 n0,75 m20 h4 S41 s41
M24 x 150	60698124X150	10	9.18	20	18.36	720	660.96	8432569989793	0.918
	M24 L150 M('')24 k15 b39 d125 d244 E45,2 e45,2 n0,75 m20 h4 S41 s41
M24 x 160	60698124X160	10	9.53	20	19.06	720	686.16	8432569989816	0.953
	M24 L160 M('')24 k15 b39 d125 d244 E45,2 e45,2 n0,75 m20 h4 S41 s41
M27 x 75	60698127X075	10	9.1	20	18.2	720	655.2	8432569989908	0.91
	M27 L75 M('')27 k17 b41 d128 d250 E50,85 e50,85 n1 m22 h5 S46 s46
M27 x 80	60698127X080	10	9.4	20	18.8	720	676.8	8432569989915	0.94
	M27 L80 M('')27 k17 b41 d128 d250 E50,85 e50,85 n1 m22 h5 S46 s46
M27 x 100	60698127X100	10	10.2	20	20.4	720	734.4	8432569989953	1.02
	M27 L100 M('')27 k17 b41 d128 d250 E50,85 e50,85 n1 m22 h5 S46 s46
M27 x 110	60698127X110	10	10.6	20	21.2	720	763.2	8432569989977	1.06
	M27 L110 M('')27 k17 b41 d128 d250 E50,85 e50,85 n1 m22 h5 S46 s46
M27 x 120	60698127X120	8	8.8	16	17.6	576	633.6	8432569989991	1.1
	M27 L120 M('')27 k17 b41 d128 d250 E50,85 e50,85 n1 m22 h5 S46 s46
M30 x 90	60698130X090	8	10.024	16	20.048	576	721.728	8432569990188	1.253
	M30 L90 M('')30 k19 b44 d131 d256 E55,37 e55,37 n1 m24 h5 S50 s50
M30 x 95	60698130X095	8	10.248	16	20.496	576	737.856	8432569990195	1.281
	M30 L95 M('')30 k19 b44 d131 d256 E55,37 e55,37 n1 m24 h5 S50 s50
M30 x 100	60698130X100	6	4.992	18	14.976	648	539.136	8432569990201	0.832
	M30 L100 M('')30 k19 b44 d131 d256 E55,37 e55,37 n1 m24 h5 S50 s50
M30 x 105	60698130X105	6	8.004	12	16.008	432	576.288	8432569990218	1.334
	M30 L105 M('')30 k19 b44 d131 d256 E55,37 e55,37 n1 m24 h5 S50 s50
M30 x 110	60698130X110	6	8.172	12	16.344	432	588.384	8432569990225	1.362
	M30 L110 M('')30 k19 b44 d131 d256 E55,37 e55,37 n1 m24 h5 S50 s50
M30 x 120	60698130X120	6	8.508	12	17.016	432	612.576	8432569990249	1.418
	M30 L120 M('')30 k19 b44 d131 d256 E55,37 e55,37 n1 m24 h5 S50 s50
M30 x 130	60698130X130	6	8.844	12	17.688	432	636.768	8432569990263	1.474
	M30 L130 M('')30 k19 b44 d131 d256 E55,37 e55,37 n1 m24 h5 S50 s50

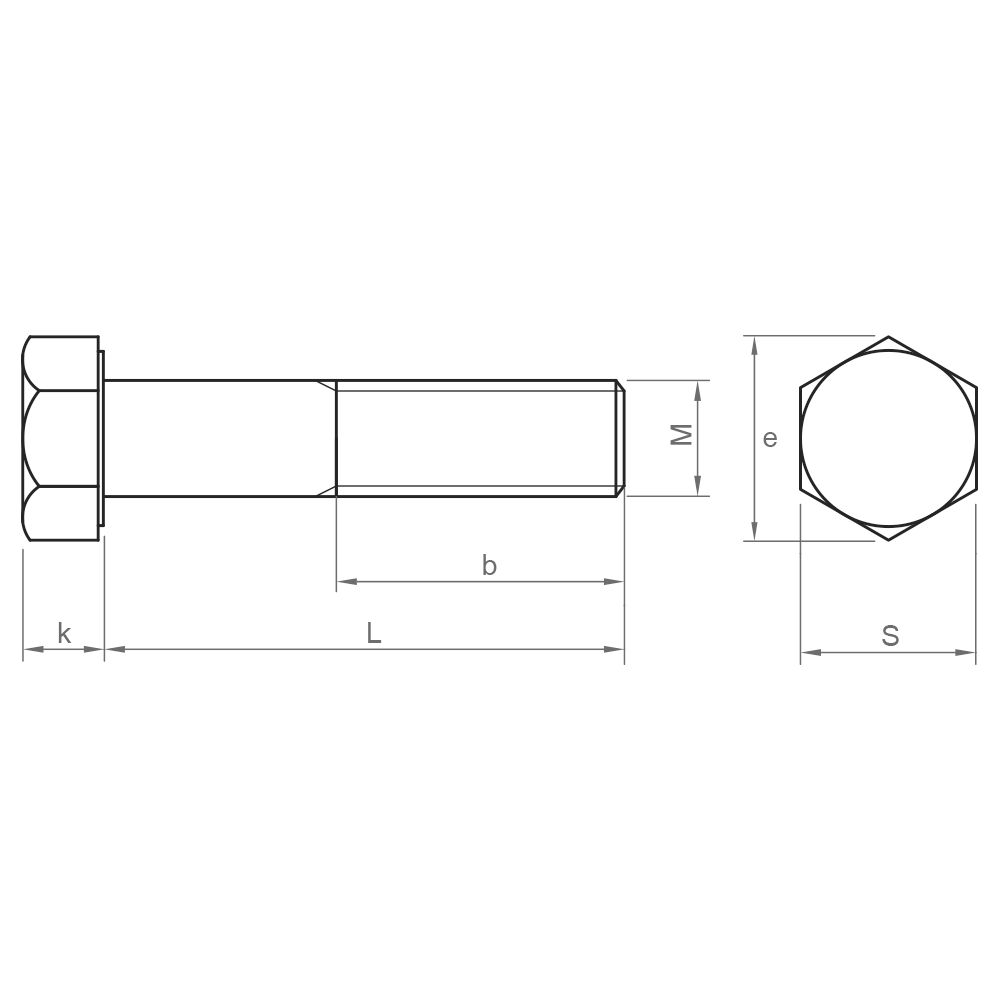

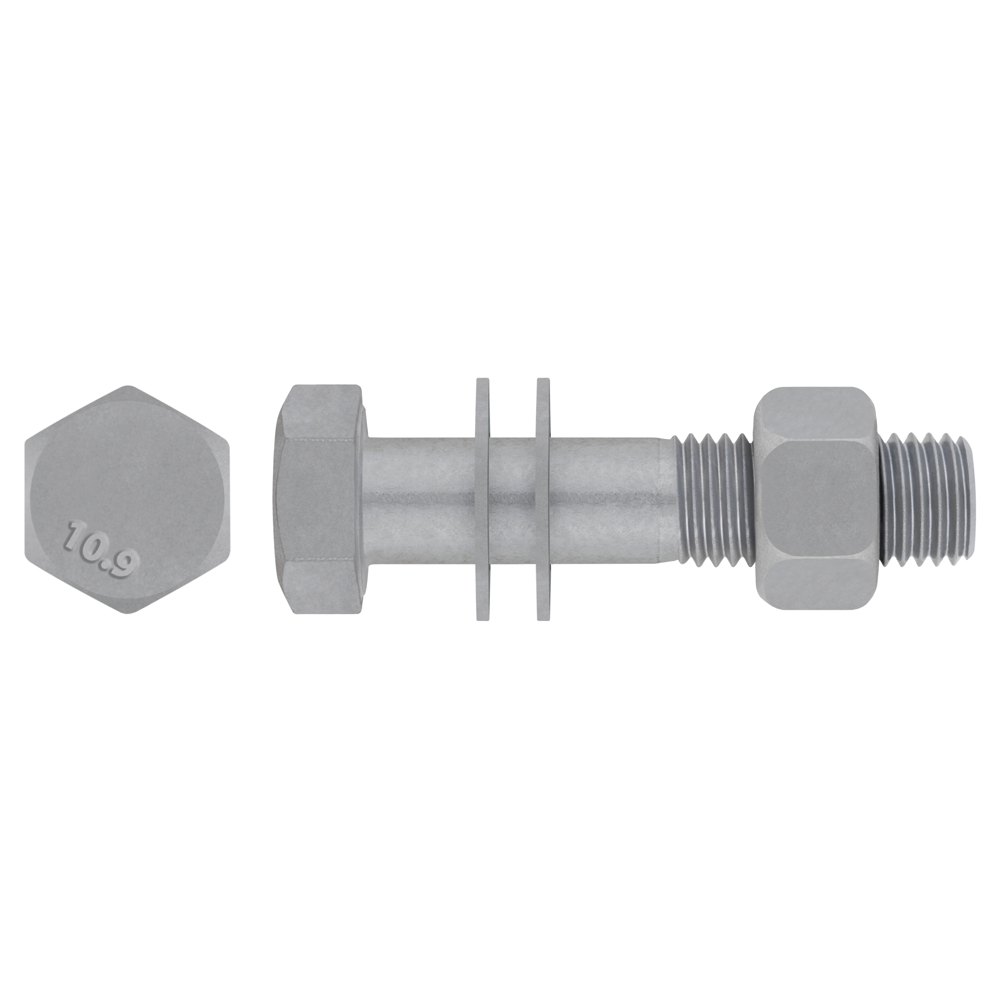

EN 14399-4 10.9 HV SET HDG
