Nfe washers

NFE 25511 CONTACT [M] ZP

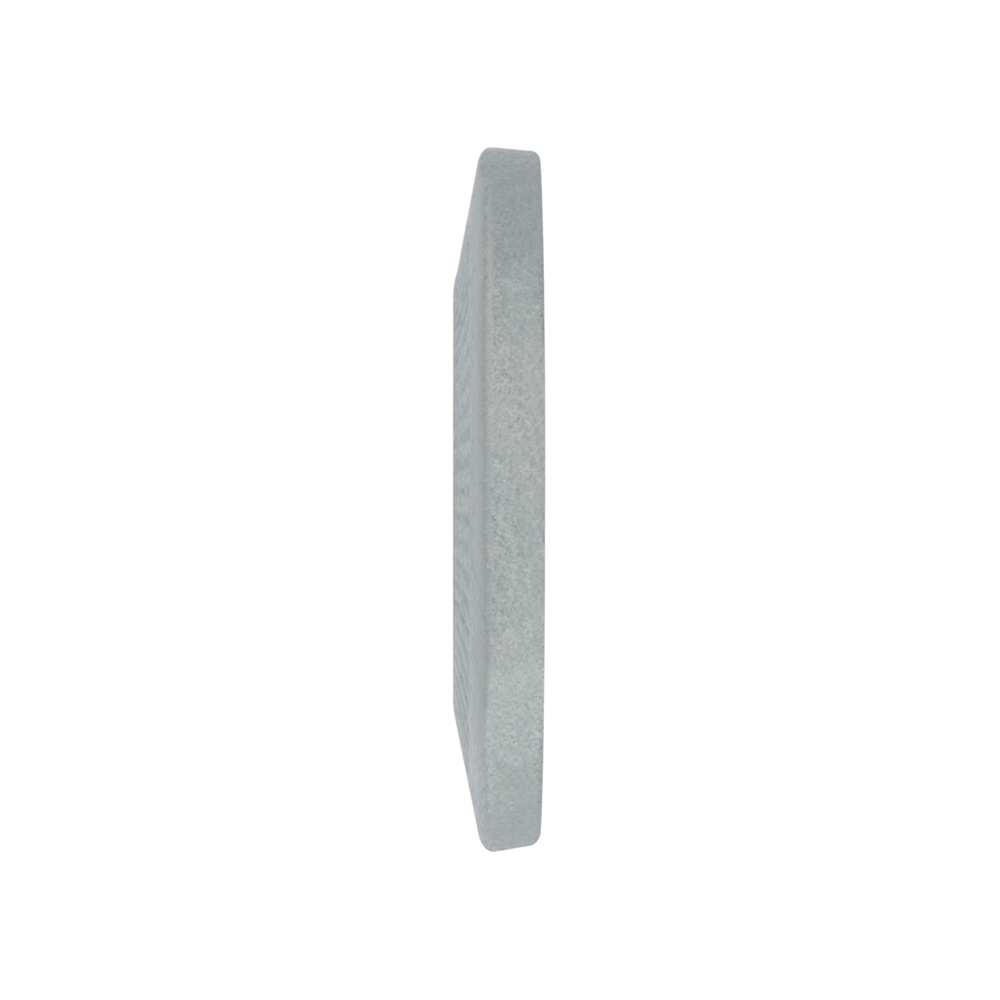

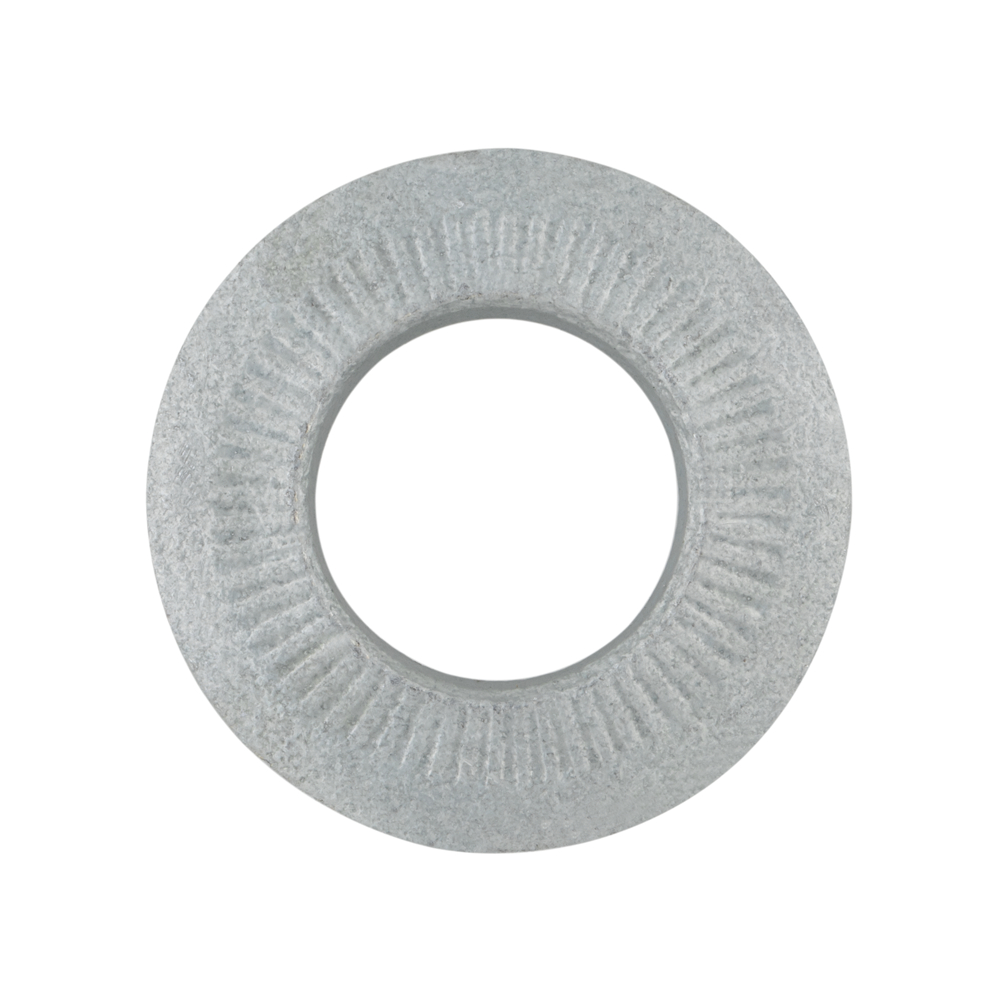

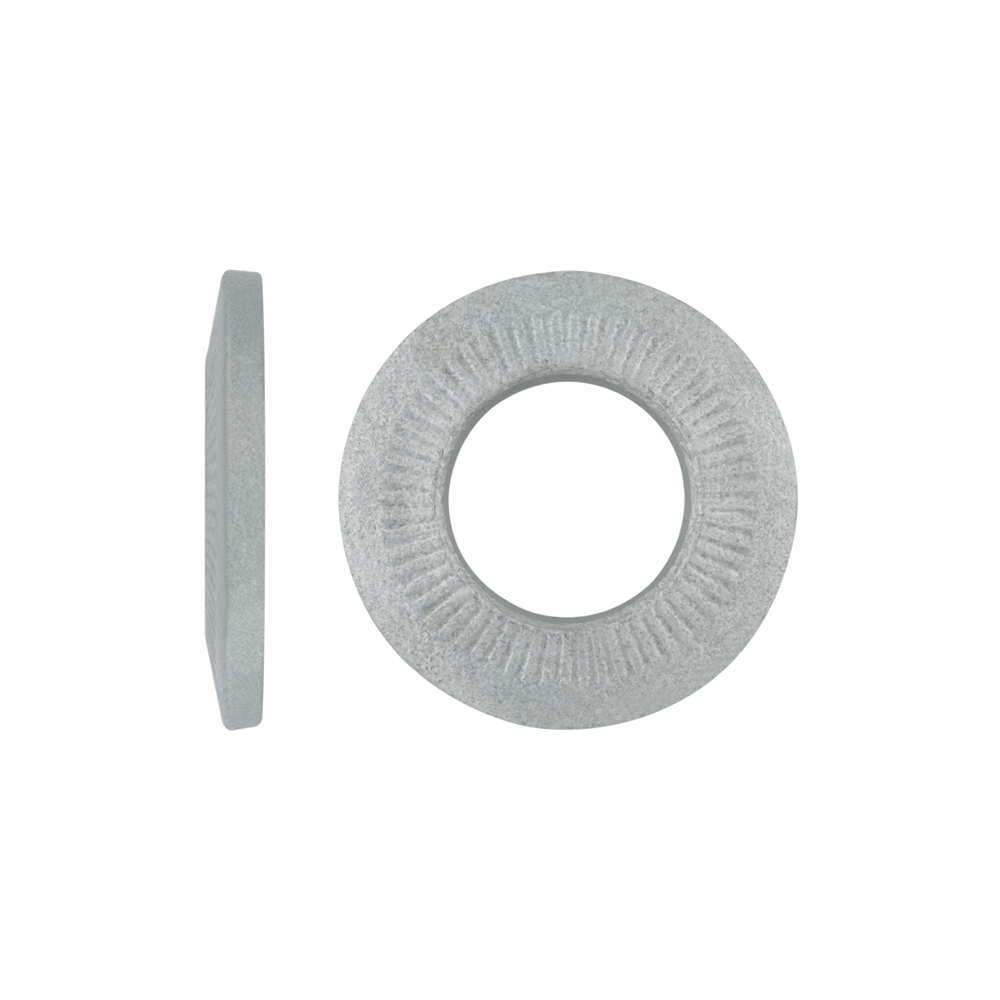

"Contact" washer in mechanical zinc plated finish

Ref.: 1109708
It is a contact washer according to the NFE 25511 standard, type M mechanical, manufactured in HRC>44 quality and zinc plated. It has a conical design with grooves on the outside. It is used as a safety washer to prevent loosening caused by vibrations.

Check availability with our sales team.

SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxPCS. MasterEAN BoxWeight (Pc/Kg)Technical Info.
M3 110970803 2.000 0.36 100.000 18 - 0 8432570129805 0.00018

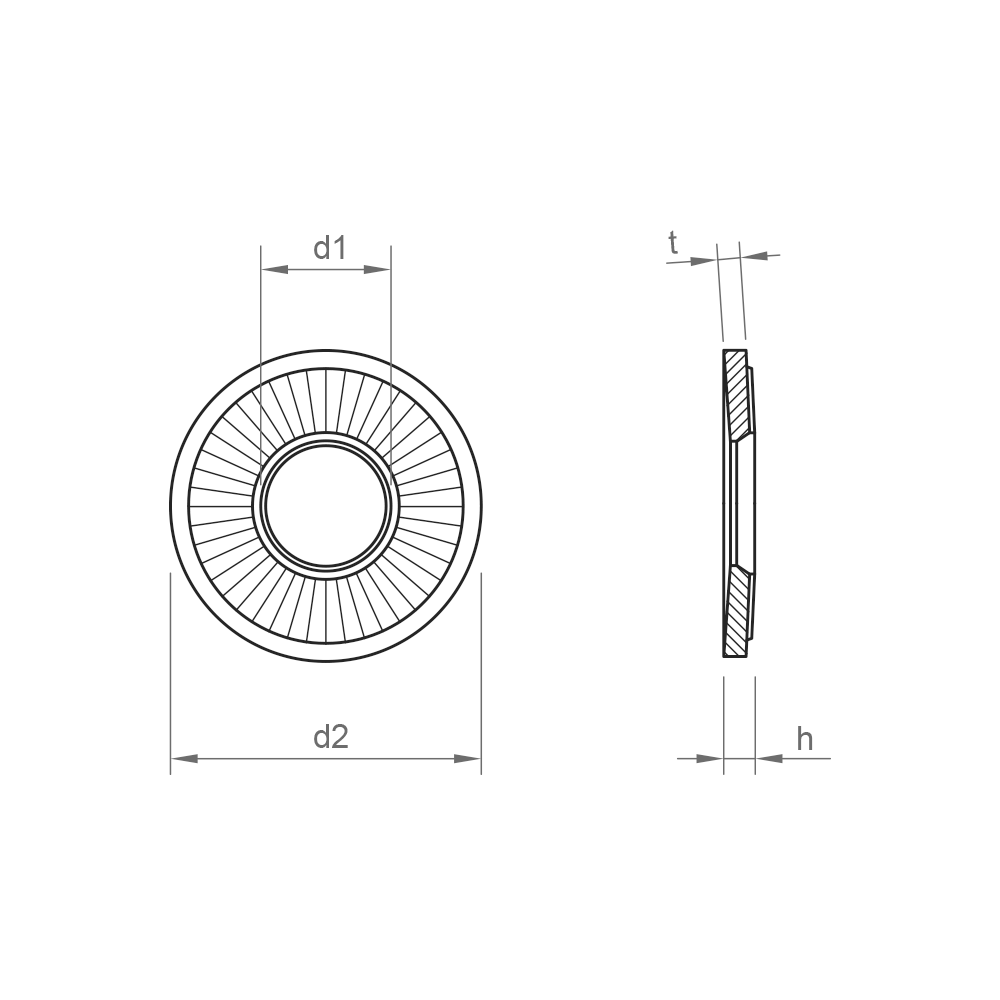

  • M3
  • d13,1
  • d210
  • h0,95
  • t0,6
M5 110970805 1.000 0.72 26.000 18.72 - 0 8432570051786 0.00072
  • M5
  • d15,1
  • d216
  • h1,7
  • t1,2
M6 110970806 1.000 1.18 16.000 18.88 - 0 8432570051793 0.00118
  • M6
  • d16,1
  • d214
  • h2,1
  • t1,3
M8 110970808 1.000 2.08 10.000 20.8 - 0 8432570051809 0.00208
  • M8
  • d18,2
  • d218
  • h2,35
  • t1,4
M10 110970810 1.000 3.51 6.000 21.06 - 0 8432570051816 0.00351
  • M10
  • d110,2
  • d222
  • h2,75
  • t1,6
M12 110970812 500 2.975 3.500 20.825 - 0 8432570051823 0.00595
  • M12
  • d112,4
  • d227
  • h3,1
  • t1,8
M14 110970814 250 2.375 2.000 19 - 0 8432570129812 0.0095
  • M14
  • d114,4
  • d230
  • h3,7
  • t2,4
M16 110970816 250 3.0125 1.500 18.075 - 0 8432570051830 0.01205
  • M16
  • d116,4
  • d232
  • h4,1
  • t2,8
M20 110970820 100 2.155 1.000 21.55 - 0 8432570051847 0.02155
  • M20
  • d120,5
  • d240
  • h4,9
  • t3,2
M3 20RX0970803 2.000 40.000 8445222288720 0.00018
M4 20RX0970804 2.000 32.000 8445222288737 0.00065
M5 20RX0970805 1.000 16.000 8445222288744 0.00072
M6 20RX0970806 1.000 8.000 8445222288751 0.00118
M8 20RX0970808 1.000 4.000 8445222288768 0.00208
M10 20RX0970810 1.000 4.000 8445222288775 0.00351
M12 20RX0970812 500 2.000 8445222288782 0.00595
M14 20RX0970814 250 1.000 8445222288799 0.0095
M16 20RX0970816 250 1.000 8445222288805 0.01205
M20 20RX0970820 100 400 8445222288829 0.02155
