Nfe washers

NFE 25513 [LL] A4

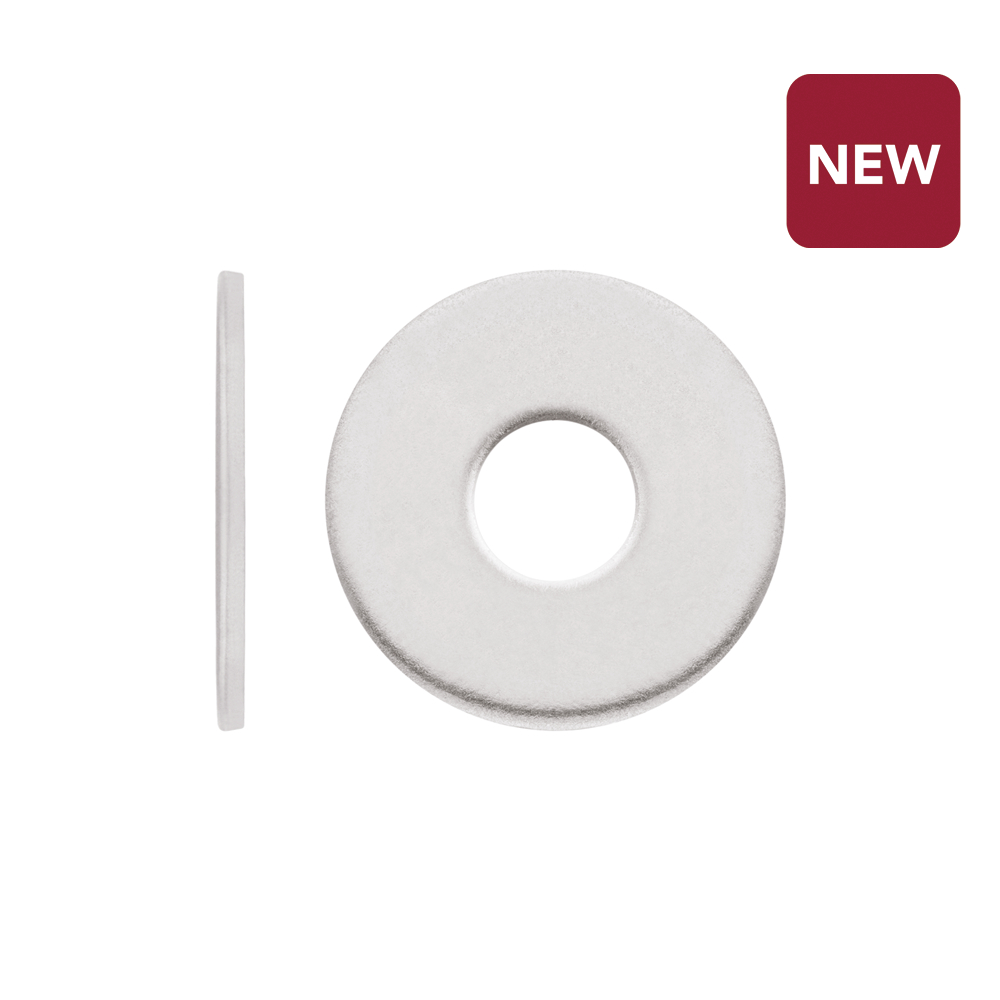

Flat washer "Extralarge" [LL] in stainless steel A4

Ref.: 1124520
It is a extra long flat washer LL made of A4 stainless steel. It is used in applications where a flat, supporting surface is required in mechanical assemblies and construction.

Check availability with our sales team.

SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxPCS. MasterEAN BoxWeight (Pc/Kg)Technical Info.
M3 112452003 500 0.455 20.000 18.2 720.000 655.2 8445222185999 0.00091
  • M3
  • d13,2
  • d214
  • S0,8
M4 112452004 500 0.585 15.000 17.55 540.000 631.8 8445222186002 0.00117
  • M4
  • d14,3
  • d216
  • S0,8
M5 112452005 200 0.458 8.000 18.32 288.000 659.52 8445222186019 0.00229
  • M5
  • d15,3
  • d220
  • S1
M6 112452006 200 0.79 5.000 19.75 180.000 711 8445222156258 0.00395
  • M6
  • d16,4
  • d224
  • S1,2
M8 112452008 200 1.53 2.400 18.36 86.400 660.96 8445222186026 0.00765
  • M8
  • d18,4
  • d230
  • S1,5
M10 112452010 100 1.46 1.200 17.52 43.200 630.72 8445222186033 0.0146
  • M10
  • d110,5
  • d236
  • S2
M12 112452012 100 2.2 800 17.6 28.800 633.6 8445222186040 0.022
  • M12
  • d113
  • d240
  • S2,5
M14 112452014 50 1.385 700 19.39 25.200 698.04 8445222186057 0.0277
  • M14
  • d115
  • d245
  • S2,5
M16 112452016 50 2.04 400 16.32 14.400 587.52 8445222186064 0.0408
  • M16
  • d117
  • d250
  • S3
M18 112452018 50 2.455 400 19.64 14.400 707.04 8445222186071 0.0491
  • M18
  • d119
  • d255
  • S3
M20 112452020 25 1.4575 300 17.49 10.800 629.64 8445222186088 0.0583
  • M20
  • d121
  • d260
  • S3
M22 112452022 25 2.025 200 16.2 7.200 583.2 8445222186095 0.081
  • M22
  • d123
  • d265
  • S3
M24 112452024 25 2.531 150 15.186 5.400 546.696 8445222186101 0.10124
  • M24
  • d125
  • d270
  • S4
M27 112452027 10 1.3324 140 18.6536 5.040 671.5296 8445222186118 0.13324
  • M27
  • d128
  • d275
  • S4
M30 112452030 10 1.8948 100 18.948 3.600 682.128 8445222186125 0.18948
  • M30
  • d131
  • d280
  • S4
M3 20RX2452003 500 10.000 8445222341944 0.00091
M4 20RX2452004 500 10.000 8445222341951 0.00117
M5 20RX2452005 500 8.000 8445222341968 0.00229
M6 20RX2452006 500 5.000 8445222341975 0.00395
M8 20RX2452008 200 2.000 8445222341982 0.00765
M10 20RX2452010 200 1.600 8445222341999 0.0146
M12 20RX2452012 100 800 8445222342002 0.022
M14 20RX2452014 100 800 8445222342019 0.0277
M16 20RX2452016 50 400 8445222342026 0.0408
M18 20RX2452018 50 400 8445222342033 0.0491
M20 20RX2452020 25 200 8445222342040 0.0583
M22 20RX2452022 25 200 8445222342057 0.081
M24 20RX2452024 25 200 8445222342064 0.10124
M27 20RX2452027 25 200 8445222342071 0.13324
M30 20RX2452030 25 200 8445222342088 0.18948
