Nfe washers

NFE 25514 [Z] A2

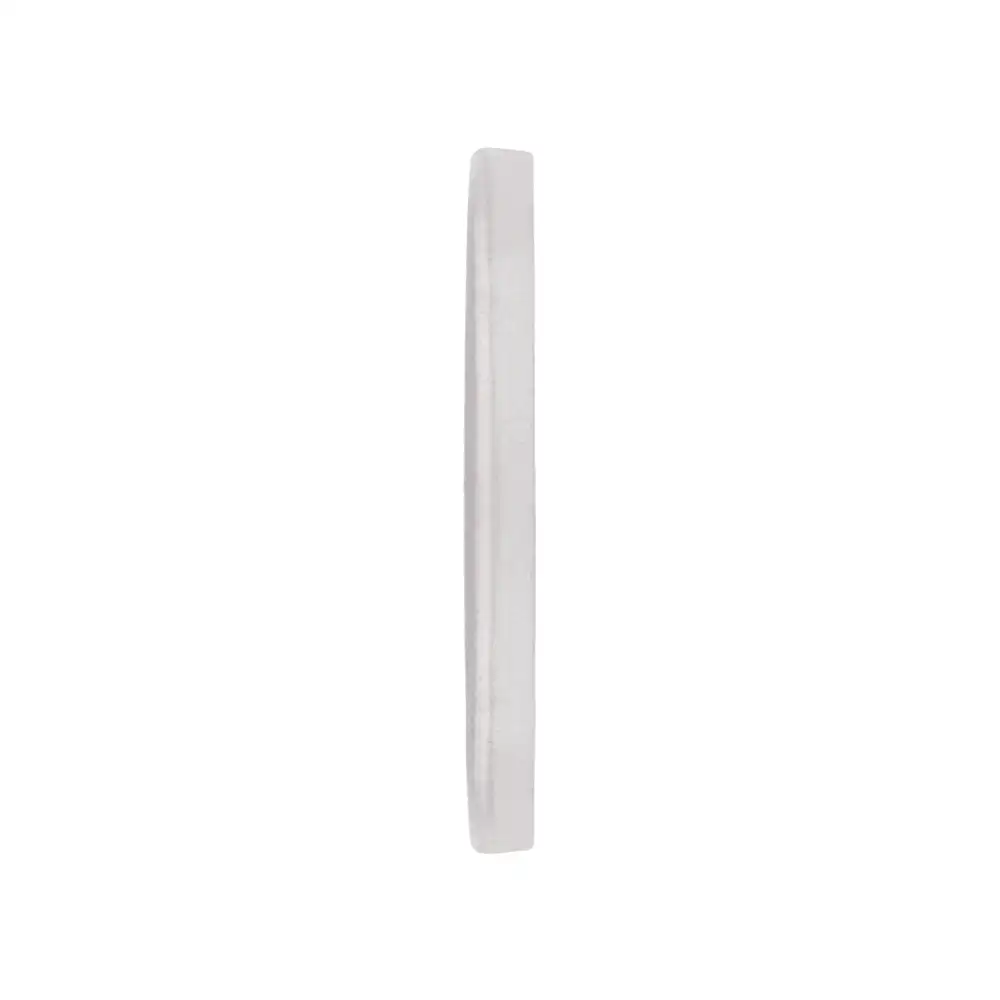

Flat washer "Étroite" [Z] in stainless steel A2

Ref.: 1124230
It is a narrow flat washer Z made of A2 stainless steel. It is used in applications where a flat, supporting surface is required in mechanical assemblies and construction.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
M3 112423003 500 0.005 30.000 0.3 1.080.000 10.8 8445222185425 0.00001
  • M3
  • d13,2
  • d26
  • S0,8
M4 112423004 500 0.005 30.000 0.3 1.080.000 10.8 8445222185432 0.00001
  • M4
  • d14,3
  • d28
  • S0,8
M5 112423005 200 0.088 12.000 5.28 432.000 190.08 8445222185449 0.00044
  • M5
  • d15,3
  • d210
  • S1
M6 112423006 200 0.204 12.000 12.24 432.000 440.64 8445222185456 0.00102
  • M6
  • d16,4
  • d212
  • S1,2
M8 112423008 200 0.366 10.000 18.3 360.000 658.8 8445222185463 0.00183
  • M8
  • d18,4
  • d216
  • S1,5
M10 112423010 100 0.357 5.000 17.85 180.000 642.6 8445222185470 0.00357
  • M10
  • d110,5
  • d220
  • S2
M12 112423012 100 0.627 3.000 18.81 108.000 677.16 8445222185487 0.00627
  • M12
  • d113
  • d224
  • S2,5
M14 112423014 50 0.431 2.500 21.55 90.000 775.8 8445222185494 0.00862
  • M14
  • d115
  • d227
  • S2,5
M16 112423016 50 0.565 1.800 20.34 64.800 732.24 8445222185500 0.0113
  • M16
  • d117
  • d230
  • S3
M18 112423018 50 0.735 1.600 23.52 57.600 846.72 8445222185517 0.0147
  • M18
  • d119
  • d232
  • S3
M20 112423020 50 0.858 1.200 20.592 43.200 741.312 8445222185524 0.01716
  • M20
  • d121
  • d236
  • S3
M22 112423022 25 0.492 1.000 19.68 36.000 708.48 8445222185531 0.01968
  • M22
  • d123
  • d240
  • S3
M24 112423024 25 0.8585 500 17.17 18.000 618.12 8445222185548 0.03434
  • M24
  • d125
  • d245
  • S4
M27 112423027 25 0.9325 500 18.65 18.000 671.4 8445222185555 0.0373
  • M27
  • d128
  • d248
  • S4
M30 112423030 25 1.0675 400 17.08 14.400 614.88 8445222185562 0.0427
  • M30
  • d131
  • d252
  • S4
M3 20RX2423003 1.000 0.01 30.000 0.3 1.080.000 10.8 8445222342095 0.00001
M4 20RX2423004 1.000 0.01 30.000 0.3 1.080.000 10.8 8445222342101 0.00001
M5 20RX2423005 1.000 0.44 30.000 13.2 1.080.000 475.2 8445222342118 0.00044
M6 20RX2423006 500 0.51 15.000 15.3 540.000 550.8 8445222342125 0.00102
M8 20RX2423008 200 0.366 6.000 10.98 216.000 395.28 8445222342132 0.00183
M10 20RX2423010 200 0.714 4.000 14.28 144.000 514.08 8445222342149 0.00357
M12 20RX2423012 200 1.254 3.200 20.064 115.200 722.304 8445222342156 0.00627
M14 20RX2423014 100 0.862 2.000 17.24 72.000 620.64 8445222342163 0.00862
M16 20RX2423016 100 1.13 1.600 18.08 57.600 650.88 8445222342170 0.0113
M18 20RX2423018 100 1.47 1.000 14.7 36.000 529.2 8445222342187 0.0147
M20 20RX2423020 50 0.858 500 8.58 18.000 308.88 8445222342194 0.01716
M22 20RX2423022 50 0.984 800 15.744 28.800 566.784 8445222342200 0.01968
M24 20RX2423024 50 1.717 400 13.736 14.400 494.496 8445222342217 0.03434
M27 20RX2423027 25 0.9325 400 14.92 14.400 537.12 8445222342224 0.0373
M30 20RX2423030 25 1.0675 400 17.08 14.400 614.88 8445222342231 0.0427
