Turnbuckles

Home > Fasteners > Wire and rope fittings > Turnbuckles

Quality

Material

Coating

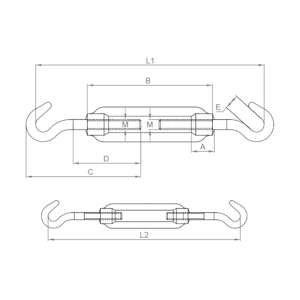

DIN 1480 H-H ZP

Turnbuckle hook/hook in zinc-plated finish

DIN 1480 H-H A4

Turnbuckle hook/hook in stainless Steel A4

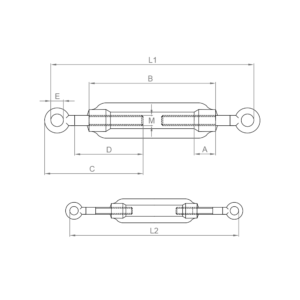

DIN 1480 E-E ZP

Turnbuckle eye/eye in zinc-plated finish

DIN 1480 E-E A4

Turnbuckle eye/eye in stainless Steel A4

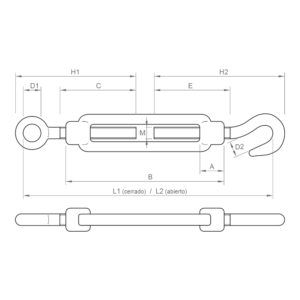

DIN 1480 H-E ZP

Turnbuckle eye/hook in zinc plated finish

DIN 1480 H-E A4

Turnbuckle eye/hook in stainless Steel A4

DIN 1480 SE

Welding rod turnbuckle in zinc-plated finish

Per page:

Tensioners are mechanical elements designed to regulate the tension of cables, rods and fasteners in a controlled manner. They allow the length and tension of a system to be adjusted or maintained without the need for dismantling, facilitating both initial installation and maintenance tasks.

At CHAVESBAO, we supply tensioners manufactured in accordance with the DIN 1480 standard, suitable for general-purpose applications, light support and fastening systems in industrial, agricultural and construction environments.

DIN 1480 tensioners for adjusting and tensioning cables

The DIN 1480 tensioner works by means of a threaded central body which, when turned, brings its ends closer together or separates them, generating tension in the cable or fastening element. This system allows for progressive adjustments and maintains uniform tension throughout the assembly.
They are commonly used in enclosures, cable lines, auxiliary structures, temporary installations, supports and assemblies where it is necessary to maintain tension without resorting to permanent solutions.

How to choose the right tensioner

The choice of tensioner depends on the diameter of the cable or rod, the expected load and the installation environment. It is essential to select a model that complies with DIN 1480 and is compatible with the fastening system, and to observe the maximum permissible load indicated for each tensioner.
In outdoor or exposed environments, the material directly influences corrosion resistance: carbon steel is suitable for general use, while A4 stainless steel is recommended in more corrosive conditions. Correct assembly, with the threads aligned and without overloading the system, ensures a secure fit and reliable performance in tensioning and fastening applications.
