Other nuts

DIN 1587 BR

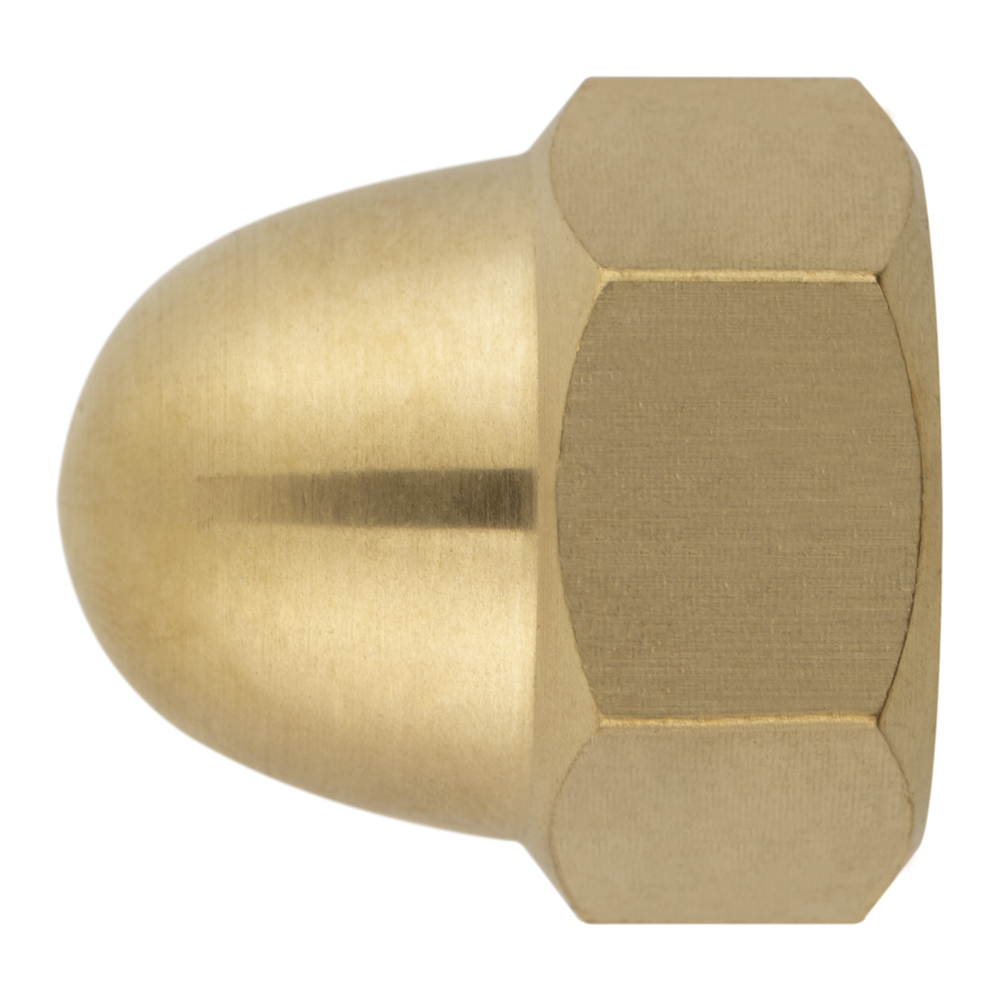

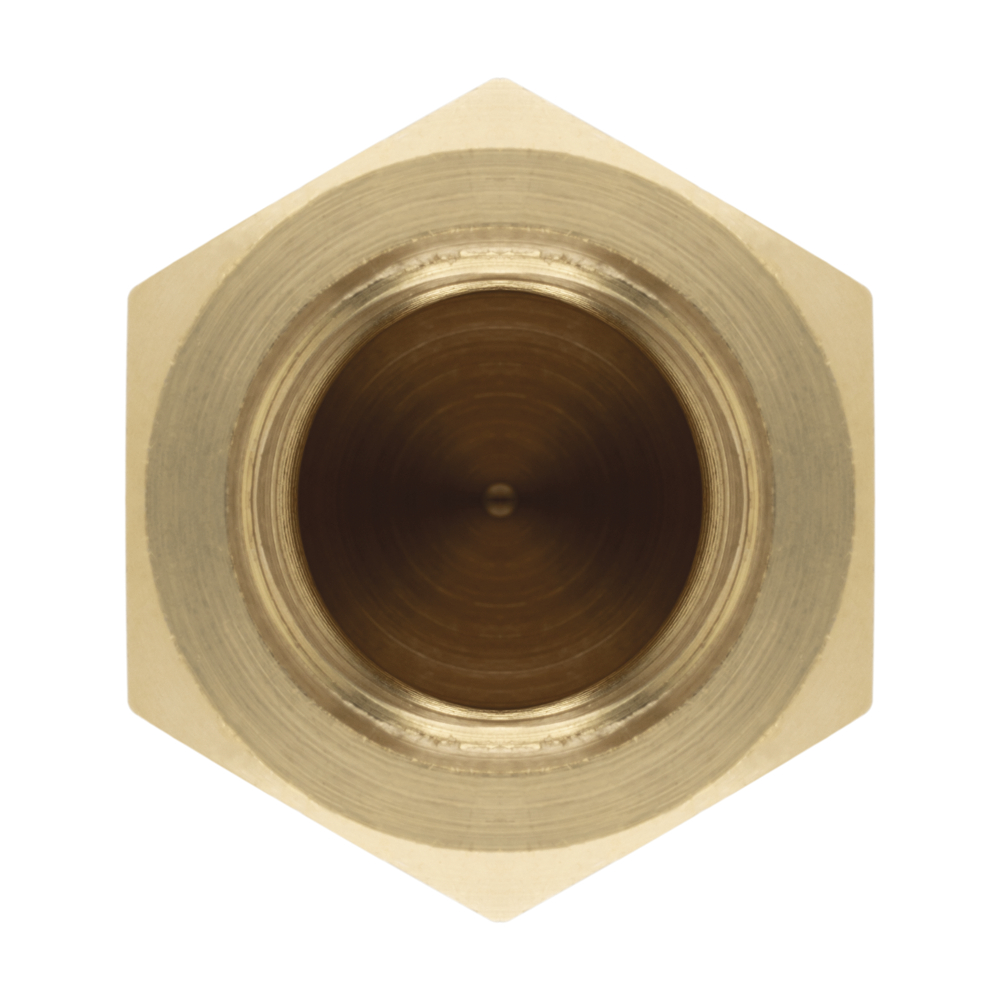

Brass hexagon dome cap nut

Ref.: 6611800

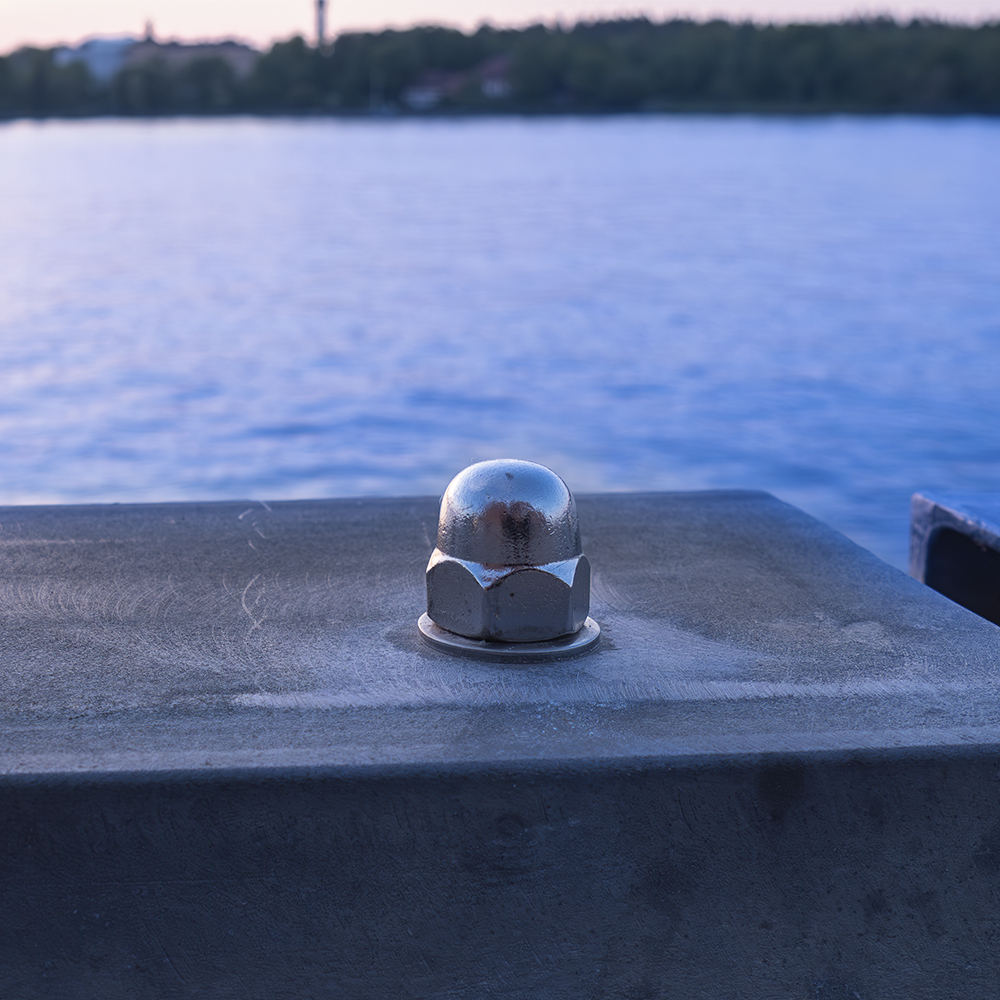

It is a blind nut made of brass. It has a hexagonal base and a dome-shaped top. It is used to cover the thread termination for aesthetic reasons.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
SizeCodePcs. BoxKG BoxPCS. MasterKG MasterPCS. PalletKG PalletEAN BoxWeight (Pc/Kg)Technical Info.
M4 661180004 1.000 1.42 16.000 22.72 576.000 817.92 8432569308754 0.00142
  • M4
  • dk6,5
  • m3,2
  • h8
  • r3,25
  • t5,26
  • S7
  • w2
M5 661180005 500 1 8.000 16 288.000 576 8432569308761 0.002
  • M5
  • dk7,5
  • m4
  • h10
  • r3,75
  • t7,21
  • S8
  • w2
M6 661180006 500 2.3 4.000 18.4 144.000 662.4 8432569308778 0.0046
  • M6
  • dk9,5
  • m5
  • h12
  • r4,75
  • t7,71
  • S10
  • w2
M8 661180008 500 5.5 2.000 22 72.000 792 8432569308785 0.011
  • M8
  • dk12,5
  • m6,5
  • h15
  • r6,25
  • t10,65
  • S13
  • w2
M10 661180010 200 4.02 800 16.08 28.800 578.88 8432569308792 0.0201
  • M10
  • dk15
  • m8
  • h18
  • r7,5
  • t12,65
  • S16
  • w2
M12 661180012 200 5.66 800 22.64 28.800 815.04 8432569308808 0.0283
  • M12
  • dk17
  • m10
  • h22
  • r8,5
  • t15,65
  • S18
  • w3
M14 661180014 100 4 400 16 14.400 576 8432569308815 0.04
  • M14
  • dk20
  • m11
  • h25
  • r10
  • t17,65
  • S21
  • w4
M16 661180016 100 5.43 400 21.72 14.400 781.92 8432569308822 0.0543
  • M16
  • dk23
  • m13
  • h28
  • r11,5
  • t20,58
  • S24
  • w4
M18 661180018 50 4.75 200 19 7.200 684 8432569308839 0.095
  • M18
  • dk26
  • m15
  • h32
  • r13
  • t24,58
  • S27
  • w5
M20 661180020 50 5.2 200 20.8 7.200 748.8 8432569308846 0.104
  • M20
  • dk28
  • m16
  • h34
  • r14
  • t25,58
  • S30
  • w5
M4 20RX1180004 500 0.71 10.000 14.2 360.000 511.2 8445222301870 0.00142
M5 20RX1180005 500 1 10.000 20 360.000 720 8445222301887 0.002
M6 20RX1180006 200 0.92 4.000 18.4 144.000 662.4 8445222301894 0.0046
M8 20RX1180008 200 2.2 3.200 35.2 115.200 1267.2 8445222301900 0.011
M10 20RX1180010 100 2.01 1.600 32.16 57.600 1157.76 8445222301917 0.0201
M12 20RX1180012 100 2.83 1.600 45.28 57.600 1630.08 8445222301924 0.0283
M14 20RX1180014 50 2 800 32 28.800 1152 8445222301931 0.04
M16 20RX1180016 50 2.715 800 43.44 28.800 1563.84 8445222301948 0.0543
M20 20RX1180020 25 2.6 400 41.6 14.400 1497.6 8445222301962 0.104
