Socket screws

ISO 7380-1 10.9 BL

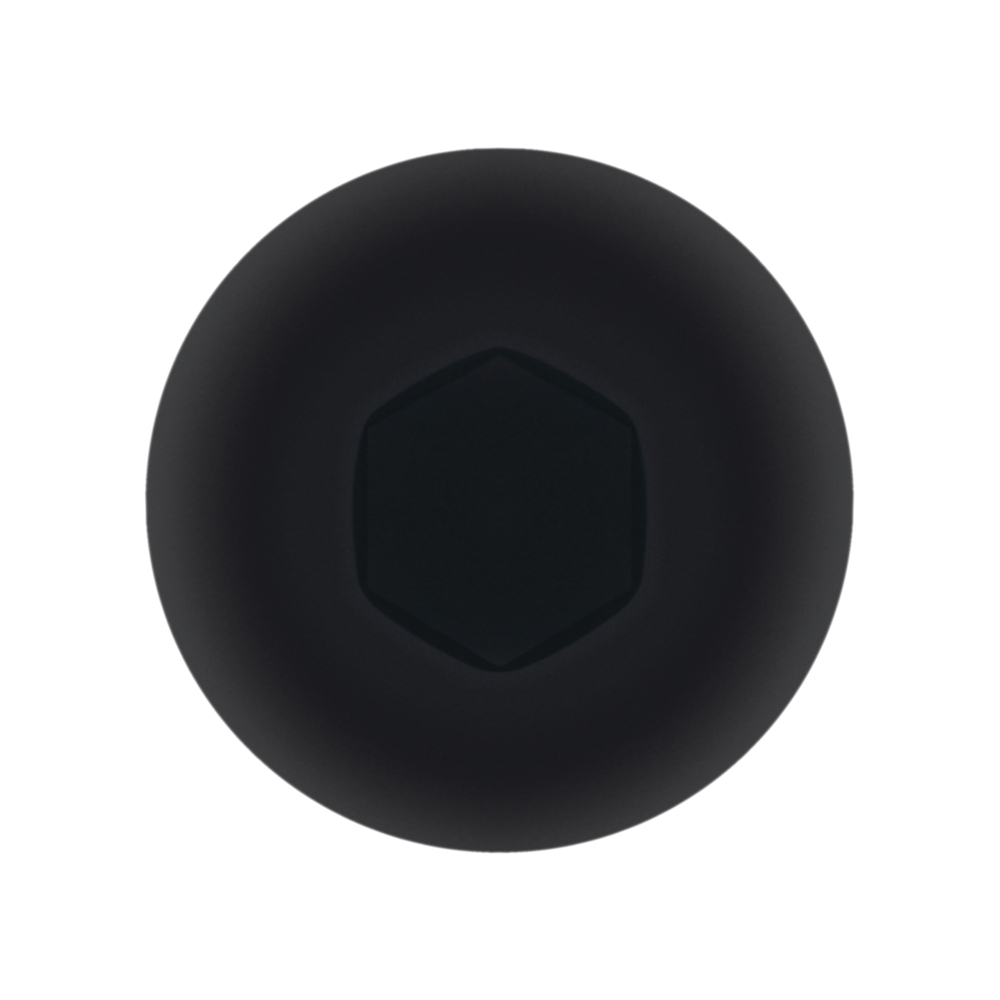

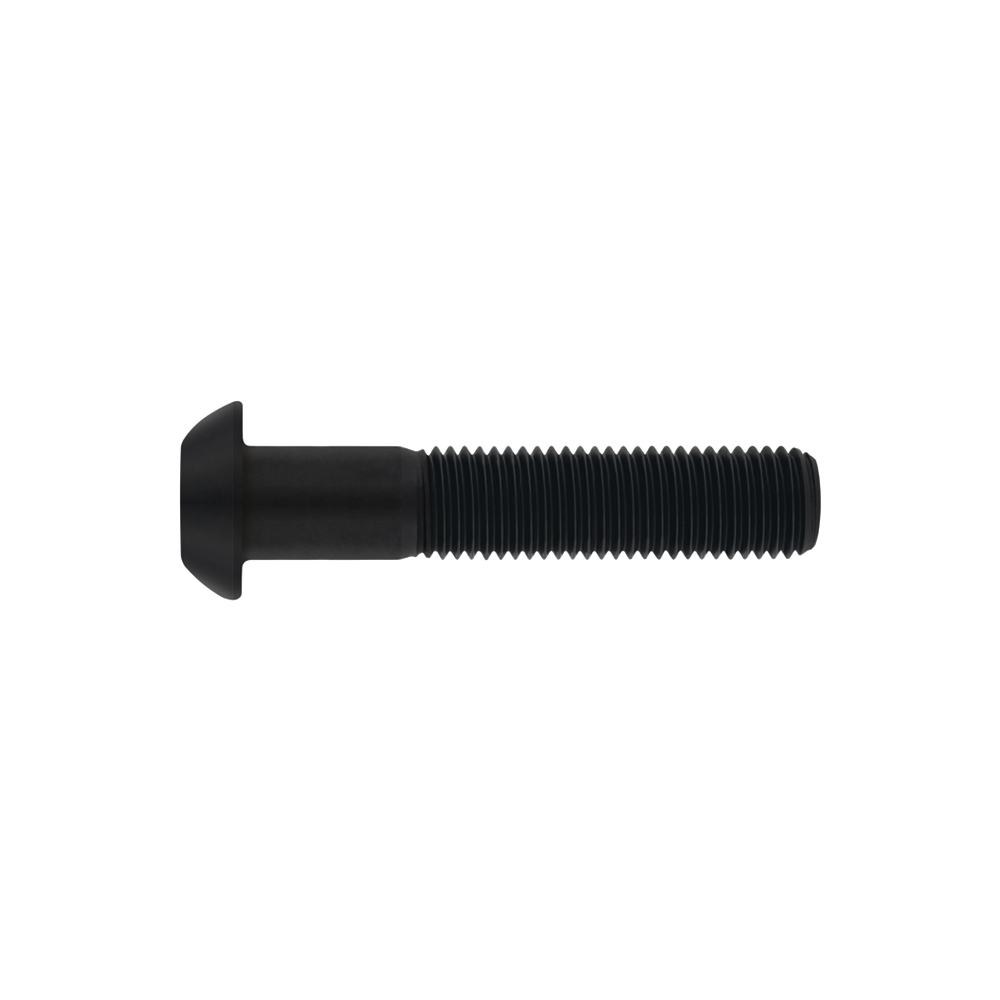

Hexagon socket button head screw in black finish and quality 10.9

Ref.: 609490
It is a round head hexagon socket head cap screw made of 10.9 quality with black-plated coating. It has an allen hexagon socket.
Size Code Pcs. Box KG ESTUCHE PCS. Master KG MÁSTER Uds. Palé KG PALÉ EAN Box Weight (Pc/Kg) Technical Info.
M3 x 6 60949003X006 500 0.15 15.000 4.5 540.000 162 8432569264203 0.0003
  • M3
  • L6
  • k1,65
  • dk5,7
  • b*18
  • t1,04
  • S2

* Full threaded.

M3 x 8 60949003X008 500 0.2 15.000 6 540.000 216 8432569264210 0.0004
  • M3
  • L8
  • k1,65
  • dk5,7
  • b*18
  • t1,04
  • S2

* Full threaded.

M3 x 10 60949003X010 500 0.3 15.000 9 540.000 324 8432569264227 0.0006
  • M3
  • L10
  • k1,65
  • dk5,7
  • b*18
  • t1,04
  • S2

* Full threaded.

M3 x 12 60949003X012 500 0.35 15.000 10.5 540.000 378 8432569264234 0.0007
  • M3
  • L12
  • k1,65
  • dk5,7
  • b*18
  • t1,04
  • S2

* Full threaded.

M3 x 14 60949003X014 500 0.4 15.000 12 540.000 432 8432569264241 0.0008
  • M3
  • L14
  • k1,65
  • dk5,7
  • b*18
  • t1,04
  • S2

* Full threaded.

M3 x 16 60949003X016 500 0.45 15.000 13.5 540.000 486 8432569264258 0.0009
  • M3
  • L16
  • k1,65
  • dk5,7
  • b*18
  • t1,04
  • S2

* Full threaded.

M3 x 20 60949003X020 500 0.6 15.000 18 540.000 648 8432569264265 0.0012
  • M3
  • L20
  • k1,65
  • dk5,7
  • b18
  • t1,04
  • S2
M4 x 6 60949004X006 500 0.45 15.000 13.5 540.000 486 8432569264296 0.0009
  • M4
  • L6
  • k2,2
  • dk7,6
  • b*20
  • t1,3
  • S2,5

* Full threaded.

M4 x 8 60949004X008 500 0.55 15.000 16.5 540.000 594 8432569264302 0.0011
  • M4
  • L8
  • k2,2
  • dk7,6
  • b*20
  • t1,3
  • S2,5

* Full threaded.

M4 x 10 60949004X010 500 0.65 15.000 19.5 540.000 702 8432569264319 0.0013
  • M4
  • L10
  • k2,2
  • dk7,6
  • b*20
  • t1,3
  • S2,5

* Full threaded.

M4 x 12 60949004X012 500 0.75 15.000 22.5 540.000 810 8432569264326 0.0015
  • M4
  • L12
  • k2,2
  • dk7,6
  • b*20
  • t1,3
  • S2,5

* Full threaded.

M4 x 14 60949004X014 500 0.85 8.000 13.6 288.000 489.6 8432569264333 0.0017
  • M4
  • L14
  • k2,2
  • dk7,6
  • b*20
  • t1,3
  • S2,5

* Full threaded.

M4 x 16 60949004X016 500 0.95 8.000 15.2 288.000 547.2 8432569264340 0.0019
  • M4
  • L16
  • k2,2
  • dk7,6
  • b*20
  • t1,3
  • S2,5

* Full threaded.

M4 x 20 60949004X020 500 1.15 8.000 18.4 288.000 662.4 8432569264364 0.0023
  • M4
  • L20
  • k2,2
  • dk7,6
  • b*20
  • t1,3
  • S2,5

* Full threaded.

M4 x 25 60949004X025 500 1.35 8.000 21.6 288.000 777.6 8432569264388 0.0027
  • M4
  • L25
  • k2,2
  • dk7,6
  • b20
  • t1,3
  • S2,5
M4 x 30 60949004X030 500 1.6 4.000 12.8 144.000 460.8 8432569264395 0.0032
  • M4
  • L30
  • k2,2
  • dk7,6
  • b20
  • t1,3
  • S2,5
M4 x 35 60949004X035 500 1.8 4.000 14.4 144.000 518.4 8432569264401 0.0036
  • M4
  • L35
  • k2,2
  • dk7,6
  • b20
  • t1,3
  • S2,5
M4 x 40 60949004X040 500 2.05 4.000 16.4 144.000 590.4 8432569264418 0.0041
  • M4
  • L40
  • k2,2
  • dk7,6
  • b20
  • t1,3
  • S2,5
M5 x 8 60949005X008 500 0.95 8.000 15.2 288.000 547.2 8432569264425 0.0019
  • M5
  • L8
  • k2,75
  • dk9,5
  • b*22
  • t1,56
  • S3

* Full threaded.

M5 x 10 60949005X010 500 1.05 8.000 16.8 288.000 604.8 8432569264432 0.0021
  • M5
  • L10
  • k2,75
  • dk9,5
  • b*22
  • t1,56
  • S3

* Full threaded.

M5 x 12 60949005X012 500 1.2 8.000 19.2 288.000 691.2 8432569264449 0.0024
  • M5
  • L12
  • k2,75
  • dk9,5
  • b*22
  • t1,56
  • S3

* Full threaded.

M5 x 14 60949005X014 500 1.3 8.000 20.8 288.000 748.8 8432569264456 0.0026
  • M5
  • L14
  • k2,75
  • dk9,5
  • b*22
  • t1,56
  • S3

* Full threaded.

M5 x 16 60949005X016 500 1.4 8.000 22.4 288.000 806.4 8432569264463 0.0028
  • M5
  • L16
  • k2,75
  • dk9,5
  • b*22
  • t1,56
  • S3

* Full threaded.

M5 x 20 60949005X020 500 1.65 4.000 13.2 144.000 475.2 8432569264487 0.0033
  • M5
  • L20
  • k2,75
  • dk9,5
  • b*22
  • t1,56
  • S3

* Full threaded.

M5 x 25 60949005X025 500 1.95 4.000 15.6 144.000 561.6 8432569264500 0.0039
  • M5
  • L25
  • k2,75
  • dk9,5
  • b22
  • t1,56
  • S3
M5 x 30 60949005X030 500 2.25 4.000 18 144.000 648 8432569264517 0.0045
  • M5
  • L30
  • k2,75
  • dk9,5
  • b22
  • t1,56
  • S3
M5 x 35 60949005X035 200 1.02 3.200 16.32 115.200 587.52 8432569264524 0.0051
  • M5
  • L35
  • k2,75
  • dk9,5
  • b22
  • t1,56
  • S3
M5 x 40 60949005X040 200 1.12 1.600 8.96 57.600 322.56 8432569264531 0.0056
  • M5
  • L40
  • k2,75
  • dk9,5
  • b22
  • t1,56
  • S3
M5 x 45 60949005X045 200 1.26 1.600 10.08 57.600 362.88 8432569264548 0.0063
  • M5
  • L45
  • k2,75
  • dk9,5
  • b22
  • t1,56
  • S3
M5 x 50 60949005X050 200 1.4 1.600 11.2 57.600 403.2 8432569264555 0.007
  • M5
  • L50
  • k2,75
  • dk9,5
  • b22
  • t1,56
  • S3
M6 x 8 60949006X008 500 1.25 8.000 20 288.000 720 8432569264562 0.0025
  • M6
  • L8
  • k3,3
  • dk10,5
  • b*24
  • t2,08
  • S4

* Full threaded.

M6 x 10 60949006X010 500 1.45 8.000 23.2 288.000 835.2 8432569264579 0.0029
  • M6
  • L10
  • k3,3
  • dk10,5
  • b*24
  • t2,08
  • S4

* Full threaded.

M6 x 12 60949006X012 500 1.6 4.000 12.8 144.000 460.8 8432569264586 0.0032
  • M6
  • L12
  • k3,3
  • dk10,5
  • b*24
  • t2,08
  • S4

* Full threaded.

M6 x 14 60949006X014 500 1.775 2.000 7.1 72.000 255.6 8432569264593 0.00355
  • M6
  • L14
  • k3,3
  • dk10,5
  • b*24
  • t2,08
  • S4

* Full threaded.

M6 x 16 60949006X016 500 1.95 4.000 15.6 144.000 561.6 8432569264609 0.0039
  • M6
  • L16
  • k3,3
  • dk10,5
  • b*24
  • t2,08
  • S4

* Full threaded.

M6 x 18 60949006X018 500 2.1 4.000 16.8 144.000 604.8 8432569264616 0.0042
  • M6
  • L18
  • k3,3
  • dk10,5
  • b*24
  • t2,08
  • S4

* Full threaded.

M6 x 20 60949006X020 500 2.3 4.000 18.4 144.000 662.4 8432569264623 0.0046
  • M6
  • L20
  • k3,3
  • dk10,5
  • b*24
  • t2,08
  • S4

* Full threaded.

M6 x 25 60949006X025 500 2.7 4.000 21.6 144.000 777.6 8432569264647 0.0054
  • M6
  • L25
  • k3,3
  • dk10,5
  • b24
  • t2,08
  • S4
M6 x 30 60949006X030 500 3.15 2.000 12.6 72.000 453.6 8432569264654 0.0063
  • M6
  • L30
  • k3,3
  • dk10,5
  • b24
  • t2,08
  • S4
M6 x 35 60949006X035 200 1.74 1.600 13.92 57.600 501.12 8432569264661 0.0087
  • M6
  • L35
  • k3,3
  • dk10,5
  • b24
  • t2,08
  • S4
M6 x 40 60949006X040 200 1.6 1.600 12.8 57.600 460.8 8432569264678 0.008
  • M6
  • L40
  • k3,3
  • dk10,5
  • b24
  • t2,08
  • S4
M6 x 45 60949006X045 200 1.76 1.600 14.08 57.600 506.88 8432569264685 0.0088
  • M6
  • L45
  • k3,3
  • dk10,5
  • b24
  • t2,08
  • S4
M6 x 50 60949006X050 200 1.92 1.600 15.36 57.600 552.96 8432569264692 0.0096
  • M6
  • L50
  • k3,3
  • dk10,5
  • b24
  • t2,08
  • S4
M6 x 60 60949006X060 200 2.28 1.600 18.24 57.600 656.64 8432569464832 0.0114
  • M6
  • L60
  • k3,3
  • dk10,5
  • b24
  • t2,08
  • S4
M8 x 10 60949008X010 200 2.26 1.600 18.08 57.600 650.88 8432569264715 0.0113
  • M8
  • L10
  • k4,4
  • dk14
  • b*28
  • t2,6
  • S5

* Full threaded.

M8 x 12 60949008X012 200 1.04 3.200 16.64 115.200 599.04 8432569264722 0.0052
  • M8
  • L12
  • k4,4
  • dk14
  • b*28
  • t2,6
  • S5

* Full threaded.

M8 x 16 60949008X016 200 1.44 3.200 23.04 115.200 829.44 8432569264746 0.0072
  • M8
  • L16
  • k4,4
  • dk14
  • b*28
  • t2,6
  • S5

* Full threaded.

M8 x 18 60949008X018 200 1.58 1.600 12.64 57.600 455.04 8432569264753 0.0079
  • M8
  • L18
  • k4,4
  • dk14
  • b*28
  • t2,6
  • S5

* Full threaded.

M8 x 20 60949008X020 200 1.72 1.600 13.76 57.600 495.36 8432569264760 0.0086
  • M8
  • L20
  • k4,4
  • dk14
  • b*28
  • t2,6
  • S5

* Full threaded.

M8 x 25 60949008X025 200 2.02 1.600 16.16 57.600 581.76 8432569264784 0.0101
  • M8
  • L25
  • k4,4
  • dk14
  • b*28
  • t2,6
  • S5

* Full threaded.

M8 x 30 60949008X030 200 2.4 1.600 19.2 57.600 691.2 8432569264791 0.012
  • M8
  • L30
  • k4,4
  • dk14
  • b28
  • t2,6
  • S5
M8 x 35 60949008X035 200 2.78 1.600 22.24 57.600 800.64 8432569264807 0.0139
  • M8
  • L35
  • k4,4
  • dk14
  • b28
  • t2,6
  • S5
M8 x 40 60949008X040 200 3.16 800 12.64 28.800 455.04 8432569264814 0.0158
  • M8
  • L40
  • k4,4
  • dk14
  • b28
  • t2,6
  • S5
M8 x 45 60949008X045 200 3.58 800 14.32 28.800 515.52 8432569264821 0.0179
  • M8
  • L45
  • k4,4
  • dk14
  • b28
  • t2,6
  • S5
M8 x 50 60949008X050 200 3.92 800 15.68 28.800 564.48 8432569264838 0.0196
  • M8
  • L50
  • k4,4
  • dk14
  • b28
  • t2,6
  • S5
M8 x 60 60949008X060 200 4.68 800 18.72 28.800 673.92 8432569264852 0.0234
  • M8
  • L60
  • k4,4
  • dk14
  • b28
  • t2,6
  • S5
M8 x 70 60949008X070 200 5.06 800 20.24 28.800 728.64 8432569464849 0.0253
  • M8
  • L70
  • k4,4
  • dk14
  • b28
  • t2,6
  • S5
M10 x 16 60949010X016 200 2.82 1.600 22.56 57.600 812.16 8432569264869 0.0141
  • M10
  • L16
  • k5,5
  • dk17,5
  • b*32
  • t3,12
  • S6

* Full threaded.

M10 x 20 60949010X020 200 4.44 800 17.76 28.800 639.36 8432569264883 0.0222
  • M10
  • L20
  • k5,5
  • dk17,5
  • b*32
  • t3,12
  • S6

* Full threaded.

M10 x 25 60949010X025 200 3.7 800 14.8 28.800 532.8 8432569264890 0.0185
  • M10
  • L25
  • k5,5
  • dk17,5
  • b*32
  • t3,12
  • S6

* Full threaded.

M10 x 30 60949010X030 200 4.18 800 16.72 28.800 601.92 8432569264906 0.0209
  • M10
  • L30
  • k5,5
  • dk17,5
  • b*32
  • t3,12
  • S6

* Full threaded.

M10 x 35 60949010X035 100 2.33 800 18.64 28.800 671.04 8432569264913 0.0233
  • M10
  • L35
  • k5,5
  • dk17,5
  • b32
  • t3,12
  • S6
M10 x 40 60949010X040 100 2.58 800 20.64 28.800 743.04 8432569264920 0.0258
  • M10
  • L40
  • k5,5
  • dk17,5
  • b32
  • t3,12
  • S6
M10 x 45 60949010X045 100 2.82 800 22.56 28.800 812.16 8432569264937 0.0282
  • M10
  • L45
  • k5,5
  • dk17,5
  • b32
  • t3,12
  • S6
M10 x 50 60949010X050 100 3.06 400 12.24 14.400 440.64 8432569264944 0.0306
  • M10
  • L50
  • k5,5
  • dk17,5
  • b32
  • t3,12
  • S6
M10 x 55 60949010X055 100 3.31 400 13.24 14.400 476.64 8432569264951 0.0331
  • M10
  • L55
  • k5,5
  • dk17,5
  • b32
  • t3,12
  • S6
M10 x 60 60949010X060 100 3.54 400 14.16 14.400 509.76 8432569264968 0.0354
  • M10
  • L60
  • k5,5
  • dk17,5
  • b32
  • t3,12
  • S6
M12 x 20 60949012X020 100 2.42 800 19.36 28.800 696.96 8432569265019 0.0242
  • M12
  • L20
  • k6,6
  • dk21
  • b*36
  • t4,16
  • S8

* Full threaded.

M12 x 25 60949012X025 100 2.77 800 22.16 28.800 797.76 8432569265026 0.0277
  • M12
  • L25
  • k6,6
  • dk21
  • b*36
  • t4,16
  • S8

* Full threaded.

M12 x 30 60949012X030 100 3.11 800 24.88 28.800 895.68 8432569265033 0.0311
  • M12
  • L30
  • k6,6
  • dk21
  • b*36
  • t4,16
  • S8

* Full threaded.

M12 x 35 60949012X035 100 3.46 400 13.84 14.400 498.24 8432569265040 0.0346
  • M12
  • L35
  • k6,6
  • dk21
  • b*36
  • t4,16
  • S8

* Full threaded.

M12 x 40 60949012X040 100 3.81 400 15.24 14.400 548.64 8432569265057 0.0381
  • M12
  • L40
  • k6,6
  • dk21
  • b36
  • t4,16
  • S8
M12 x 45 60949012X045 100 4.15 400 16.6 14.400 597.6 8432569265064 0.0415
  • M12
  • L45
  • k6,6
  • dk21
  • b36
  • t4,16
  • S8
M12 x 50 60949012X050 100 4.5 400 18 14.400 648 8432569265071 0.045
  • M12
  • L50
  • k6,6
  • dk21
  • b36
  • t4,16
  • S8
M12 x 60 60949012X060 100 5.19 400 20.76 14.400 747.36 8432569265095 0.0519
  • M12
  • L60
  • k6,6
  • dk21
  • b36
  • t4,16
  • S8
RELATED PRODUCTS

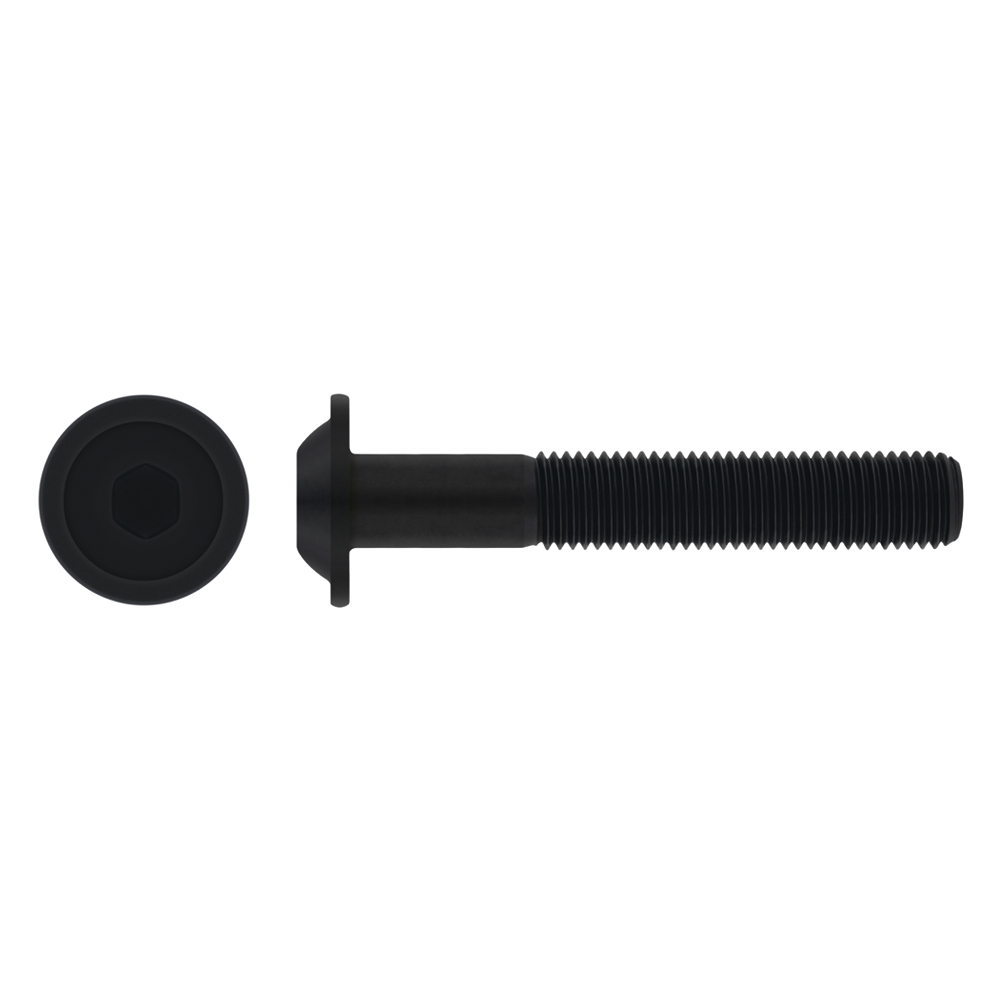

ISO 7380-2 10.9 BL

Hexagon socket button head screw with flange in black finish and quality 10.9

ISO 7380-1 10.9 ZP

Hexagon socket button head screw in zinc plated and quality 10.9

Do you need more information?

CHAVES BILBAO, S.L. informs you that the personal data provided voluntarily on this website, the purpose, intended transfers and other circumstances of which are communicated when the personal data is collected, may, depending on the specific case, have any of the following purposes: responding to your request, complaint or question, maintaining the established relationship, the comprehensive and commercial management of customers, accounting and invoicing or sending of communications of news and activities related with CHAVES BILBAO, S.L., including by electronic means. The data included in our files is absolutely confidential and will be processed with the utmost confidentiality and in compliance with all the requirements set out in the General Data Protection Regulation (GDPR) of the 27th of April 2016. The data is registered in our files for the time necessary for the purpose for which it was collected. The period during which the personal data will be kept will be that established by current legislation and always during the period of the provision of the service for which it was provided. We do not recommend sending personal data that is classified as highly confidential by data protection legislation, such as that related to health, as it is not sent coded or encrypted. Therefore, if you send this type of data, it will be at your own risk. The user may at any time exercise their rights to access, rectify, oppose, cancel, limit processing or request its portability in accordance with the General Data Protection Regulation (GDPR) of the 27th of April 2016, sending a letter along with a photocopy of their DNI identity document, to CHAVES BILBAO, S.L. C/Bizkargi, 6 Polígono Industrial Sarrikola 48195 Larrabetzu - Bizkaia - Spain, or using the email address info@chavesbao.com.
Read more
