EN 15048 8.8 HDG – SET 4017+4032

(ISO 4017 ZN + ISO 4032 ZN) Non preloaded structural bolting assemblies with CE-certified, hot-dip galvanized finish and quality 8.8

Ref.: 606813

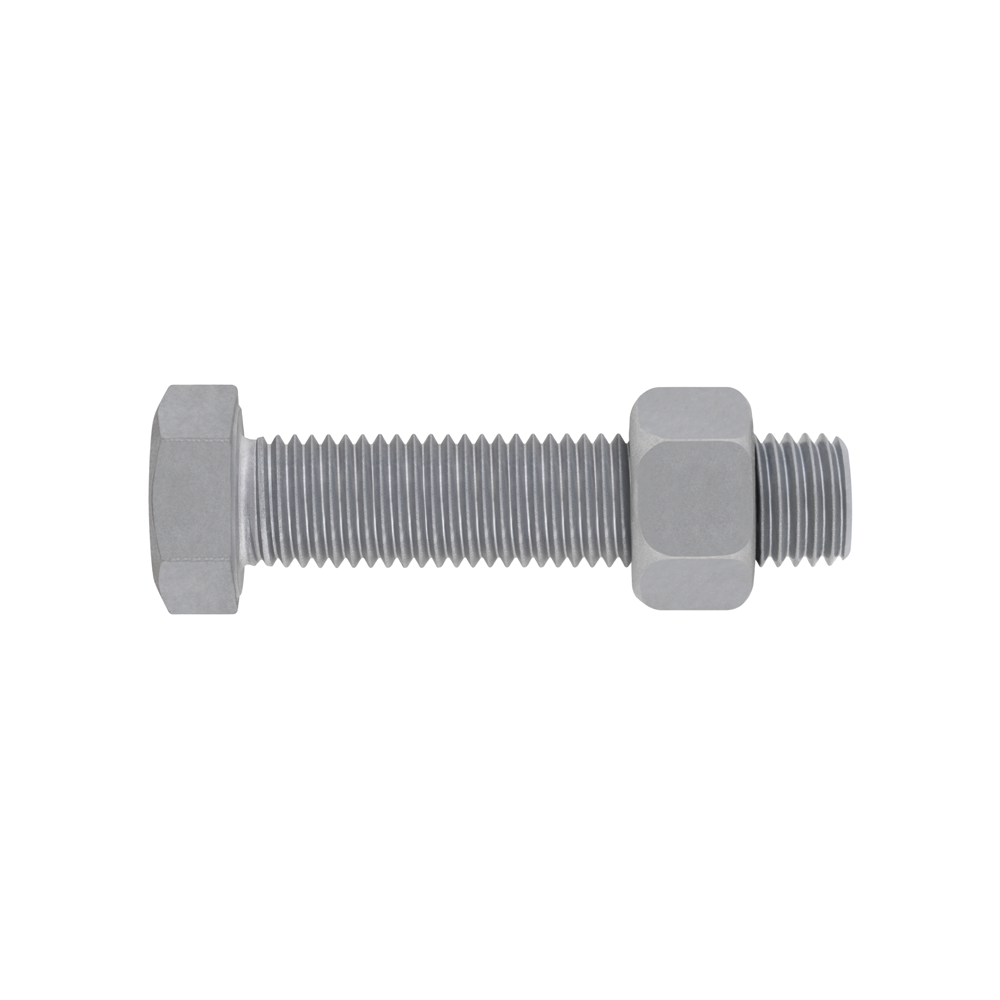

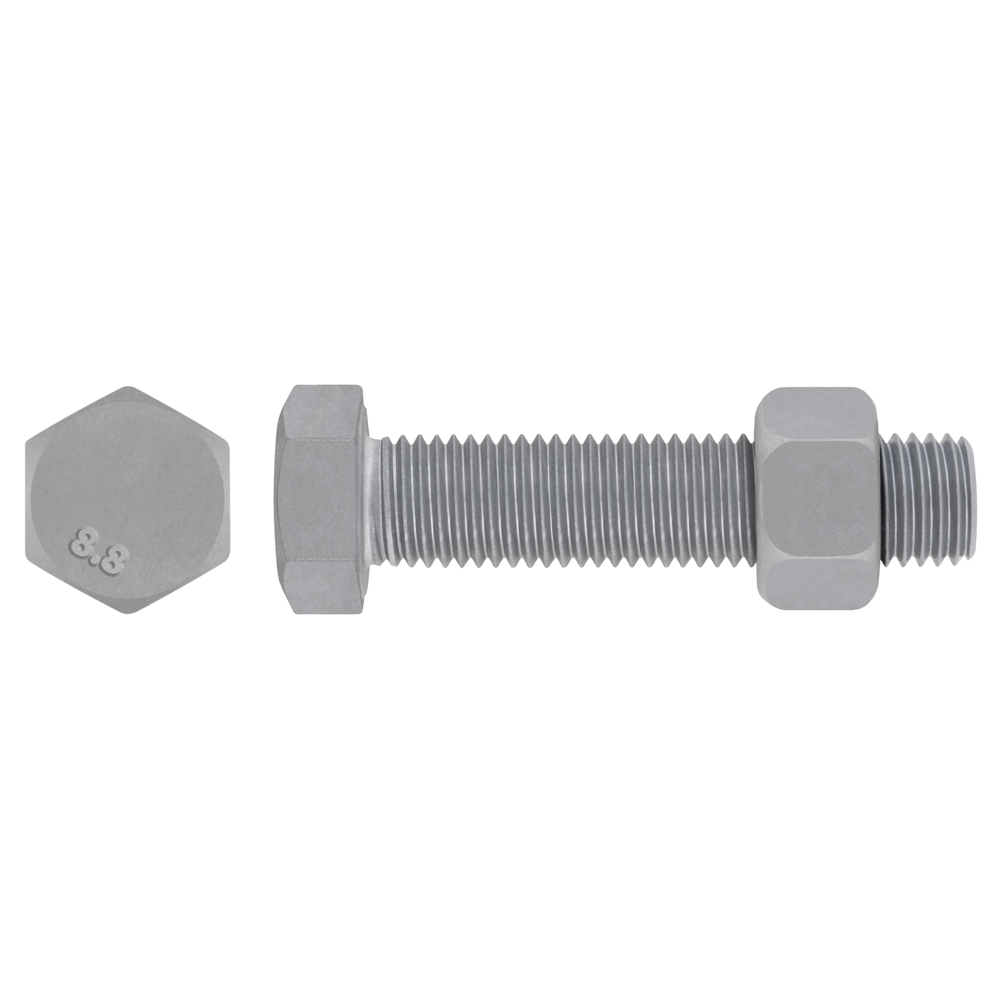

It is a set of structural fasteners for non-preloaded joints with CE marking. It consists of a hexagonal bolt with full thread ISO 4017 and a nut ISO 4032, both manufactured in quality 8.8, oversized and hot-dip galvanised. It is used in shear-tensioned metal structures in the construction sector.

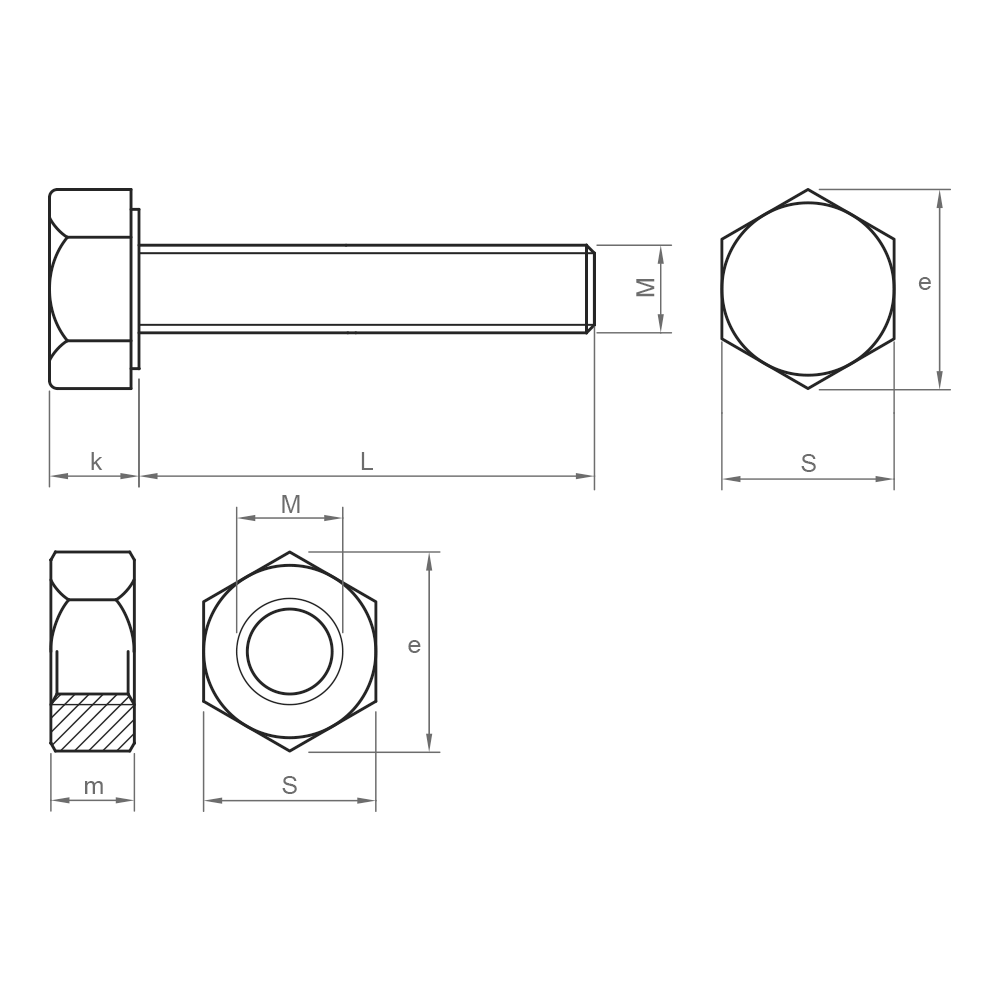

Size	Code	Pcs. Box	KG ESTUCHE	PCS. Master	KG MÁSTER	Uds. Palé	KG PALÉ	EAN Box	Weight (Pc/Kg)
M12 x 20	60681312X020	100	4.7	300	14.1	10.800	507.6	8445222376953	0.047
	M12 L20
M12 x 25	60681312X025	100	5.01	300	15.03	10.800	541.08	8432570046690	0.0501
	M12 L25 k7,5 a5,3 S18
M12 x 30	60681312X030	100	5.37	300	16.11	10.800	579.96	8432570046706	0.0537
	M12 L30 k7,5 a5,3 S18
M12 x 35	60681312X035	100	5.73	300	17.19	10.800	618.84	8432570046713	0.0573
	M12 L35 k7,5 a5,3 S18
M12 x 40	60681312X040	100	6.1	300	18.3	10.800	658.8	8432570046720	0.061
	M12 L40 k7,5 a5,3 S18
M12 x 45	60681312X045	100		300		-		8432570092123	0.0593
	M12 L45
M12 x 50	60681312X050	50	3.4	200	13.6	7.200	489.6	8432570046737	0.068
	M12 L50 k7,5 a5,3 S18
M12 x 55	60681312X055	50	3.605	200	14.42	7.200	519.12	8445222376960	0.0721
	M12 L55
M12 x 60	60681312X060	50	3.71	200	14.84	7.200	534.24	8432570046744	0.0742
	M12 L60 k7,5 a5,3 S18
M12 x 70	60681312X070	50	3.71	150	11.13	5.400	400.68	8432570218004	0.0742
	M12 L70 k7,5 a5,3
M12 x 80	60681312X080	50	3.71	150	11.13	5.400	400.68	8432570218011	0.0742
	M12 L80 k7,5 a5,3
M12 x 90	60681312X090	50	4.865	150	14.595	5.400	525.42	8445222376977	0.0973
	M12 L90
M12 x 100	60681312X100	50	5.225	100	10.45	3.600	376.2	8445222181038	0.1045
	M12 L100
M14 x 30	60681314X030	50	4.095	200	16.38	7.200	589.68	8432570046751	0.0819
	M14 L30 k8,8 a6 S21
M14 x 40	60681314X040	50	4.595	200	18.38	7.200	661.68	8432570046775	0.0919
	M14 L40 k8,8 a6 S21
M14 x 45	60681314X045	50	4.845	150	14.535	5.400	523.26	8432570046782	0.0969
	M14 L45 k8,8 a6 S21
M14 x 50	60681314X050	50	5.045	150	15.135	5.400	544.86	8445222376984	0.1009
	M14 L50
M16 x 30	60681316X030	50	5.645	200	22.58	7.200	812.88	8432570046799	0.1129
	M16 L30 k10 a6 S24
M16 x 35	60681316X035	50	5.975	150	17.925	5.400	645.3	8432570046805	0.1195
	M16 L35 k10 a6 S24
M16 x 40	60681316X040	50	6.345	150	19.035	5.400	685.26	8432570046812	0.1269
	M16 L40 k10 a6 S24
M16 x 45	60681316X045	50	6.655	150	19.965	5.400	718.74	8432570046829	0.1331
	M16 L45 k10 a6 S24
M16 x 50	60681316X050	50	6.95	150	20.85	5.400	750.6	8432570046836	0.139
	M16 L50 k10 a6 S24
M16 x 55	60681316X055	25	3.875	100	15.5	3.600	558	8432570092130	0.155
	M16 L55 k10 a6 S24
M16 x 60	60681316X060	25	3.825	100	15.3	3.600	550.8	8432570046843	0.153
	M16 L60 k10 a6 S24
M16 x 65	60681316X065	25	4.175	100	16.7	3.600	601.2	8432570269921	0.167
	M16 L65 k10 a6
M16 x 70	60681316X070	25	4.15	100	16.6	3.600	597.6	8432570046850	0.166
	M16 L70 k10 a6 S24
M16 x 80	60681316X080	25	4.5	75	13.5	2.700	486	8432570046867	0.18
	M16 L80 k10 a6 S24
M16 x 90	60681316X090	25	4.78	75	14.34	2.700	516.24	8445222377004	0.1912
	M16 L90
M16 x 100	60681316X100	25		75		-		8445222381490	0.222
	M16 L100
M16 x 160	60681318X040	30		90		-		8432570046874	0.169
	M16 L160
M18 x 50	60681318X050	30		90		-		8432570046881	0.185
	M18 L50
M18 x 60	60681318X060	30		90		-		8432570093663	0.203
	M18 L60
M20 x 40	60681320X040	25	5.6	75	16.8	2.700	604.8	8432570046898	0.224
	M20 L40 k12,5 a7,5 S30
M20 x 45	60681320X045	25		75		-		8432570269938	0.2273
	M20 L45
M20 x 50	60681320X050	25	6.125	75	18.375	2.700	661.5	8432570046904	0.245
	M20 L50 k12,5 a7,5 S30
M20 x 55	60681320X055	25		75		-		8432570092147	0.3
	M20 L55
M20 x 60	60681320X060	25	6.625	75	19.875	2.700	715.5	8432570046911	0.265
	M20 L60 k12,5 a7,5 S30
M20 x 65	60681320X065	25	7.39	75	22.17	2.700	798.12	8432570092154	0.2956
	M20 L65 k12,5 a7,5 S30
M20 x 70	60681320X070	25	7.15	50	14.3	1.800	514.8	8432570046928	0.286
	M20 L70 k12,5 a7,5 S30
M20 x 80	60681320X080	25	7.675	50	15.35	1.800	552.6	8432570046935	0.307
	M20 L80 k12,5 a7,5 S30
M20 x 90	60681320X090	25	8.175	50	16.35	1.800	588.6	8432570046942	0.327
	M20 L90 k12,5 a7,5 S30
M20 x 100	60681320X100	25		50		-		8445222148376	0.372
	M20 L100
M24 x 50	60681324X050	15	6.24	45	18.72	1.620	673.92	8432570218028	0.416
	M24 L50 k15 a9
M24 x 60	60681324X060	15	6.1125	45	18.3375	1.620	660.15	8432570046959	0.4075
	M24 L60 k15 a9 S36
M24 x 70	60681324X070	20	8.92	40	17.84	1.440	642.24	8432570046966	0.446
	M24 L70 k15 a9 S36
M24 x 80	60681324X080	20	9.5	40	19	1.440	684	8432570046973	0.475
	M24 L80 k15 a9 S36
M24 x 90	60681324X090	10	5.05	30	15.15	1.080	545.4	8432570046980	0.505
	M24 L90 k15 a9 S36
M24 x 100	60681324X100	10	5.05	30	15.15	1.080	545.4	8432570046997	0.505
	M24 L100 k15 a9 S36
M27 x 60	60681327X060	10	5.815	30	17.445	1.080	628.02	8445222006485	0.5815
	M27 L60
M27 x 70	60681327X070	10	6.115	30	18.345	1.080	660.42	8445222377042	0.6115
	M27 L70
M27 x 80	60681327X080	10	6.515	30	19.545	1.080	703.62	8445222377059	0.6515
	M27 L80
M27 x 90	60681327X090	8	5.532	16	11.064	576	398.304	8445222019706	0.6915
	M27 L90
M27 x 100	60681327X100	8	5.852	16	11.704	576	421.344	8445222377066	0.7315
	M27 L100
M30 x 60	60681330X060	8		16		-		8432570093670	0.766
	M30 L60
M30 x 70	60681330X070	8		16		-		8432570202034	0.813
	M30 L70
M30 x 80	60681330X080	8		16		-		8432570202058	0.863
	M30 L80
M30 x 90	60681330X090	8		16		-		8432570202065	0.913
	M30 L90
M30 x 100	60681330X100	8		16		-		8432570202072	0.953
	M30 L100
M30 x 120	60681330X120	8	8.4184	16	16.8368	576	606.1248	8445222161153	1.0523
	M30 L120
M36 x 90	60681336X090	6	8.76	12	17.52	432	630.72	8445222377073	1.46
	M36 L90
M36 x 100	60681336X100	6	9.24	12	18.48	432	665.28	8445222377080	1.54
	M36 L100
M36 x 110	60681336X110	5	8	10	16	360	576	8445222377097	1.6
	M36 L110
M36 x 120	60681336X120	5	8.3	10	16.6	360	597.6	8445222377103	1.66
	M36 L120
